Build a professional protective frame for your Raspberry Pi 4 with integrated 7" Touch Display 2 mounting. This horizontal mounting variant provides an optimal viewing angle without top-side cutout.
Here we offer you the STL files for 3D-printed housing parts, specifically developed to securely hold the Raspberry Pi 4 and 7" Touch Display 2 while protecting the components from dust and physical damage.
Print settings
Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.
Layer thickness: 0.2mm
Infill: 25%
Wall lines: 5
I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.
Material list, Assembly instructions & more
You can find additional info at the following GitHub repository.

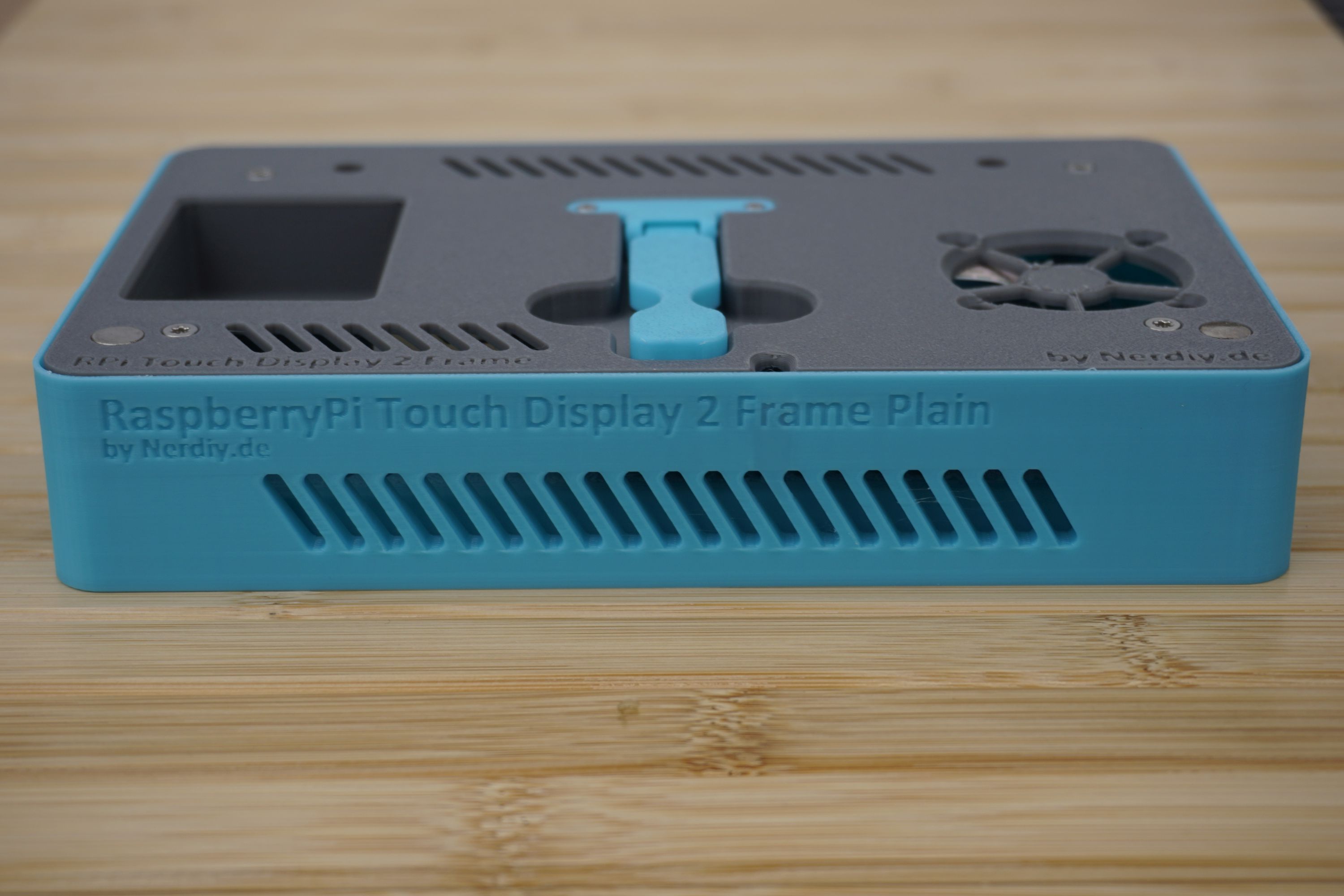

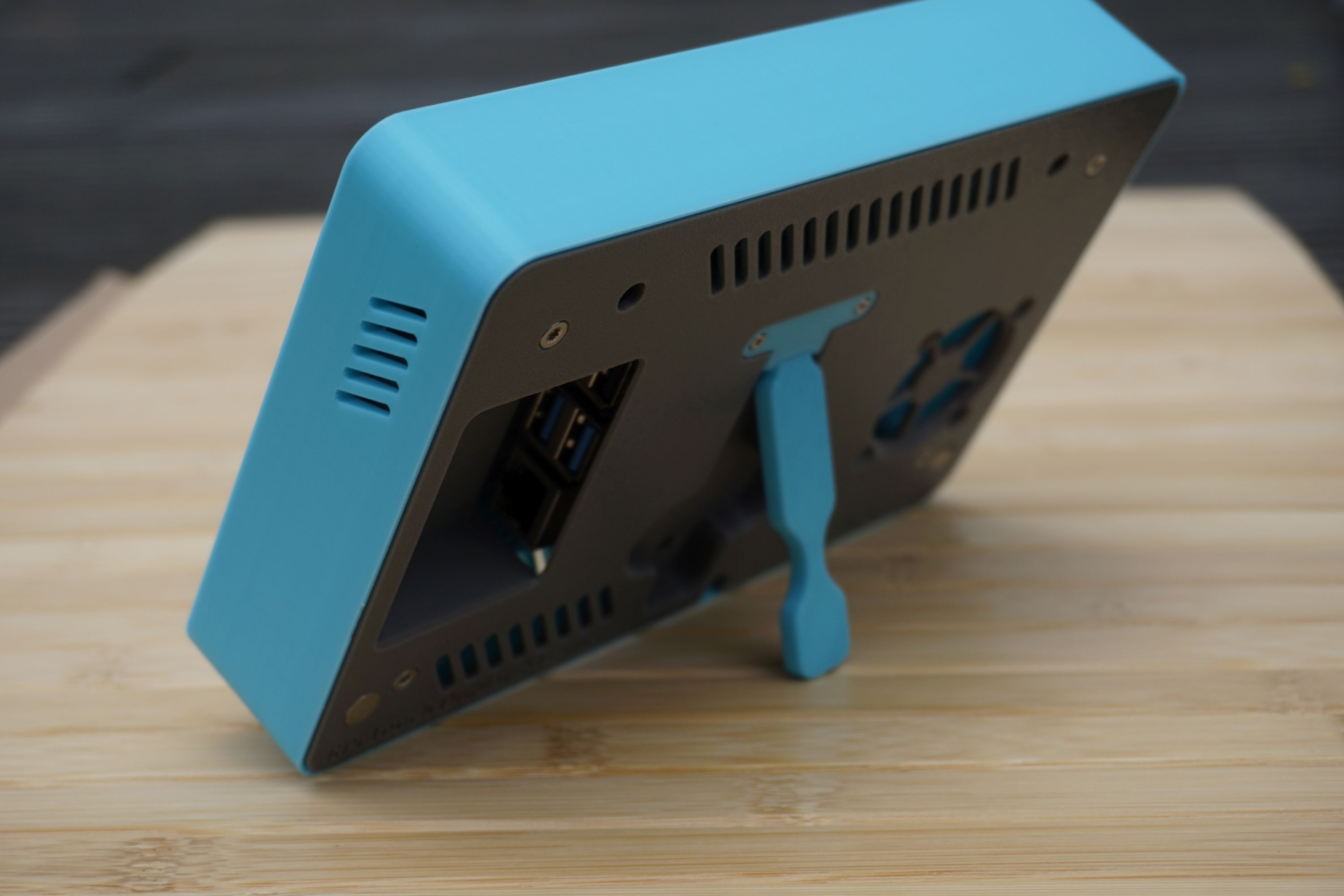

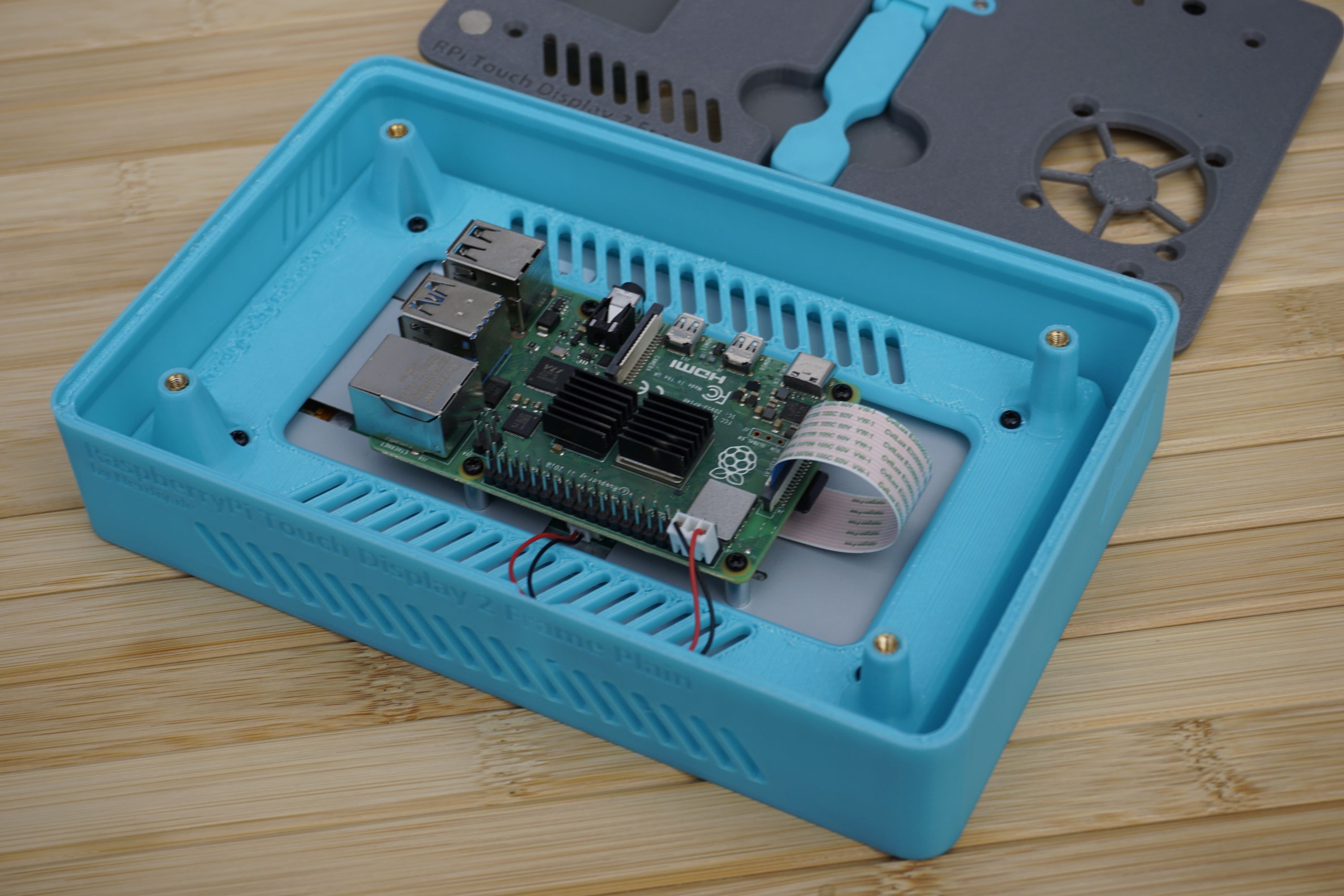

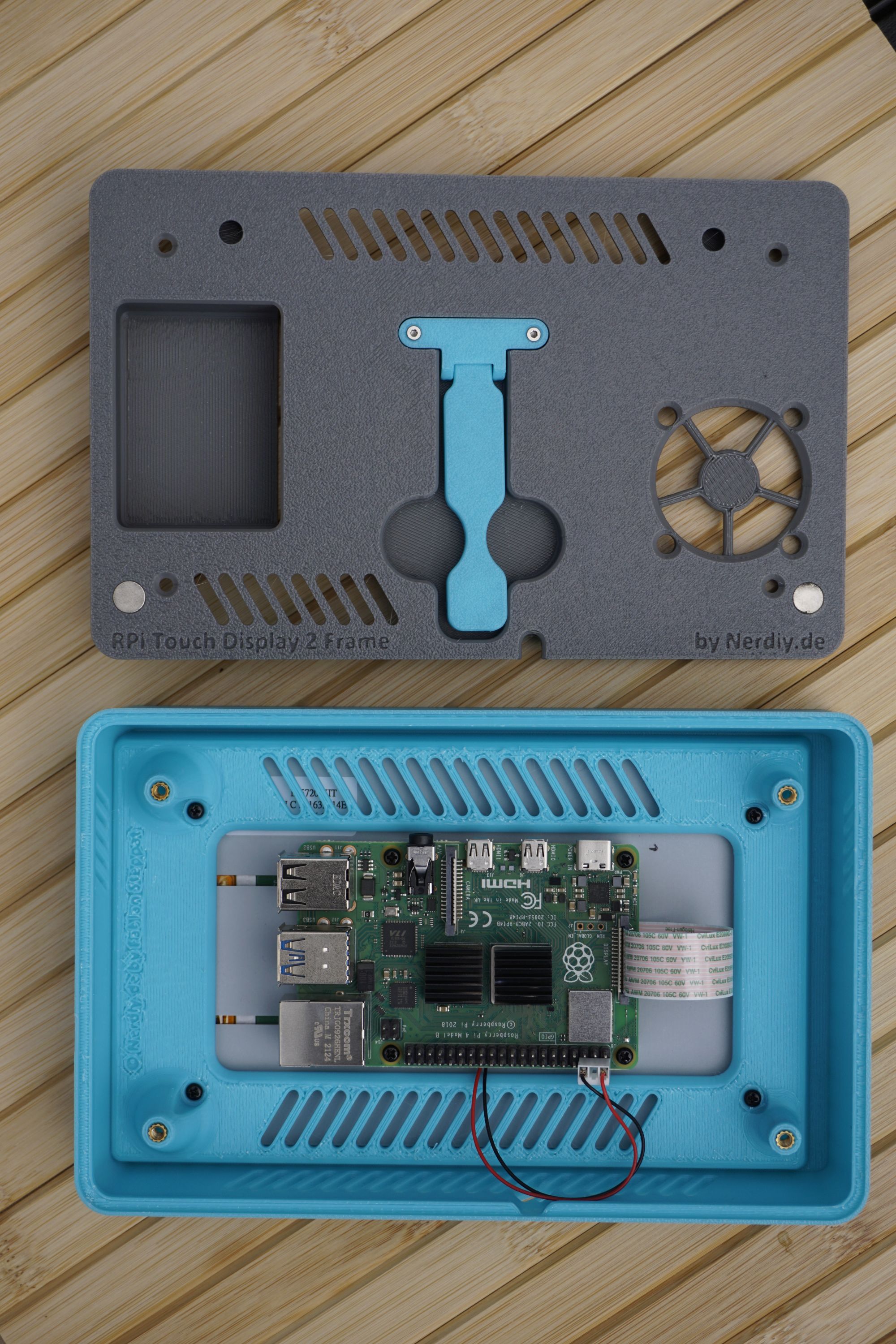

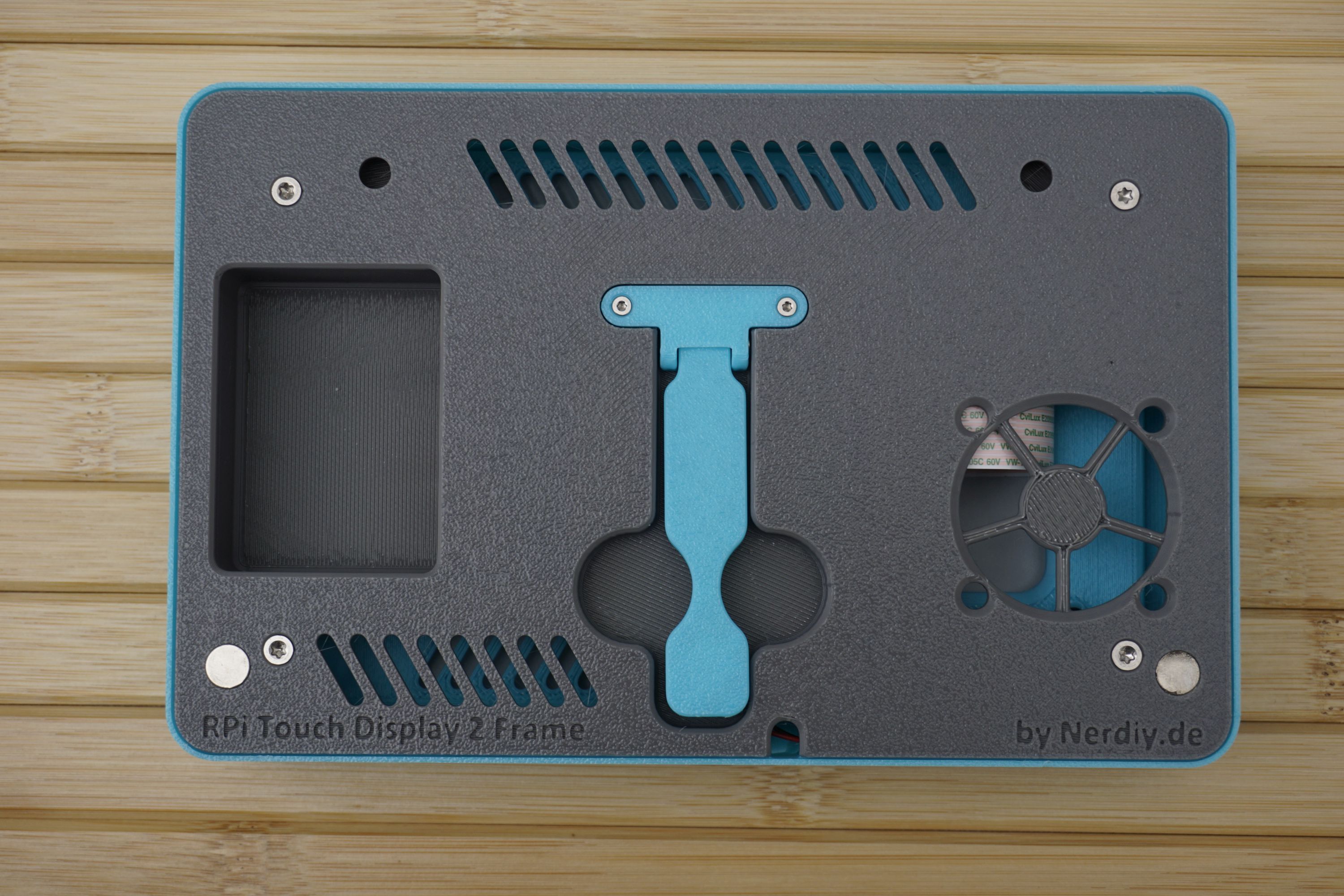

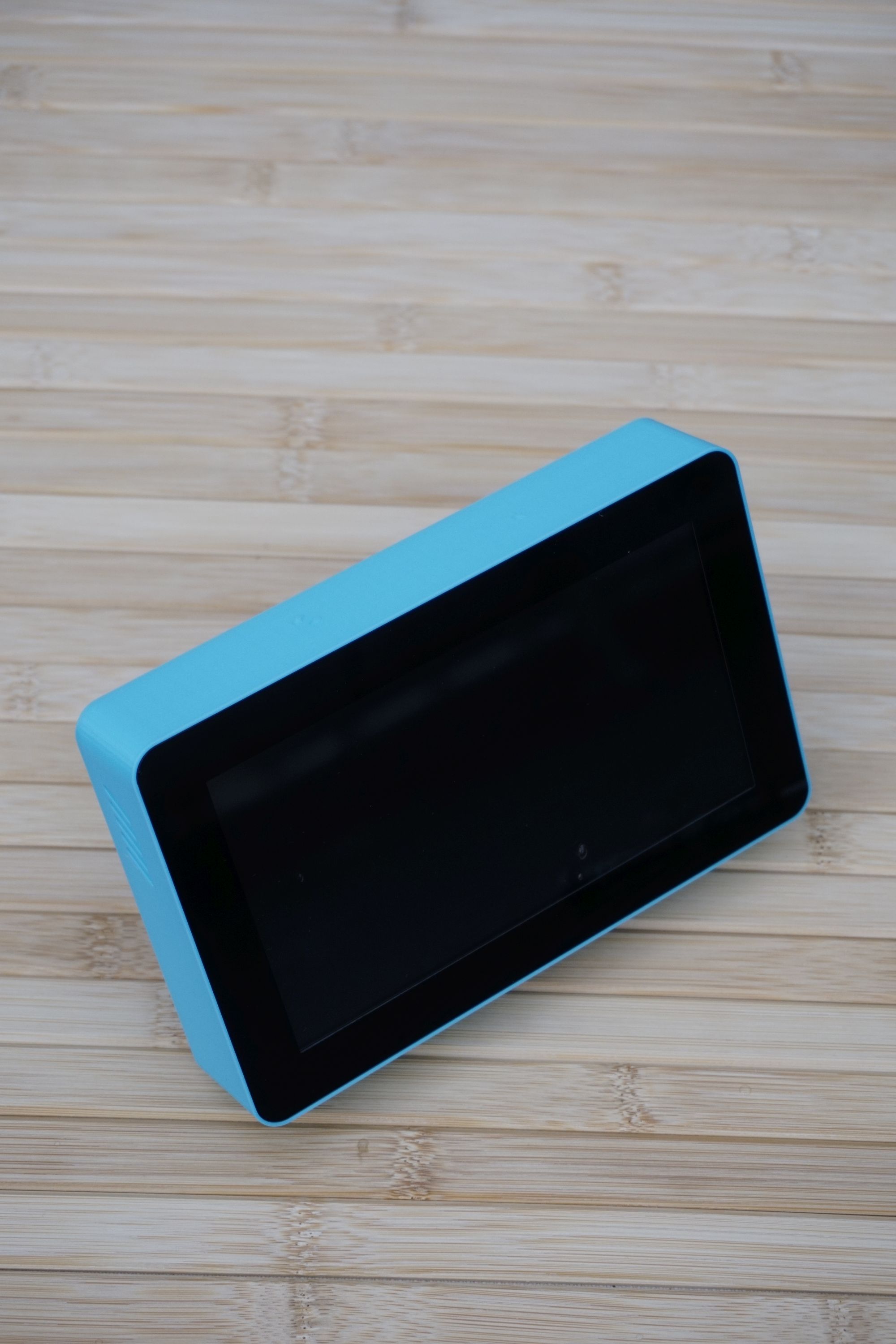

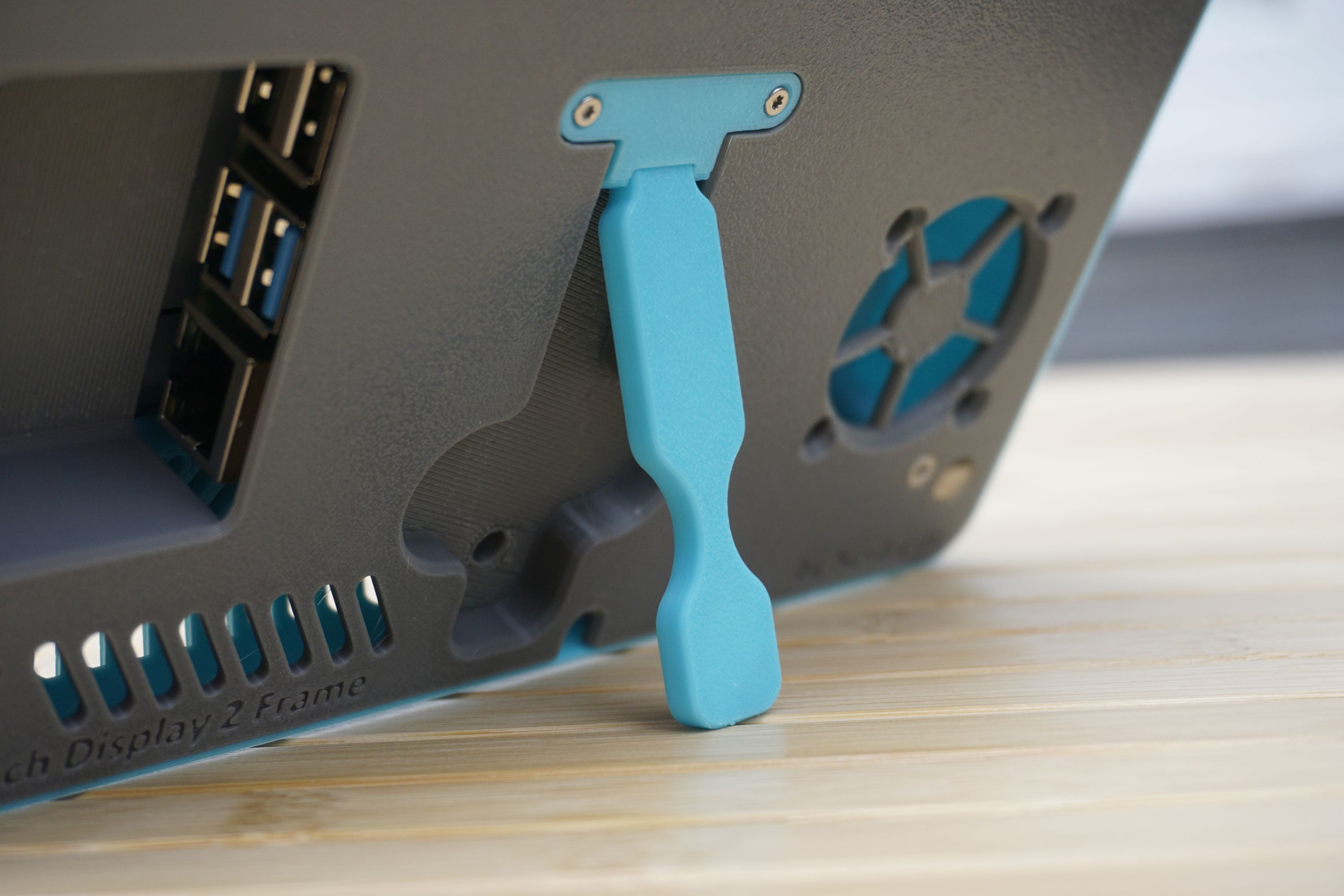

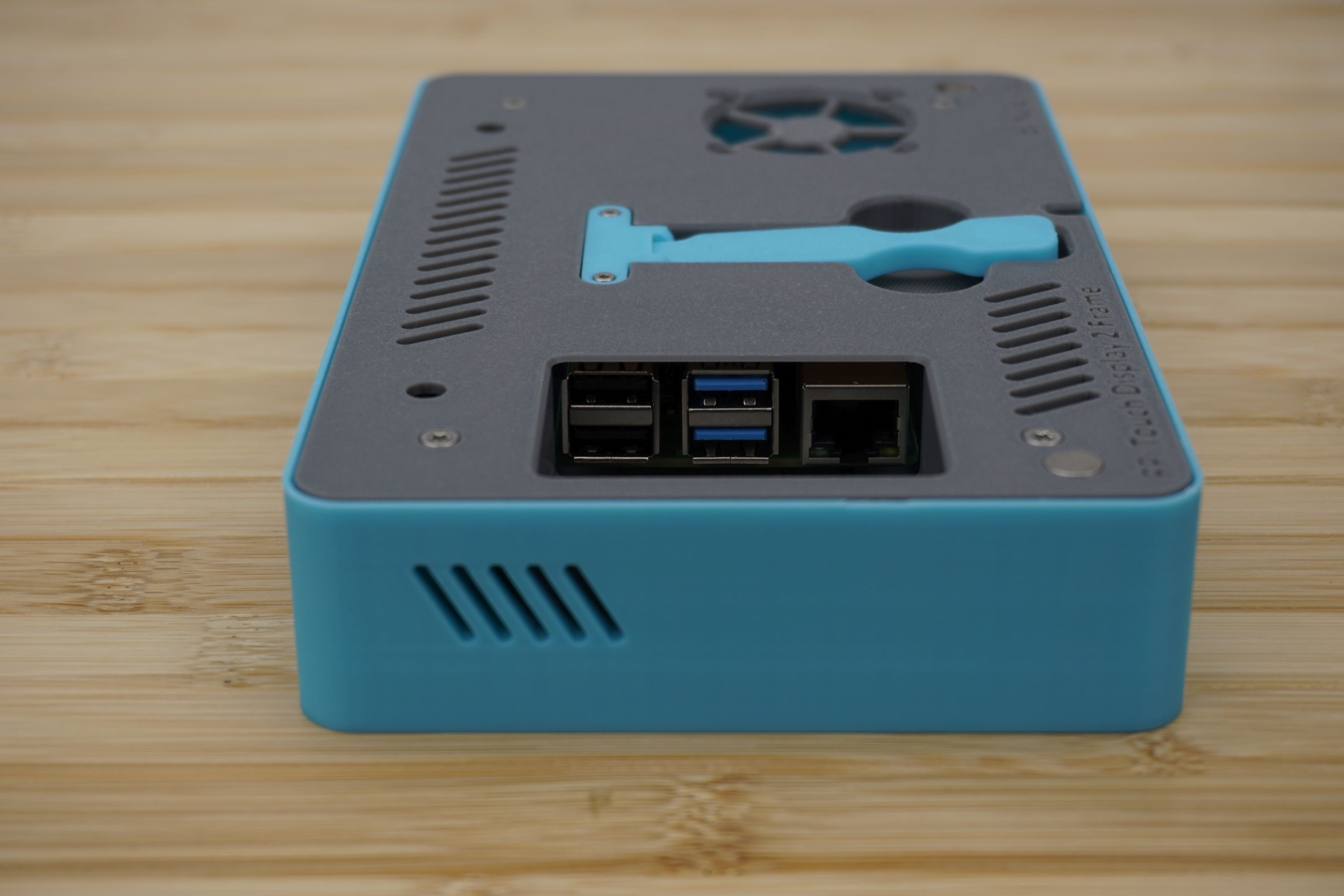

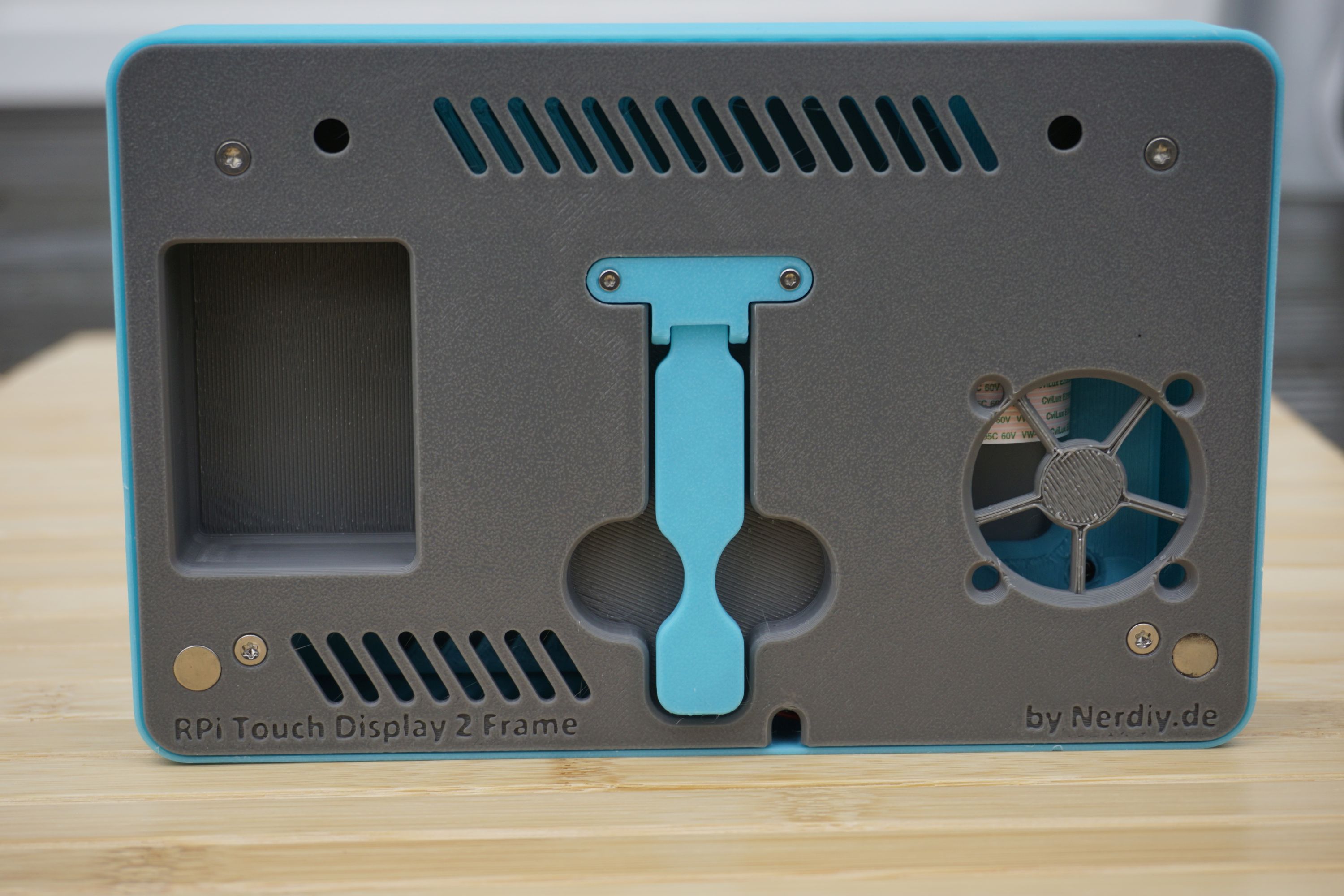

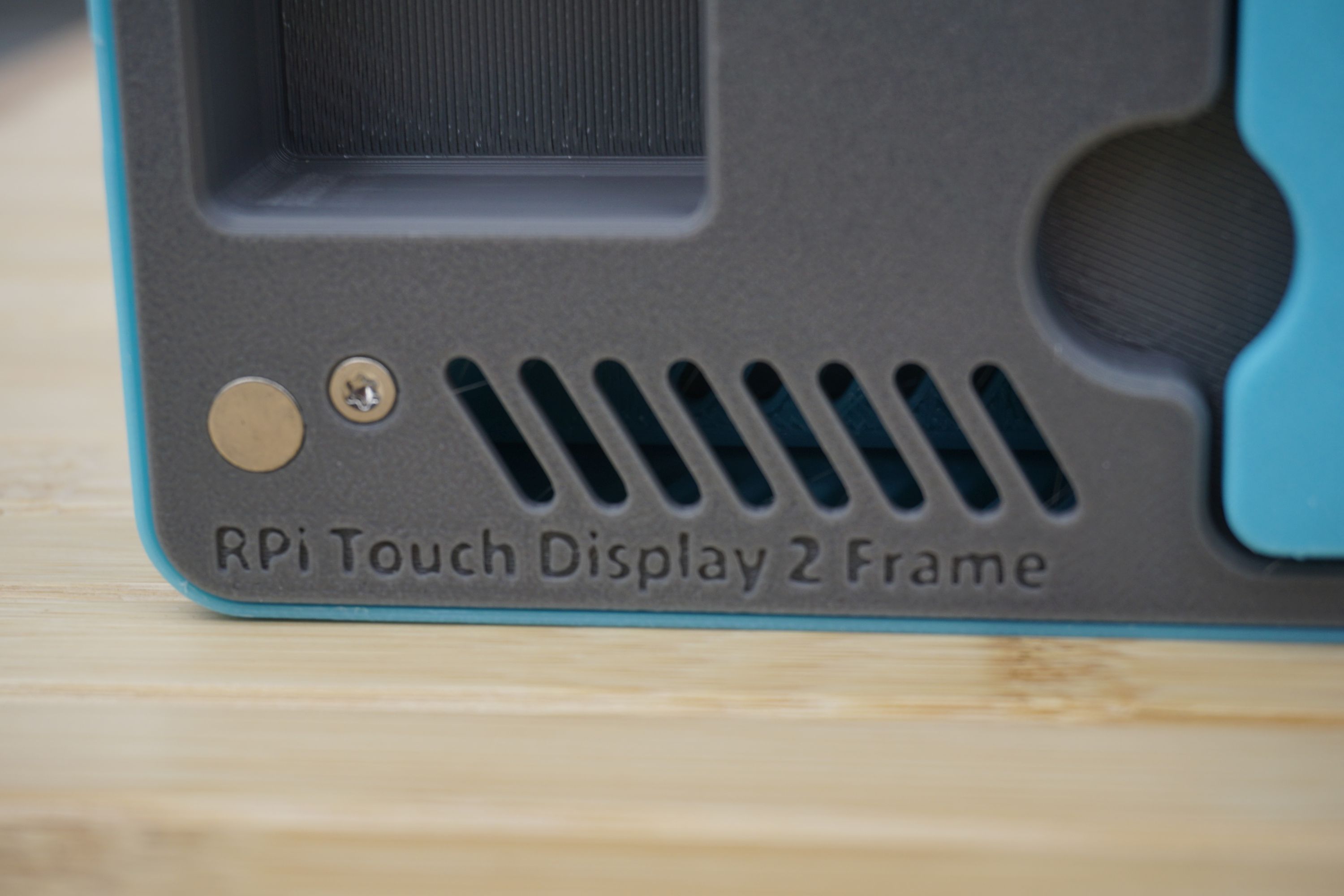

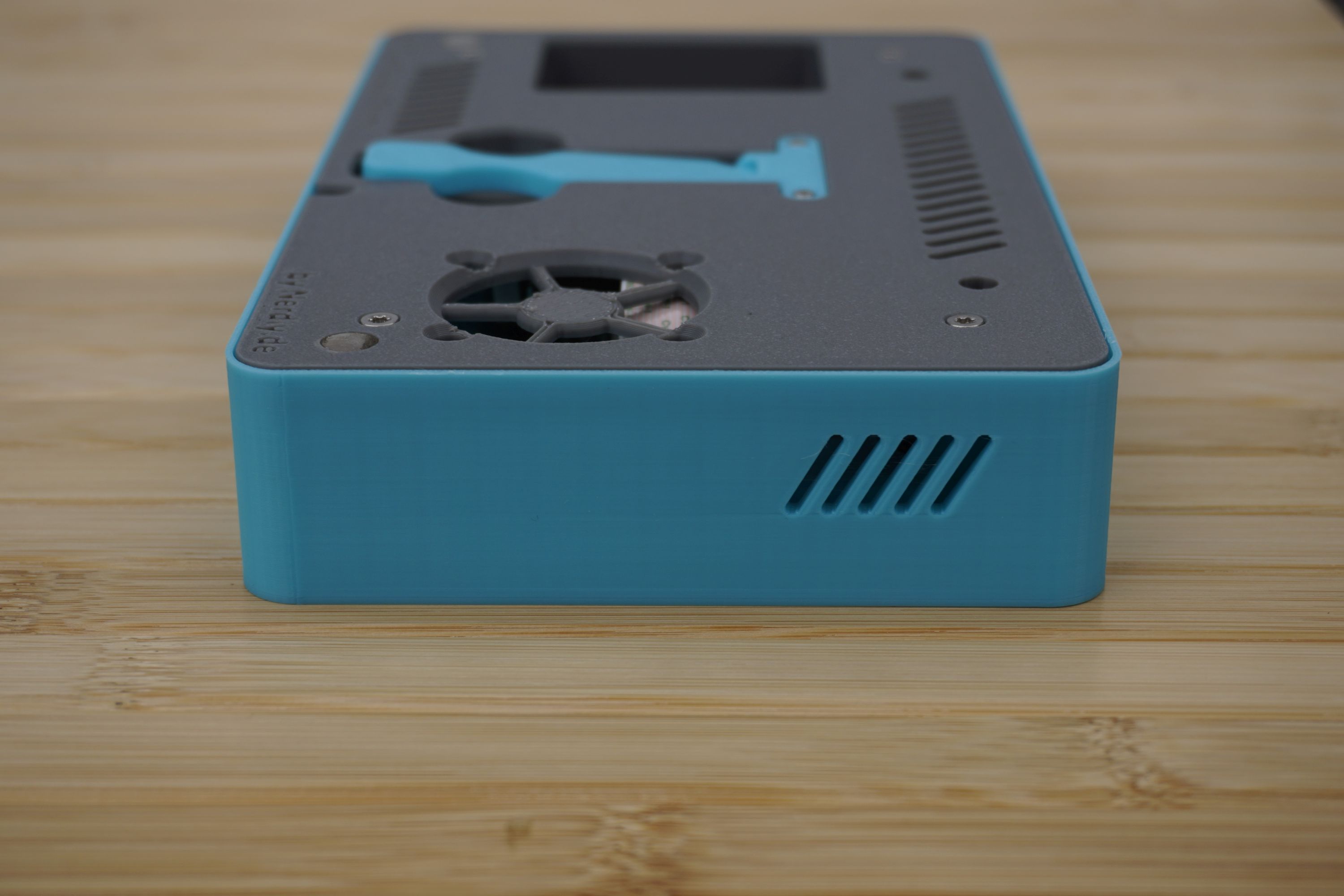

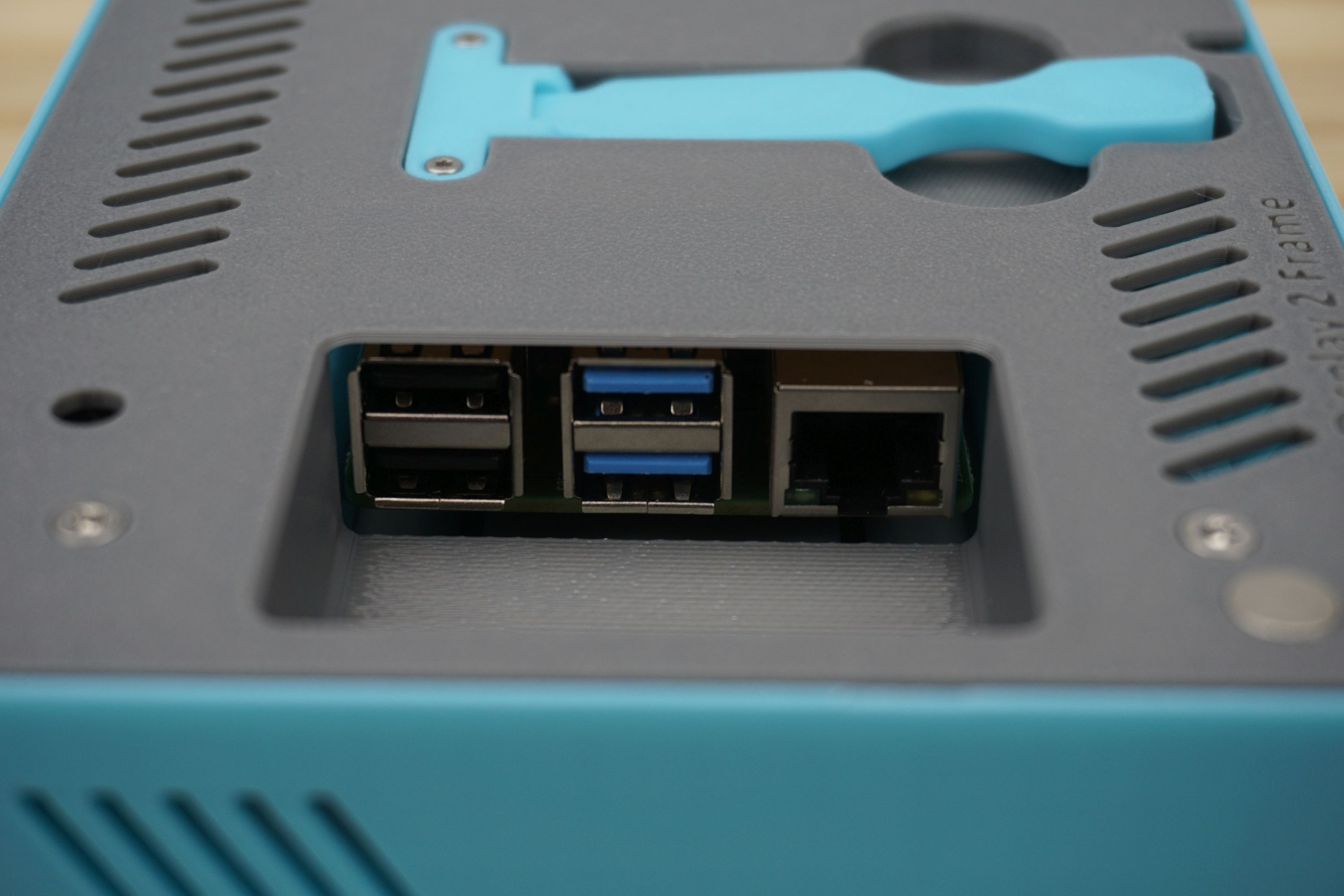

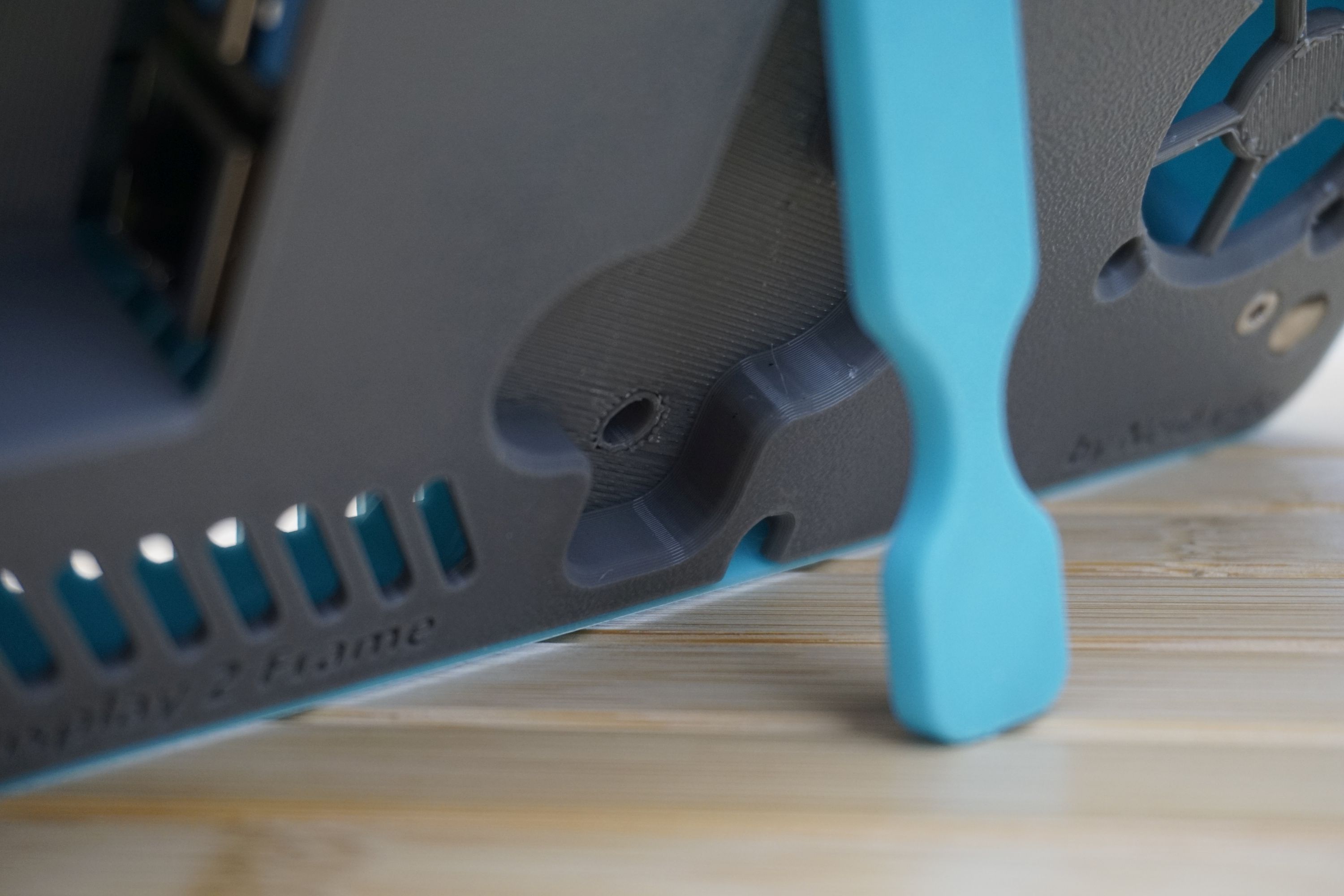

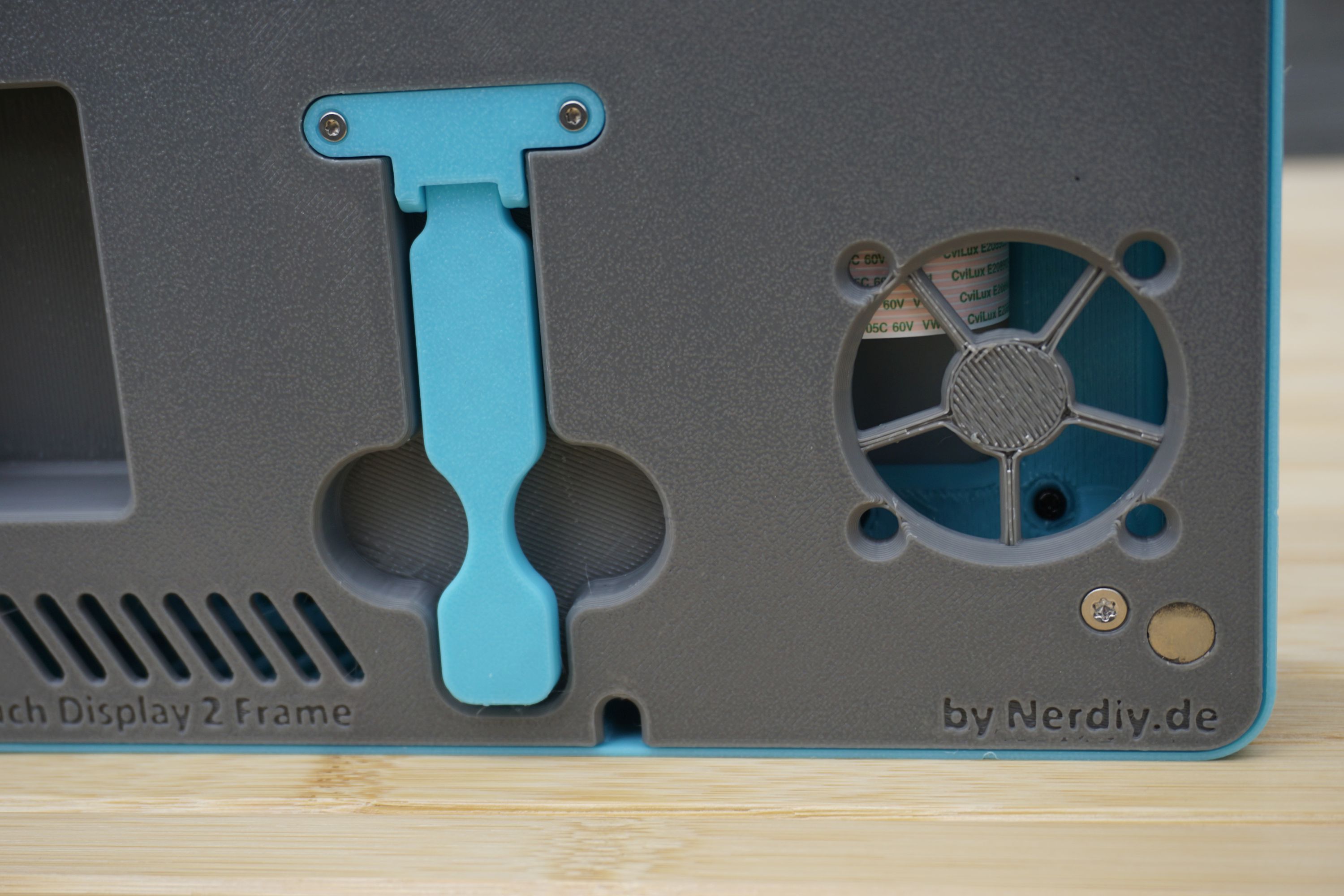

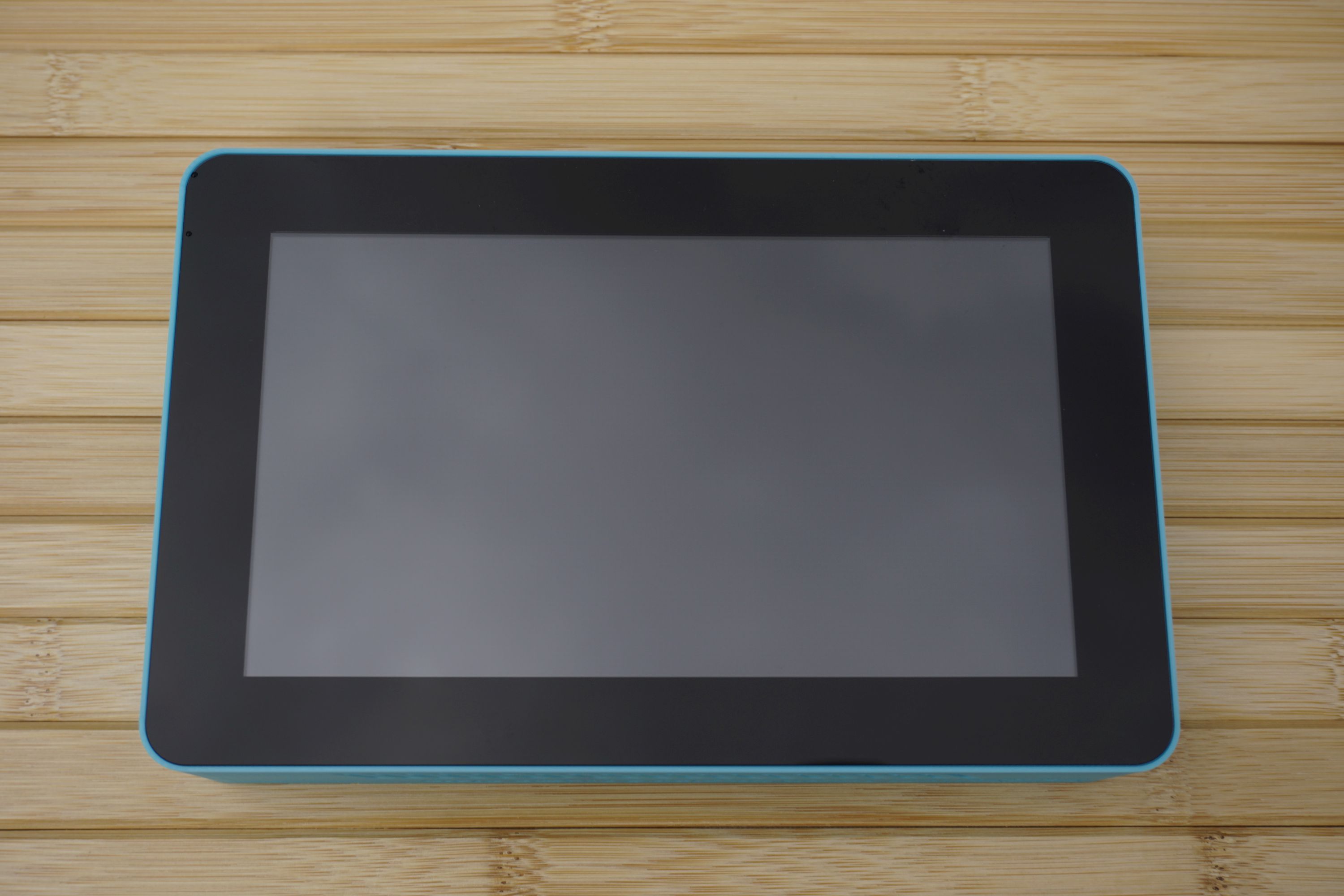

Additional Pictures
