NMS-GnK: Alternative parts for MS-GnK UPDATED V1.2

UPDATES:

01/06/2026

• Updated tolerances on Upper Front, Rear, Top Rail, and Foregrip, alongside more space for the ESC.

23/03/2026

• Updated to match latest V1.2

• Rail Top Full changed to accomodate changes made in MS-GnK V1.2

11/08/2025

• Barrel retention method changed to a bayonet type fit, which is much friendlier on printing tolerances compared to a thread

• Foregrip changed to be longer and more comfortable in the hand

19/07/2025

• Added locating nubs to Upper Front component, eliminating the need of filament pins to keep aligned

• Top rail section moved above the magwell

23/05/2025

• Updated to match latest V1.1

• Upper Front changed to accomodate toolless access to Flywheel Cage

• Rail Top Full changed to accomodate toolless takedown and Tournament Lock

16/04/2025

• Another grip option! Since the AR grip will not be able to hold a battery due to nowhere to route cables into the grip, I've made it significantly shorter but still have storage on the inside using the Battery Lid

• Redesigned NMS Stock Main.stl to have more space inside again, can now fit 2 GnB 3s 1500mah Airsoft lipos in series for my 6s NMS-GnK version

18/02/2025

• New grip option! This is a very long grip, requiring 1x 5mm OD x 4mm H M3 heat insert, designed to fit a 4s 1300mah battery, with options to fit on either the AEG or AR receiver mounting (note that only the AEG receiver has a hole able to fit power leads through it

• Redesigned stock to have more space inside

06/02/2025

• Added sling points to stock main

28/01/2025

• Published

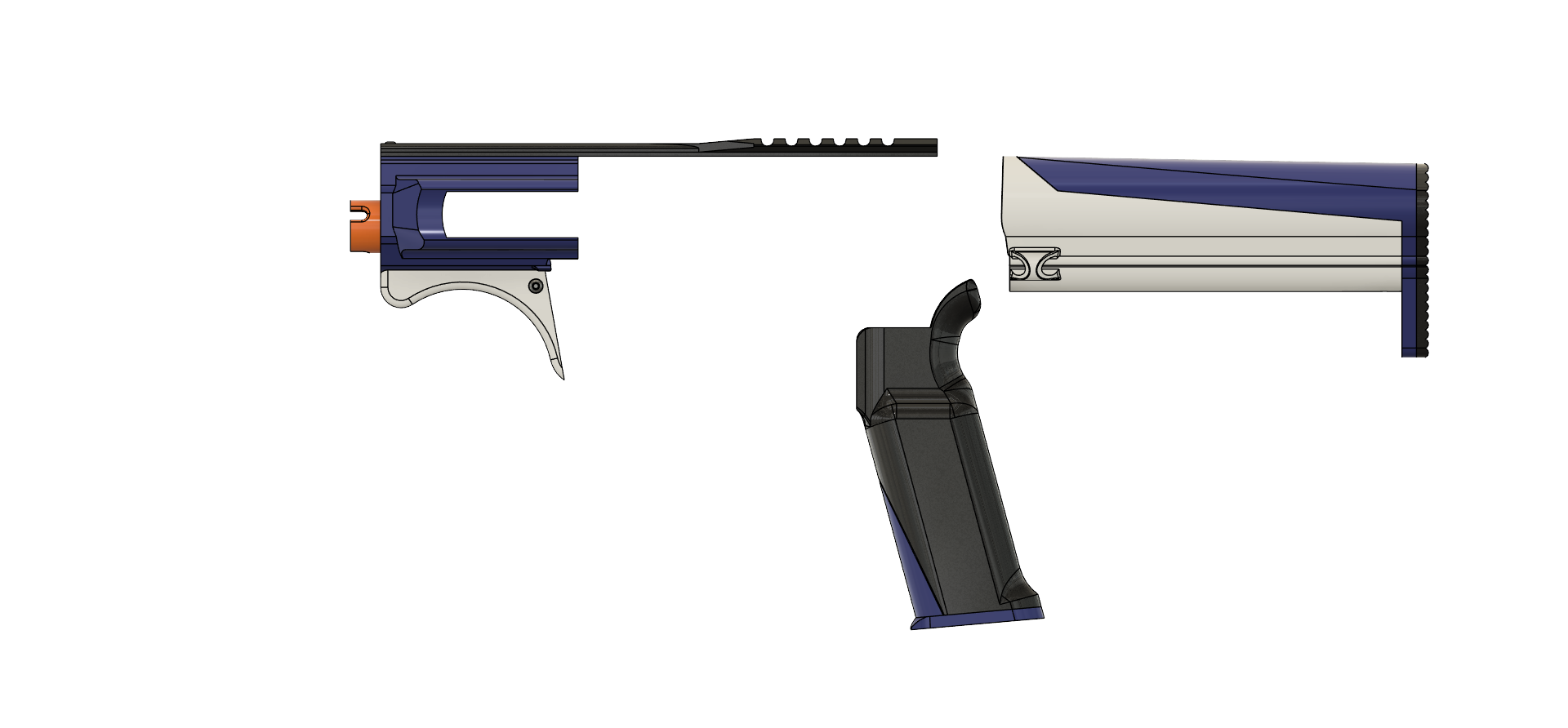

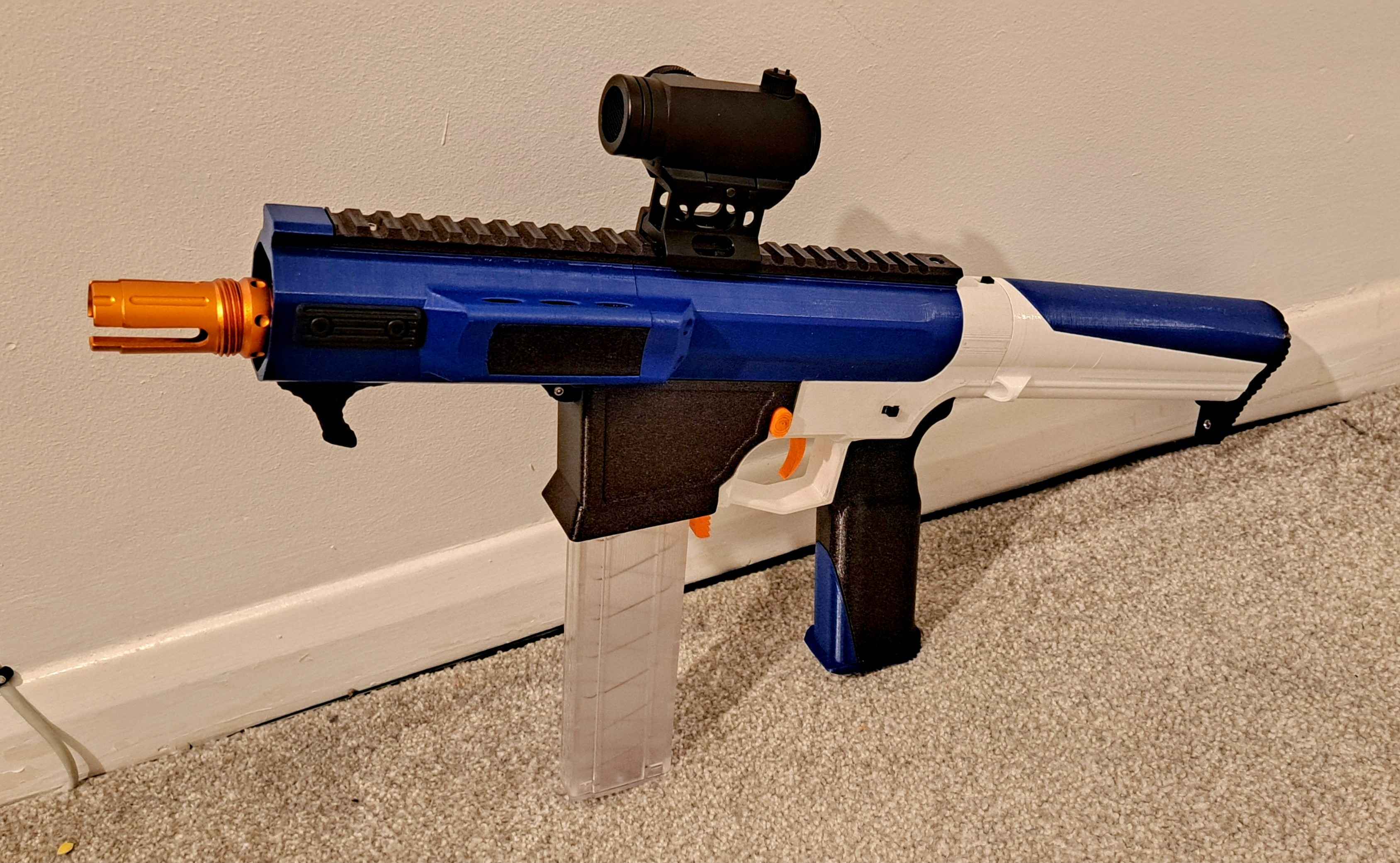

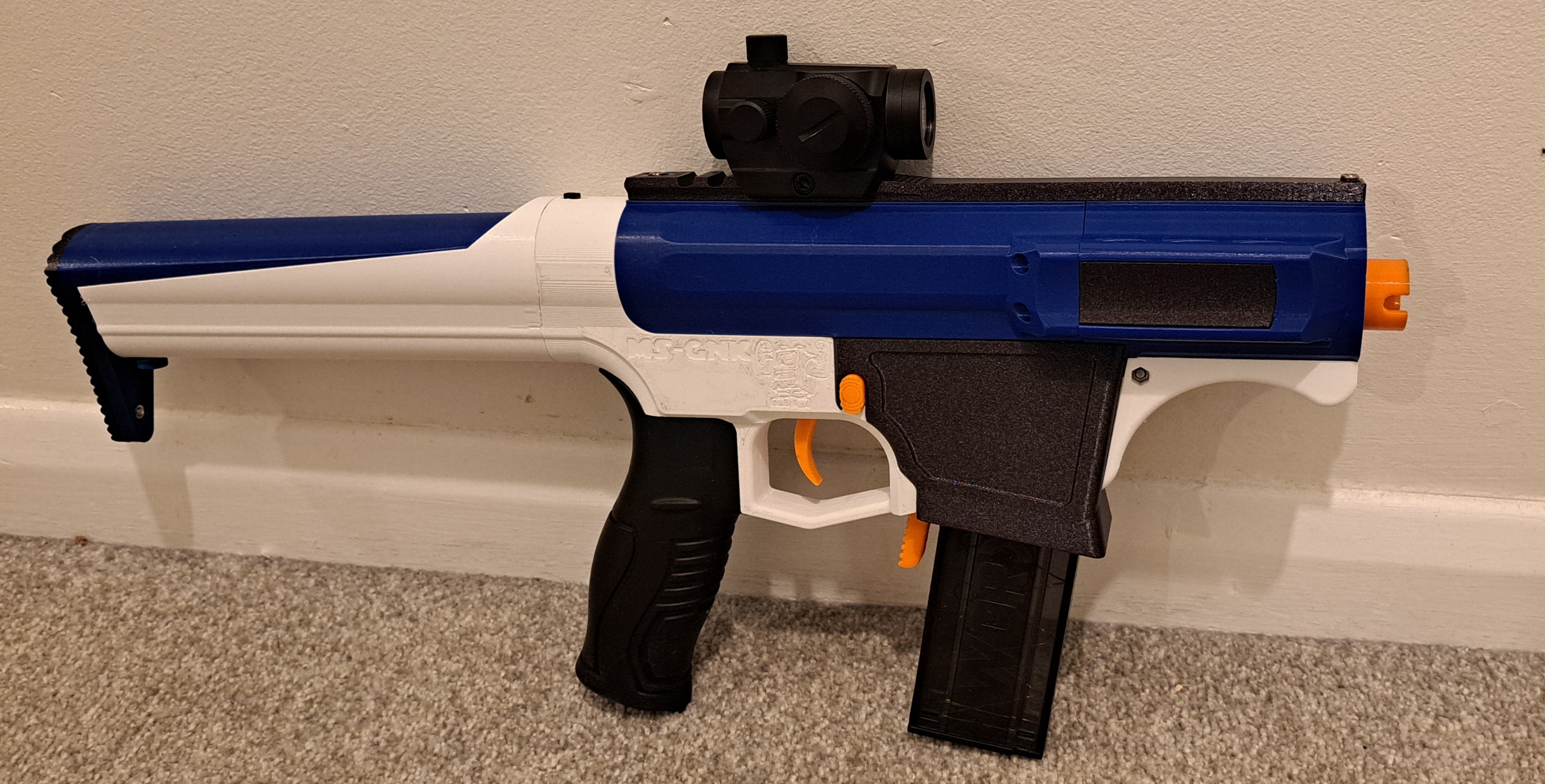

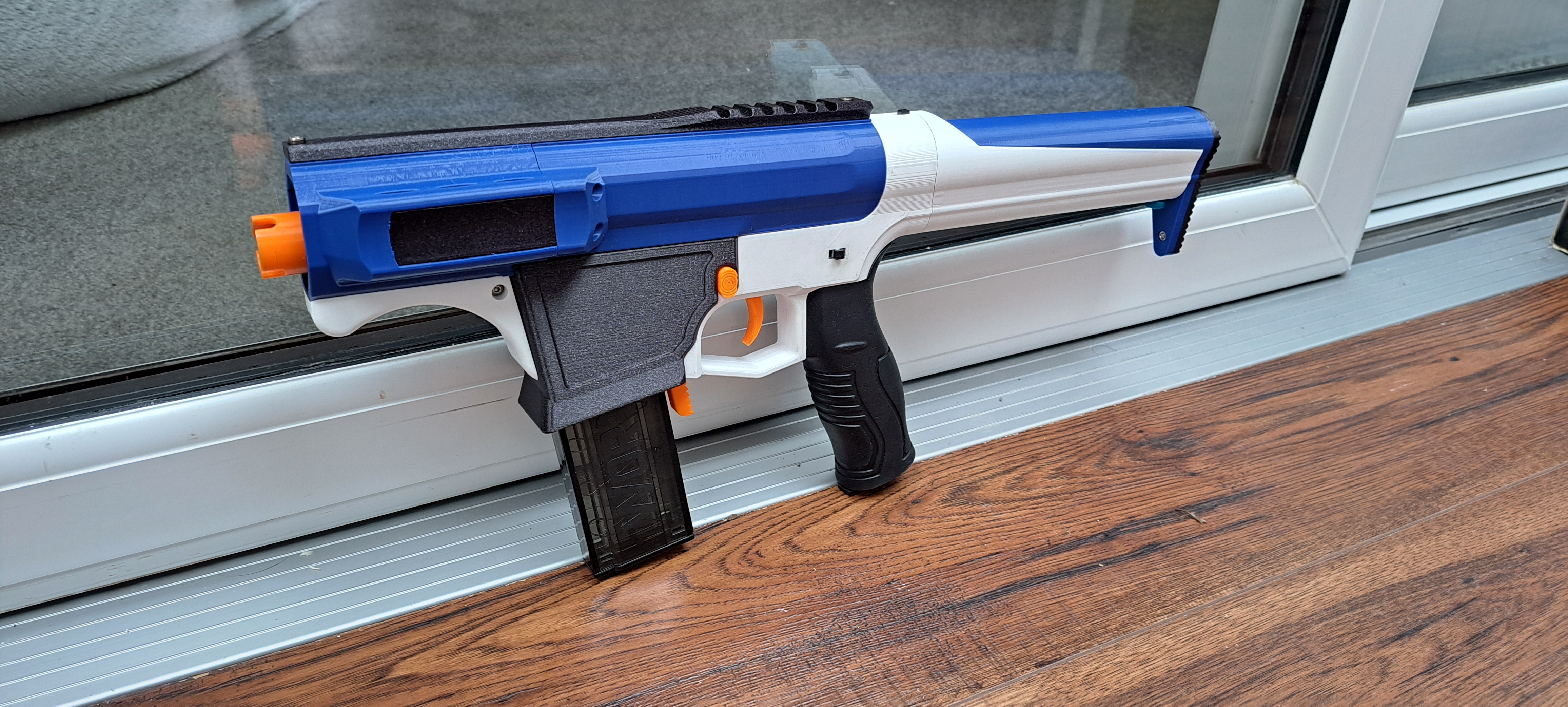

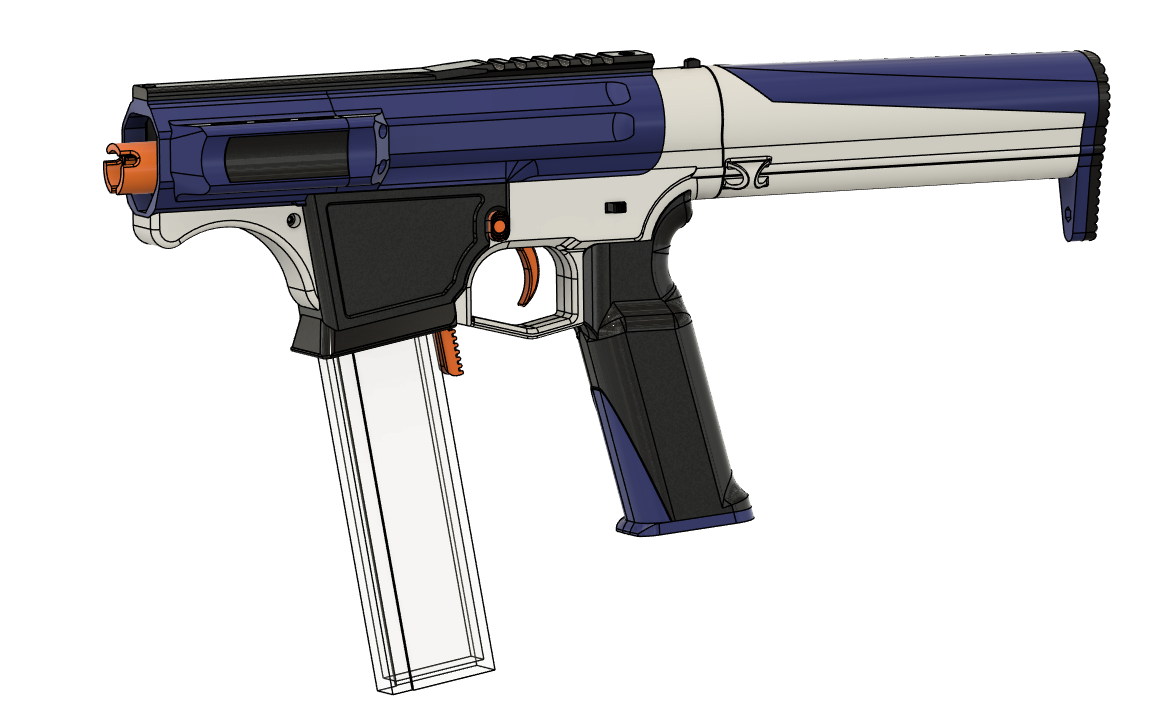

This is NMS-GnK, quite simply its alternative parts for MS-GnK to give it a less aggressive silhouette, for those who do want a fresh gnk but don't want a milsim appearance!

This is fully interchangeable with stock MS-GnK parts, requiring no changes to electronics or firmware, making this a fairly simple conversion, only a few added pieces of hardware.

The stock utilises an AEG attachment point, similar to the ones used in Airsoft, with a single M5 bolt running through to the M5 nut thats included on the original MS-GnK. I can comfortably fit in a GnB 3s 1700mah 60C LiHV battery, utilising the wire channel at the bottom of the stock.

Most of the hardware is what is included in MS-GnK and whichever attachments you used for it, but the extra pieces of hardware are as follows:

• 2x M2x8mm Bolts (For stock buttplate)

• 1x M3x15mm Bolts (For foregrip + upper shroud mounting)

• 1x M5x15mm Bolts (For stock to receiver mounting)

• 1x 5mm OD x 4mm H M3 brass heat insert

• 1x M3 Thumbscrew (For stock and/or grip)

• 3x M3 Hex Nuts (For stock)

No further modifications to MS-GnK are required. You will still need to supply your own grip, however there are many 3d printed and aftermarket options out there.

This project is licensed under the terms of the Creative Commons Non-Commercial Attribution Share Alike 4.0 license, which means you can print it, remix it, share it, and if you do and give myself credit. You cannot sell this without permission from myself.

For further questions and support, please ask in my discord (Link in printables bio via Instagram).
