E27 bulb socket stand
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
Designed this holder for common E27 bulb holder that can be bought in hardware stores.
Usefull for projects like lamps, litophanes, etc.
Note:
You have to know what you are doing and in some countries have to have authorization to work with 220V/110V electrical wiring.

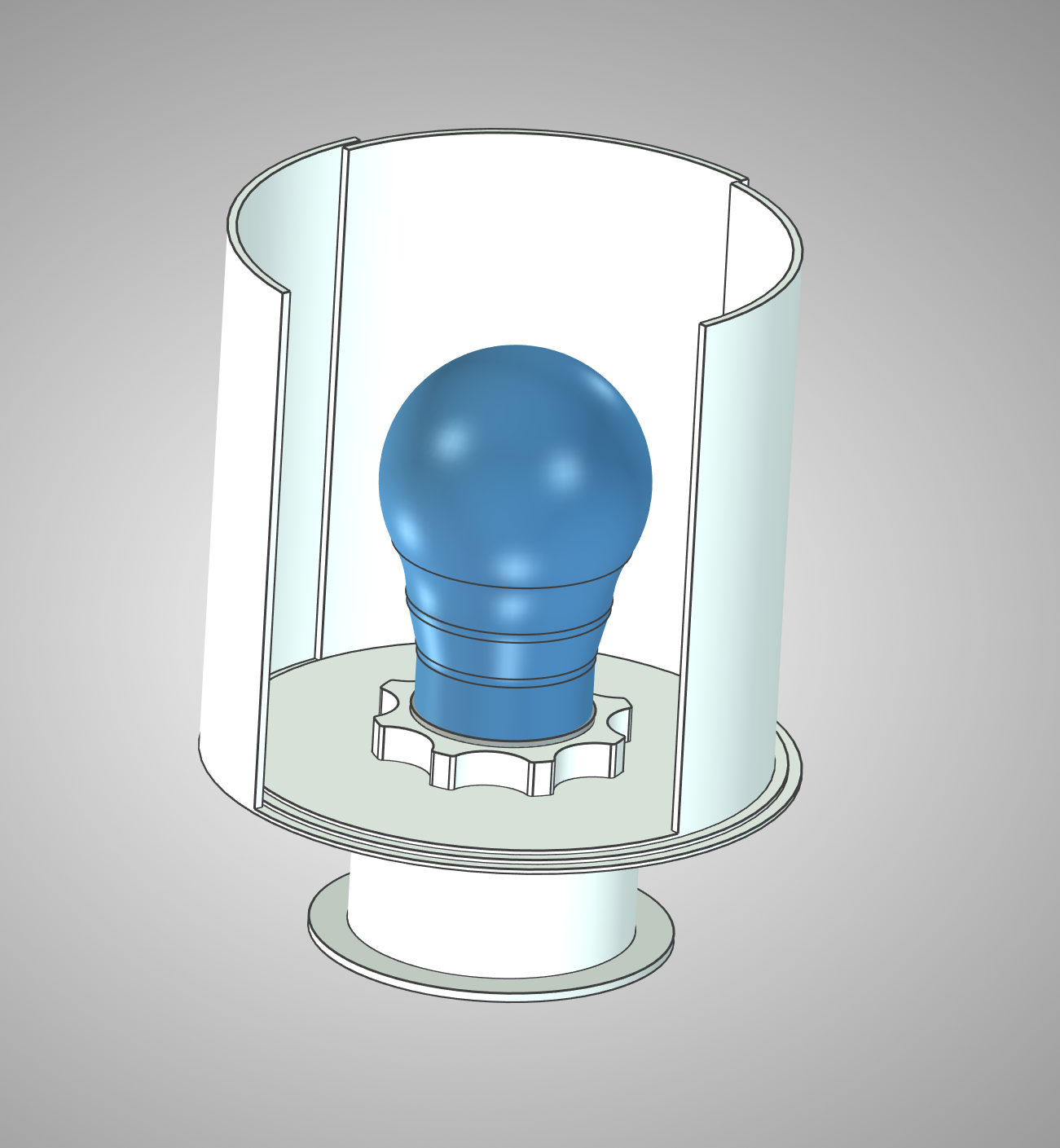

There is also a reflector set, that will allow you to reflect majority of the light to certain direction.
You will also need:
1x E27 holder from the hardware shop (see assembly video below)
1x cable to the wall socket
4x M3 16mm screws (3 of them can be bit longer)
4x M3 nuts
My print settings:
- printer: Prusa MK4S
- layer height: 0.2mm
- sheet: Powder PEI
- nozzle diameter: 0.4mm

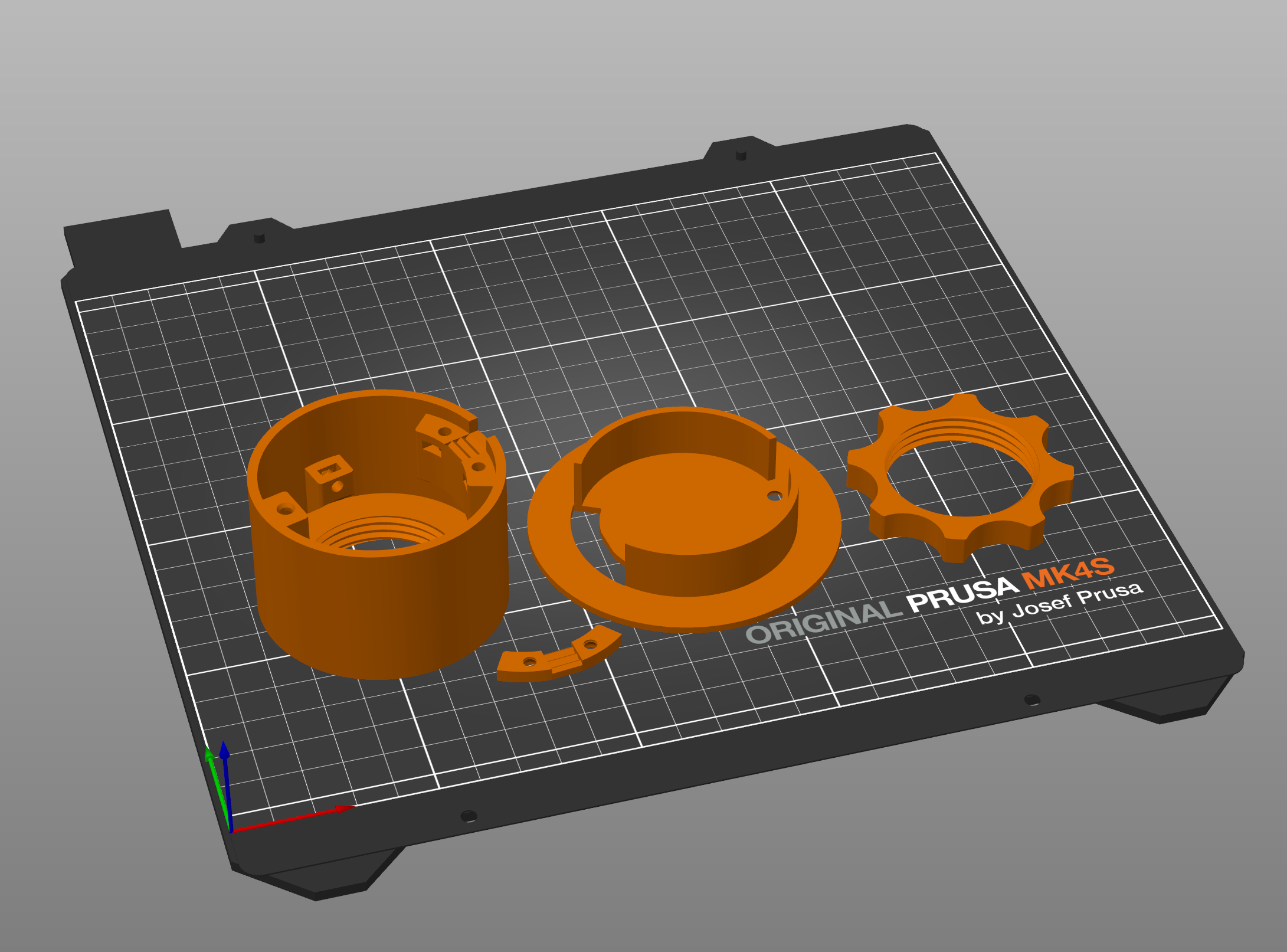

- print orientation: as on the picture
- material: White PETG
- supports: not needed with correct orientation
- perimeters: 3
- solid layers (top/bottom): 5/4
Short video manual is here:
