Wall Mount - Command Strips & Screws
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution — Noncommercial
Wall hangers mounting methods:
Medium command stips
Large command strips
Screws

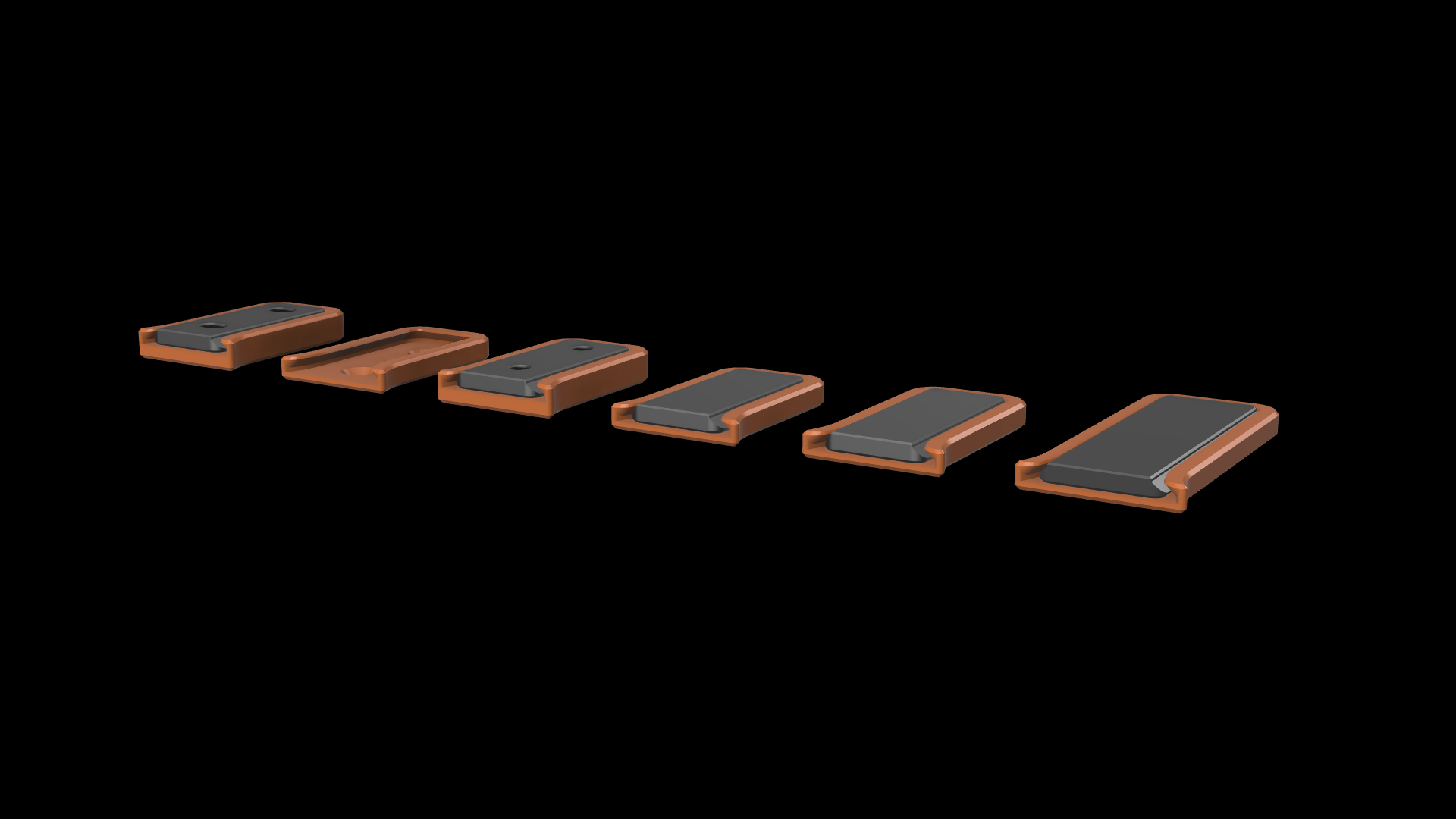

Files are labeled “wall” or “object” based on what you attach it to.
6.6 mm combined thickness of object and wall files:
(doesn't account for command strip thickness)
Medium command
Large command
Wall thin screw
8.6 mm combined thickness of object and wall files:
Wall screw thick
All files that have “screw” in the title can be used interchangeably between the “object” and “wall” files.
Command strips
The adhesive on the command strip side labeled “command” does not extend the full length. Cut the command strip where the peel away paper labeled “command” ends (not the pull tab side).

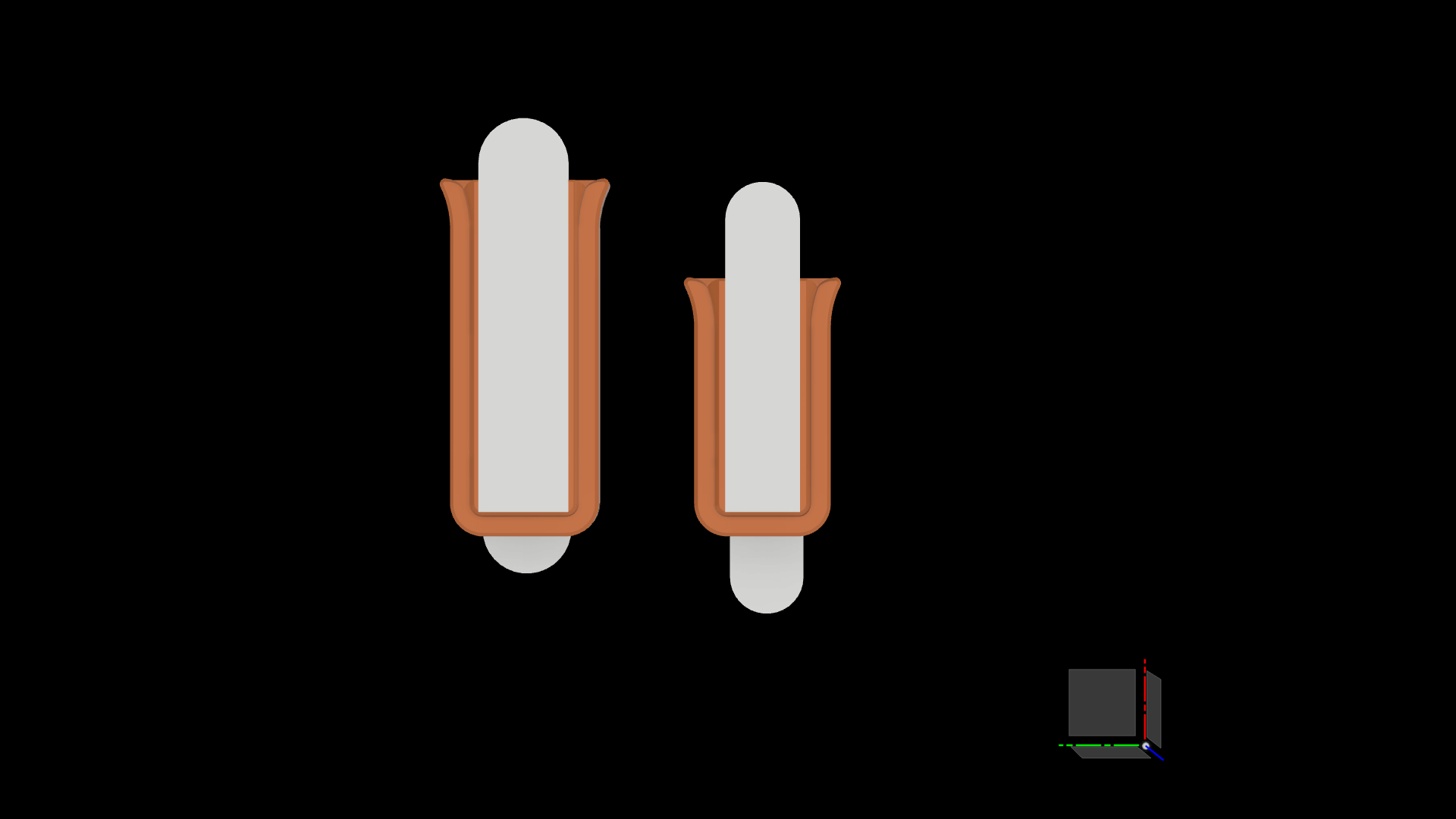

See image for correct orientation of the command strips to avoid it catching when sliding “object” print into “wall” print.
