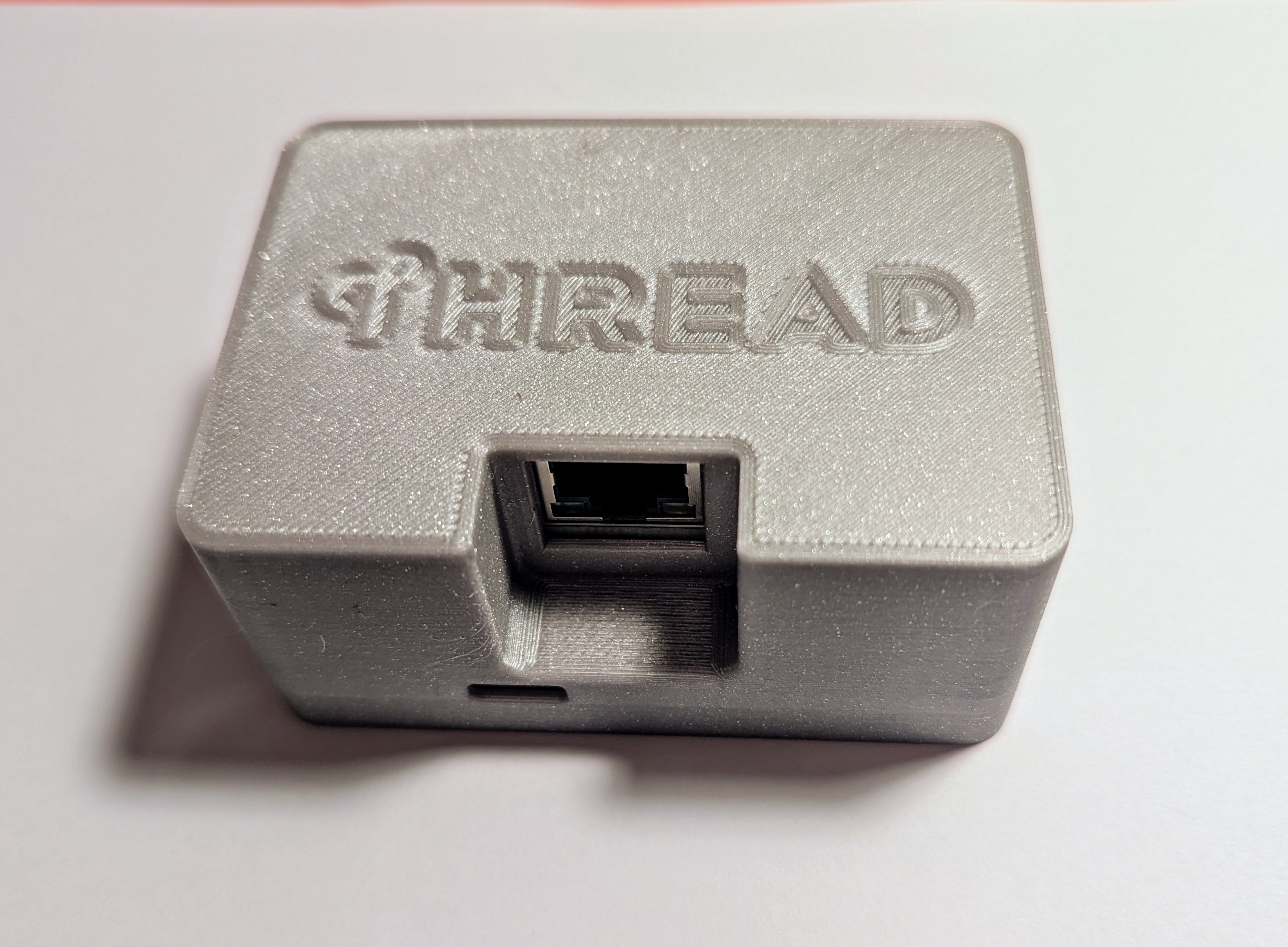

A case for the ESP Thread Border Router with attached Ethernet daugther board. The Border Router is developed by Espressif and consits of an ESP32-S3 and ESP32-H2 SoC. It can serve as a Thread Border Router using the Openthread Border Router implementation. This case supports the Ethernet daugther board by Espressif.
- Hardware description: https://docs.espressif.com/projects/esp-thread-br/en/latest/hardware_platforms.html#ethernet-based-thread-border-router
- Openthread: https://openthread.io/guides/border-router/espressif-esp32

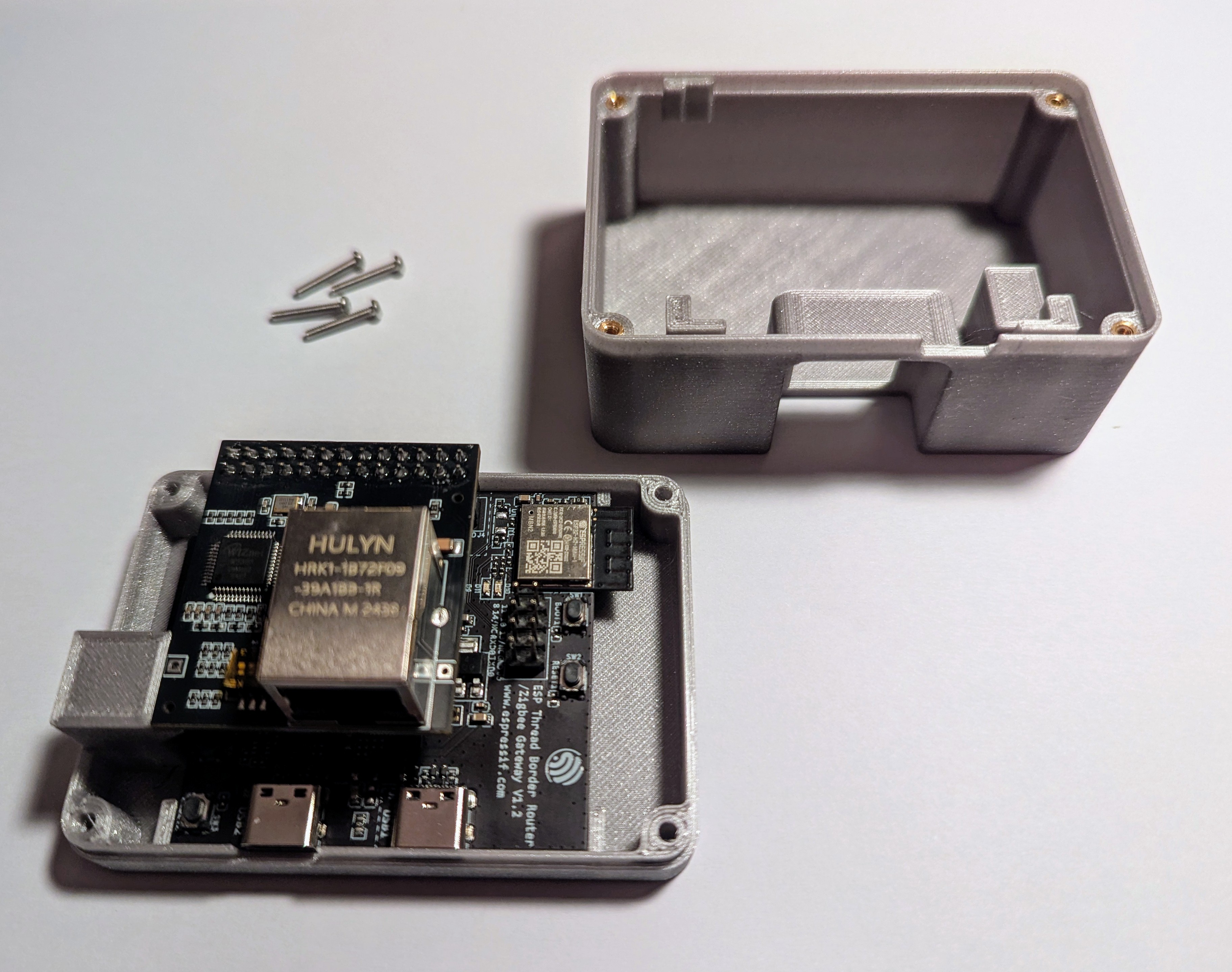

The case is hold together by four screws. I used threaded inserts for the screws. You can modify the attached step-file if you do not want to use inserts or different screw diameters. I used the following material:
- 4x M2 x 12 screws
- 4x Rutex M2 x 4 threaded inserts

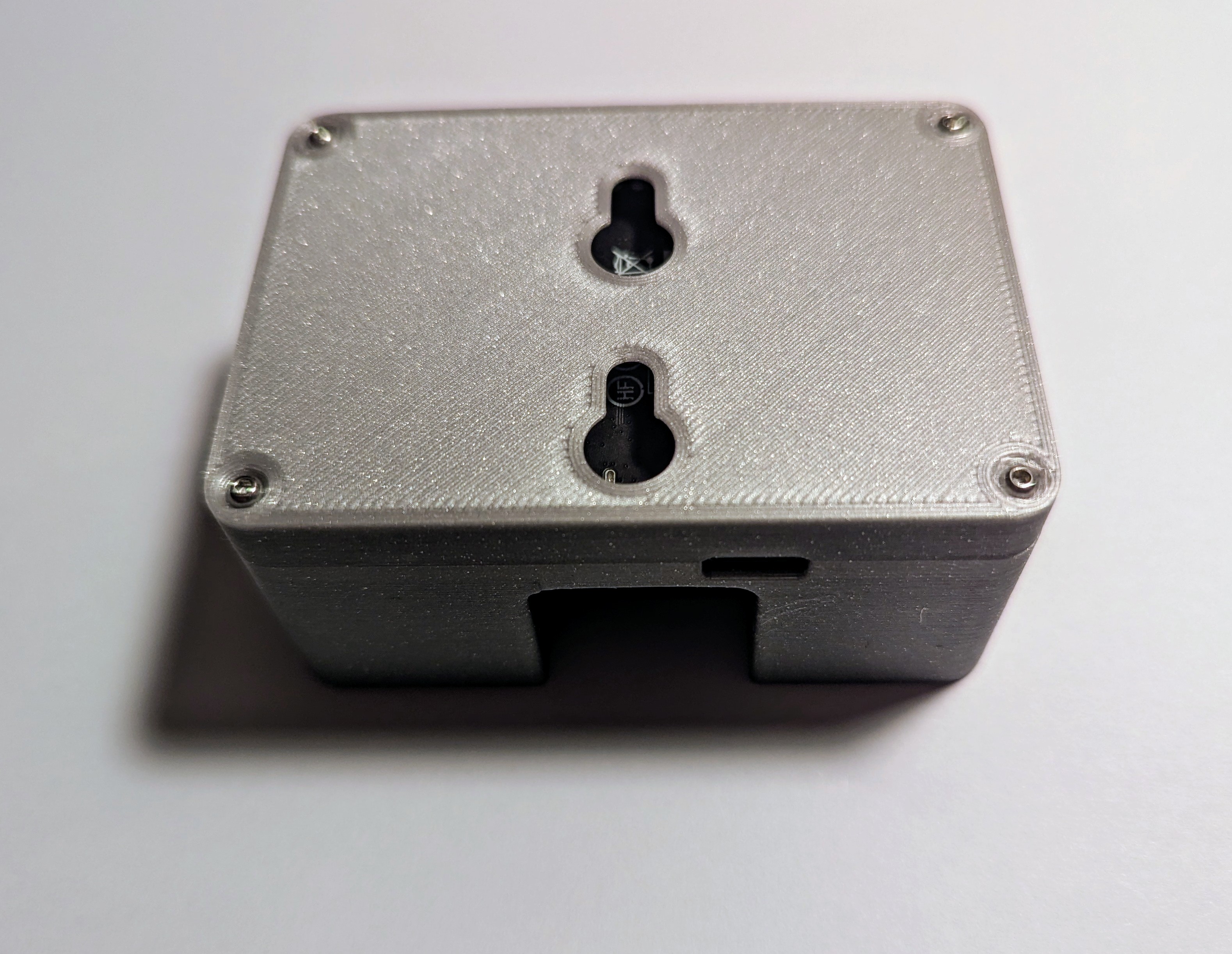

On the back, there are holes for wall mounting by M4 screws. I printed in PLA with 0.2 mm layer heigth and three perimeters.
