Scraper Bar Replacement For Greenworks 22" Snow Blower (R0200650-00)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Public Domain

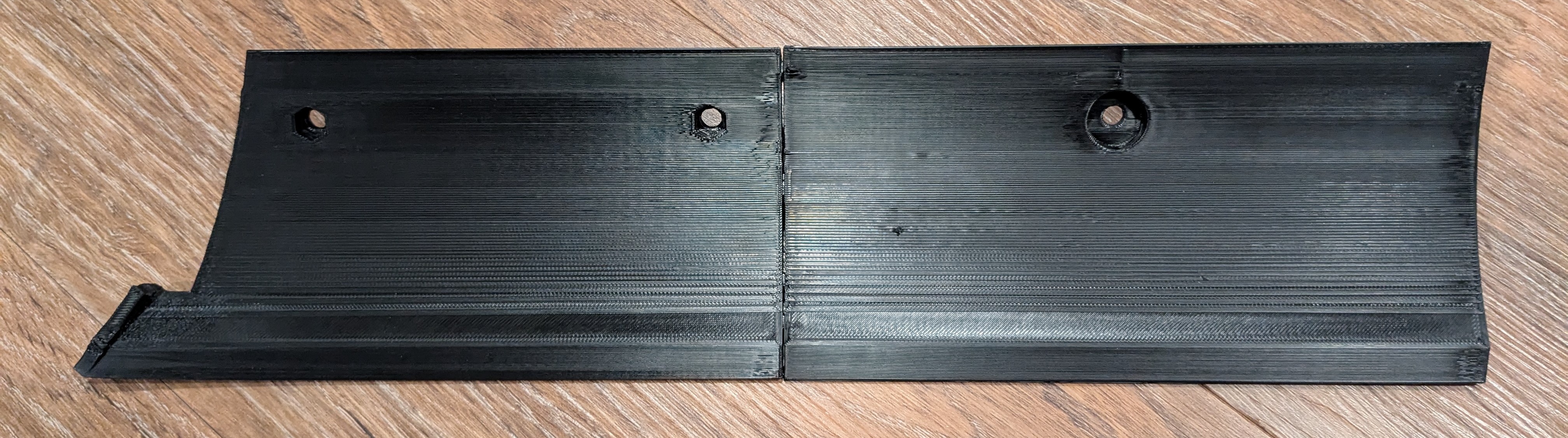

Scraper Bar Replacement for Greenworks Part R0200650-00 for 22" Snow Blowers, Tested working great with my SN60L02 but according to Greenworks should work with the following as well:
| Product Number | Voltage | Model |
| 2605902 | 80V | SNB403 |
| 2610102 | 80V | SNB404 |
| 2602502 | 80V | SNB403 |
| 2607402 | 80V | SNB403 |
| 2608802T | 60V | SN60L02 |
| 2608802 | 60V | SN60L522 |
| 2602602 | 60V | SN60L02 |
| 2609502CTBT | 60V | |
| 2607902 | 60V | SNC405 |
For my first run I printed with some cheap PLA which I do not expect to last long, I intend to print eventually with ASA.
I did use 5 Wall Loops to try and get a little more usage out of this, as well as 50% Infill. However as this is a wear part that is in direct contact with the ground/scraping its expected that these will not last long.
I simply hammered the pieces together without any additional connectors. The original design did not use the hex shape for the center hole unfortunately and I am not smart enough to know how to fix this, I simply used pliers to hold it in place while I used an 8MM socket wrench to install the locking bolt.
