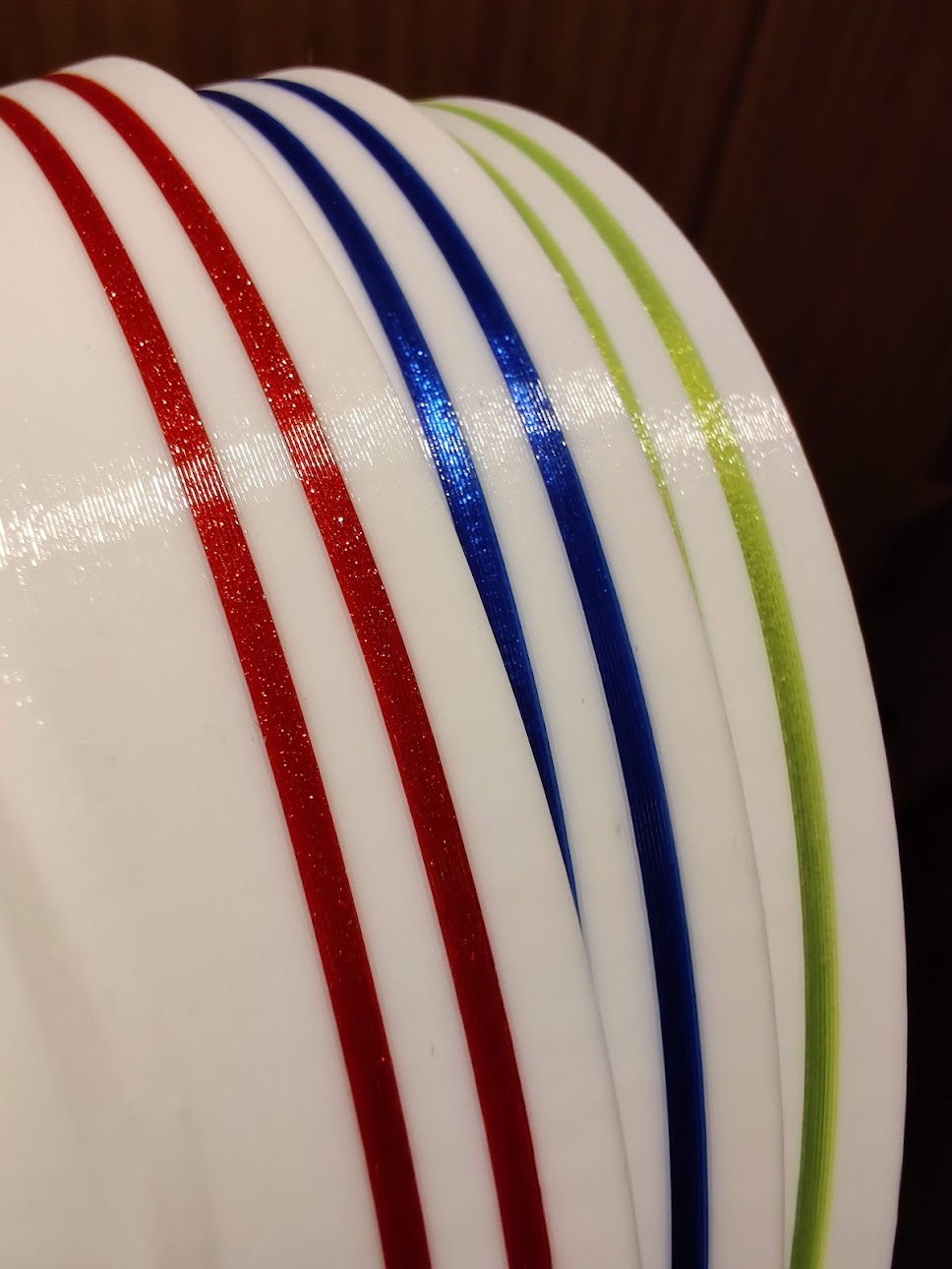

For the stripes to be exactly as in the photo set color swaps at Z = 15mm, 16.6mm, 19.4mm and 21mm (This is correct for all the models with h=25 the rest I haven't printed yet)
There's a groove at the bottom for filament to be pushed into, to make the plate not stick to the ground as much. Use the accent color for extra flare ;)
I used PETG for its greater UV and temperature resistance. Mixing white and translucent colors works nicely, but feel free to experiment.
Other settings to note
- Infill: 90% or Solid layers top: Many, like 12+
- Perimeters: 8
- Top surface pattern: Archimedean Chords
- Ironing: off
- Layer height: 0.2
Other thicknesses, diameters and heights can be requested, or you can remix the model yourself here in Onshape
