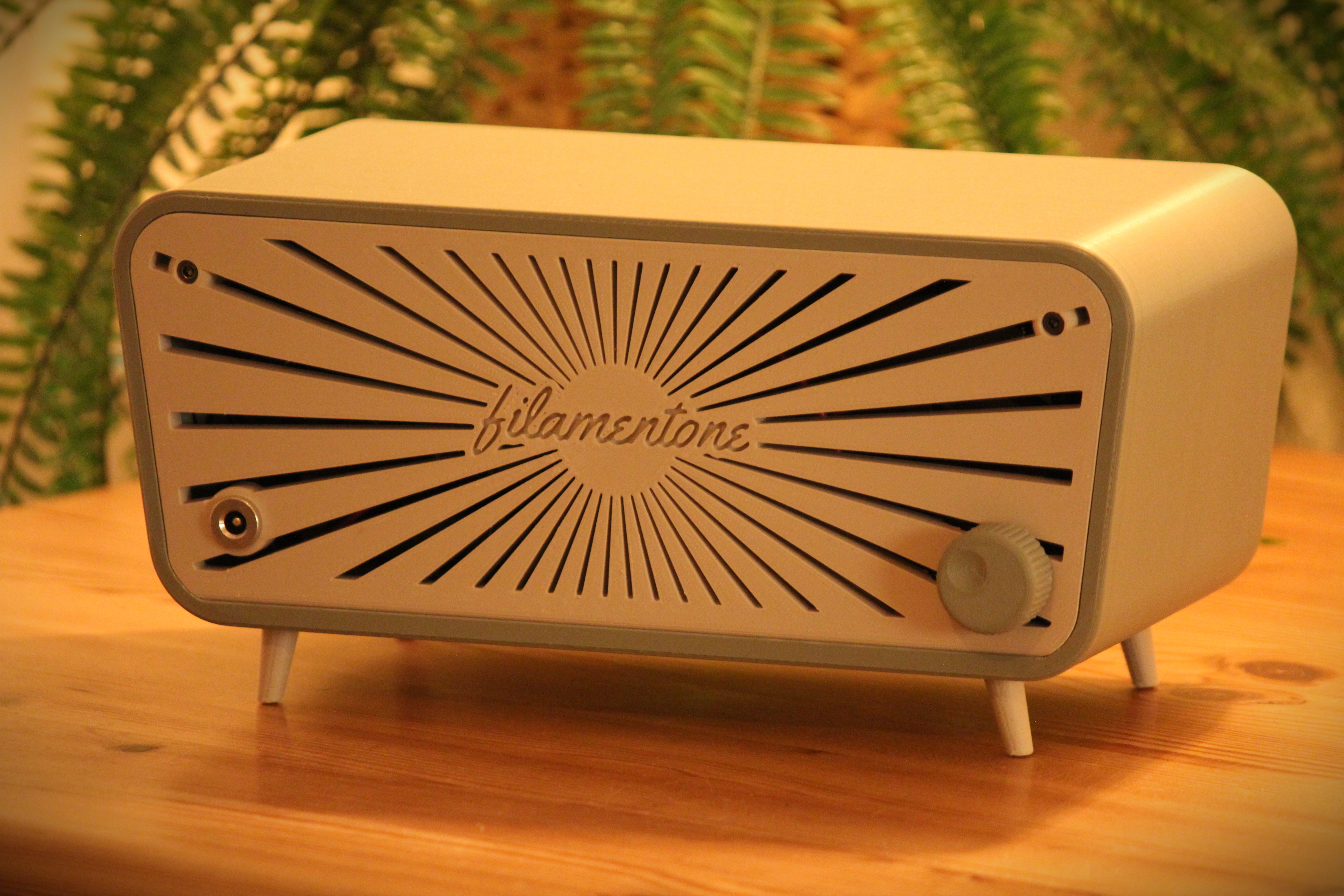

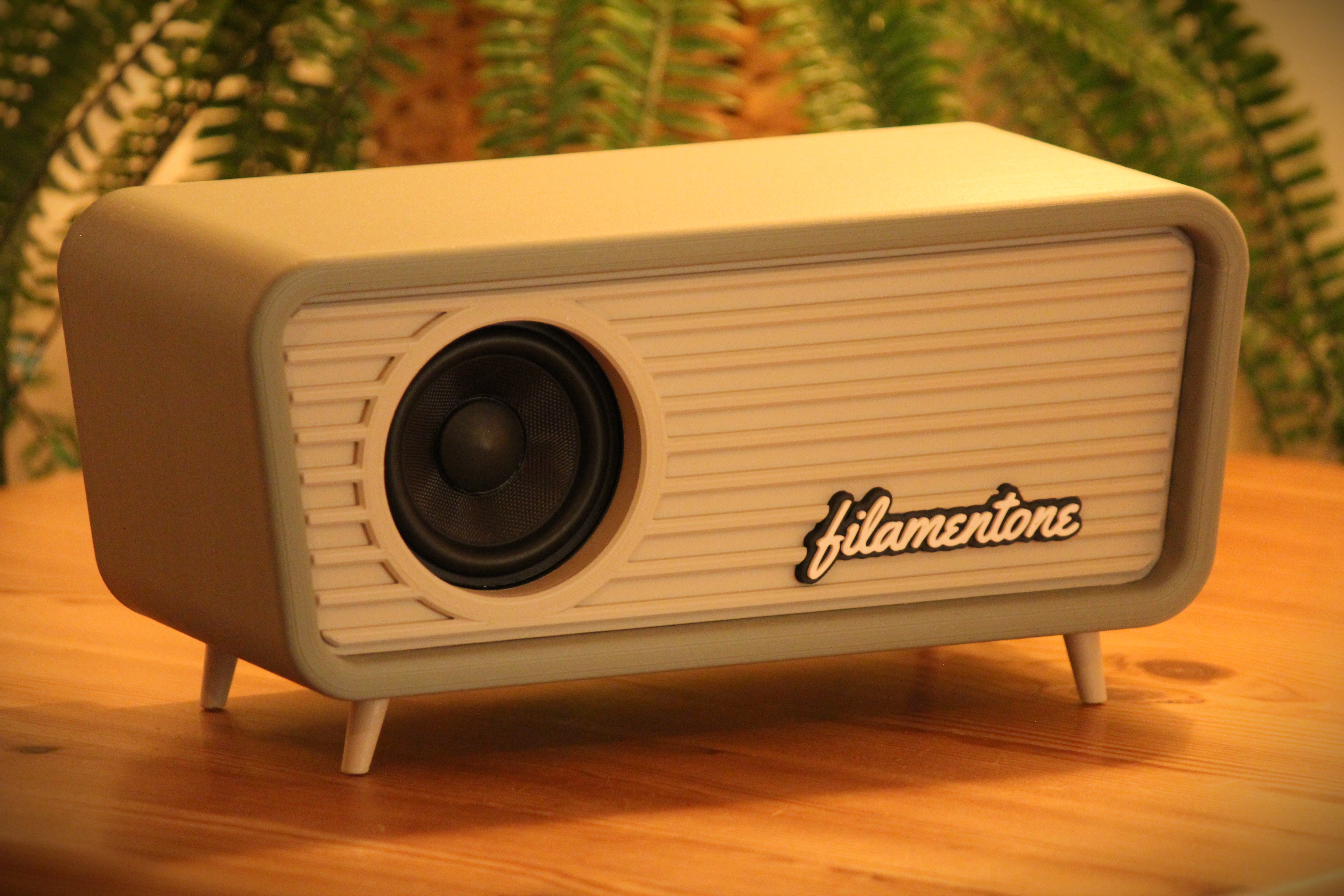

the Filamentone One… designed more for the aesthetic rather than trying to entice any audiophiles, is the first in a line of vintage inspired portable speakers.
Note: The design requires a 256x256 mm minimum printable area for it to print in one piece.

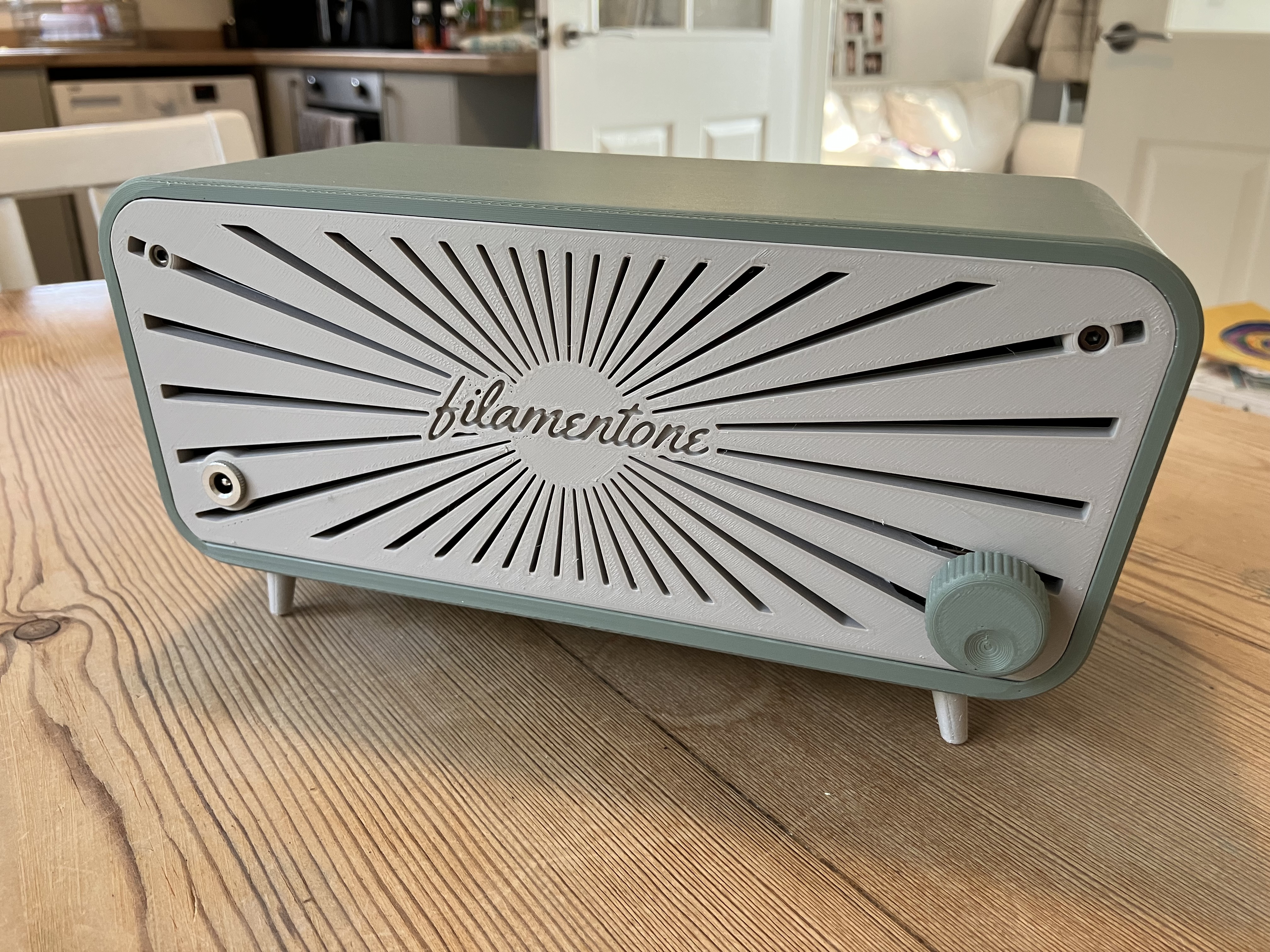

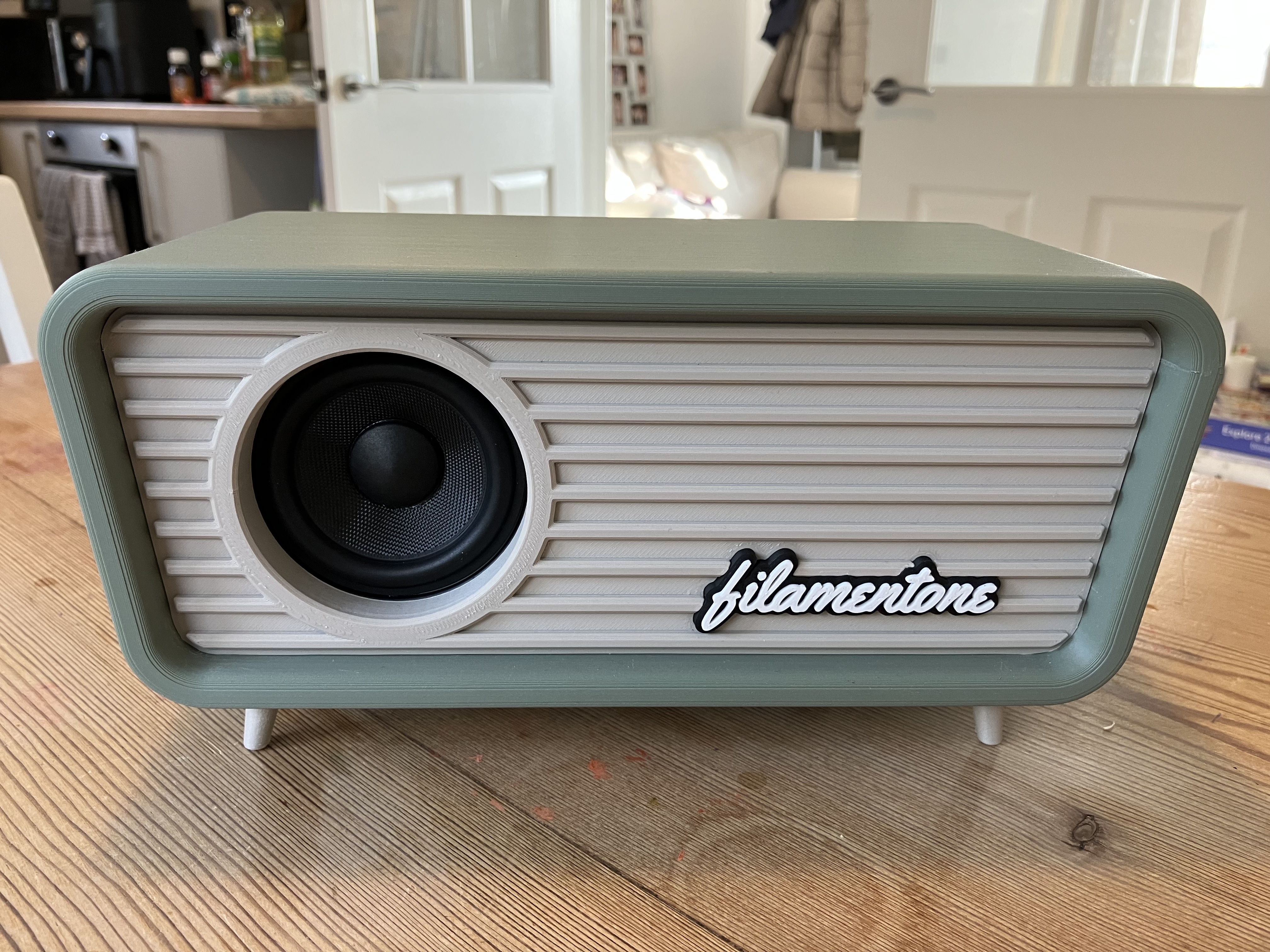

The pictured model is printed in Polymaker PolyTerra PLA muted green for the body and muted white for the front, rear and legs. Muted blue looks great as well.
Layer height 0.15
Wall count 3-4
Top and bottom layers 4
Infill 20-25%
Minimal overhangs but supports are required on the body and volume knob.
The logo needs a pause and filament change around layer 38 (layer height 0.15)

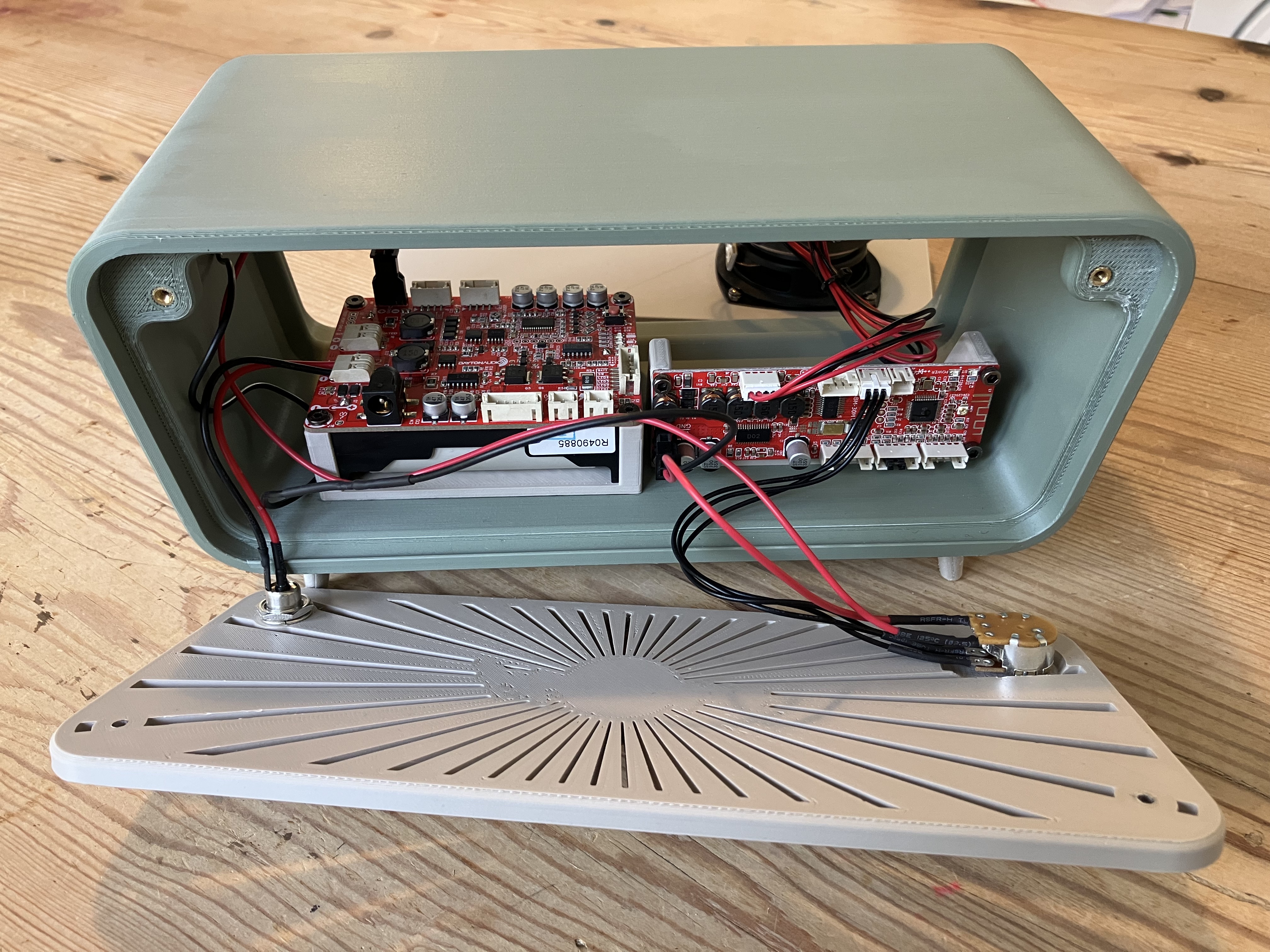

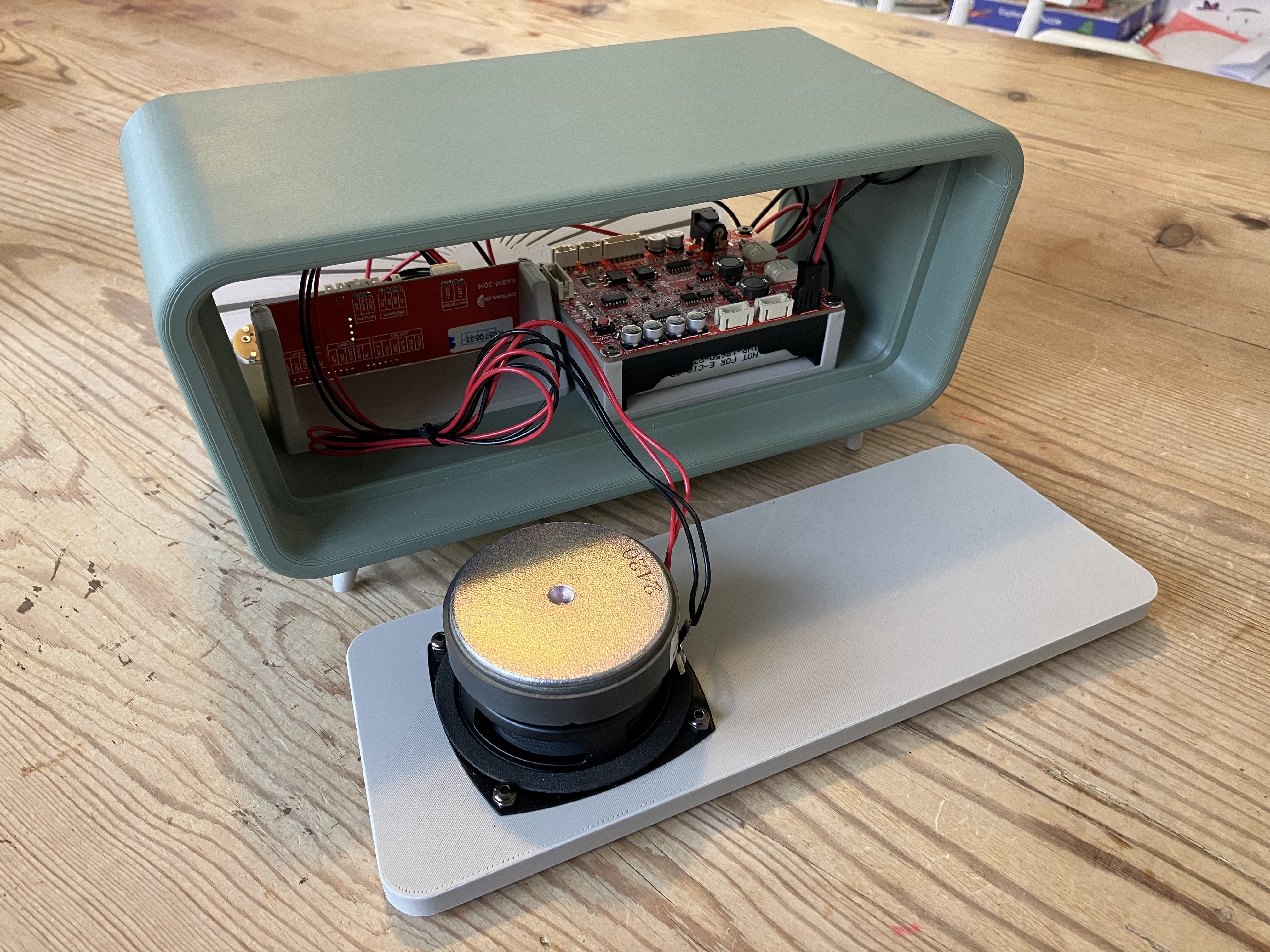

This build makes use of the following components:
Dayton Audio PC68-4 Full-range Woofer
Dayton Audio KABM-30M Amplifier Board
Dayton Audio LBB-3v2 3 x 18650 Lithium Battery Charger Board
3x Molicel P30B 18650 cells (Protection: none)
10K Linear 16mm Potentiometer Pot W/Switch
19v 4.74A 90W laptop charger
M3 threaded Heat Set Inserts
M3 Hex Socket Head Cap bolts
5x2mm Self-Adhesive Clear Rubber round bumpers
5.5 x 2.5 MM 10A DC Power Jack Socket
3M VHB Double sided tape for attaching the battery/amp board holders and the front plate if required.
The components were selected to allow mostly plug and play to keep soldering to a minimum.
