There are two versions of this model, one designed to use m3 nuts for assembly. The other for using 4mm high m3 hot threaded inserts.
Step files included.
Knob included, if you need more type of it leave a comment 👇
Print settings
- Material: PLA/PETG (no restriction, any material is good)
- Layer: 0.2mm
- Walls: 2
- Top & Bottom layers: 3 to & bottom
- Supports: NO
- Orientation: as per file
Assembly instructions
Recover three M3 screws of at least 10mm with three nuts (the length also depends on where it is then mounted).

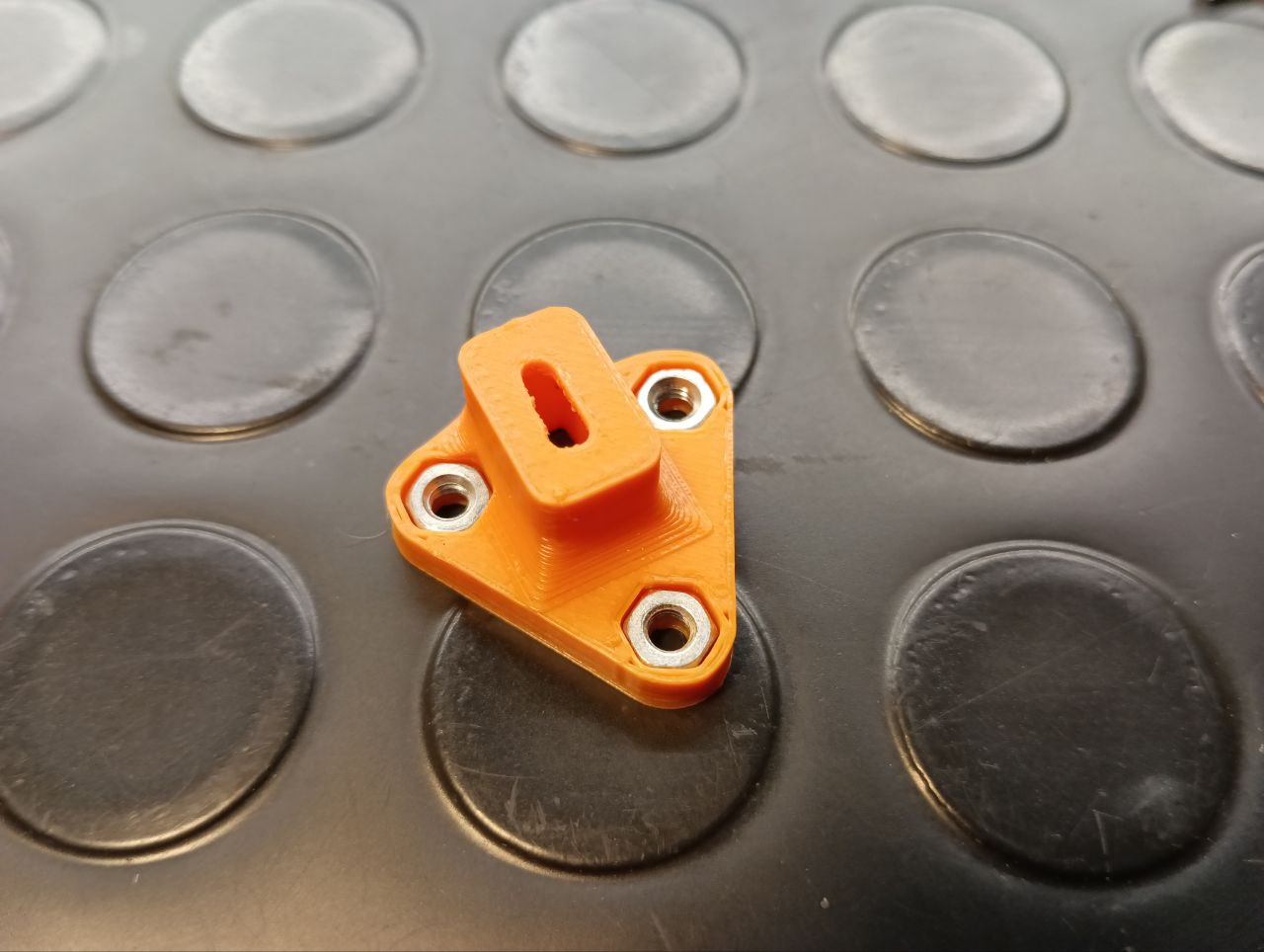

- NUTS VERSION: Insert the nuts into the appropriate holes
- HEATED INSERT VERSION: Hot insert the threaded brass inserts (the position is the same as the nuts).

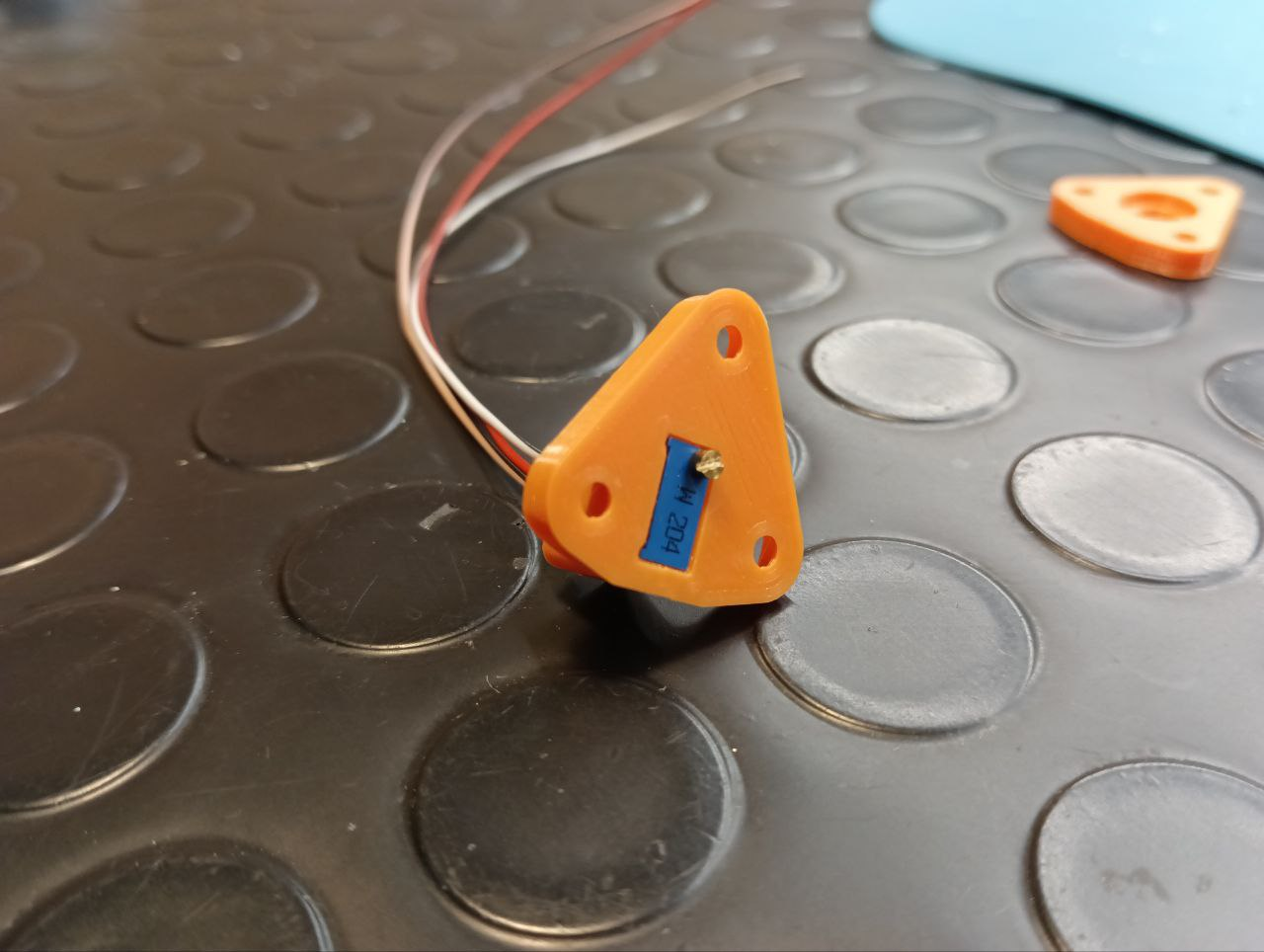

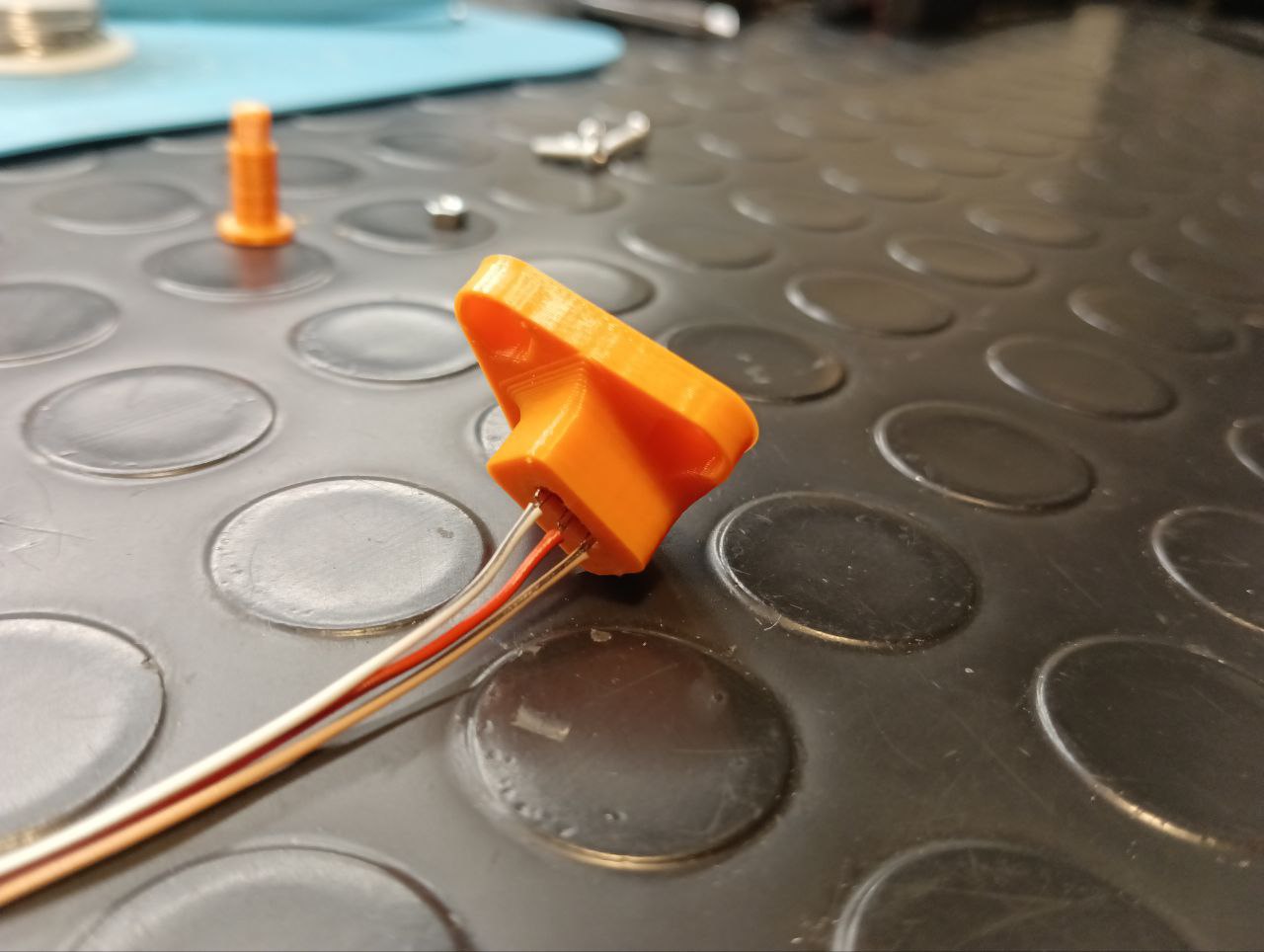

Insert the trimmer with the correct orientation (with the incorrect orientation it will not fit, so there is no such problem).

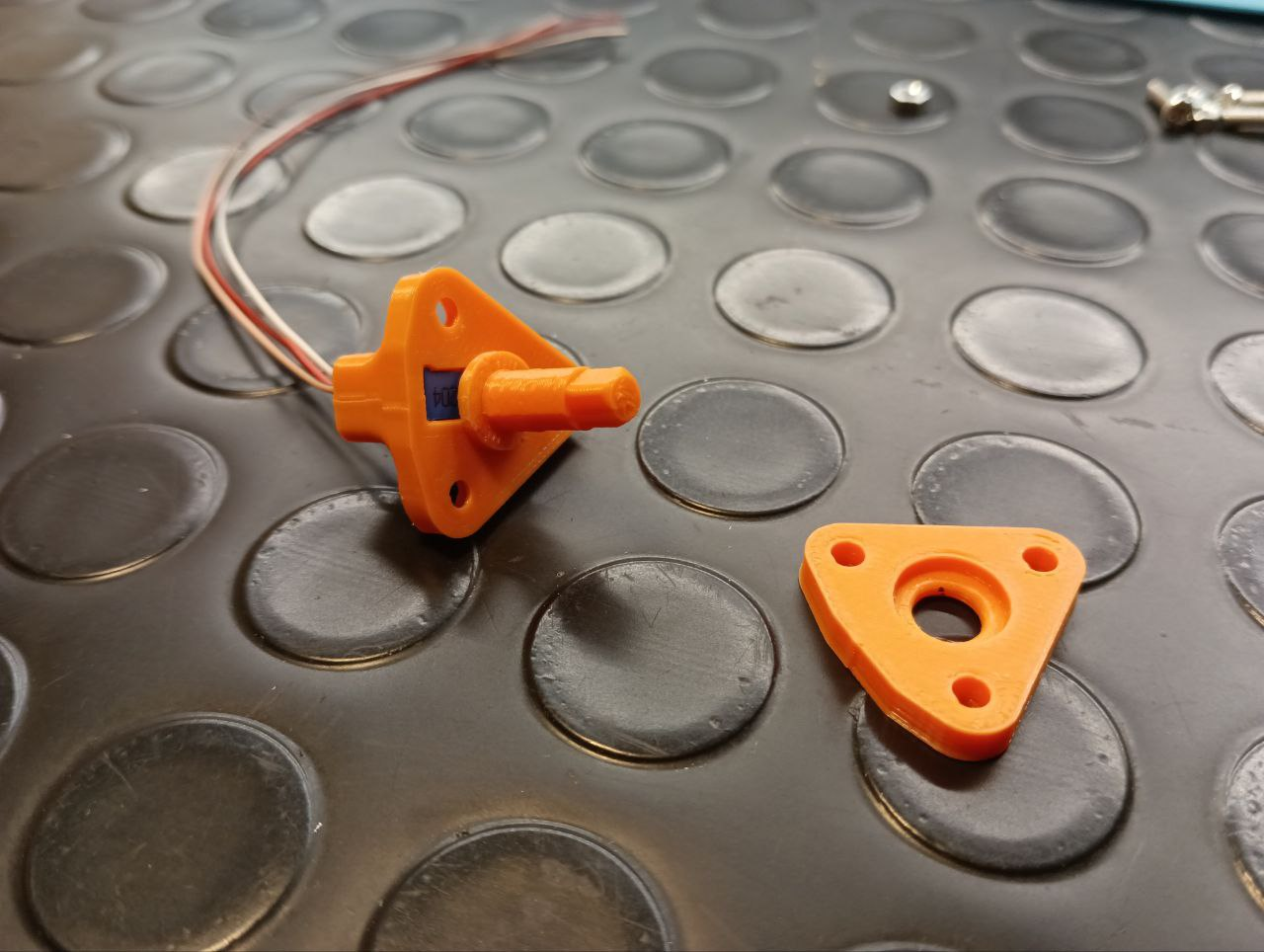

Insert the printed pin with the cut oriented correctly. On the widest part there is a mark that indicates the direction of the trimmer cut.

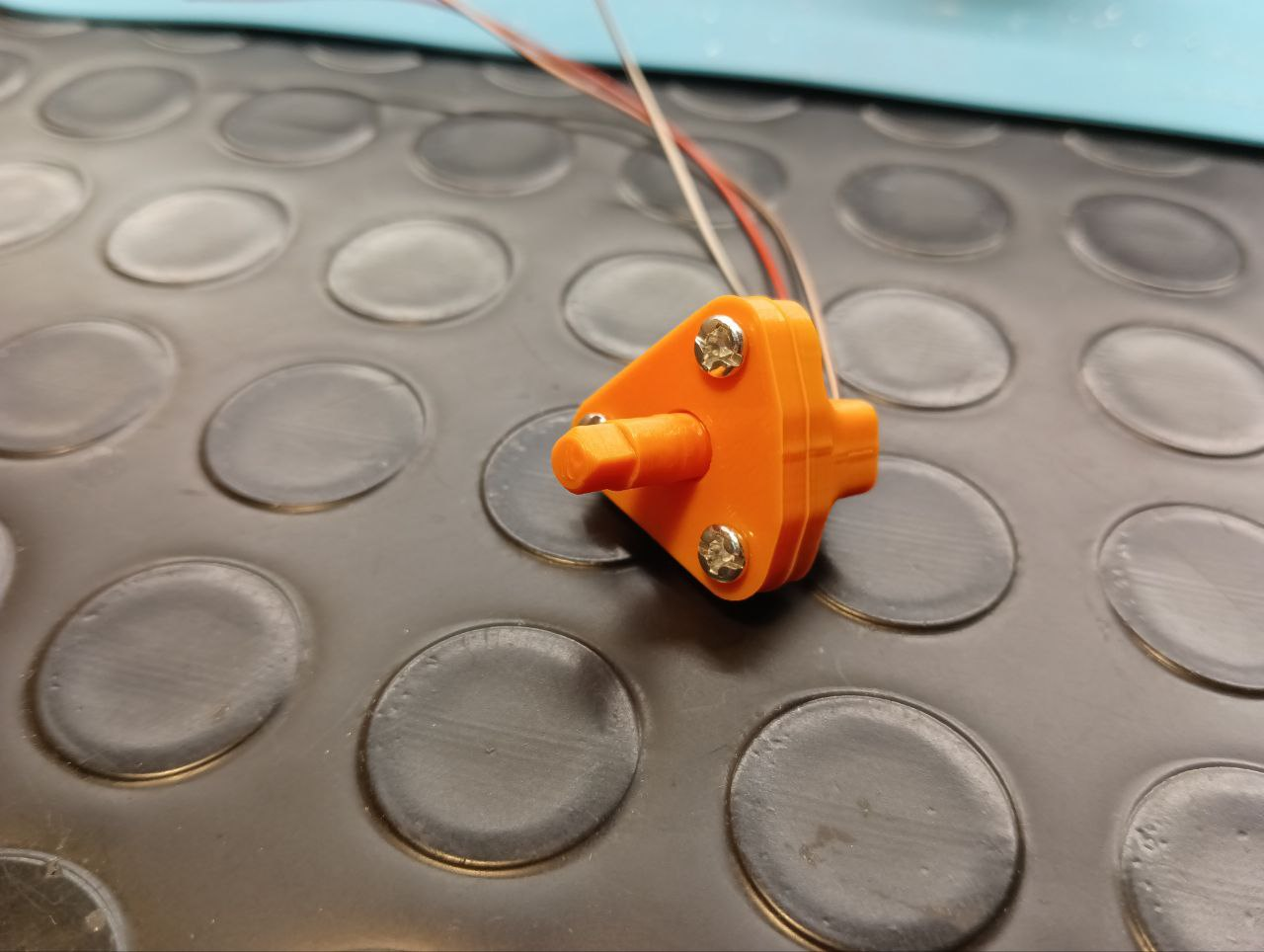

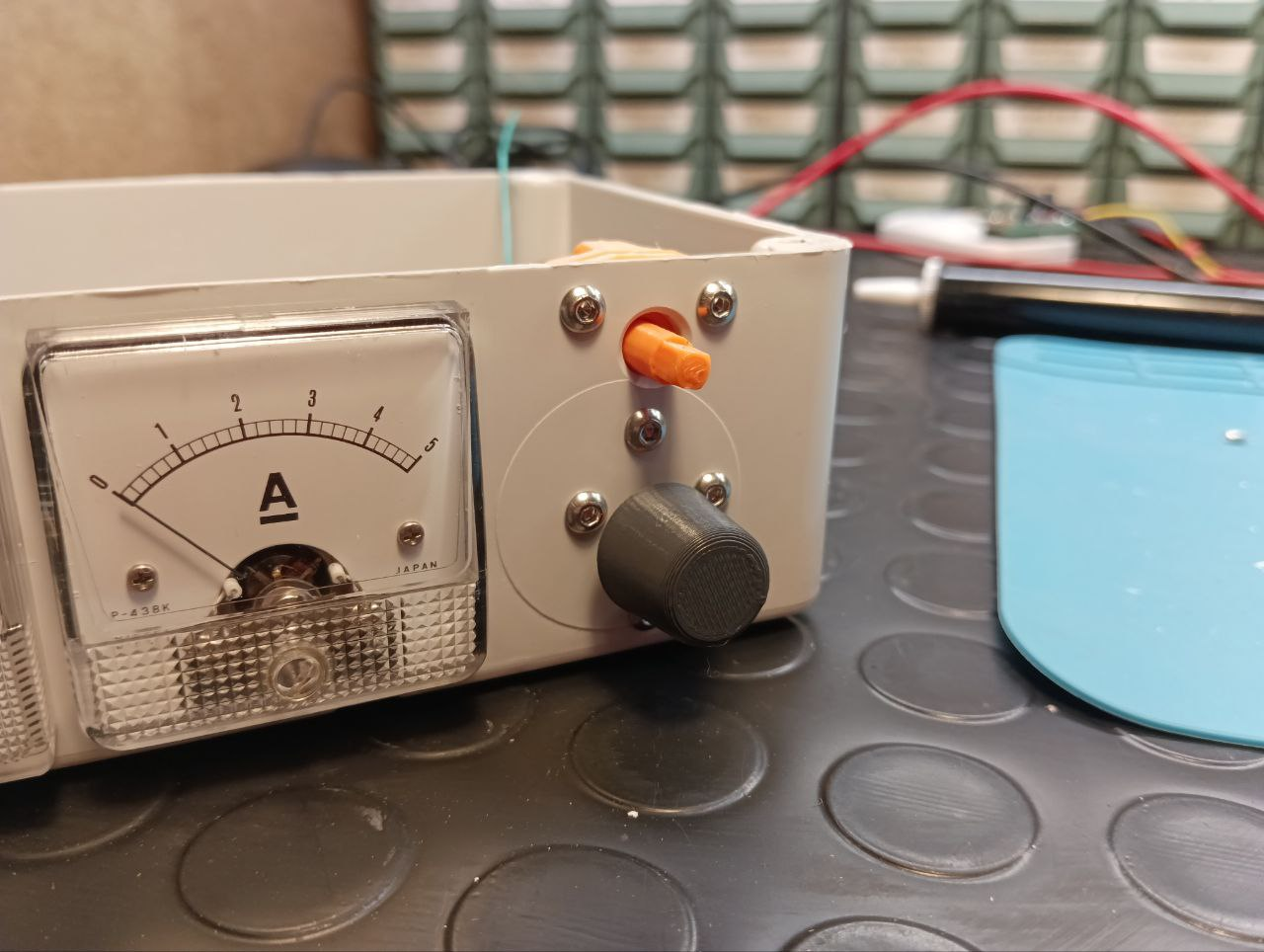

Screw the screws directly, or including the case as well.
