.277 Wolverine, Recessed Spring Latch Modular Ammo Box
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
These boxes have twice the print time of Single Spring Latch Ammo Boxes found here: https://www.printables.com/@brass_ring/collections/176715

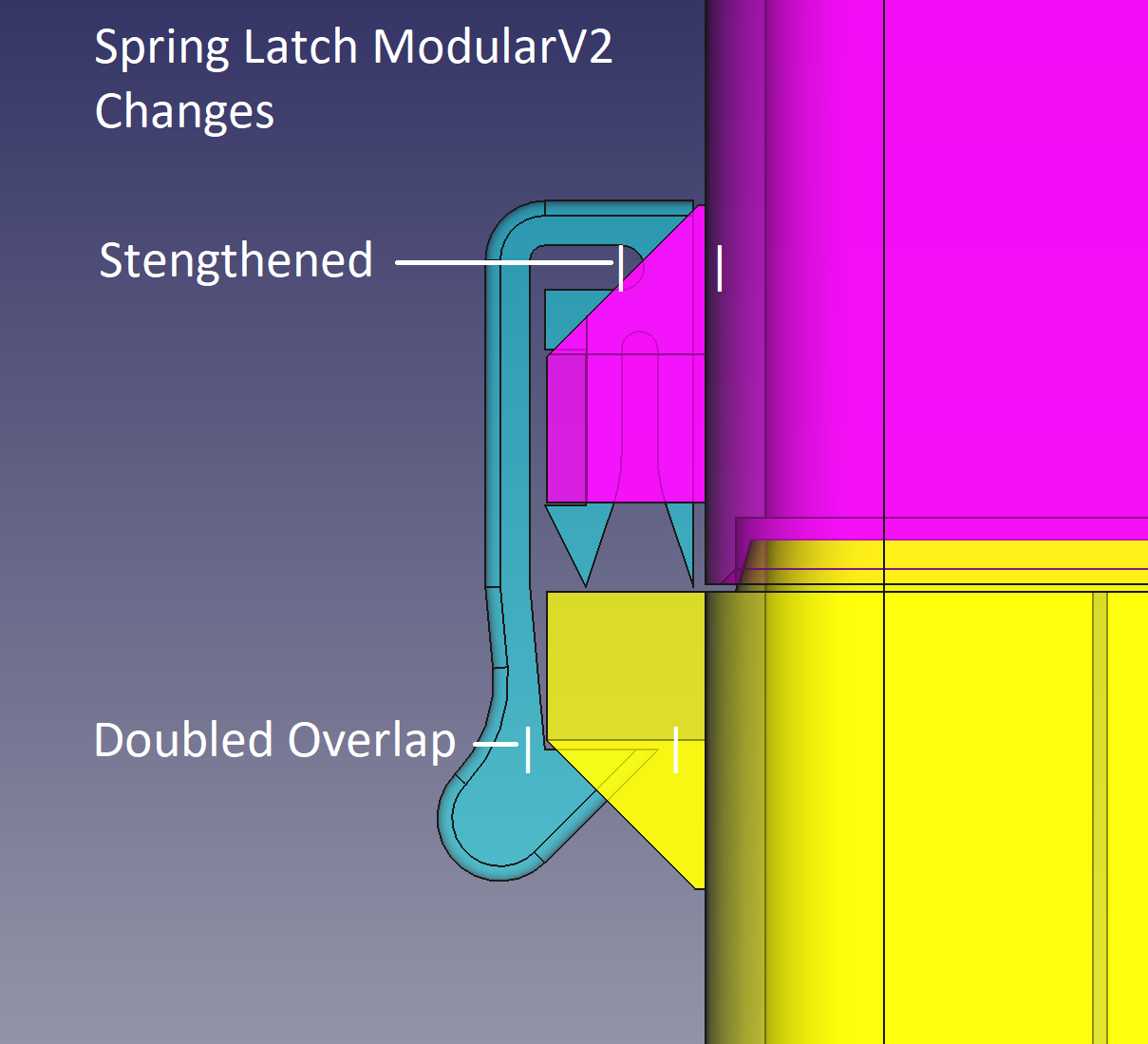

Version 2 has these improved features:
- round cartridge holes
- recessed latch and hinges for protection and less snagging
- stronger hinge that is easier to assemble
- ramped front latch catch for smoother closing
- ramped latch fixture for easier assembly
- text for multicolor
Look in https://www.printables.com/@brass_ring/collections/1482836 for other ammo boxes in this style.

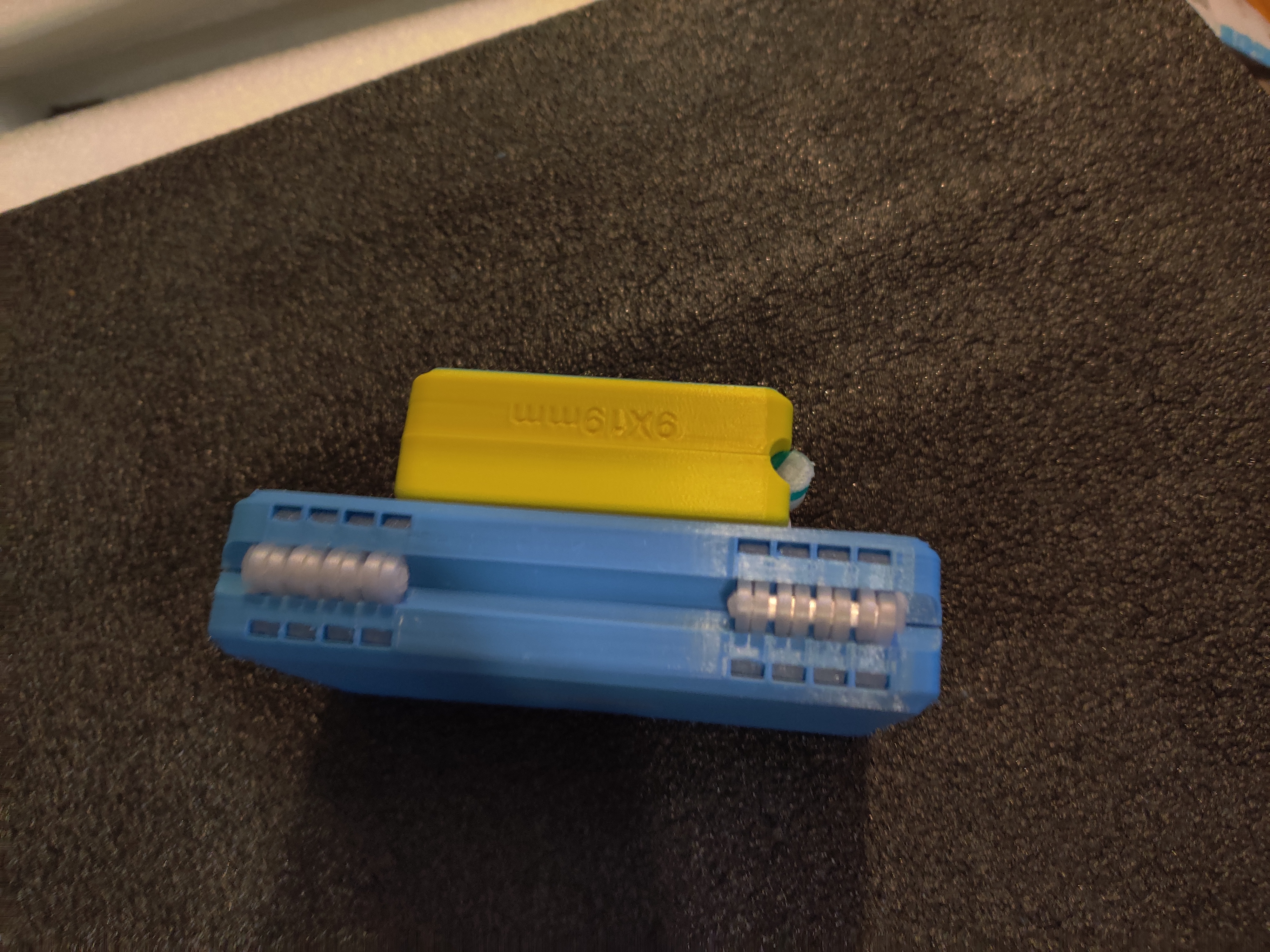

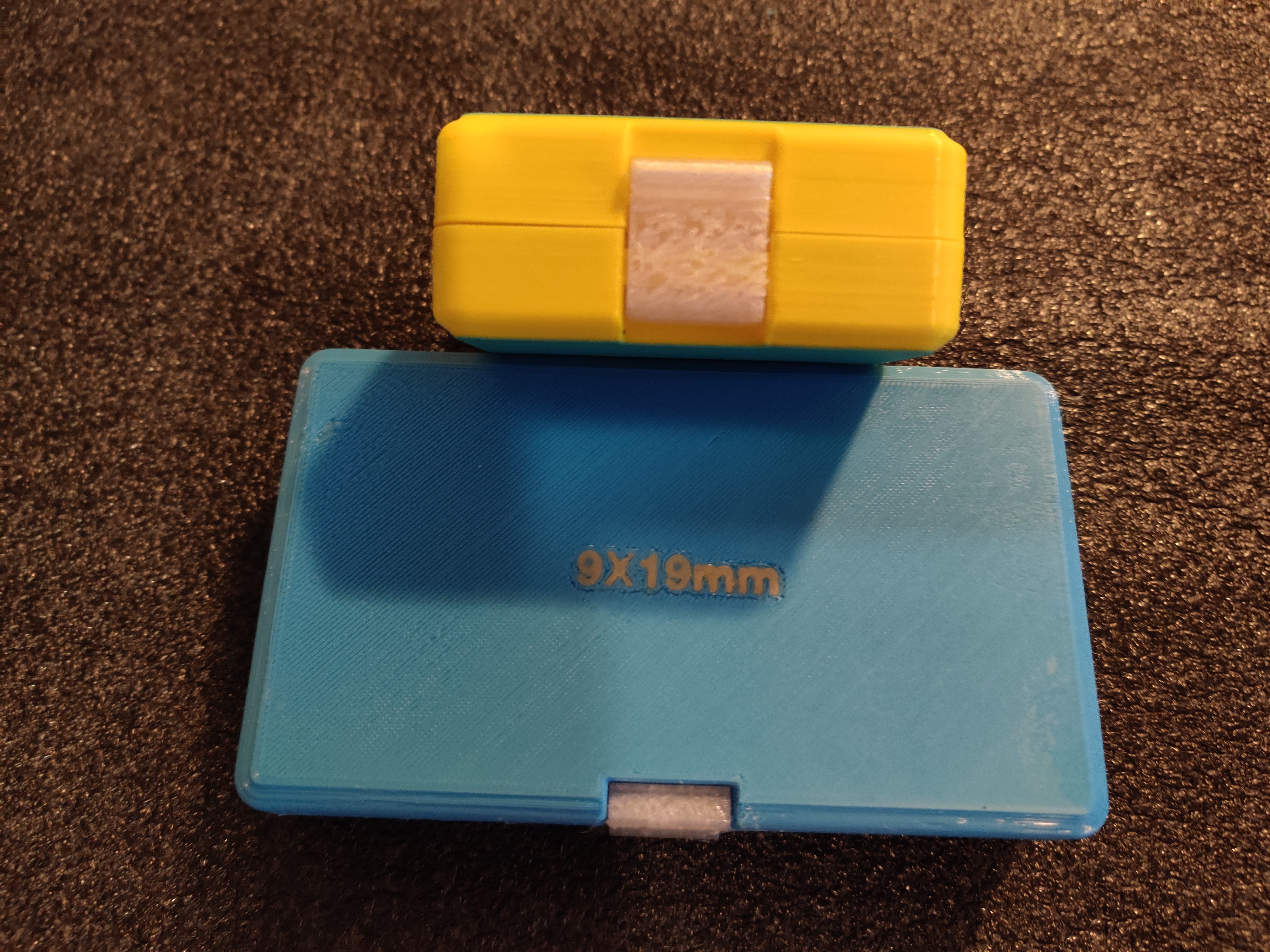

These ammo boxes are printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.
The box halves require moderate Lightning infill (10%-20%) and can be printed with no supports. Optionally, you can paint on supports under the flat sections on the latch brackets, and the latch catch. I printed the box halves with 0.2 layer height in PLA, the latch with 0.2 layer height in PETG, and the hinge parts with .12 layer height in PETG.
Assembly instructions: See the attached PDFs
