This version has these improved features:
hinge that snaps the box top and bottom together
two box tops - one that prints as a single part and one that is stronger, but requires simple assembly
ramped front catch
text for multicolor

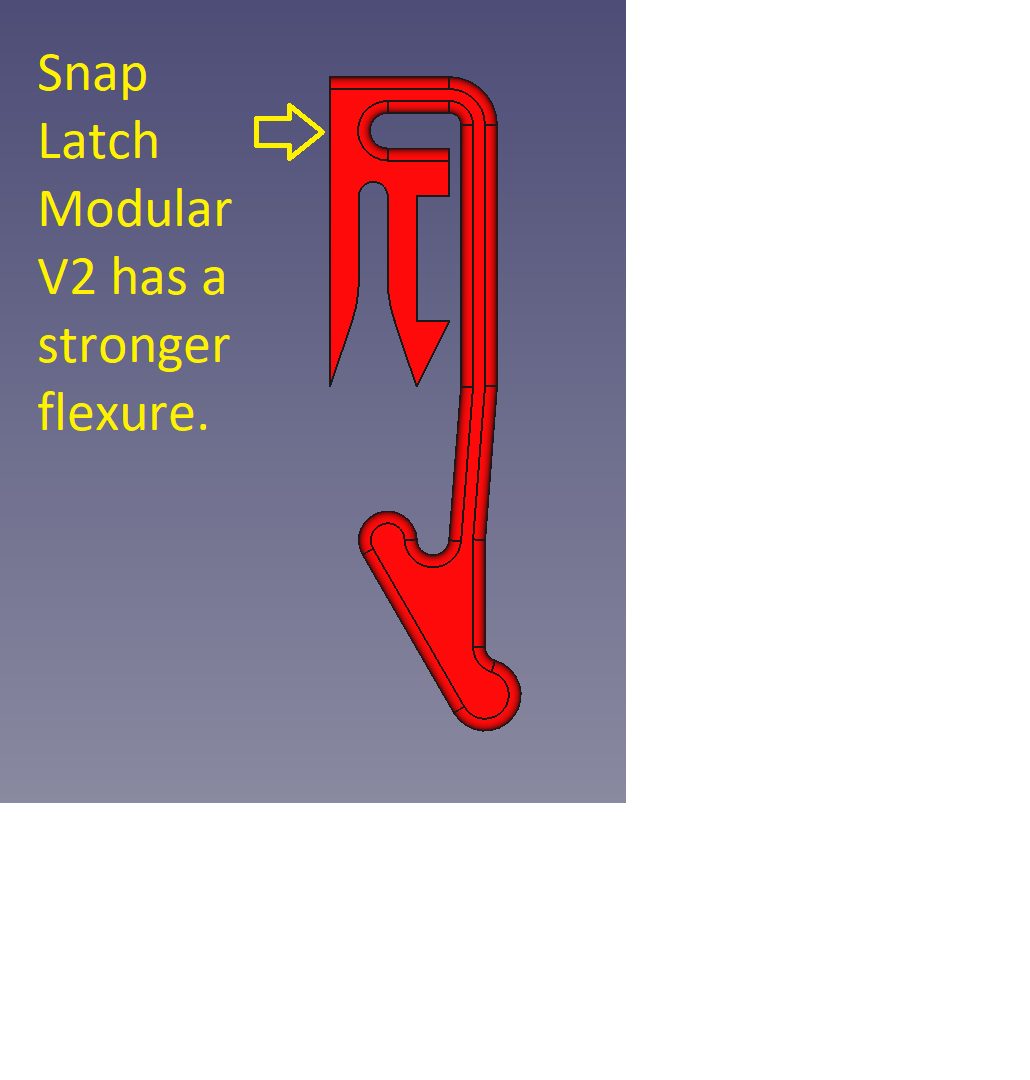

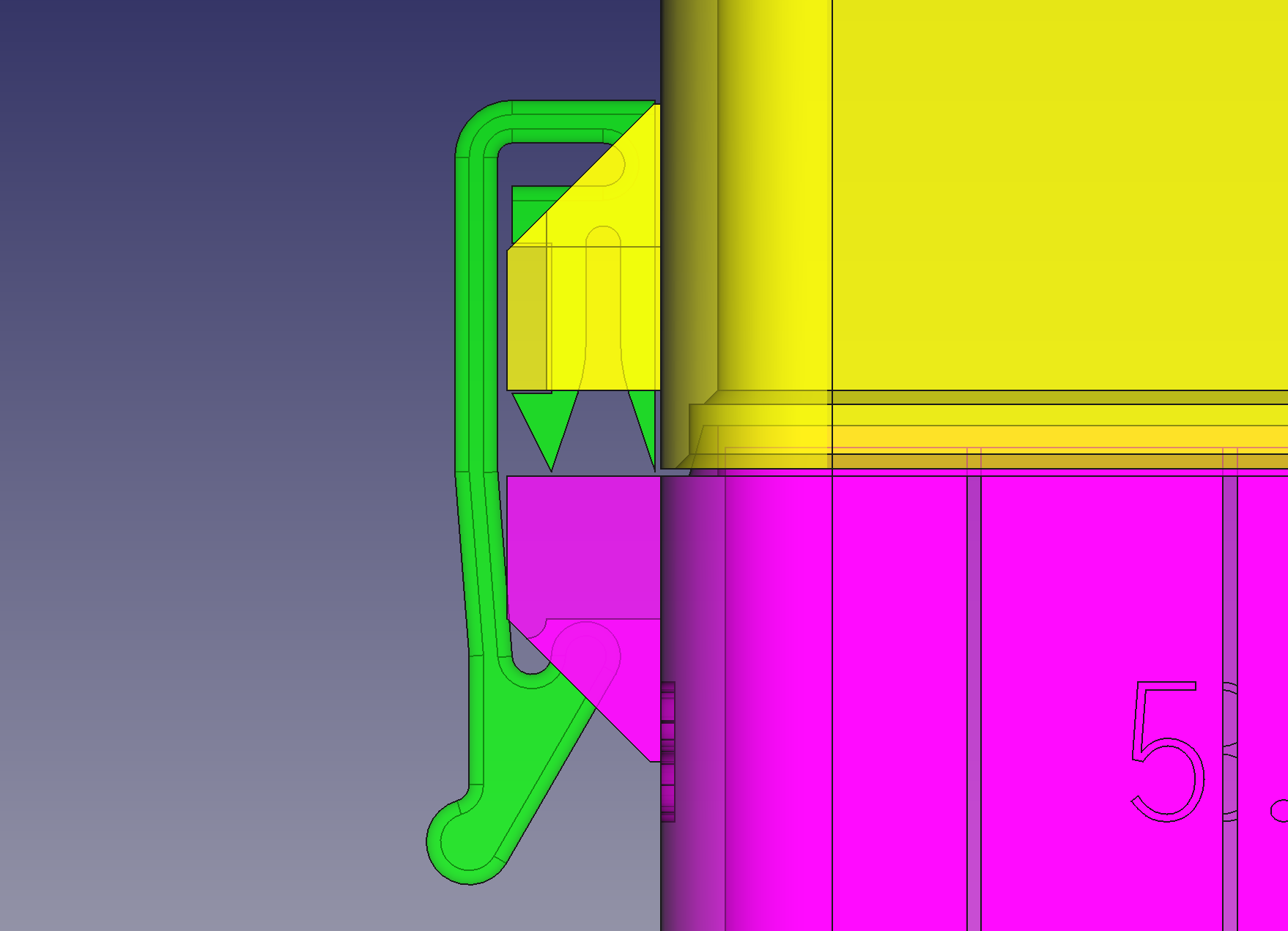

The Snap Latch snaps into a locked state when it is pressed towards the box front and it passes over a retaining tab. To open the box, pull the latch past the retaining tab and lift the box's lid.
Look in my Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/167118 to see my ammo boxes with different latches and hinges options.
Other ammo boxes of this type can be found in my Single Snap Latch Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/491054.
These cartridge boxes are printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.
The box halves require moderate infill (10%-20%) and can be printed with no supports, but I prefer to paint on supports under the flat sections on the hinge hoops, the latch brackets, and the latch catch. I printed with 0.20 layer height in PETG and PLA.
Assembly instructions: See the attached PDFs
