.38 Special +P, Head Up, Spring Latch, Snap Hinge Modular Ammo Box
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools

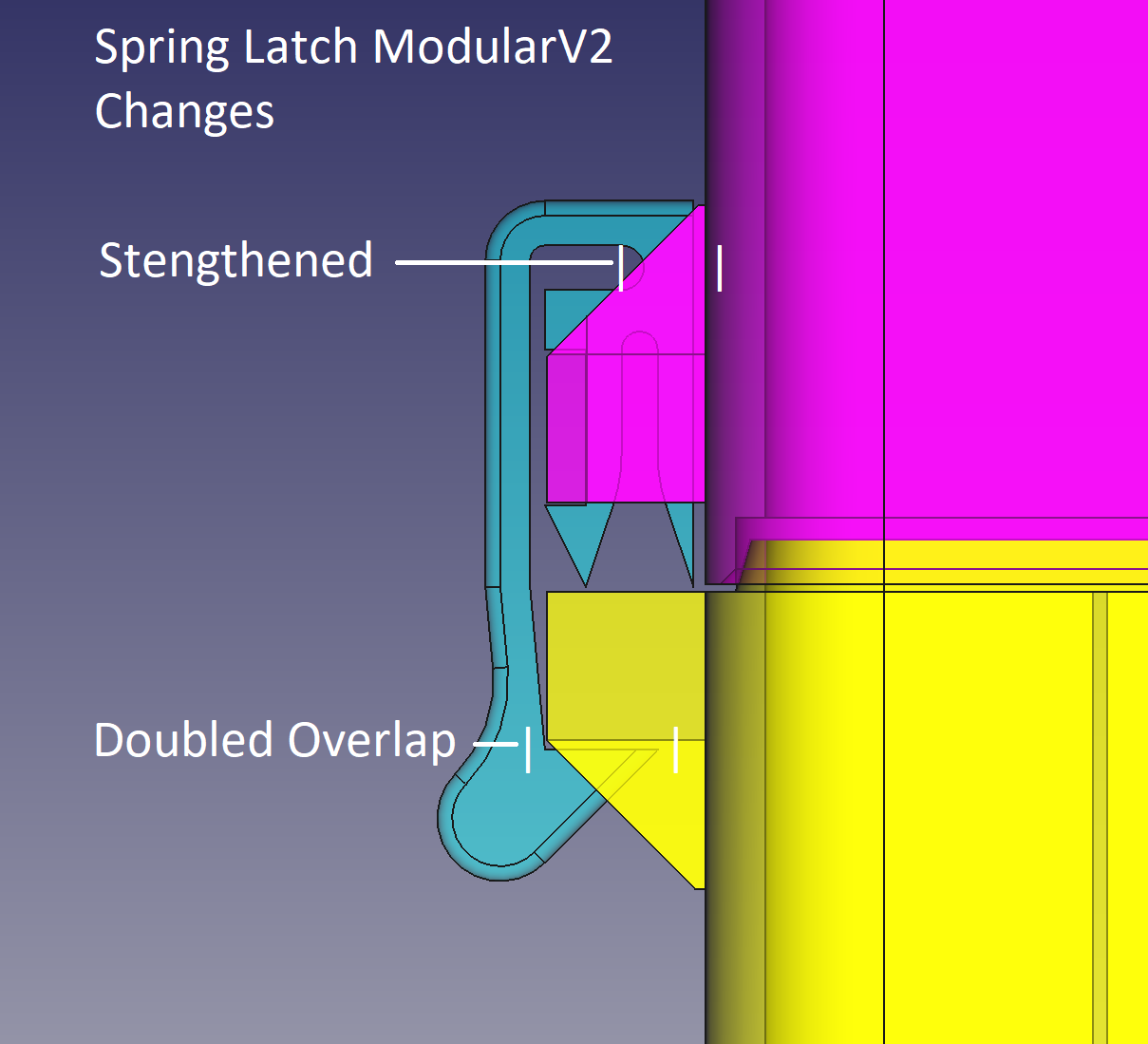

This version has these improved features:
hinge that snaps the box top and bottom together
two box tops - one that prints as a single part and one that is stronger, but requires simple assembly
ramped front catch
text for multicolor
Look in my Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/167118 to see my ammo boxes with different latches and hinges options.
Other ammo boxes of this type can be found in my Single Spring Latch Ammo Boxes Collection https://www.printables.com/social/261776-brass_ring/collections/176715.
These cartridge boxes are printed as separate parts that are printed in orientations chosen to maximize strength and then snapped together.
The box halves require moderate infill (10%-20%) and can be printed with no supports - except for the single part top, but I prefer to paint on supports under the flat sections on the latch bracket, and the latch catch. I printed with 0.20 layer height in PETG and PLA.
Check for the latest hinges and latches in https://www.printables.com/model/187176-modular-ammo-box-common-parts or https://www.thingiverse.com/thing:5270385 .
Assembly instructions: See the attached PDFs
Category: Tool Holders & Boxes
