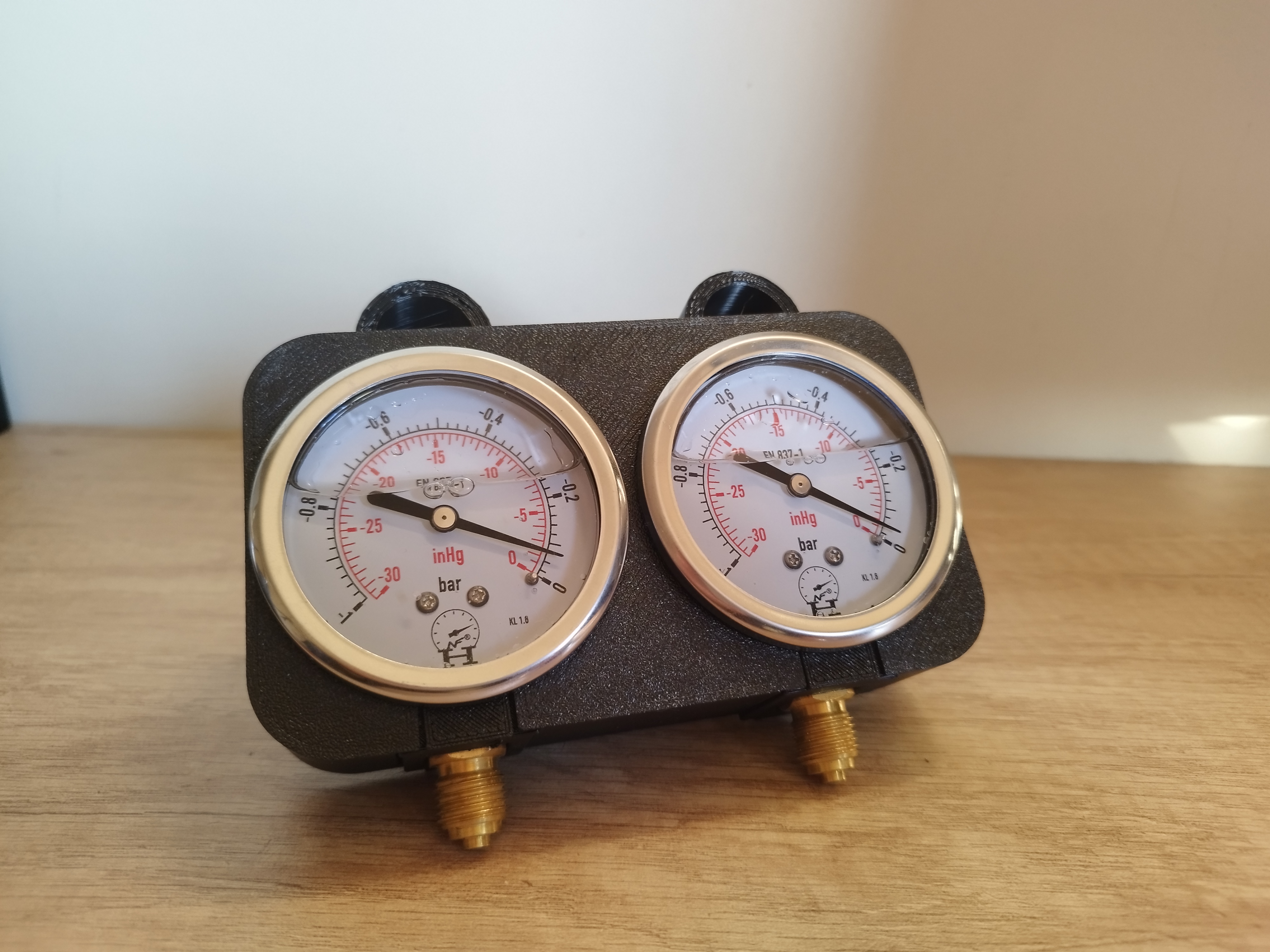

This is a DIY tool i made which can be used for carburator tuning/synch.
Parts Used:
2x 63mm Vacuum Gauge (DO NOT use a pressure(+) gauge, strictly vacuum one is easier to read/use) I used 0 to -1 bar 1.6 class gauges.

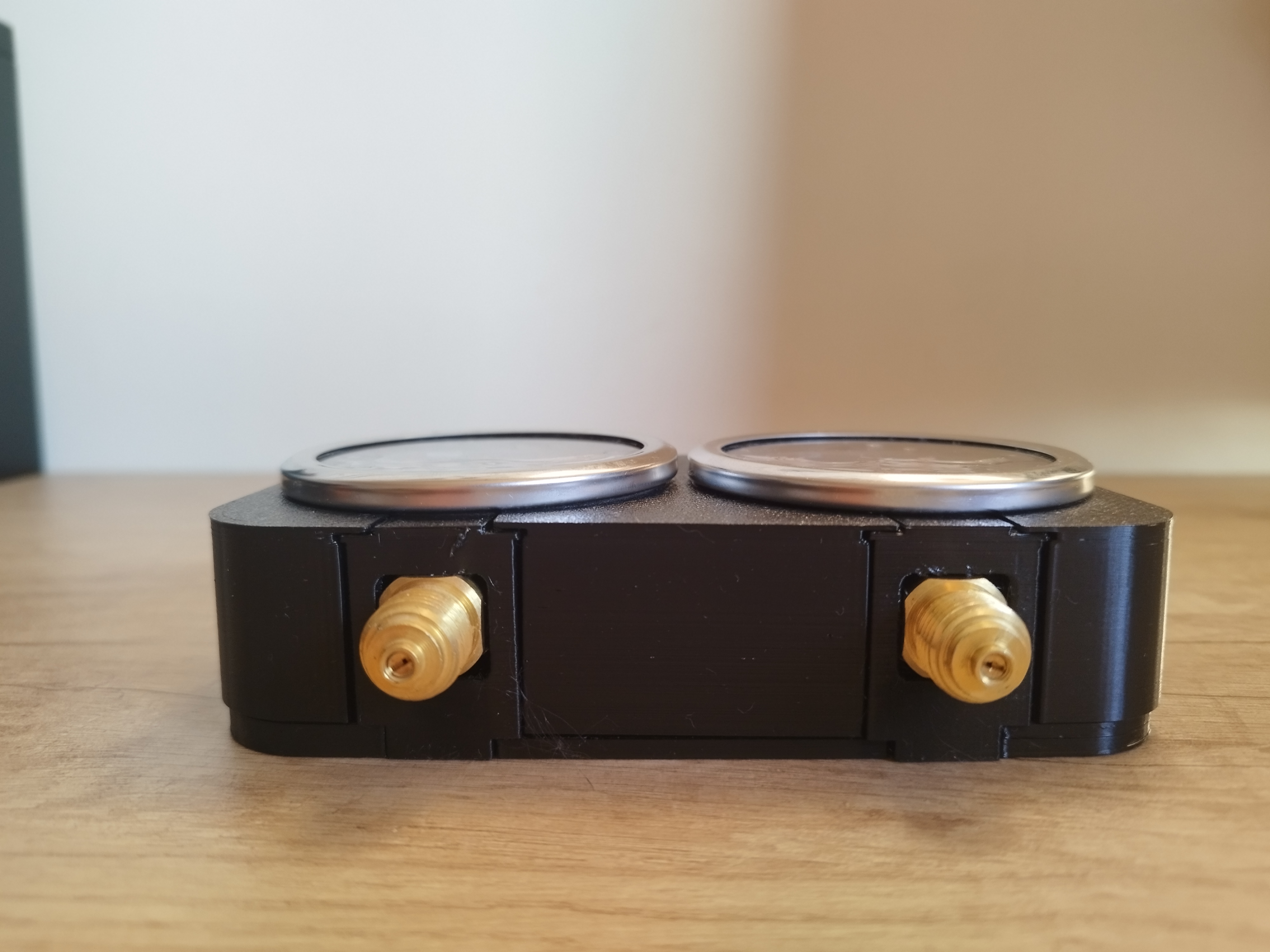

2x ¼" female to female thread union (or whatever it's called)
2x ¼" male thread hose connector for 6 mm vacuum hose
Obviously later you'll need a vacuum hose/adaptors to connect to whatever you synch
The connections need to be sealed with teflon tape preferably.

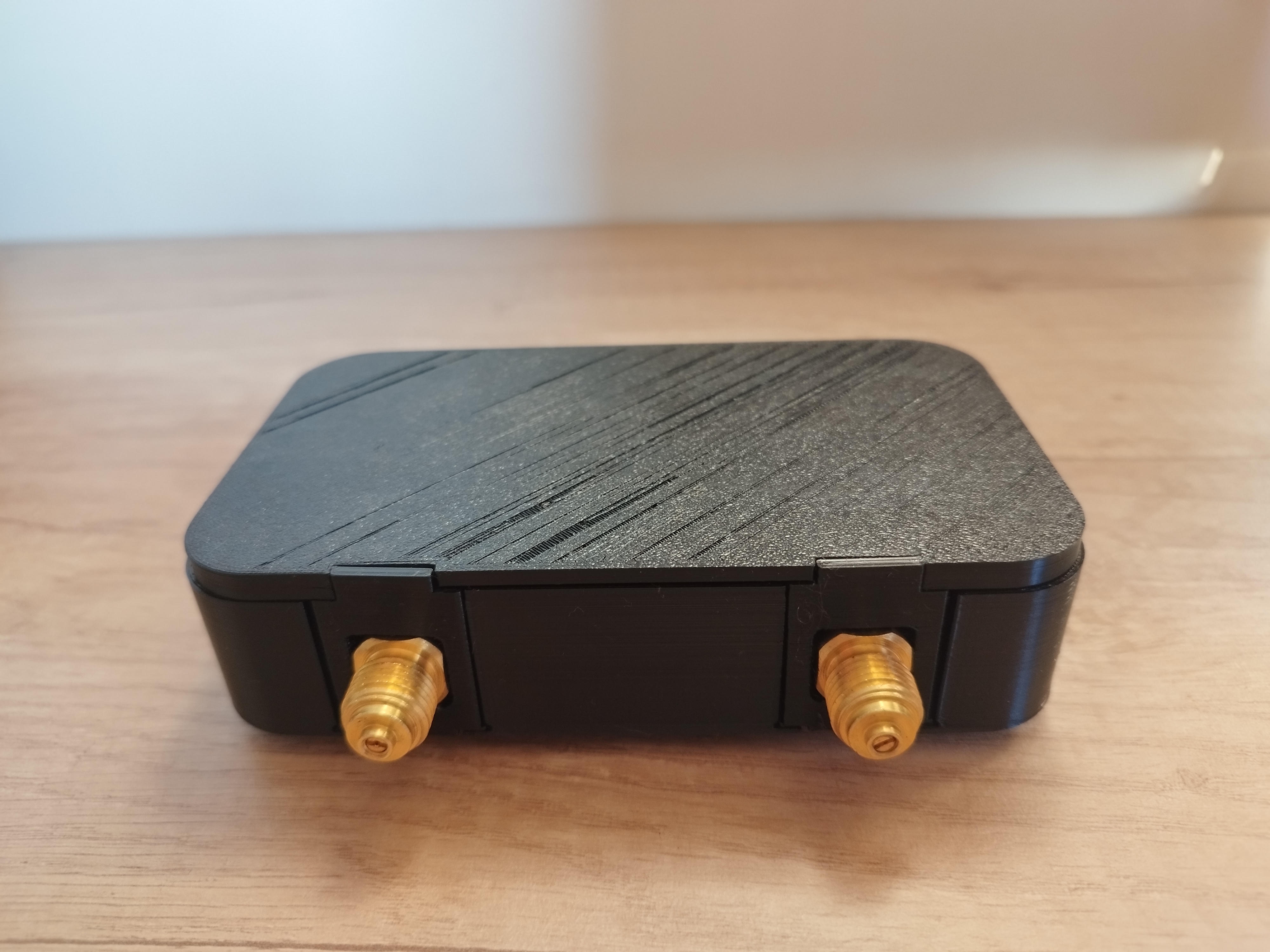

The case itself clicks together but needs hot glue or other type of adhesive.
With included hangers you can hang it wherever you are working.
Printed on Kobra 2 with PETG.
I hope someone finds it useful!
