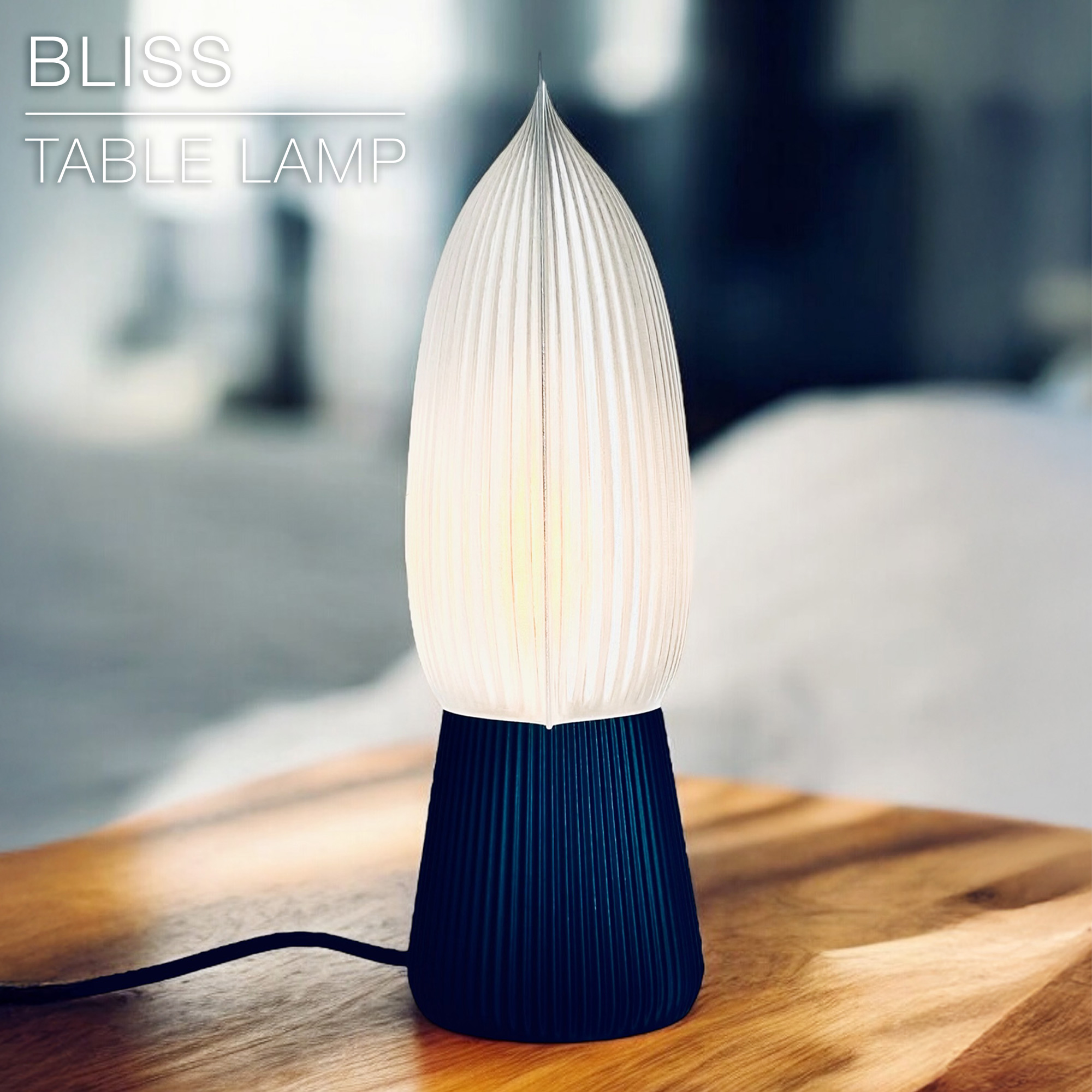

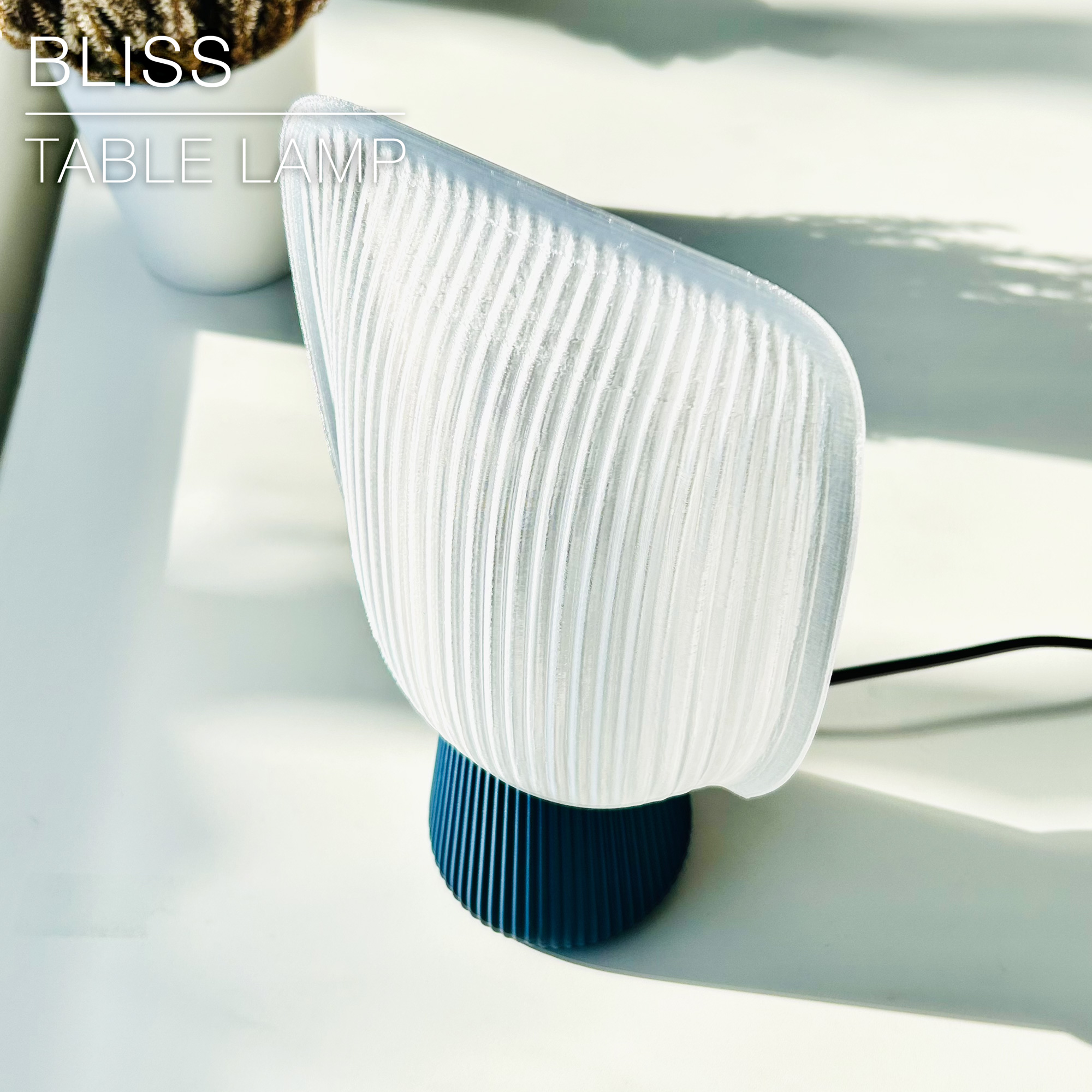

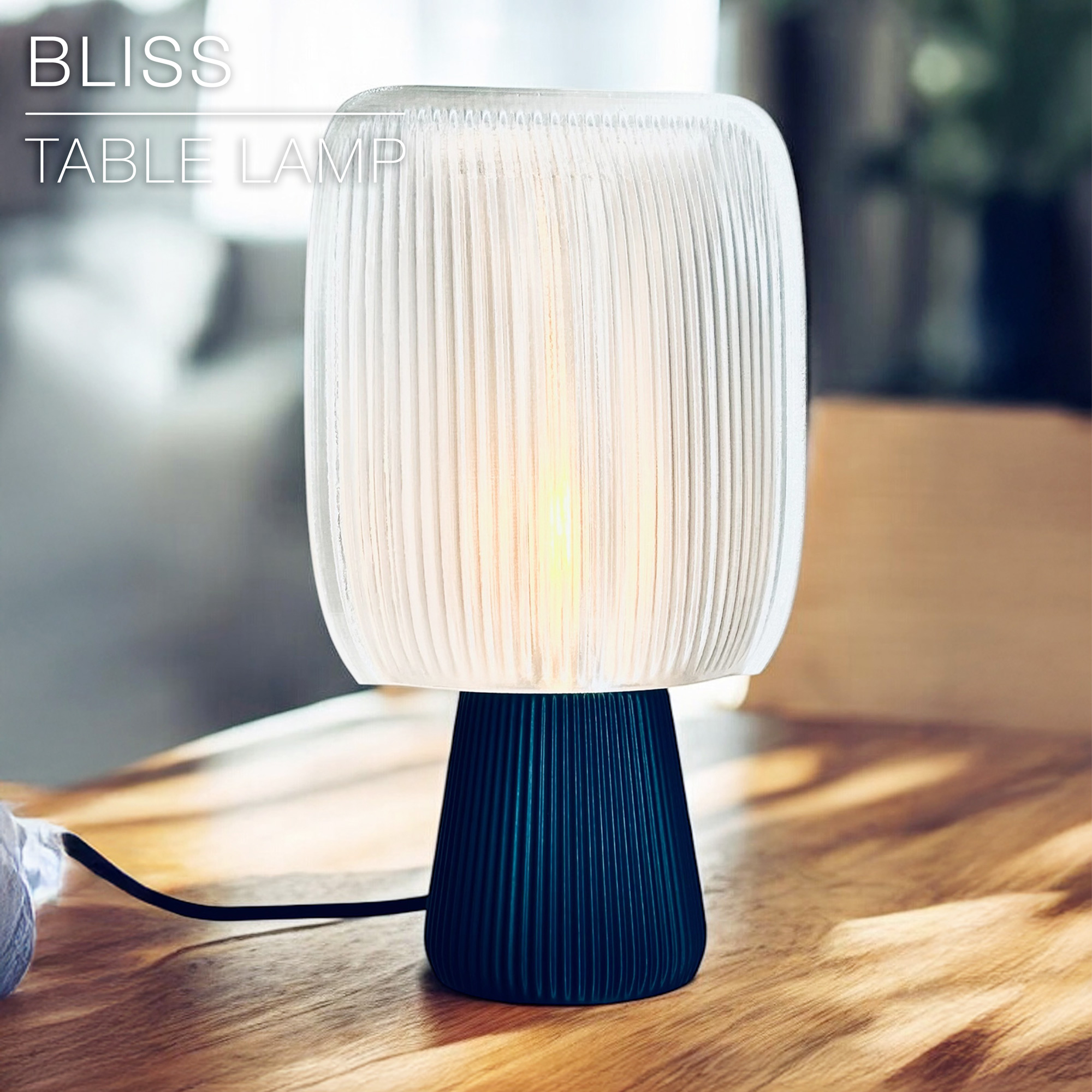

I wanted to make a shade entirely closed-up, joining at the sides and at the top, a bit like a pillow-shape.
And I really like the way it turned out.

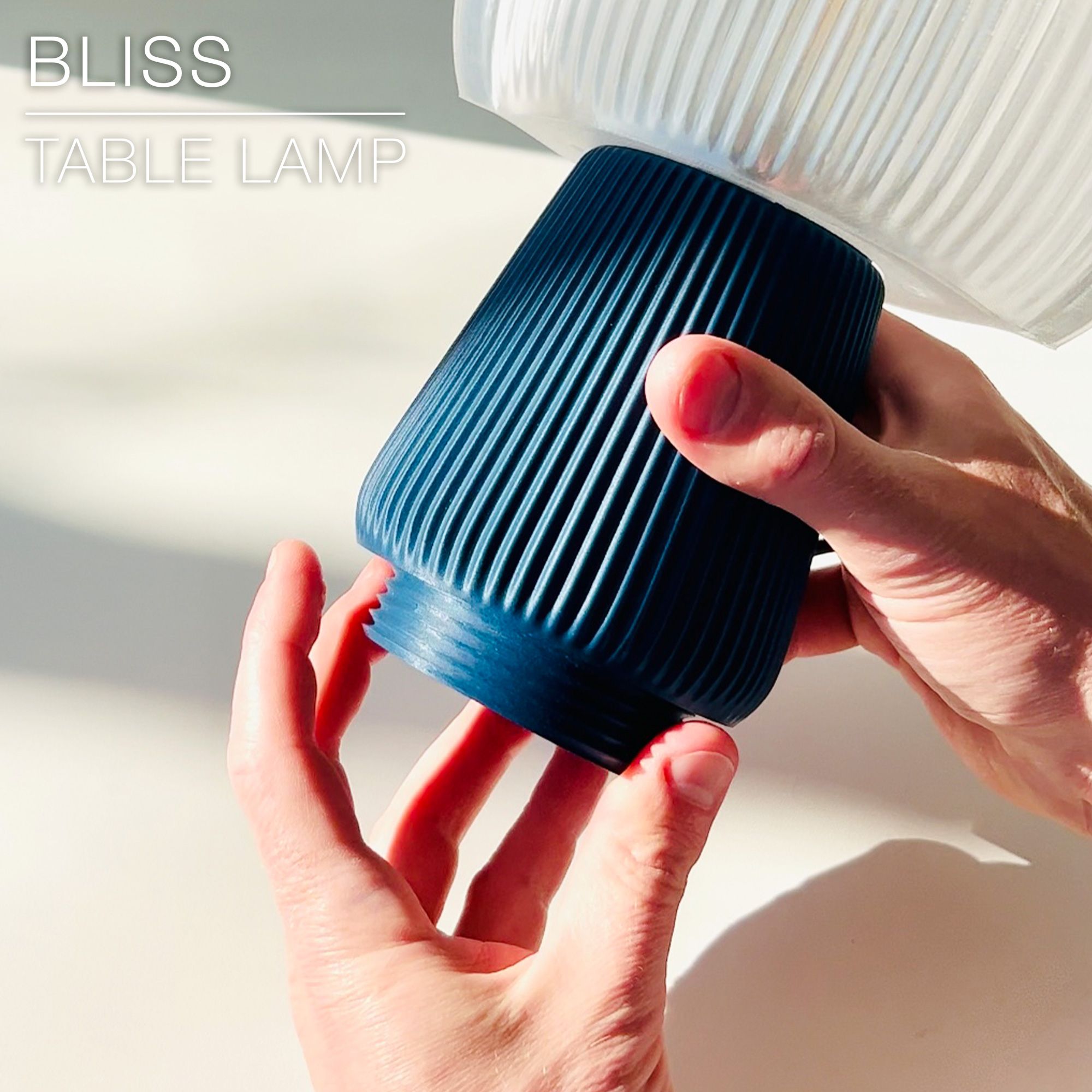

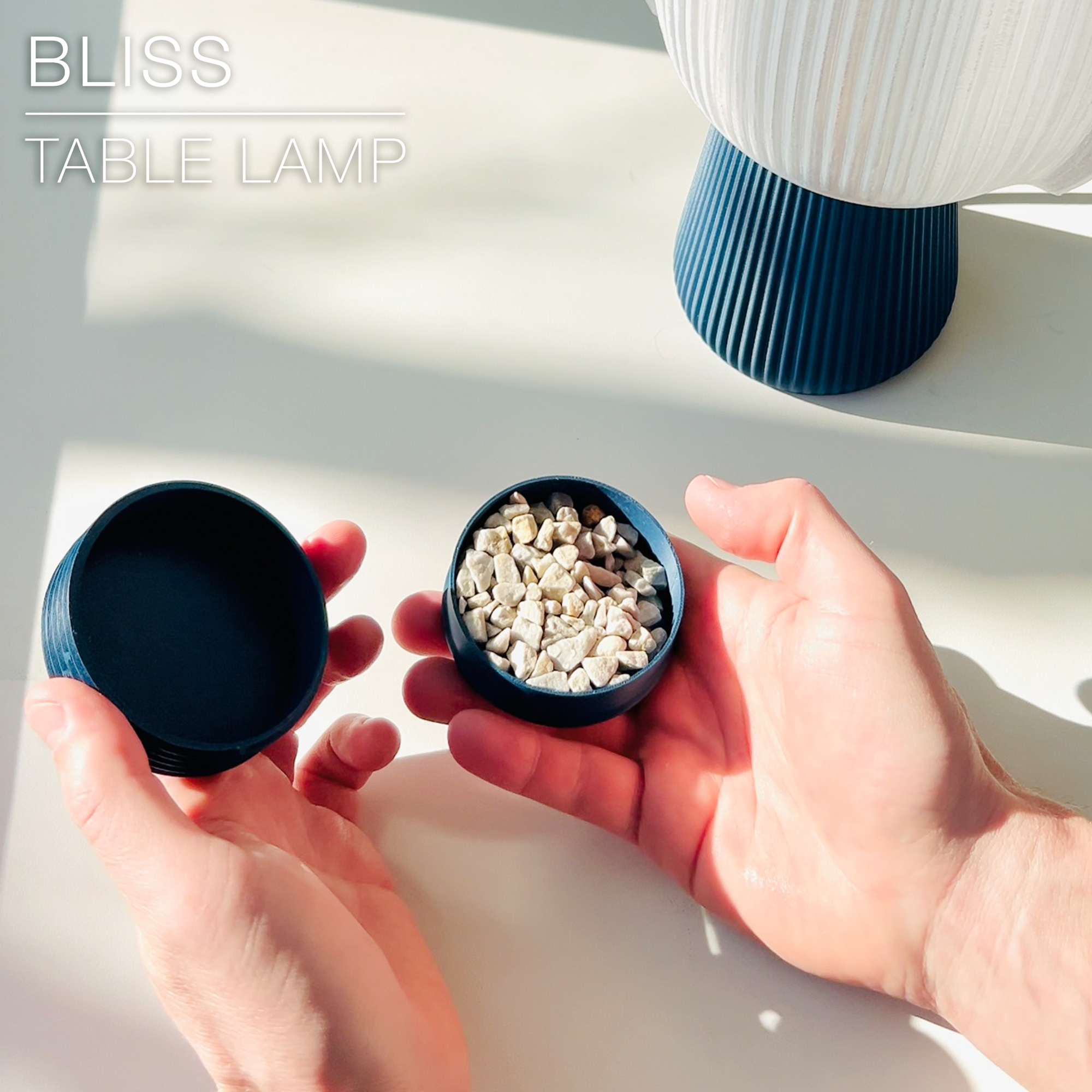

I also added a little screw-in container to add some weight to the base.
You can fill it up with clay, some gravel or some sand.
It makes the lamp very stable, gives it a more premium feel.

This lamps works with either E14, E26 or E27 sockets.

You can get the power cords from Amazon here:

For Europe:
E27 cord:  https://amzn.to/3OVrZjK

E14 cord:  https://amzn.to/3TchBqs

For the US:
E26/E27 cord:  https://amzn.to/3U0Xyvy

Happy printing!

DIMENSIONS (shade) | L180 mm x W90 mm x H 200 mm

DIMENSIONS (base) | Ø100 mm x H 103 mm

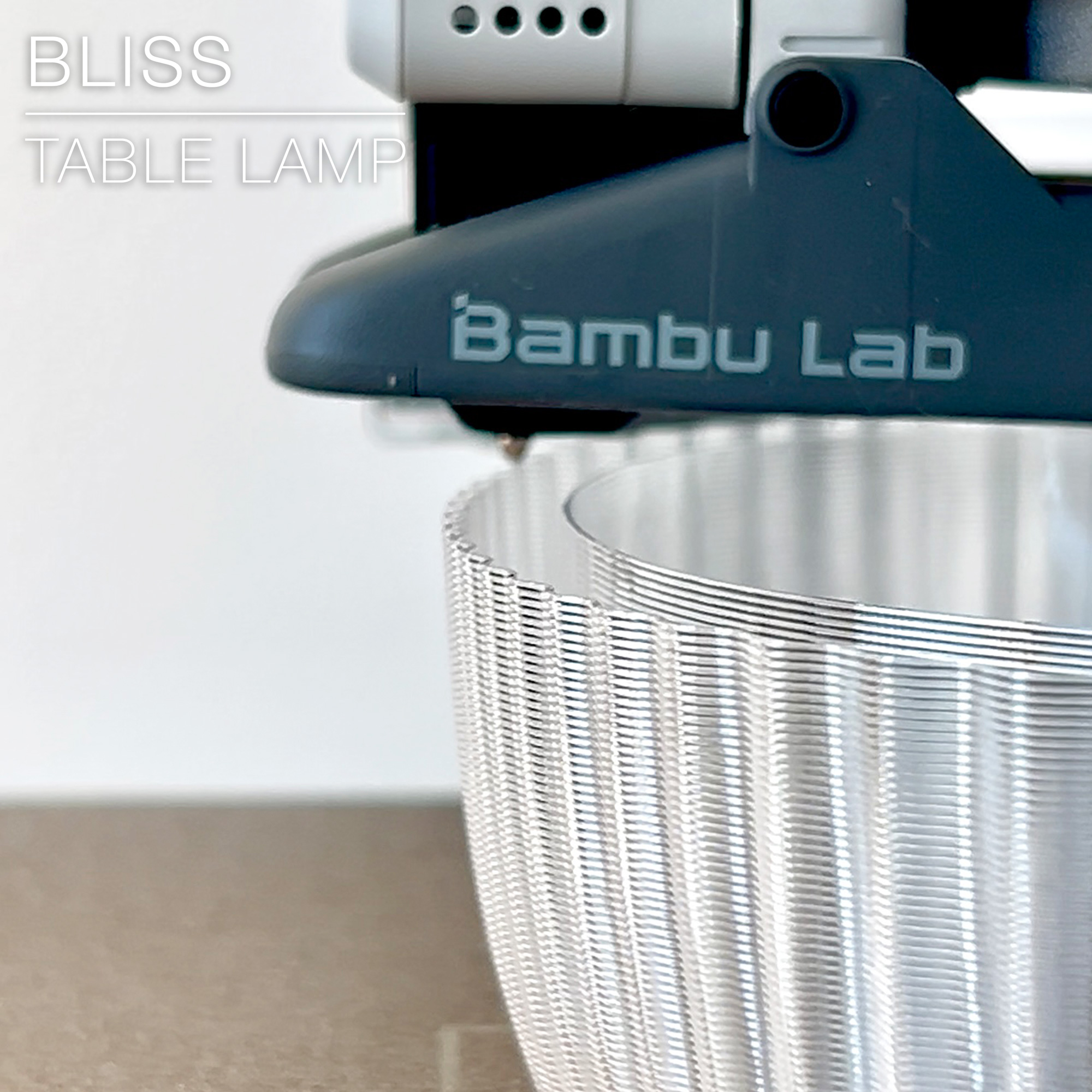

3D printing settings

The shade and the base print upright.
(STL files already oriented properly).

SHADE:
The shade 3D model is full, that's normal.
To make it empty/hollow, you have to set the infill to 0%.

Wall line count: 2
Bottom layers: 5
Resolution / Layer Height: 0.2mm/layer or less
Seam position: Back
Infill: None (0%)
Build adhesion type: None
Supports: None

In Bambu Studio:
- make sure to untick "ensure vertical shell thickness" in Speed settings or you'll end up with extra thickness here and there.
- set "Wall Generator" to "Arachne" mode in Quality settings, or you'll end up doubling the print time.

BASE:
The base prints with regular settings, no particular trick.
No brim or supports needed.
