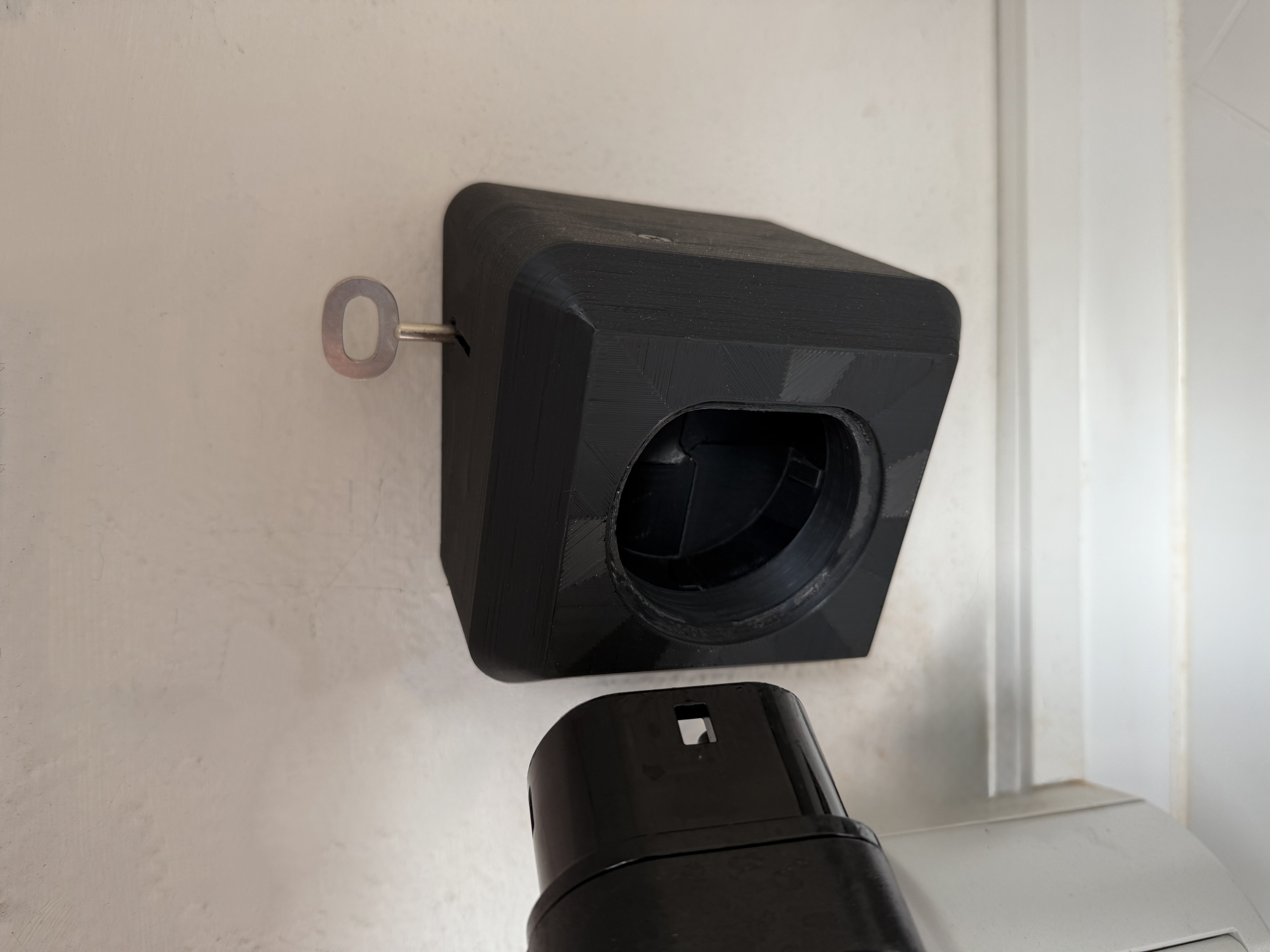

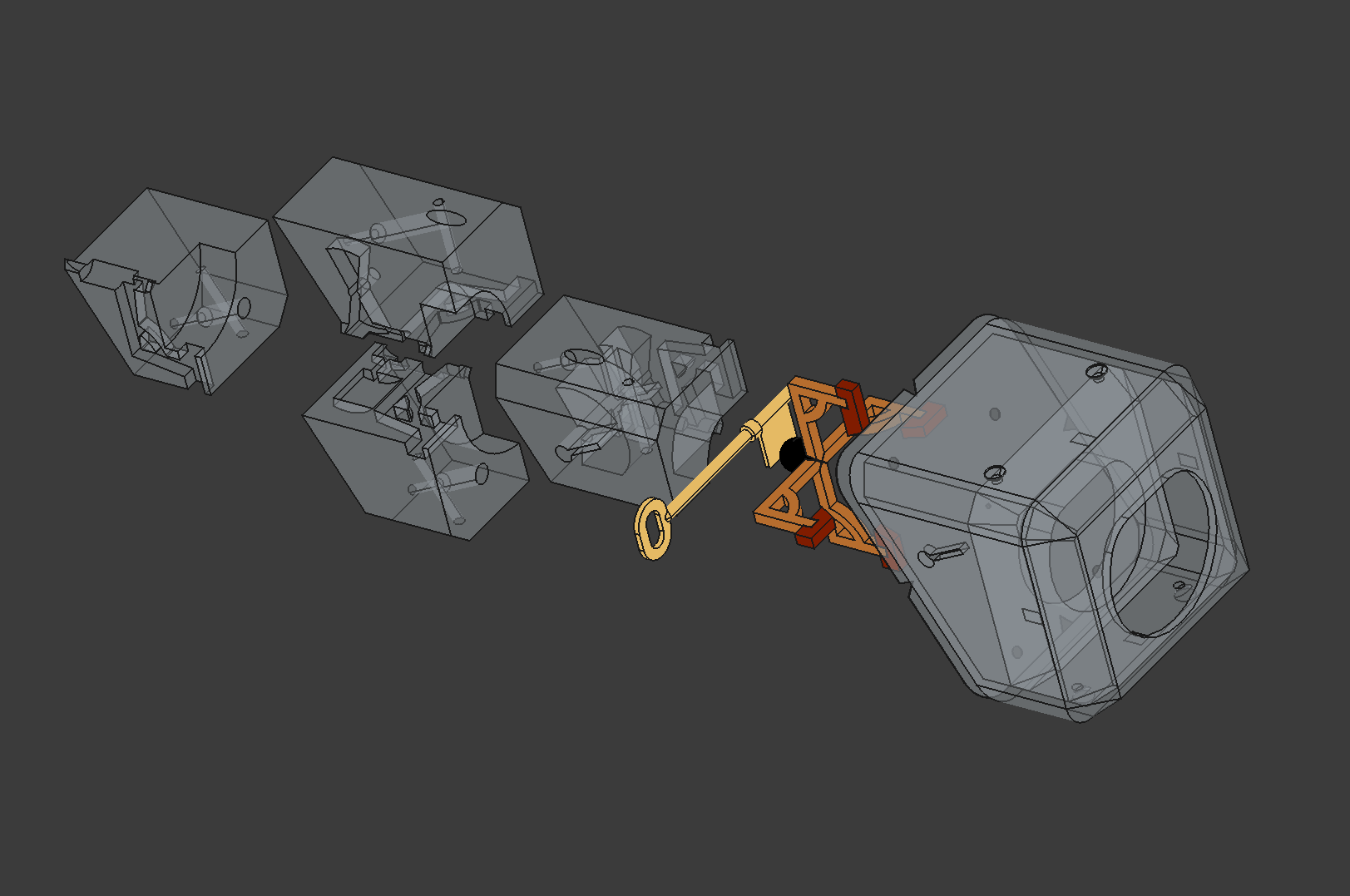

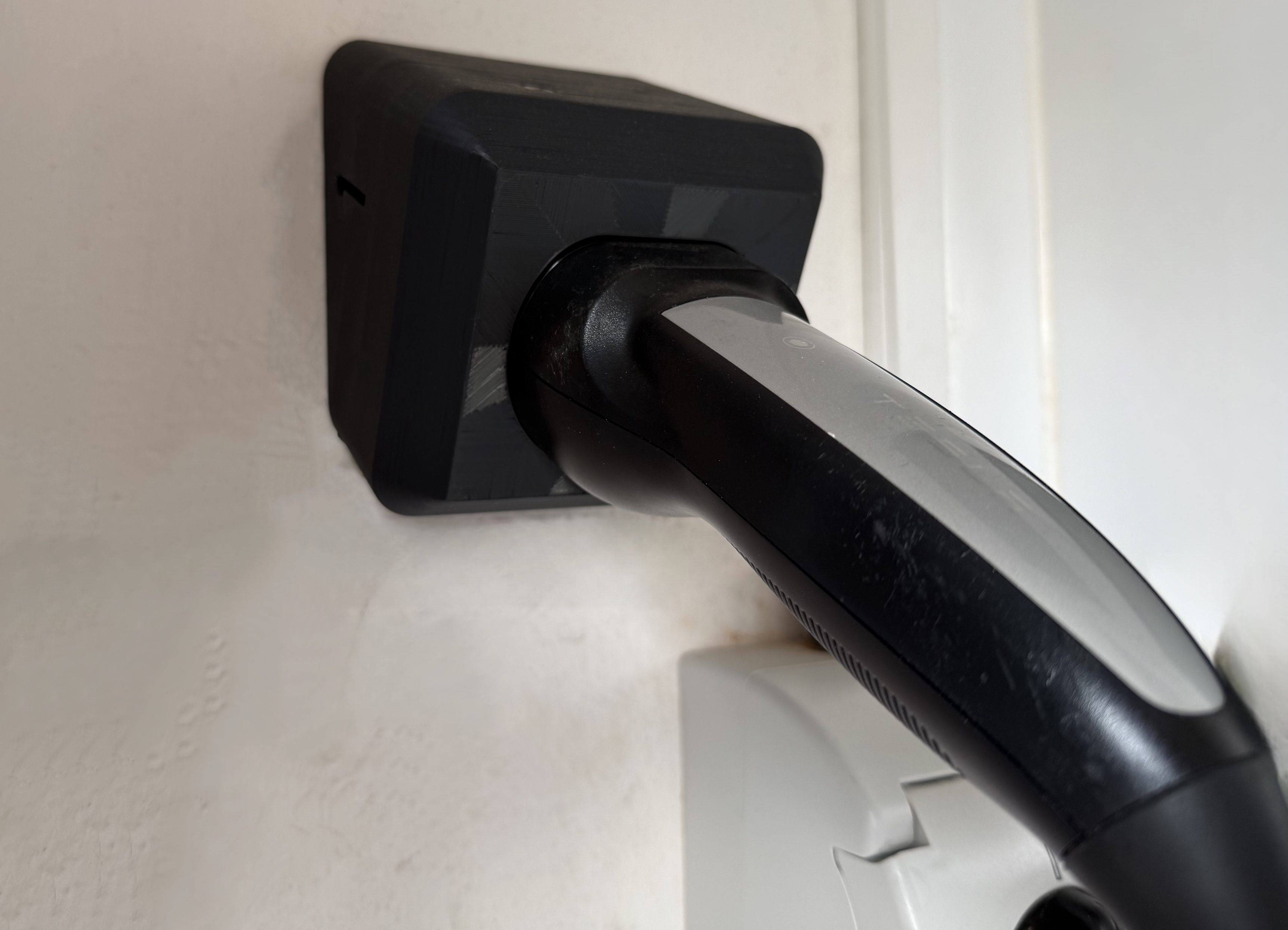

Type2 plug holder, which allows you to protect the plug from unauthorized use. The plug is held by 4 pins released by turning the key. The key has several "dead" positions and traps - only the right sequence of rotations allows you to release the plug. The key is not required to insert and lock the plug.

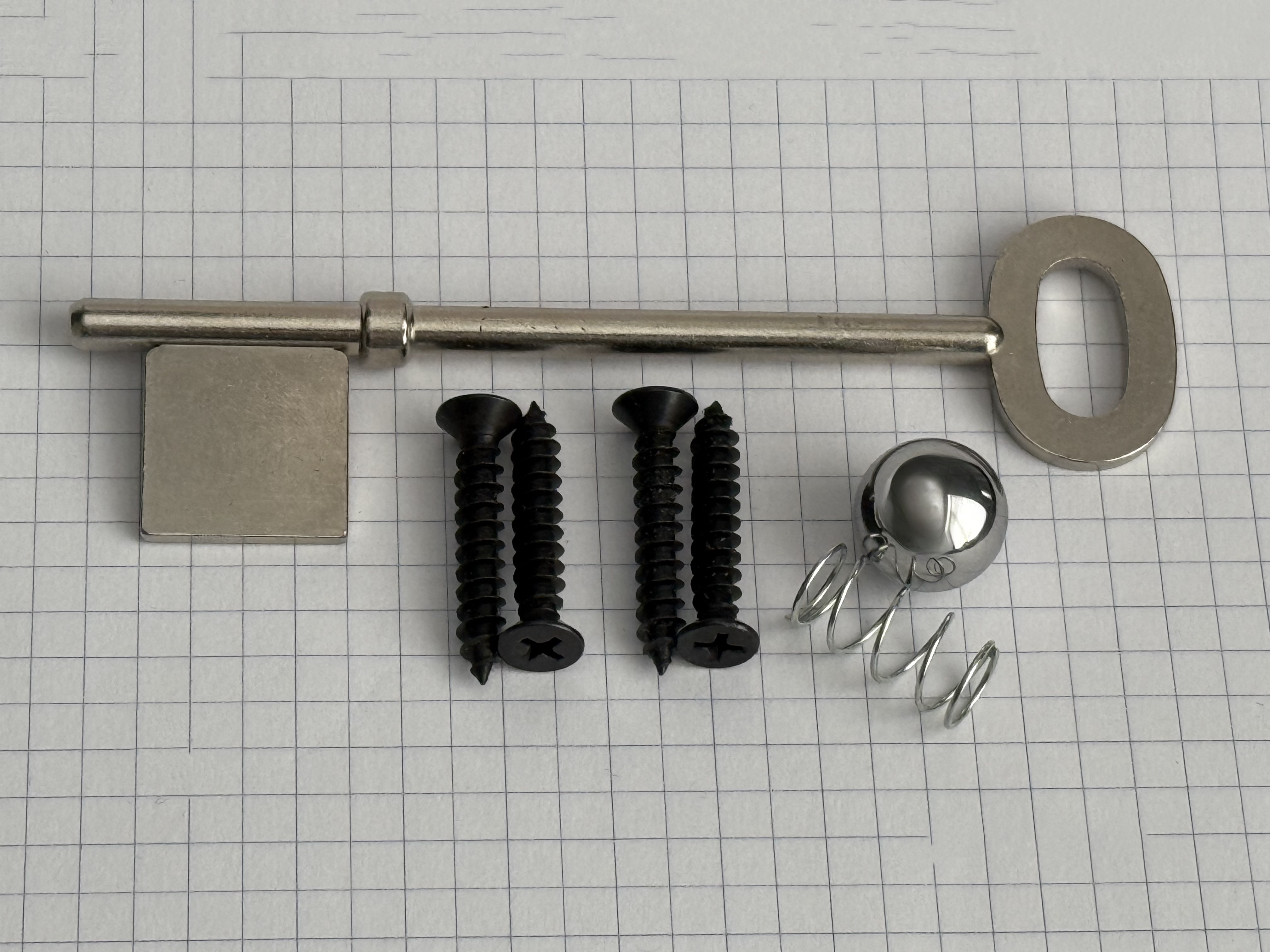

To build the model you will need:
- 1x steel ball 15 mm
- 1x spring 9.5x19mm
- 4x screw M5*35
- 1x extra long key for Union 5 lever locks (link)
- 4x screw to wall mount
Make sure you use UV-resistant material if the model will be exposed to direct sunlight.
File names contain information about how many copies should be printed.
All files are oriented in the recommended print position.
Insert 3 & 4 require support (you can exclude support inside screw hole).
If you glue Insert0 with Cover, then it will not be possible to disassemble and access internal elements when plug is locked.
