ABUS FEUERSTOPP Wall Mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution — Share Alike
About

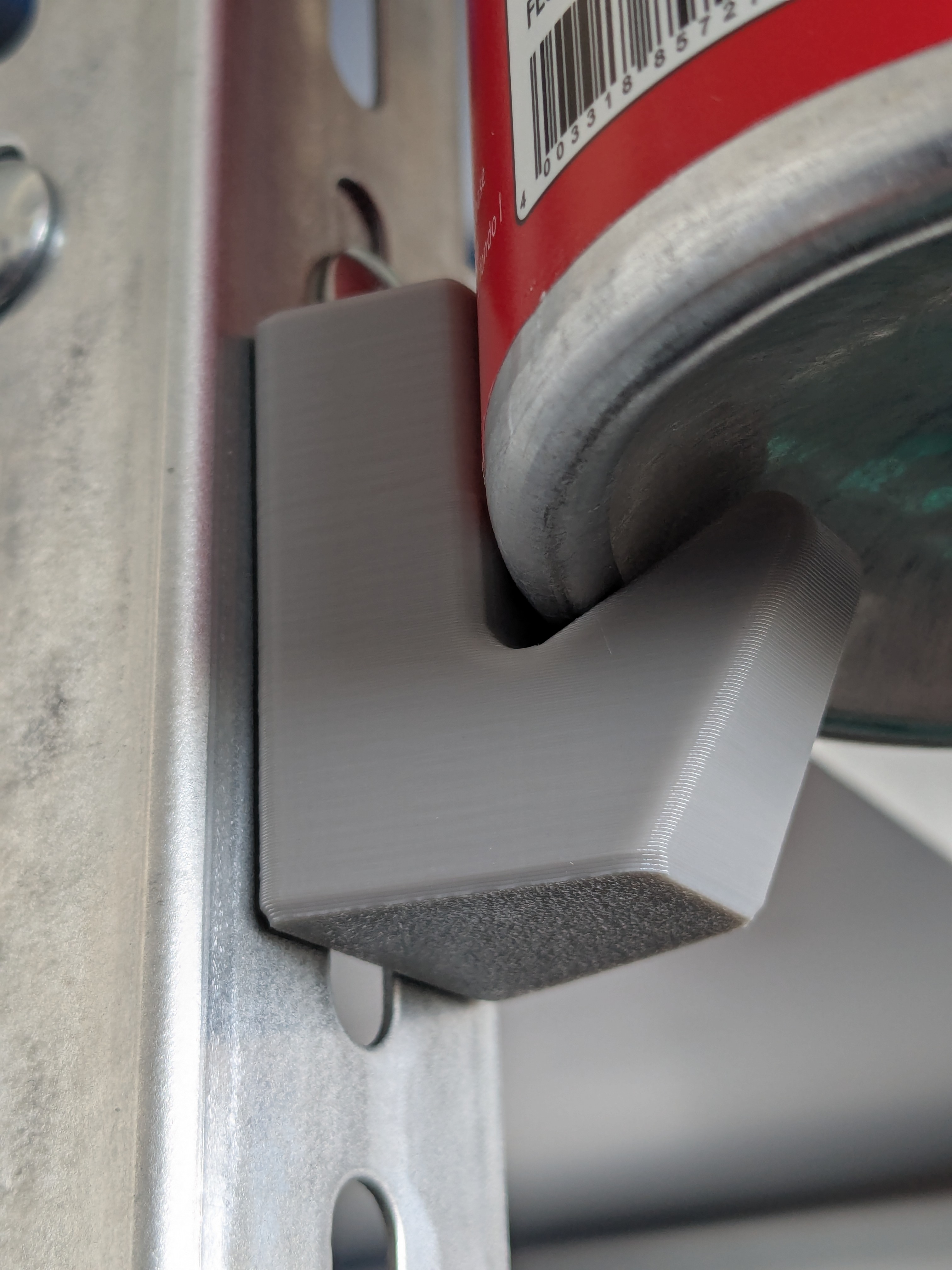

This is a two-part wall mount for the ABUS FEUERSTOPP fire extinguising spray. The spray clips into the mount and can be easily removed in case of a fire.
Additional Parts
For wall-mounting, appropriate screws are required. The wall mounts have 5.5mm through-holes and a 13x6.4mm counterbore (fitting for M5 cylinder screws with washers).

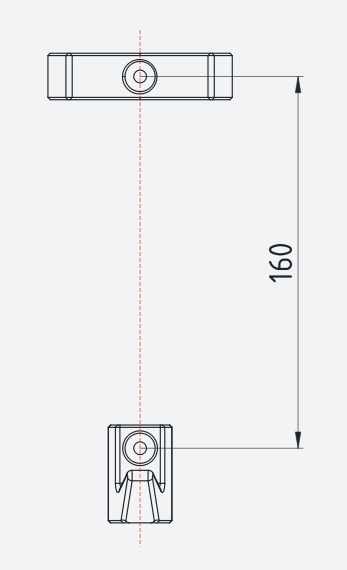

Mounting
Recommended Printing Parameters
| Orientation | Print in the provided orientation of the STL file. |
|---|---|
| Support Material | Print without support material. |
| Layer Height | 0.2 mm |
| Nozzle Diameter | 0.4 mm |
| Perimeters | 4-6 |
| Material | PETG |
