Vive Pro Mount/Charging Dock

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Licencja
Creative Commons — Attribution

First of all, I am proud to say that this one was a successful print on the first try. Secondly, I'm not too worried about print speed anymore. I am concerned more about where I utilize my 3d printer and its material.

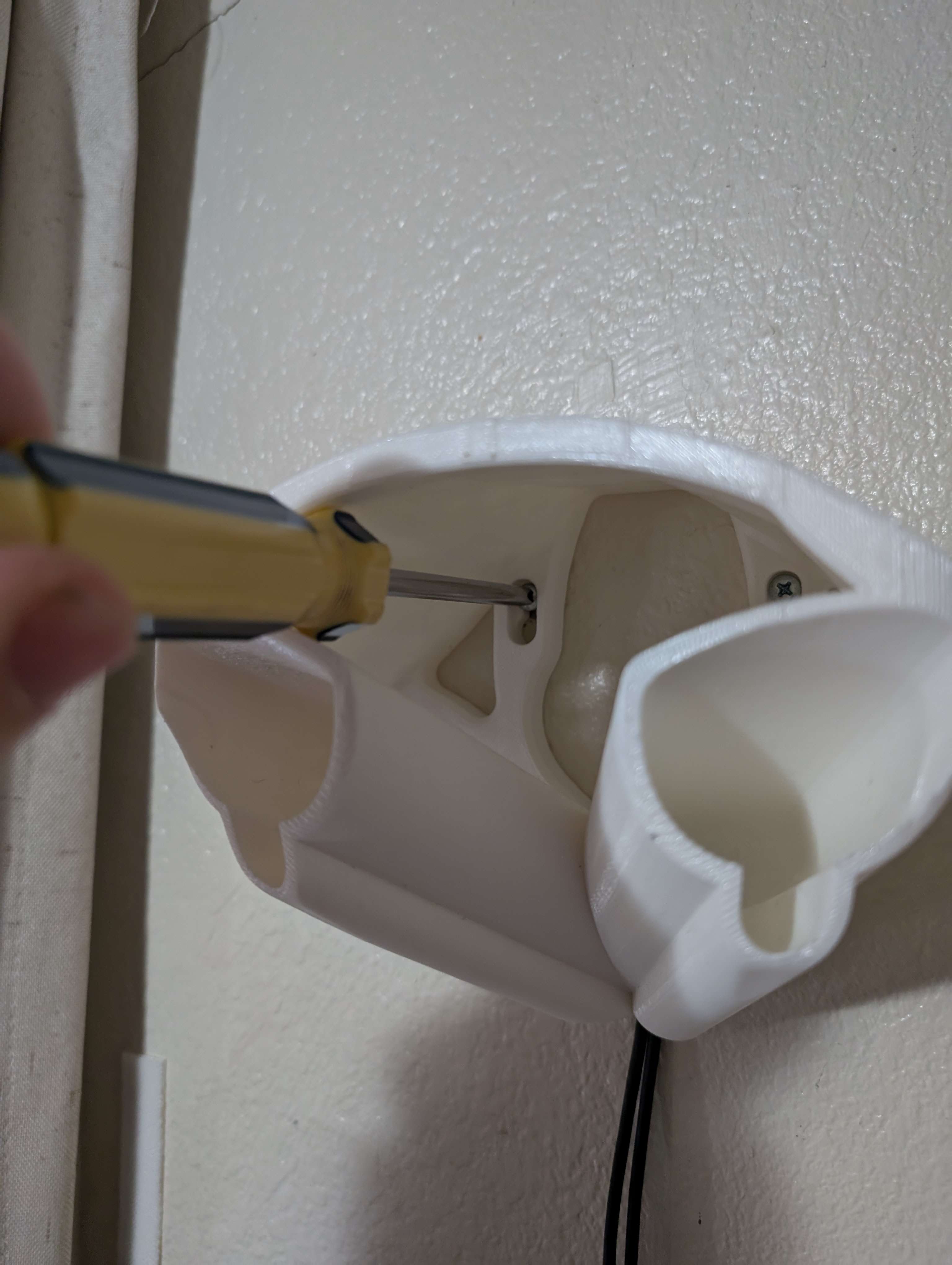

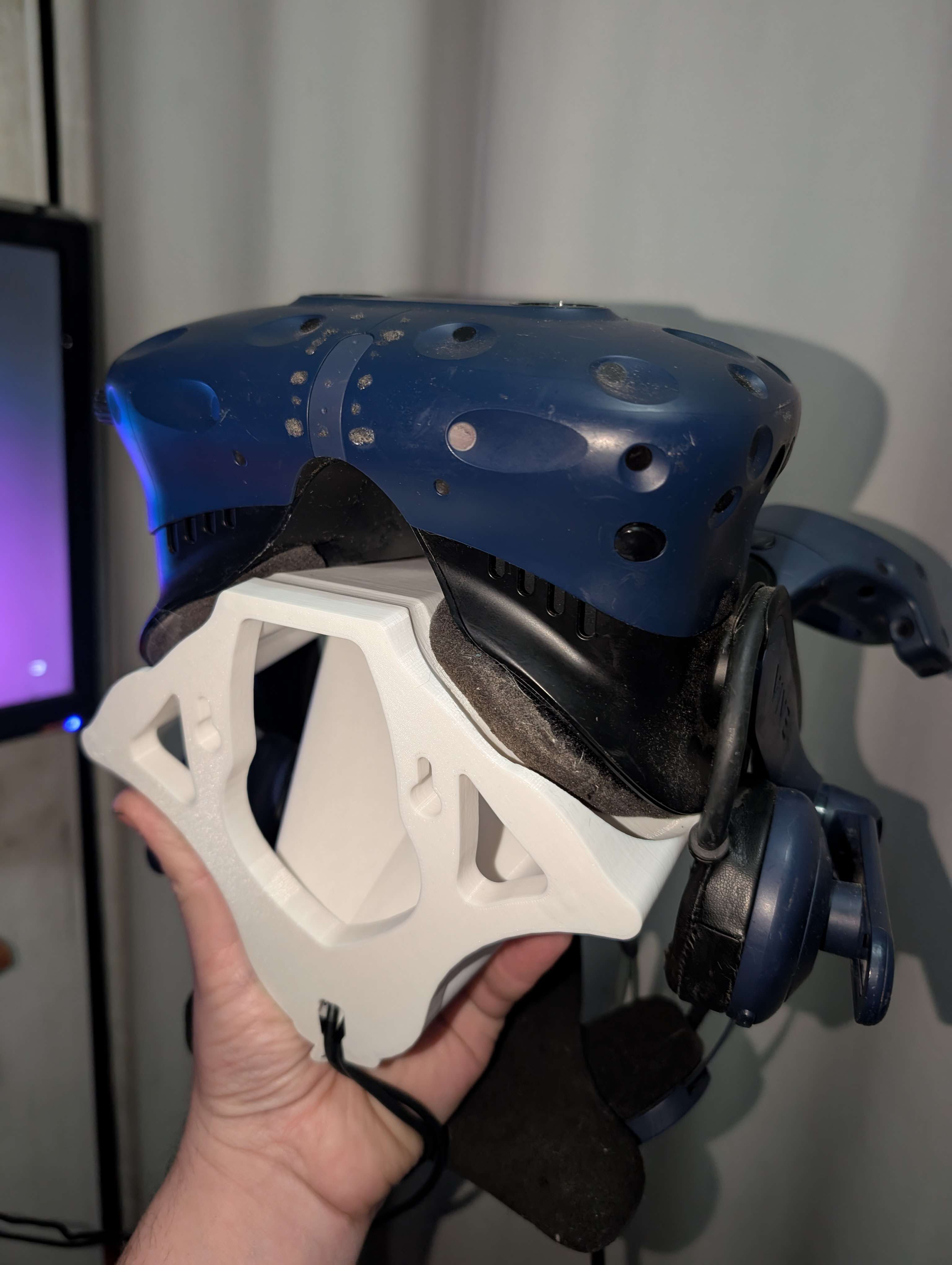

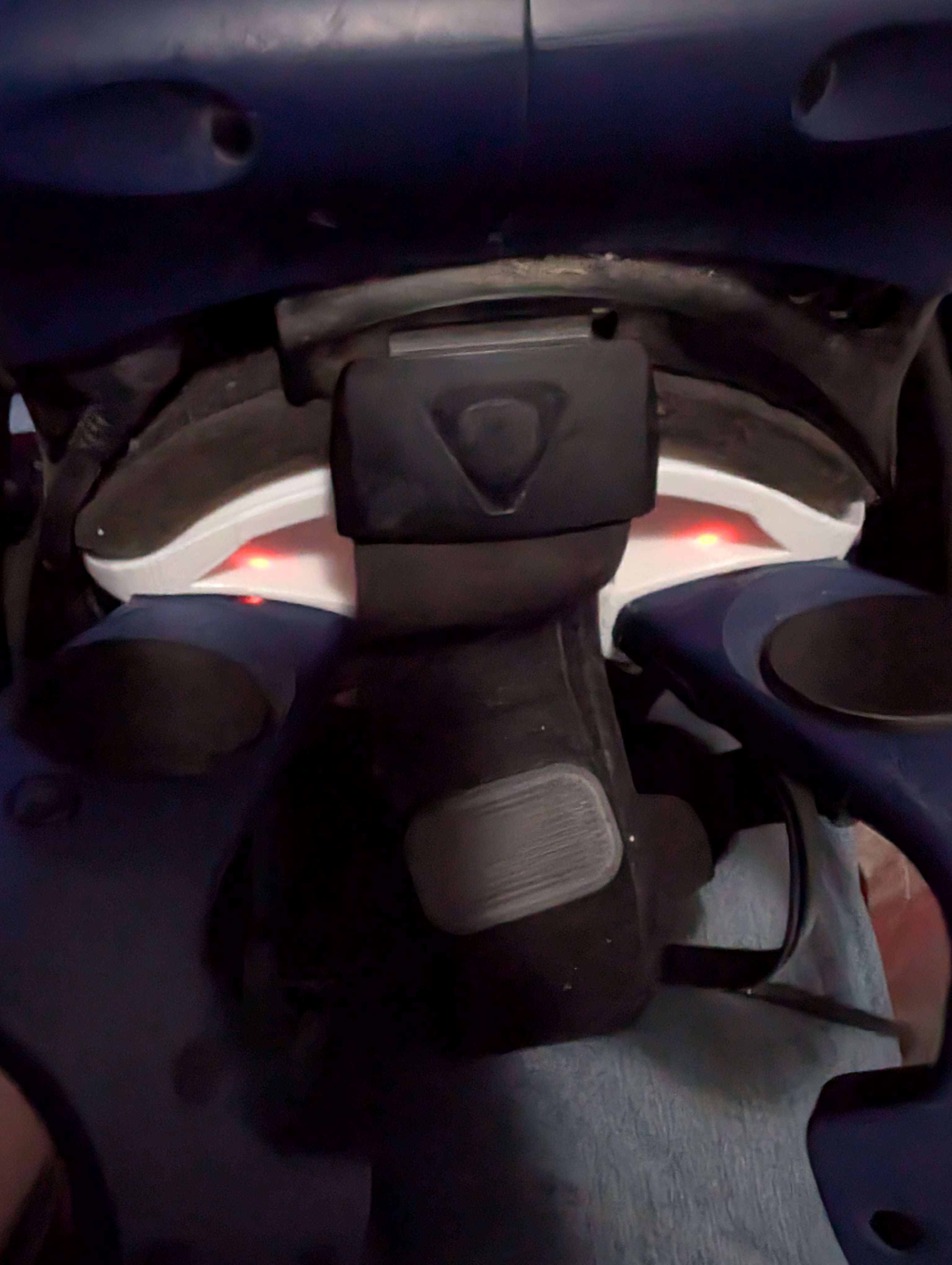

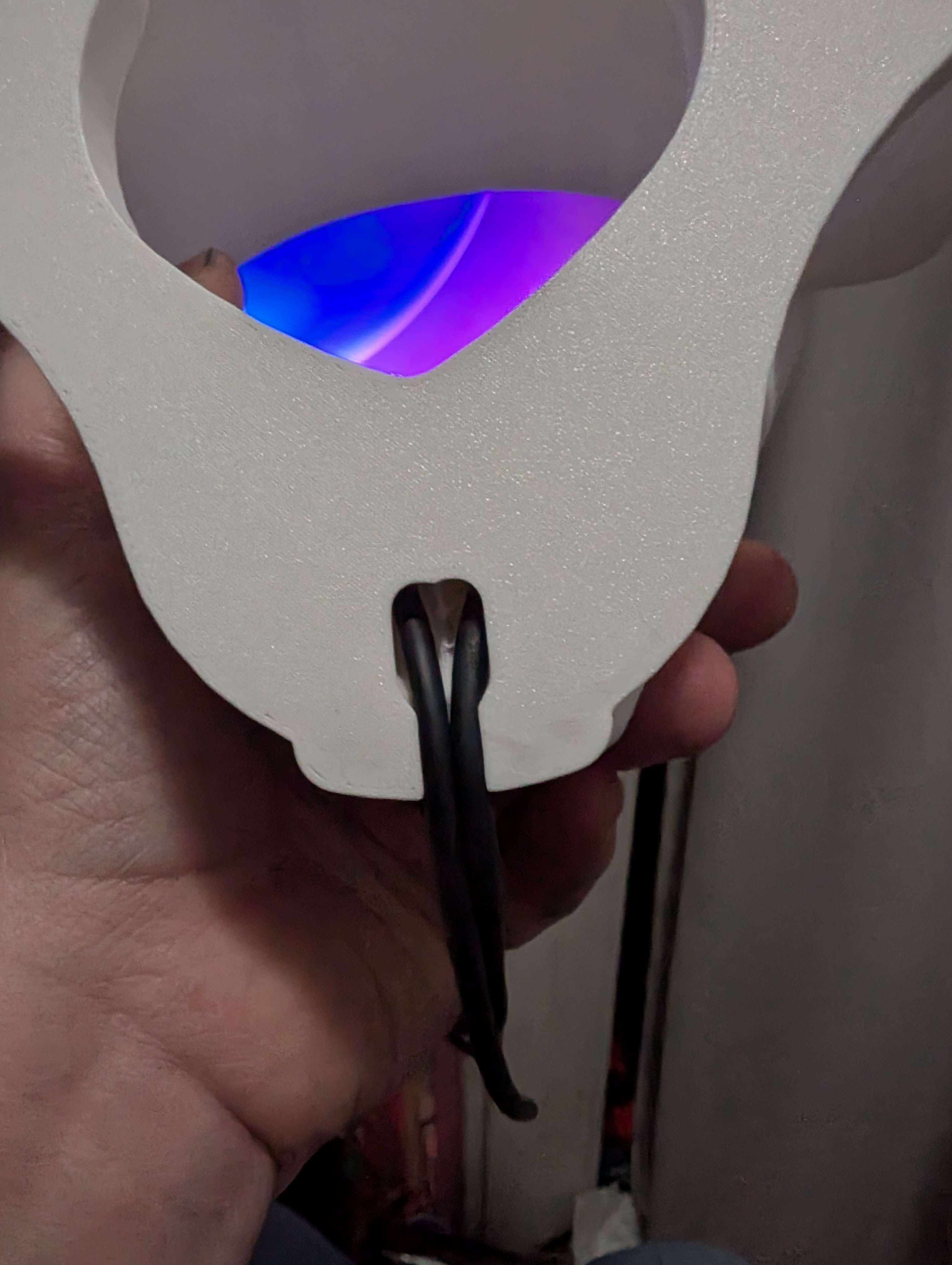

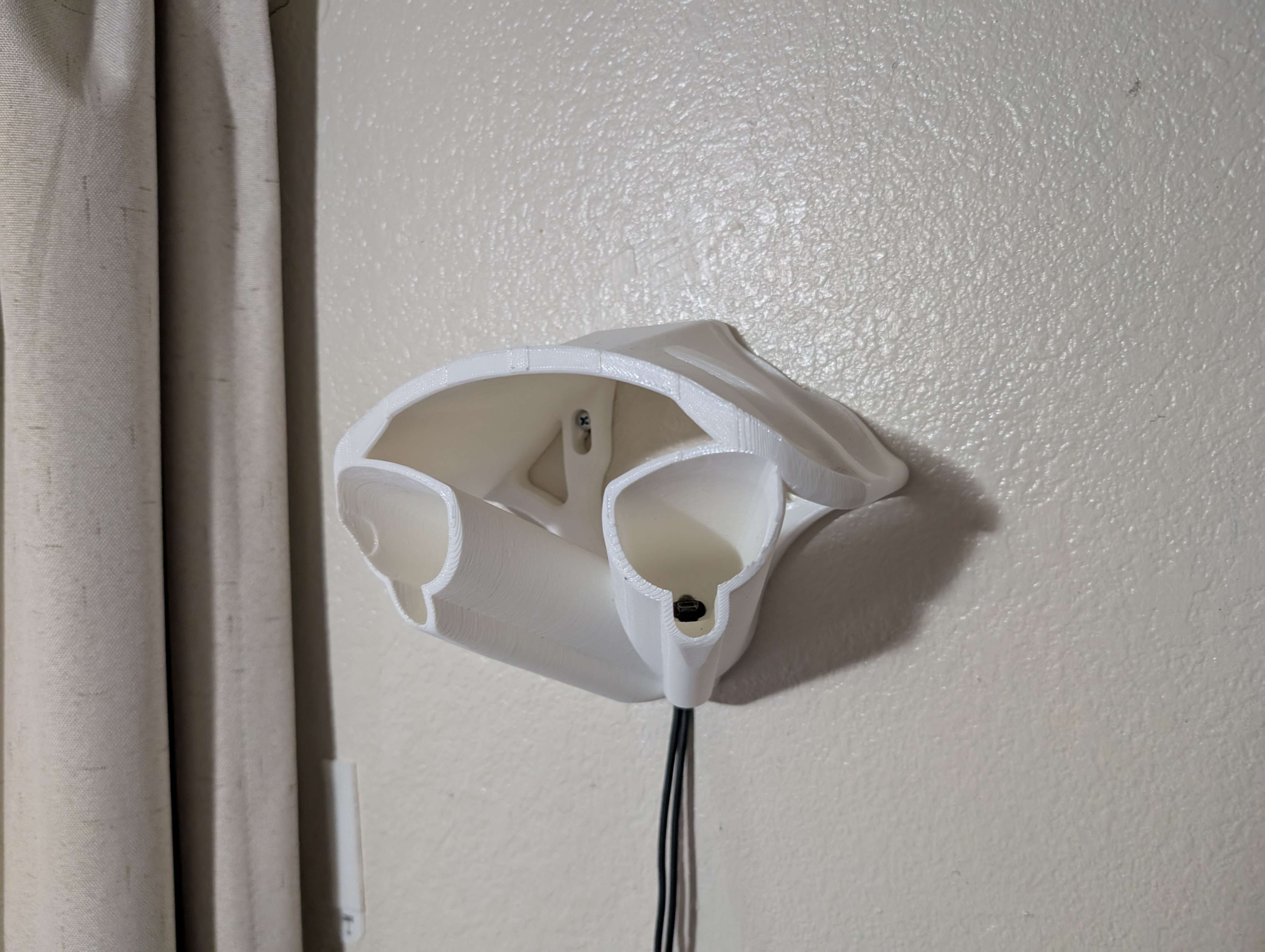

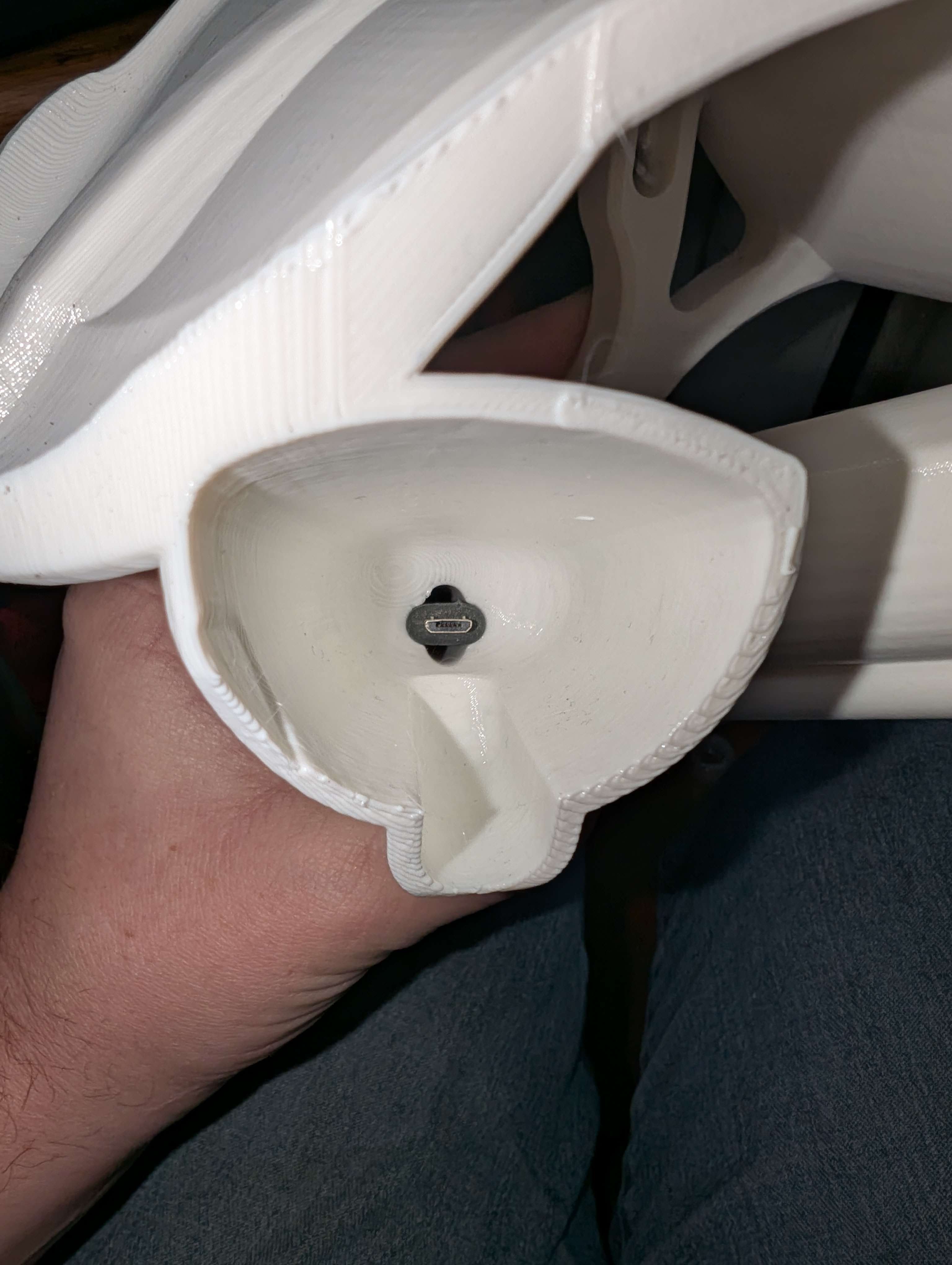

I've always had a difficult time with where to put my vive pro when I'm not using it. I know I'm not the only one with this issue. Let's grant others the opportunity! This mount is lightweight, optimized for limited material use and print time. I used CAD models of both the headset and controllers to provide a stylish design that is also multifunctional. The mount includes a way to plug in the original USB cables that came with the controllers (labelled C1). Mounting against the wall keeps the cables from being pulled out of the dock (See photo of inside of dock for proper cable orientation). The docks cover the remote lights just enough to dim the charging lights for the night and yet bright enough to see the charging status. If set at 45° it can fit in a prusa mini.

Printeri3 MK3S+ with E3D Revo Six and MMU2S
FilamentOverture PLA White (https://overture3d.com)

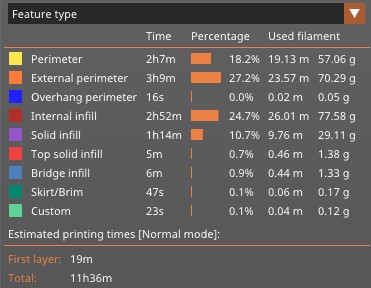

Print Time (Default Speeds)11h36m
Layer Height0.3mm
Vertical Perimeters2 (1.14mm)
Horizontal Perimeters (Top)4 (1.2mm)
Horizontal Perimeters (Bottom)3 (0.9mm)
Infill PatternGrid
Fill Angle45°
Fill Density15%
