Vectrex Controller Plug
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Video Games
- Licencja
- Creative Commons — Attribution

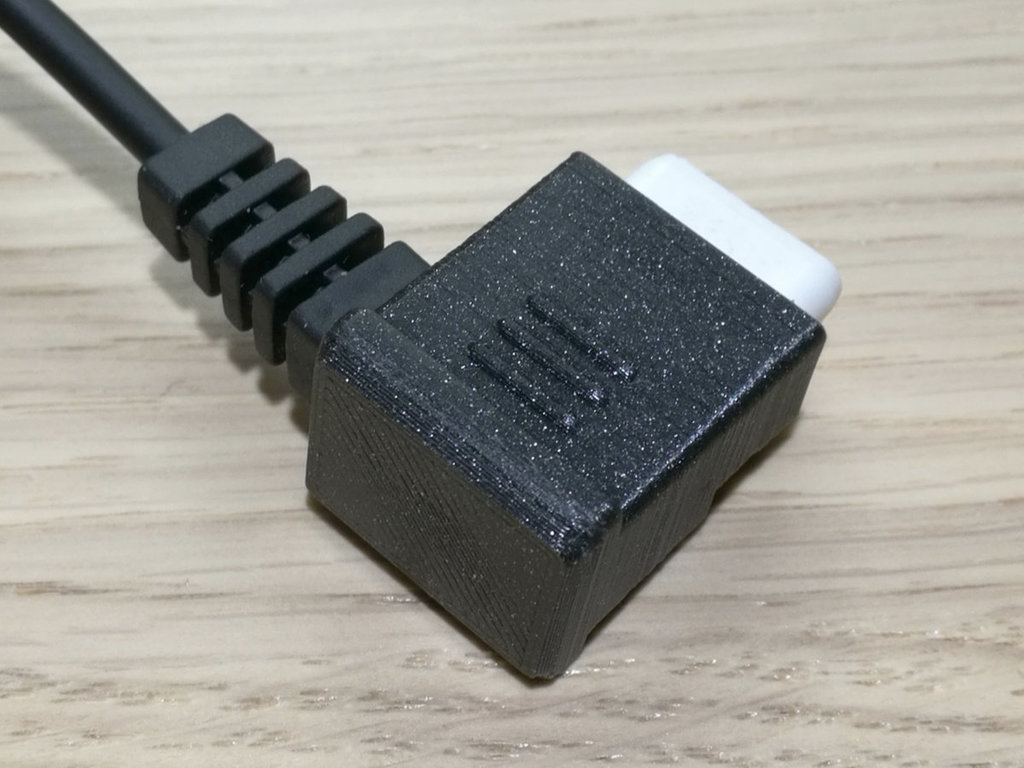

Printable case to built a Vectex Controller Plug.
Needs a 9 Pin D-SUB female connector (Conrad part number 1401502 - 62 | Digi-Key part number 732-618009221923-ND) and a anti-kink sleeve for 4mm cables (Mounting hole is 6mm x 4.5mm, 2.8mm wall thickness, - I used "Knickschutz für 4mm Kabel" from ab-elektroshop)
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
Rafts:
No
Supports:
No
Resolution:
0.1 mm - 0.2 mm
Infill:
20%
Filament:
Prusament PETG Galaxy Black
Post-Printing

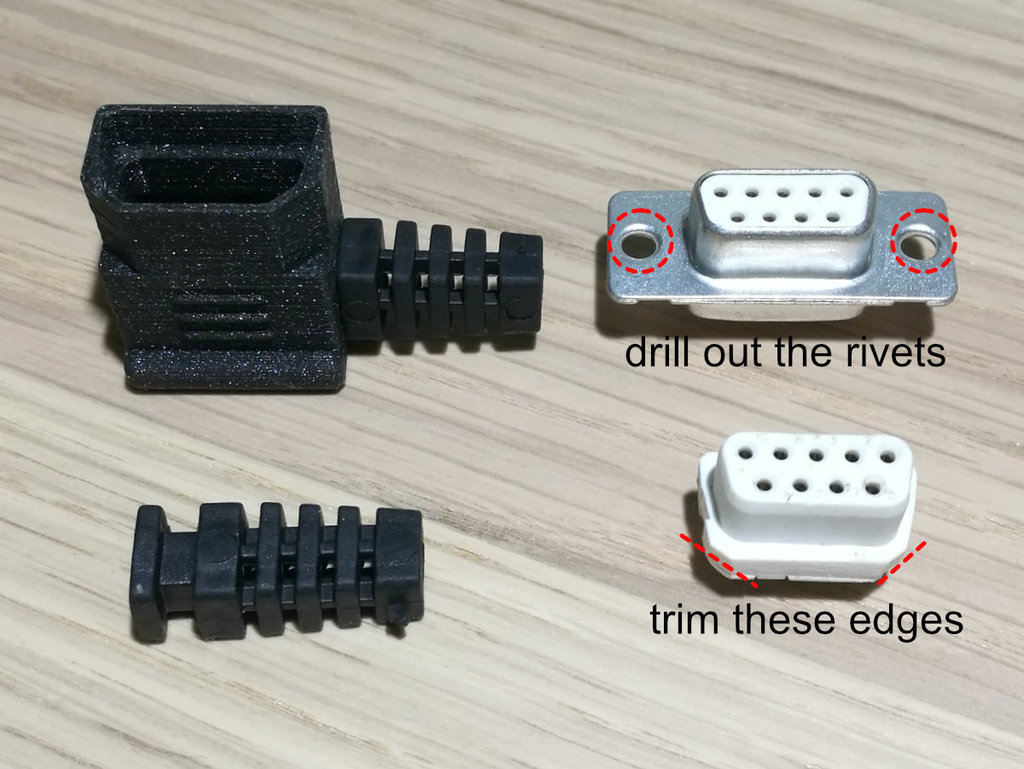

- Remove the metal shell from the D-Sub connector
(drilling out the hollow rivets works best) - Shape the plastic inset to match the mounting hole in the printed part
(you need to cut or sand down the two lower edges, see image of parts) - Mount the anti-kink sleeve by pushing it through the side mounting hole
(a screwdriver works wonders here) - Insert the cable, solder the terminals
(and test everything! - ask me how I know) - Glue the terminals into the printed part with some super glue
