Small Travel Pillbox

Note:
I noticed severe differences in the hinge mechanism while printing multiple of these containers. This is now a redseign. All old revisions have been moved to the Arhive folder. The old page has also been saved as a pdf if you liked the older versions better.

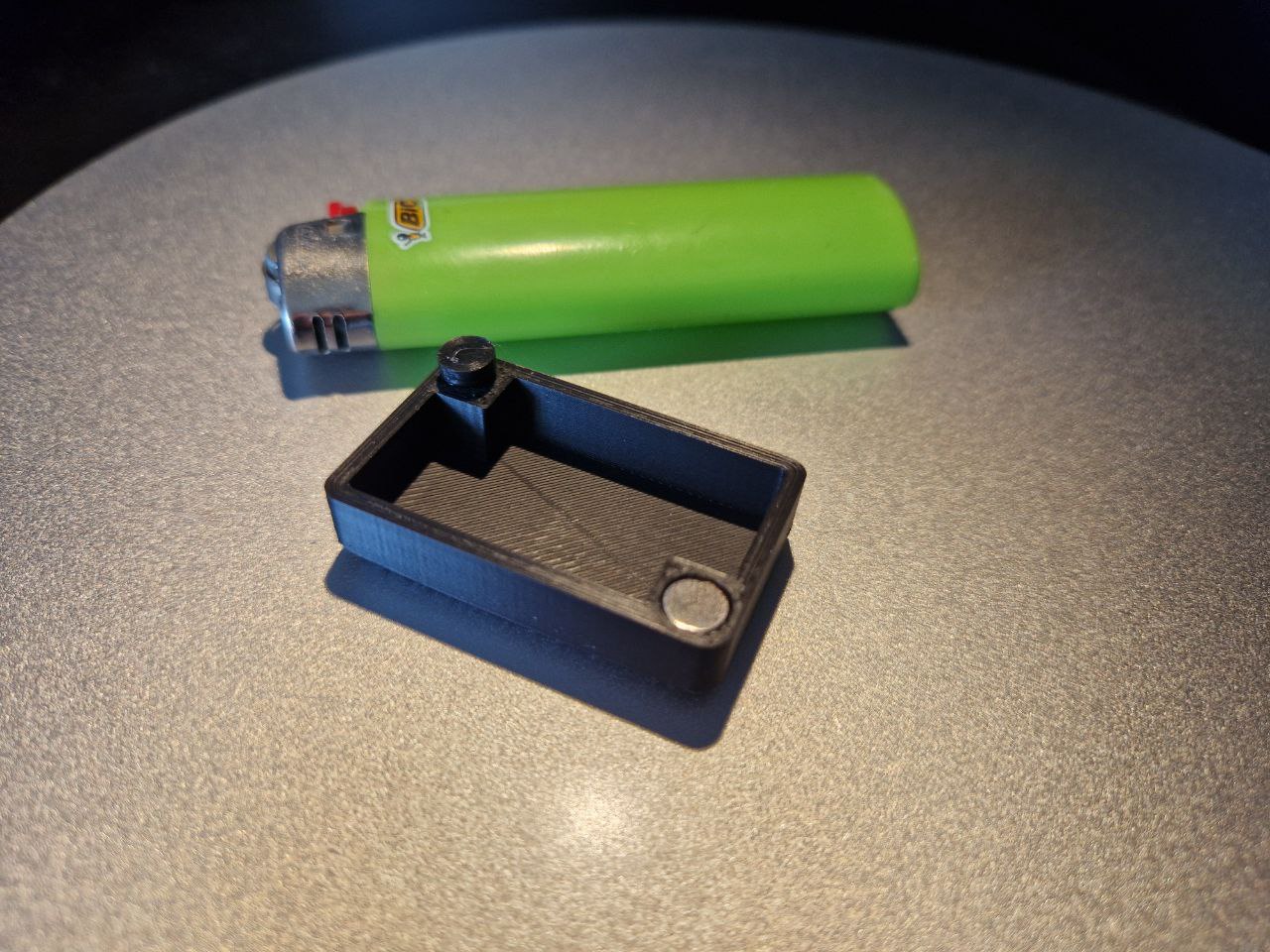

The capacity of this small container is intended to hold enough medication for a day trip or a night out. All while not taking up more space than a BIC Maxi lighter.  With this small volume it easily fits in every piece of luggage or even a small pocket.

This box consists of three printable components:

• Body
• Lid
• Hinge

Note: Make sure to use the latest version in the Latest directory. Additionally it requires two 6x3mm magnets as well as some glue for the final assembly.

Printing

I recommend the following settings for a 0.4mm nozzle:

1. 0.2mm layer height
2. 15% infill
3. No brim, except for the hinge
4. Supports are recommended for the lid  Image shows sliced files from the bottom

Assembly

It's as easy as you think:

1. Glue the hinge in place in the case body
2. dry fit the lid to confirm the notch matches
3. glue the magnets in place, minding their orientation
4. glue the top of the hinge into the lid
5. Let the glue dry
