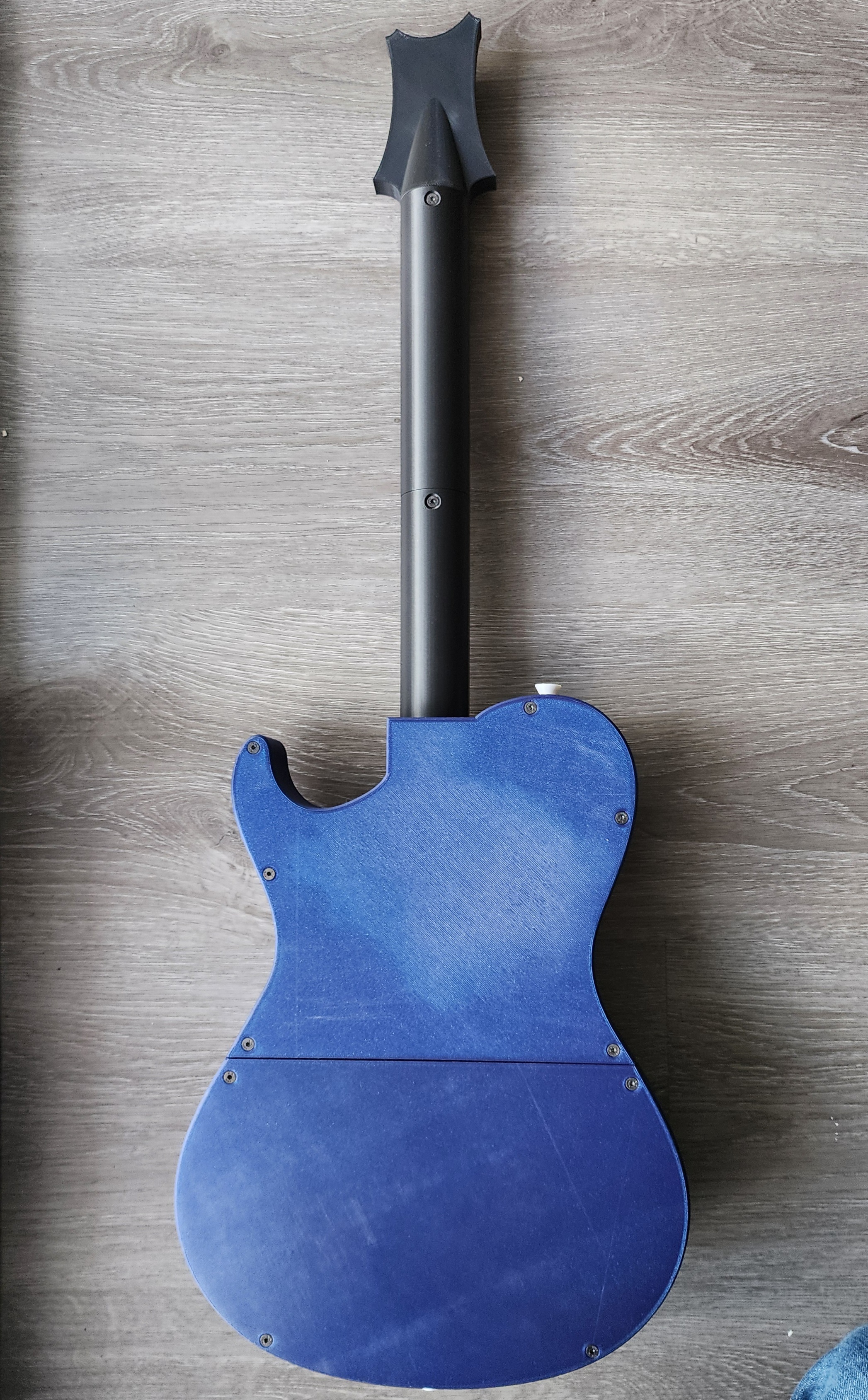

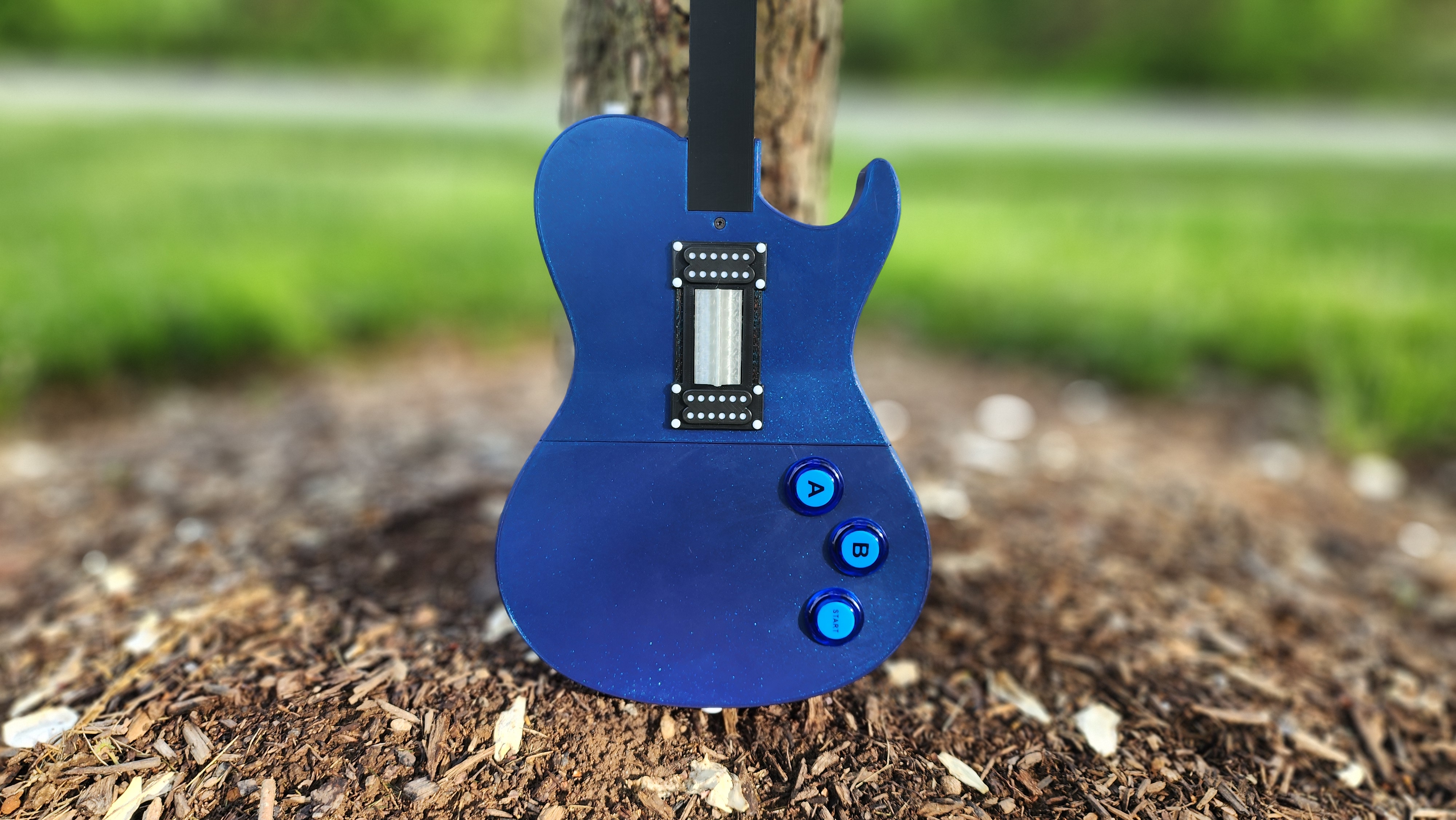

Guitar Hero/Clone Hero Controller

Time and Filament Estimates:

All estimates were made using a Prusa MK3s with a 0.4mm nozzle.

• Print Time: 45h 10m
• Total Filament: 592g
• Build Plates: 8
• Assembly Time: 2-4hrs

Tools:

• 3D Printer with a build volume of 250x210x210 or greater
• Soldering Iron
• Helping Hands
• Lighter/Heat gun
• 2mm Hex Driver
• Philips #1(Precision/Magnetic)

Hardware:

• 29x Countersunk M3x10
• 23x M3 Threaded Insert with Outer Diameter: 4.5mm, Height 3mm
• 6x M3x6 Machine Screw
• SJ@JX With LEDs (Note: EG Starts is not compatible)
• 30ft of wire in three different colors
• Heat Shrink


Electrical Components

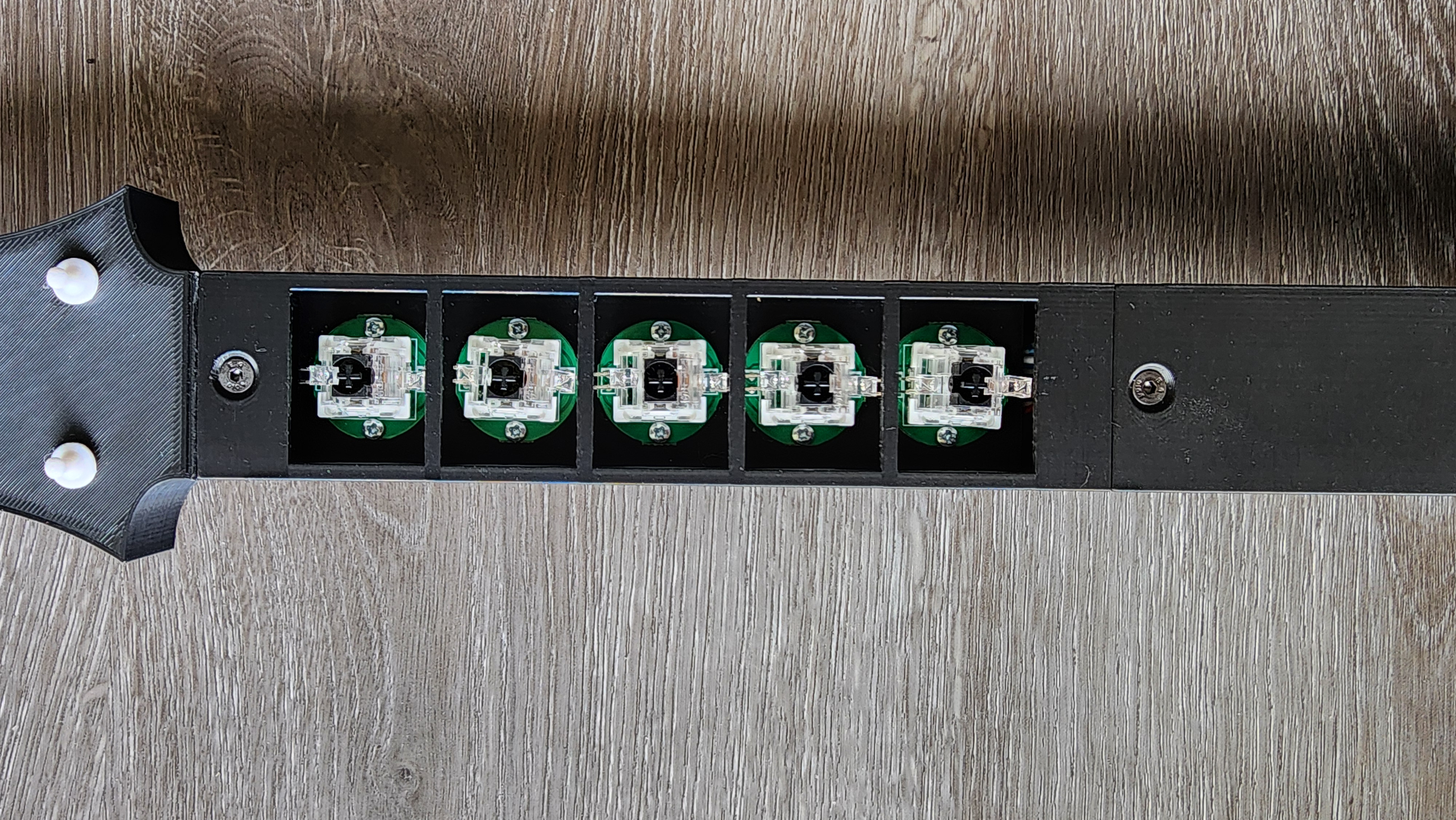

The model was designed around the parts included in the SJ@JX arcade controller kit. If you intend on buying similar kits from other manufacturers, make sure that the PCBs have the exact same mounting holes. The buttons sold by EG Starts do not have these holes. In the future I may develop PCBs Gerber files so that I can better control the quality level, and simplify assembly.

Tilt Sensor

As of this point, I have not completed testing of the tilt sensor. Depending on the success of this project, I plan to develop a tilt sensor that is compatible with any files already printed.
