Phase Change GPU Mounting Adapters

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Computers
Licencja
Creative Commons — Attribution — Noncommercial
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

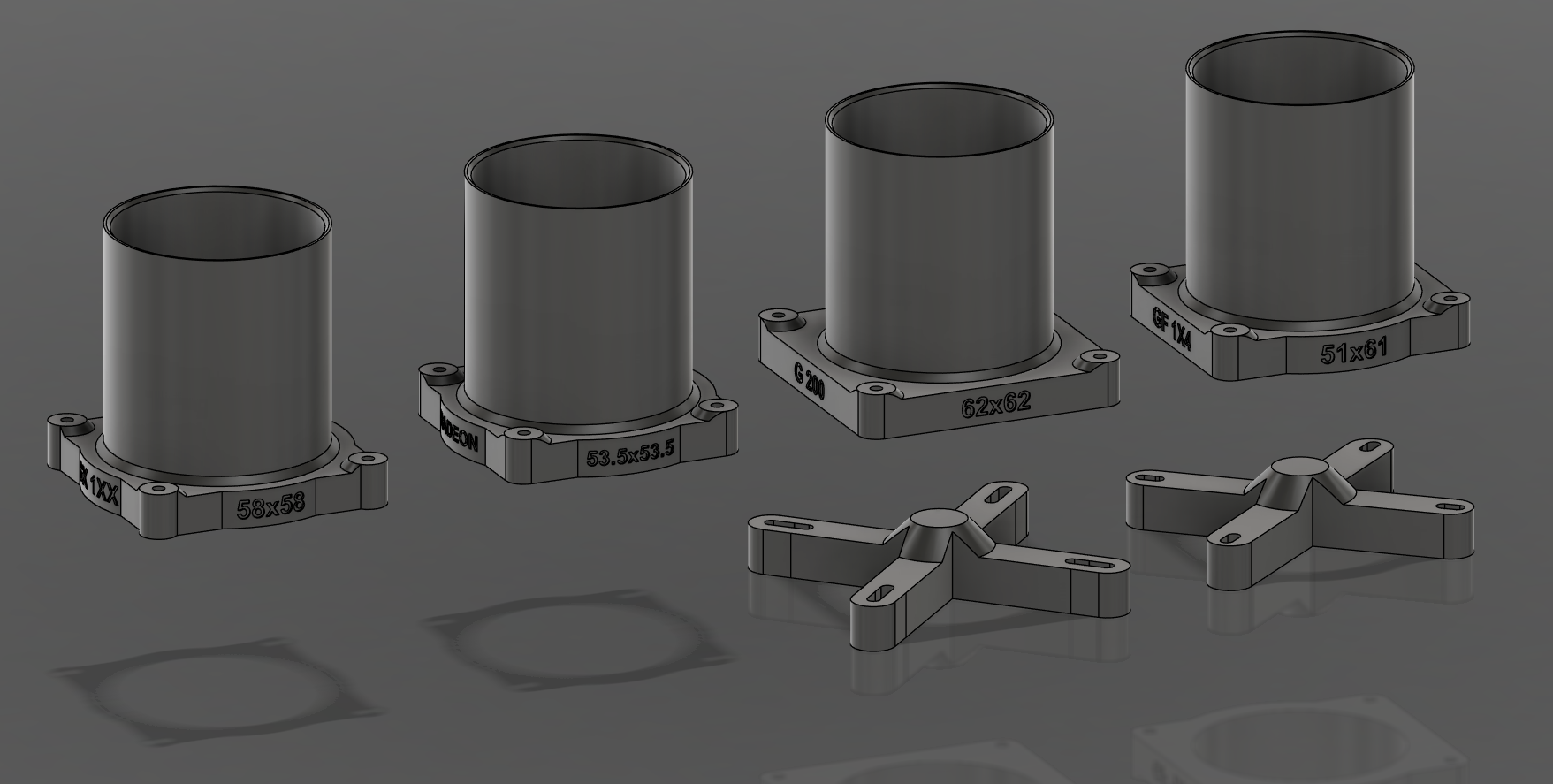

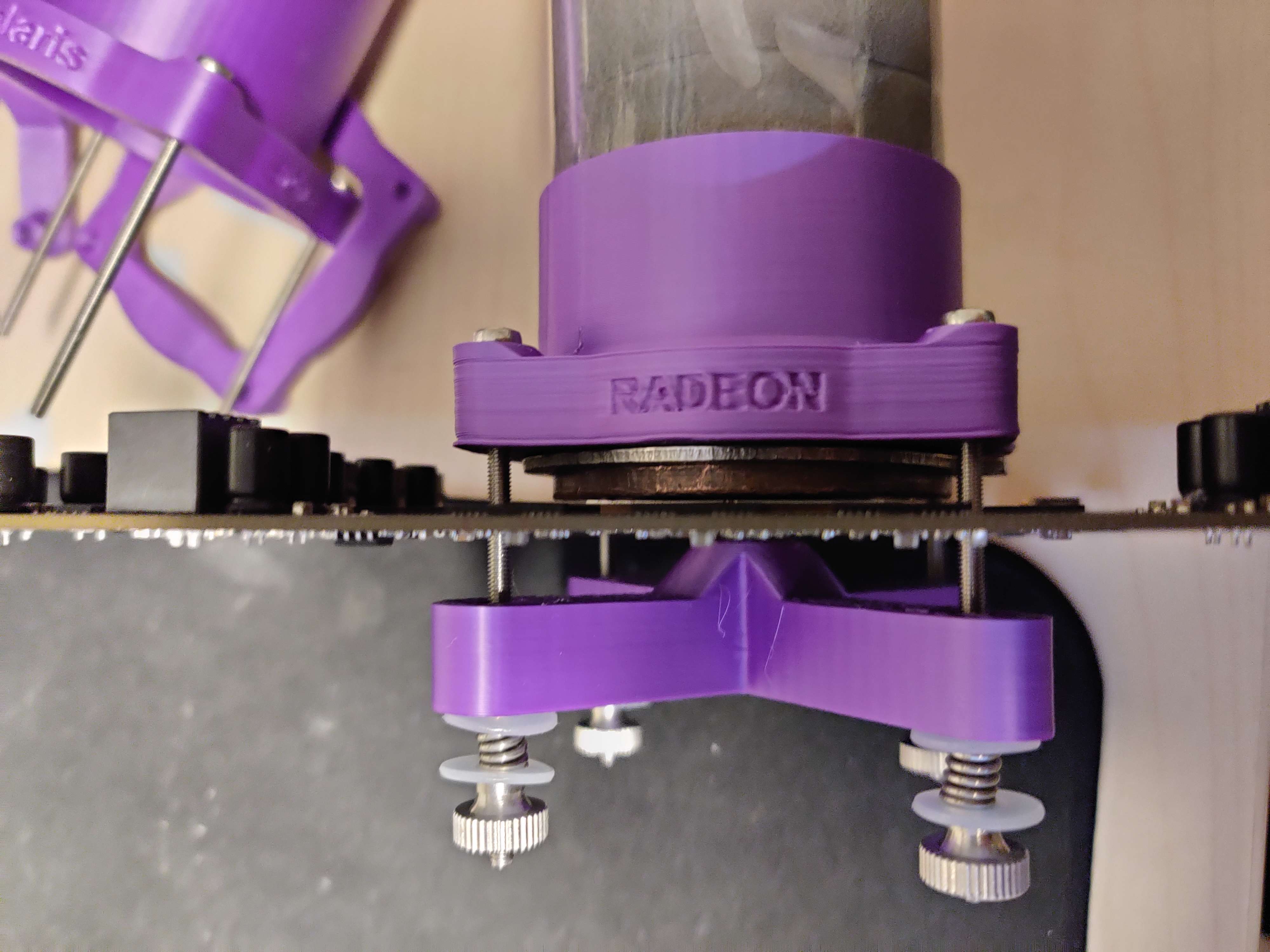

A set of Adapters to use Bartx Phase Change Cooler Units with Graphics Cards.

Designed for M3 Screws.

Recommend to Print Top parts with 50% or higher Cubic or Gyroid Infill.

Recommend to Print Back Brackets with 100% Infill

Back Brackets can also be used with regular Waterblocks to increase Mounting Pressure.

Cards that are confirmed to be compatible are:

  • Nvidia GTX 200 Series (G200 GPUs)
  • Nvidia GTX 400/500/600/700/900/10 Series (GX 1XX GPUs)
  • Nvidia GTX 460/560/560Ti (GF 1X4 GPUs)
  • AMD Radeon RX 400/500 Series (Ellesmere GPUs)

This does not include low end models such as GTS 250 or GTX 650 which have different mounting hole spacing from the higher end models.

Cards that should also be compatible are:

  • AMD Radeon HD 5000/6000/7000 Series
  • AMD Radeon R9 200/300 Series

Newer Generations such as Nvidia 20/30/40/50, AMD Vega, AMD RX 5000/6000/7000 and AMD RX 90 may need a remix to work. since the mounting hole spacing has changed for some of them.
