Carousel for micro screwdriver WERA

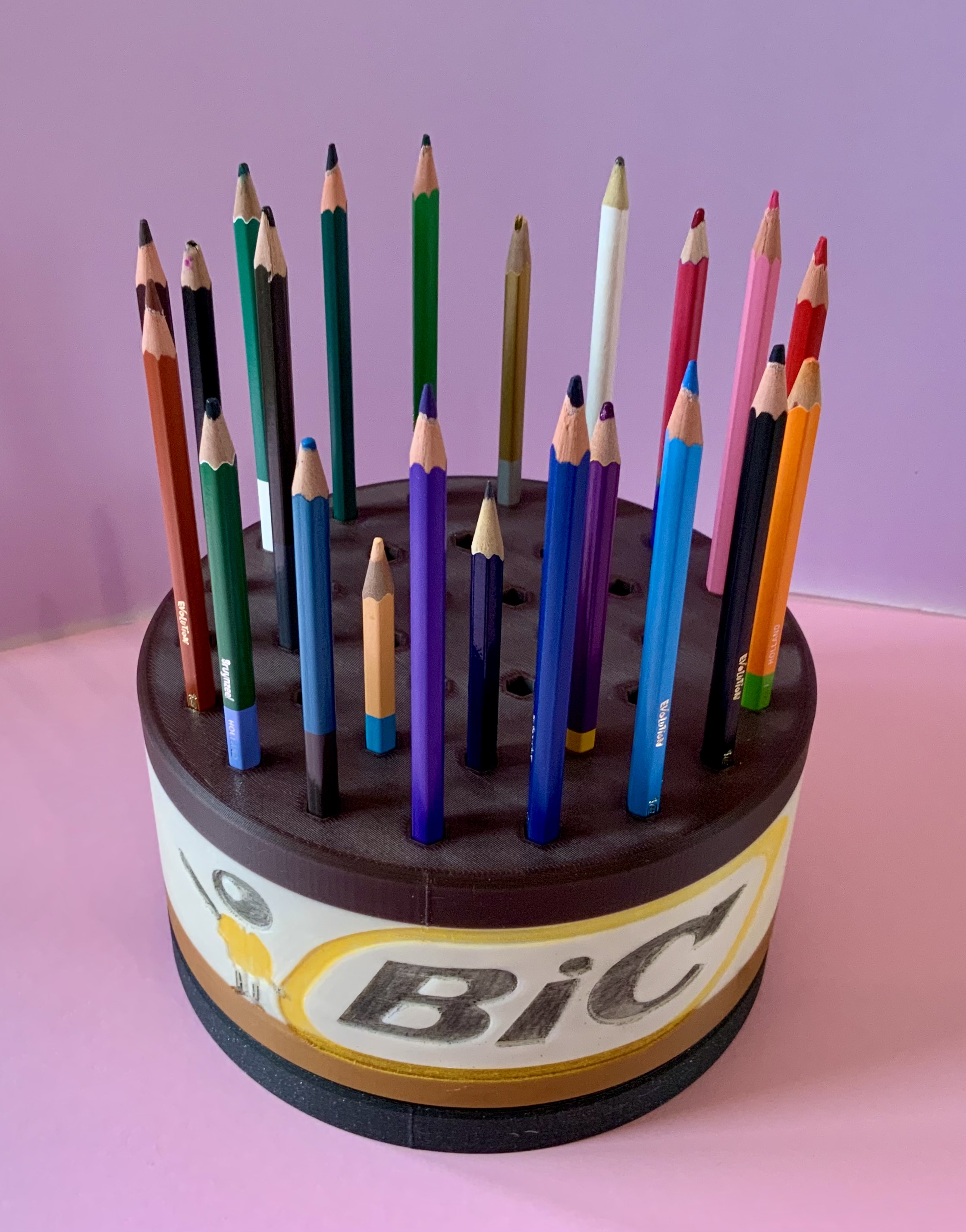

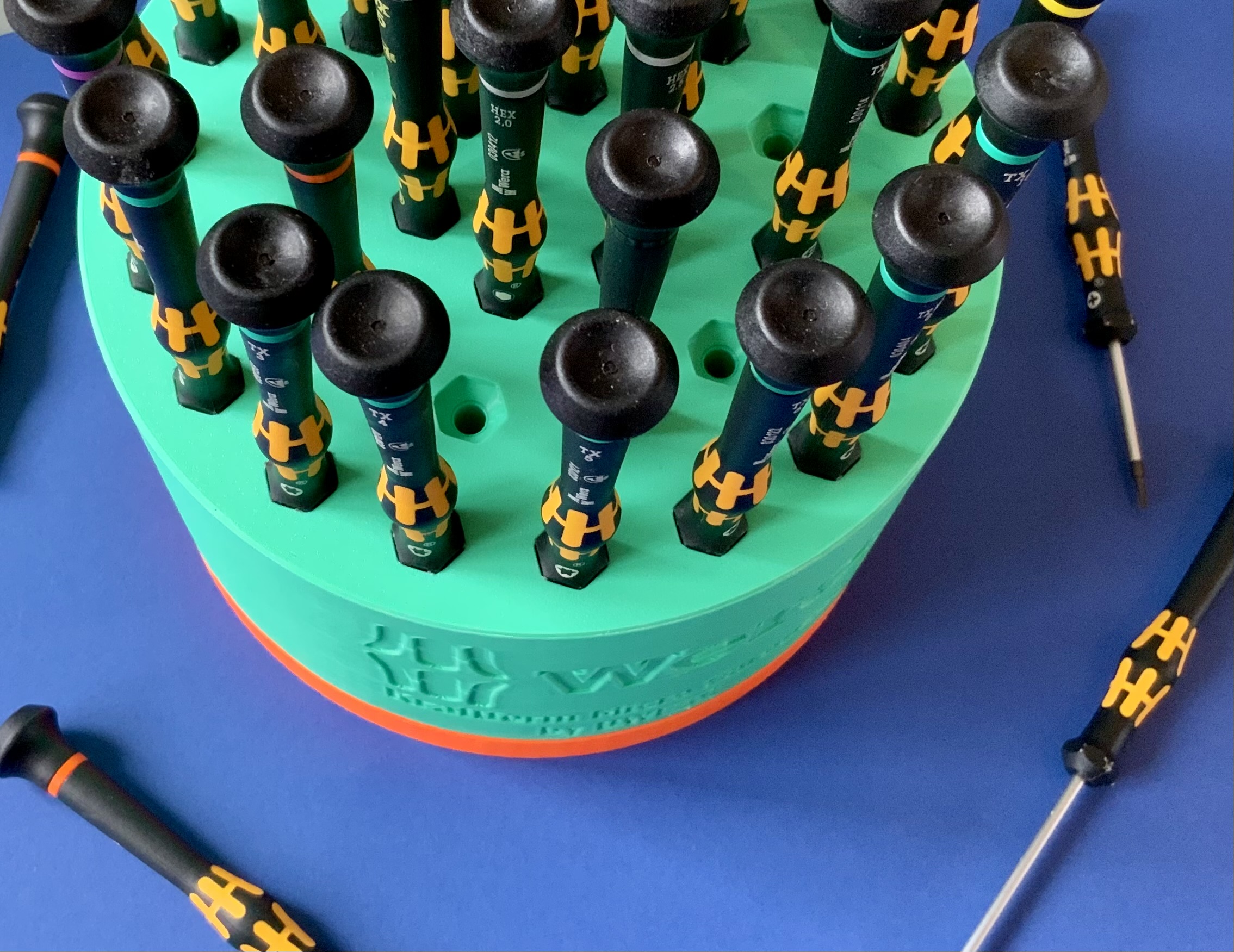

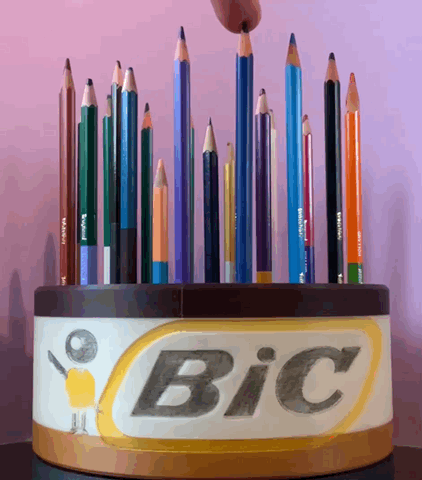

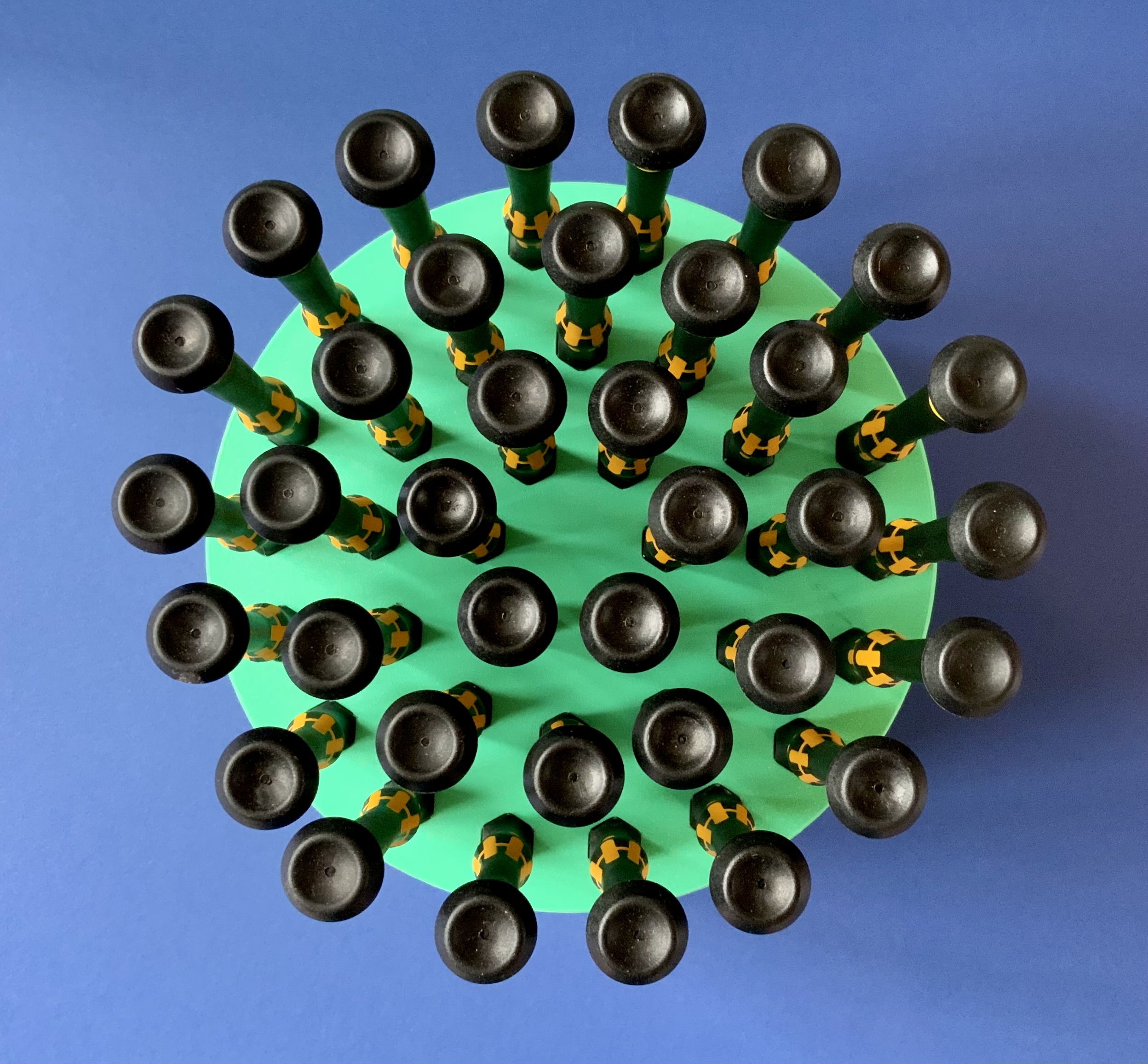

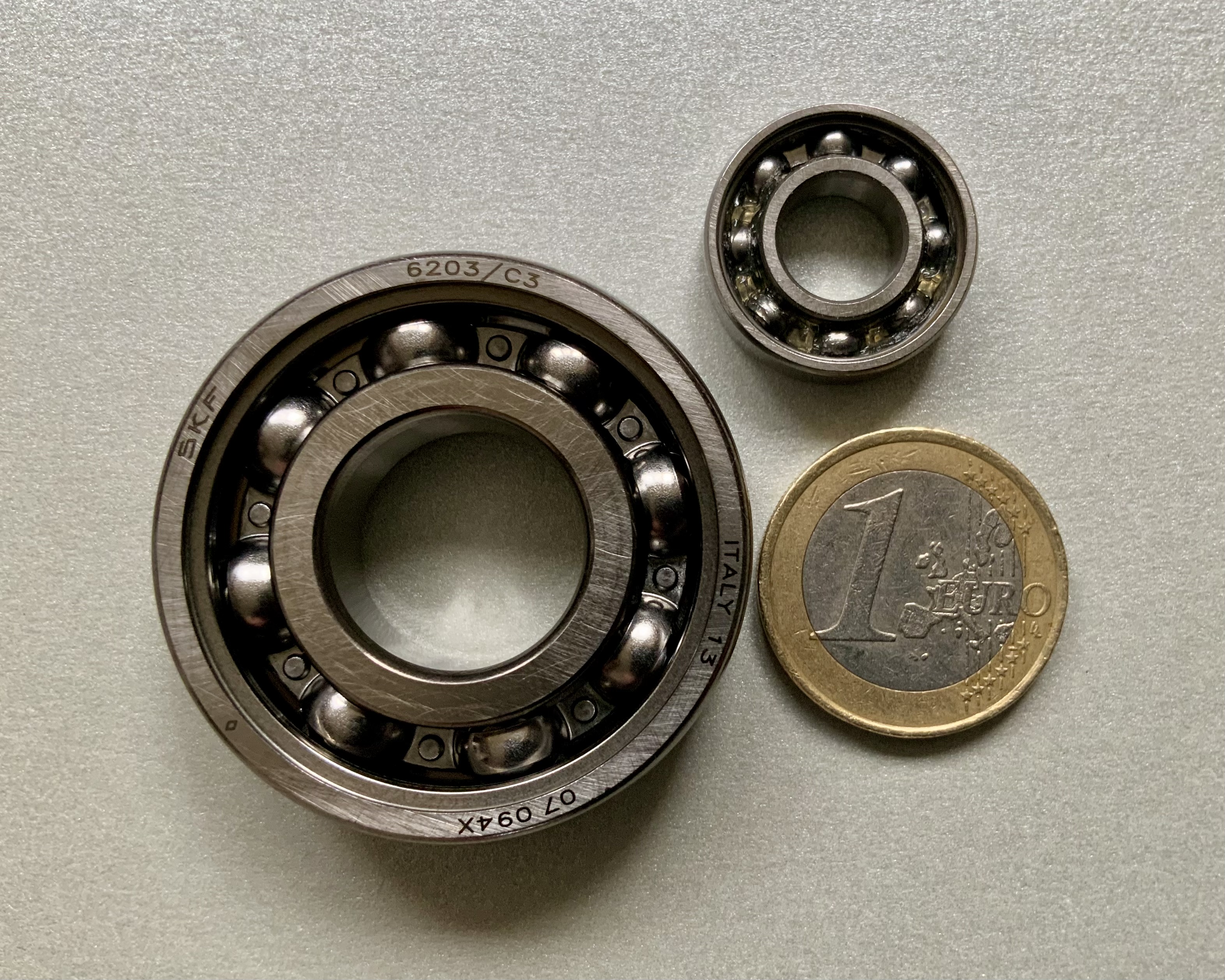

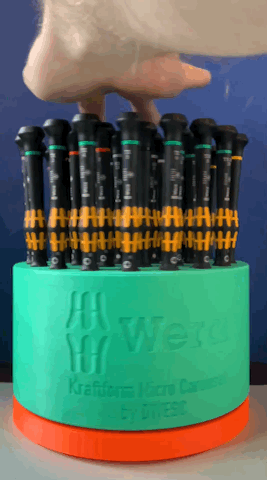

I was inspired by a lot of print-designers at printables.com , and see some good stuff with a lot of detail what was the trigger to design this carousel. Original it is made for the WERA kraftform micro screwdrivers, but if you think out-of-the-box you can make it for a lot more organizer-holders. I made also a color-pencil organizer carousel as an example. You need also 2 bearing like the 699-2RS and the 6203-C3 without sealing. place the bearings on the base and push the carousel carefully over the bearing.

To print the carousel the best result is when the top with all inserts are down on the print-sheet. The base is printed normal.

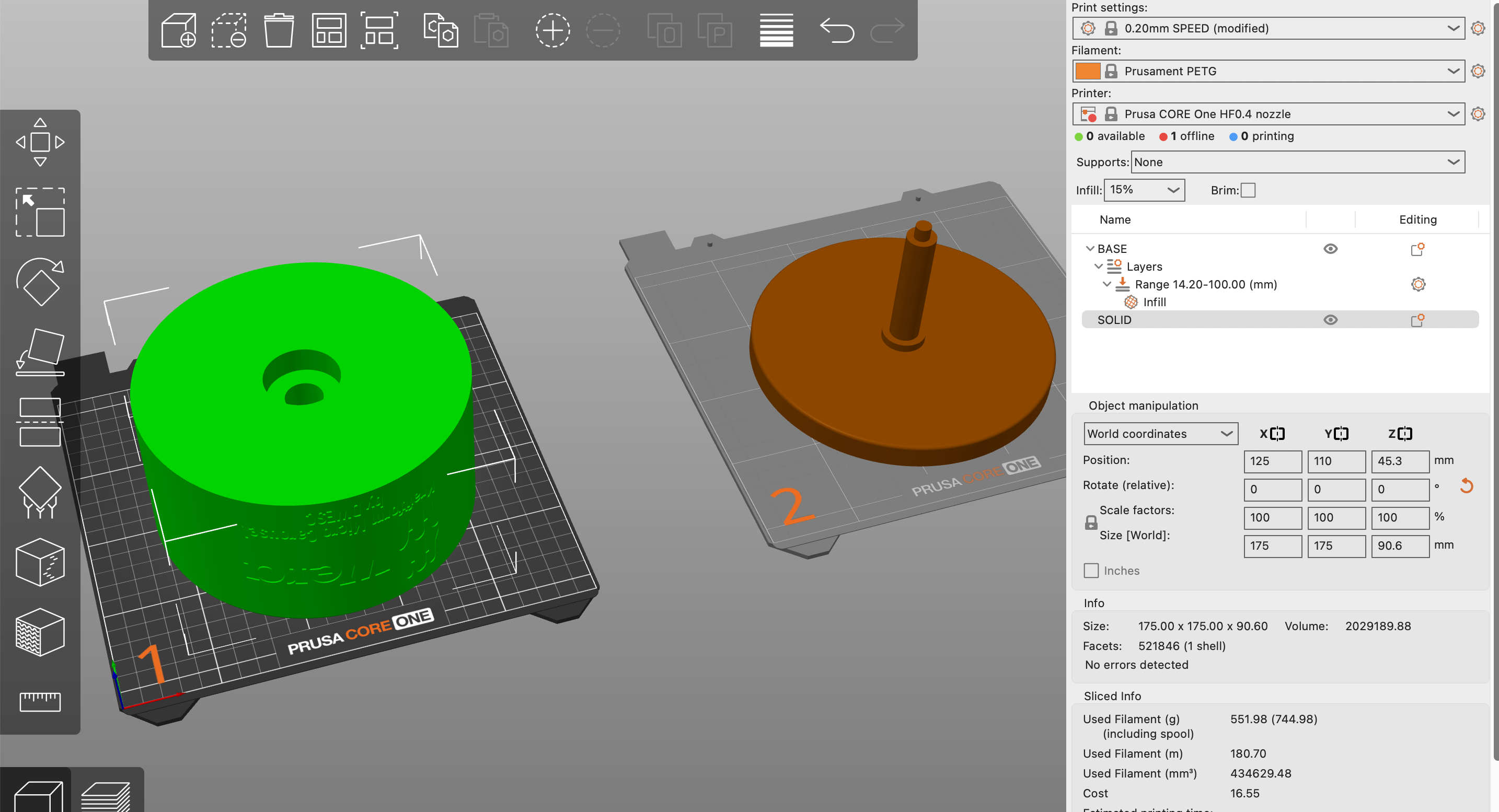

For the PrusaSlicer you can import STL / STEP and then split the objects, with the right mouse on the base object you can click on Height range Modifier. When you slice the object you can slide with your mouse on the slicer and look for the lowest and top point of the rod on the base. Example 14.2mm and top 100mm , these will be the numbers of the range. With the right mouseclick you can infill the rod with 100% and slice (again). You see that the rod is solid and the base is with 5-15% filling density grid or whatever you choose.

I have printed the carousel with PC and PLA but PETG is also a good material.
