Saw some other hexagon stand but I wanted something slightly different!

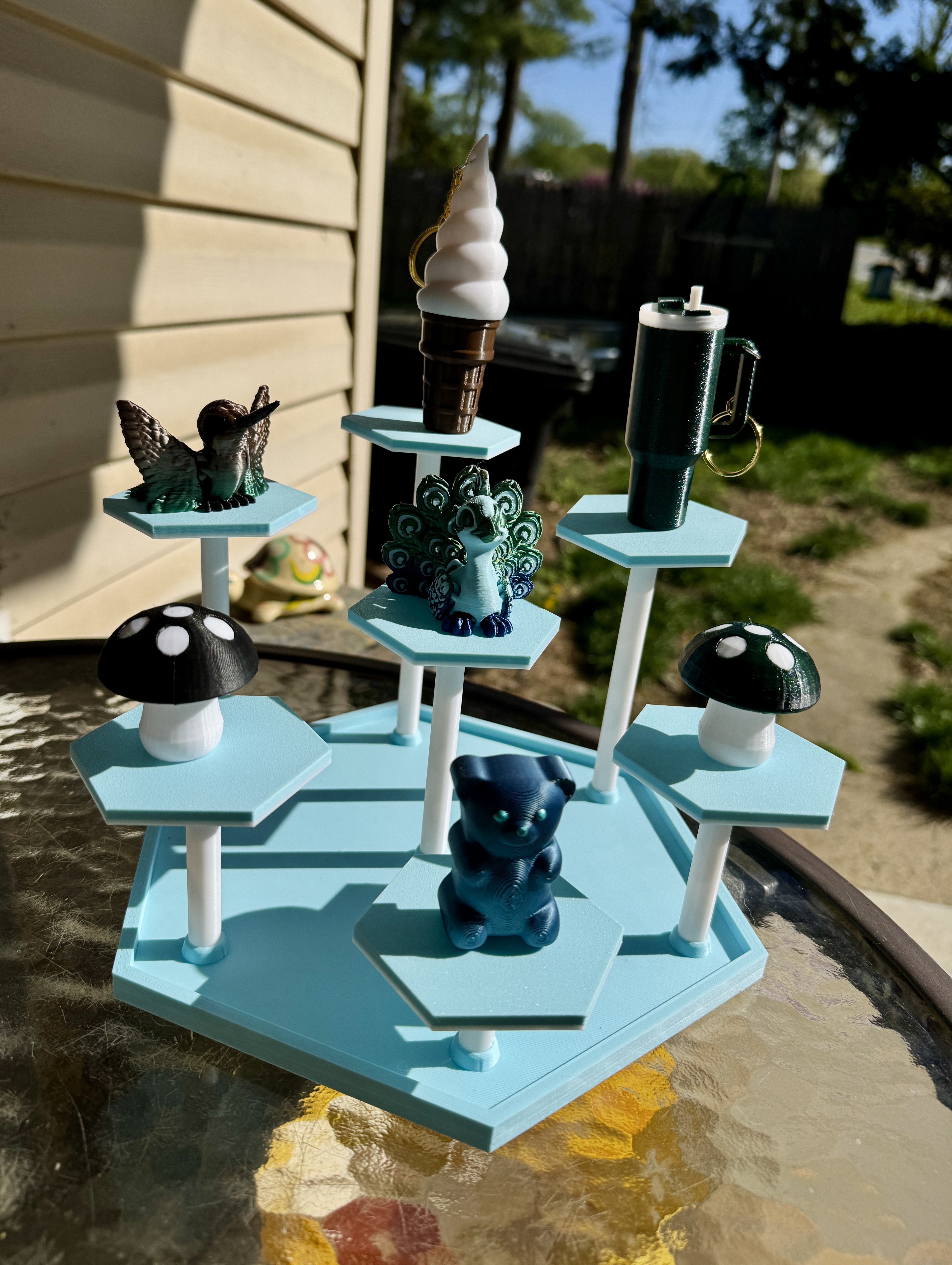

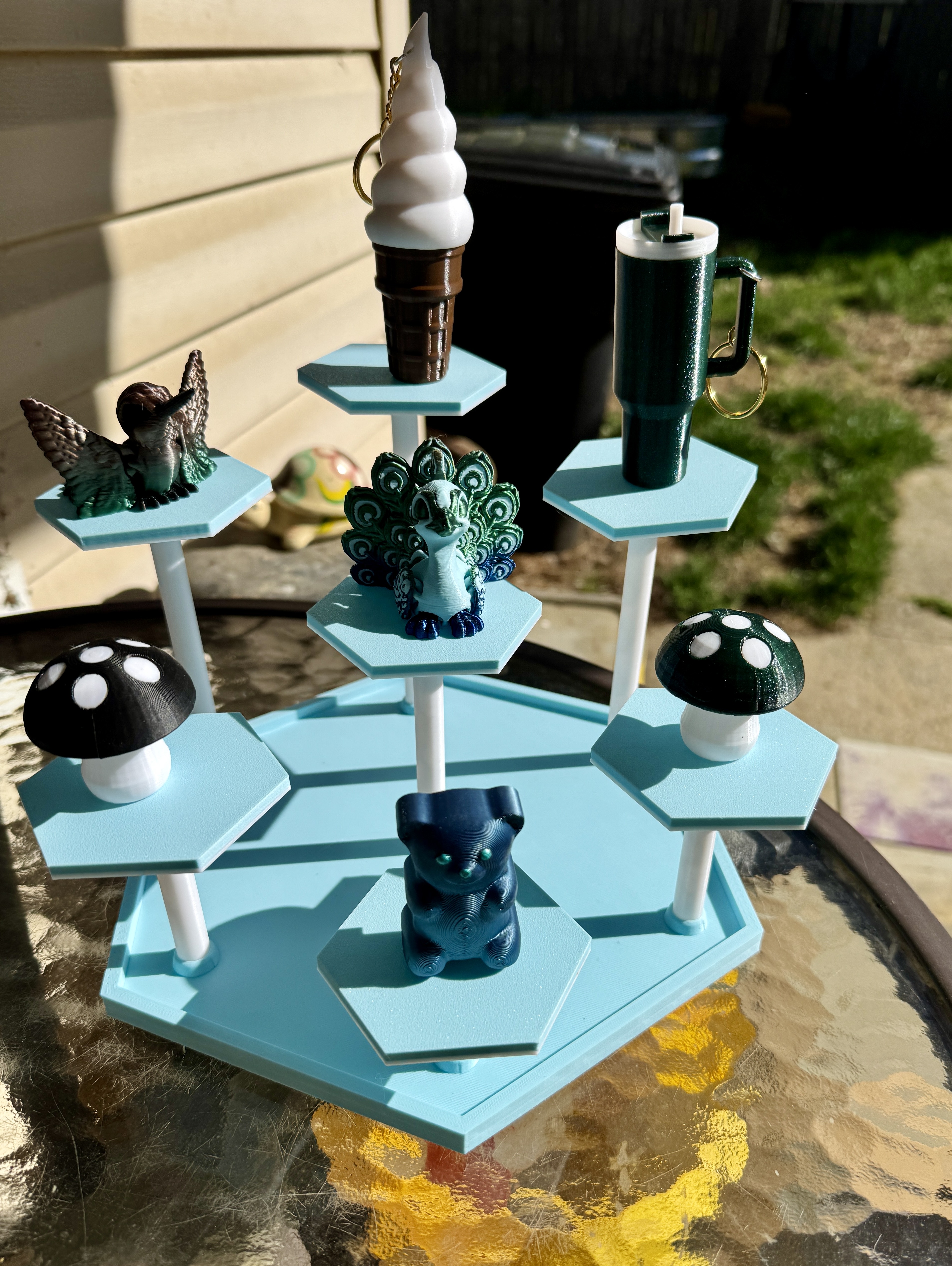

This is a layered hexagon display stand that just snaps together for easy storage after a show.
Total print time with plated 3mf at 5% gyroid 3 walls: 5.5 hrs and 207 grams PLA
There are 7 layered shelves, with a base that ahs a raised lip so you can also use the bottom for displaying items as well.

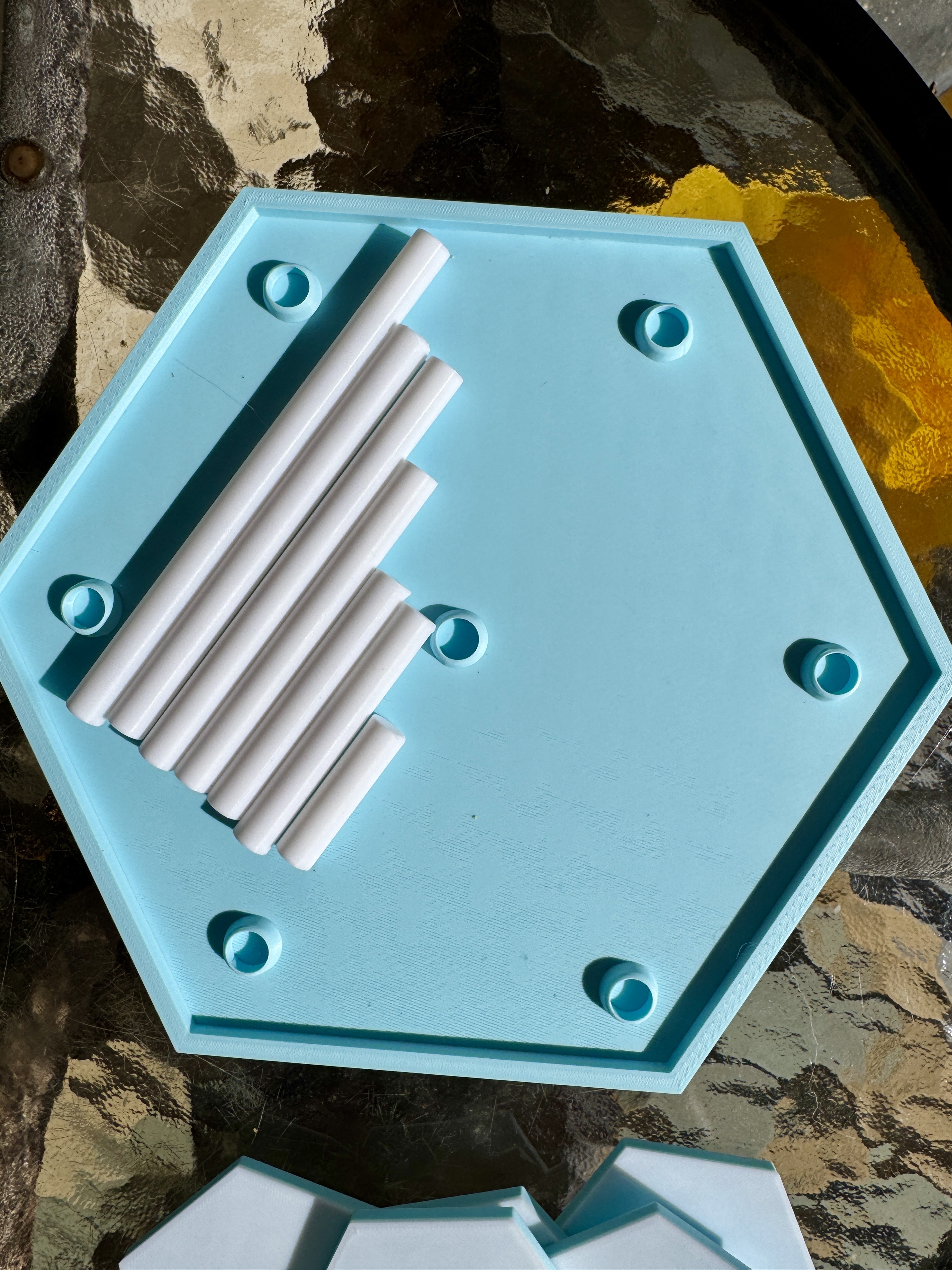

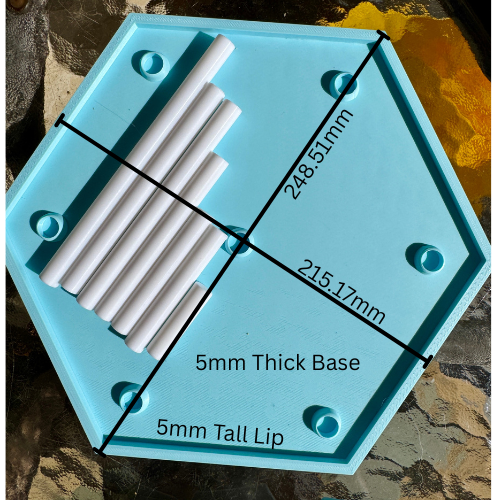

The Base is 5mm thick with 5mm lip so 10mm tall, 215.17mm x 248.51mm

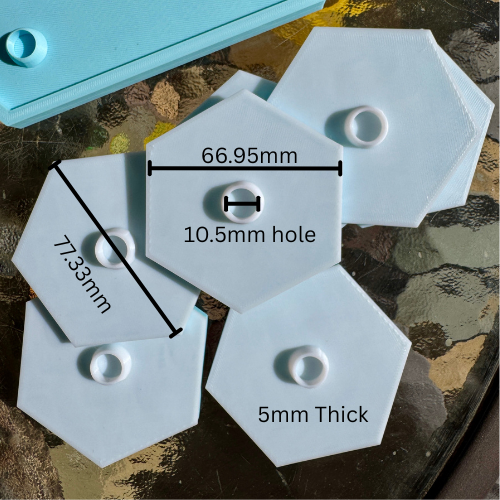

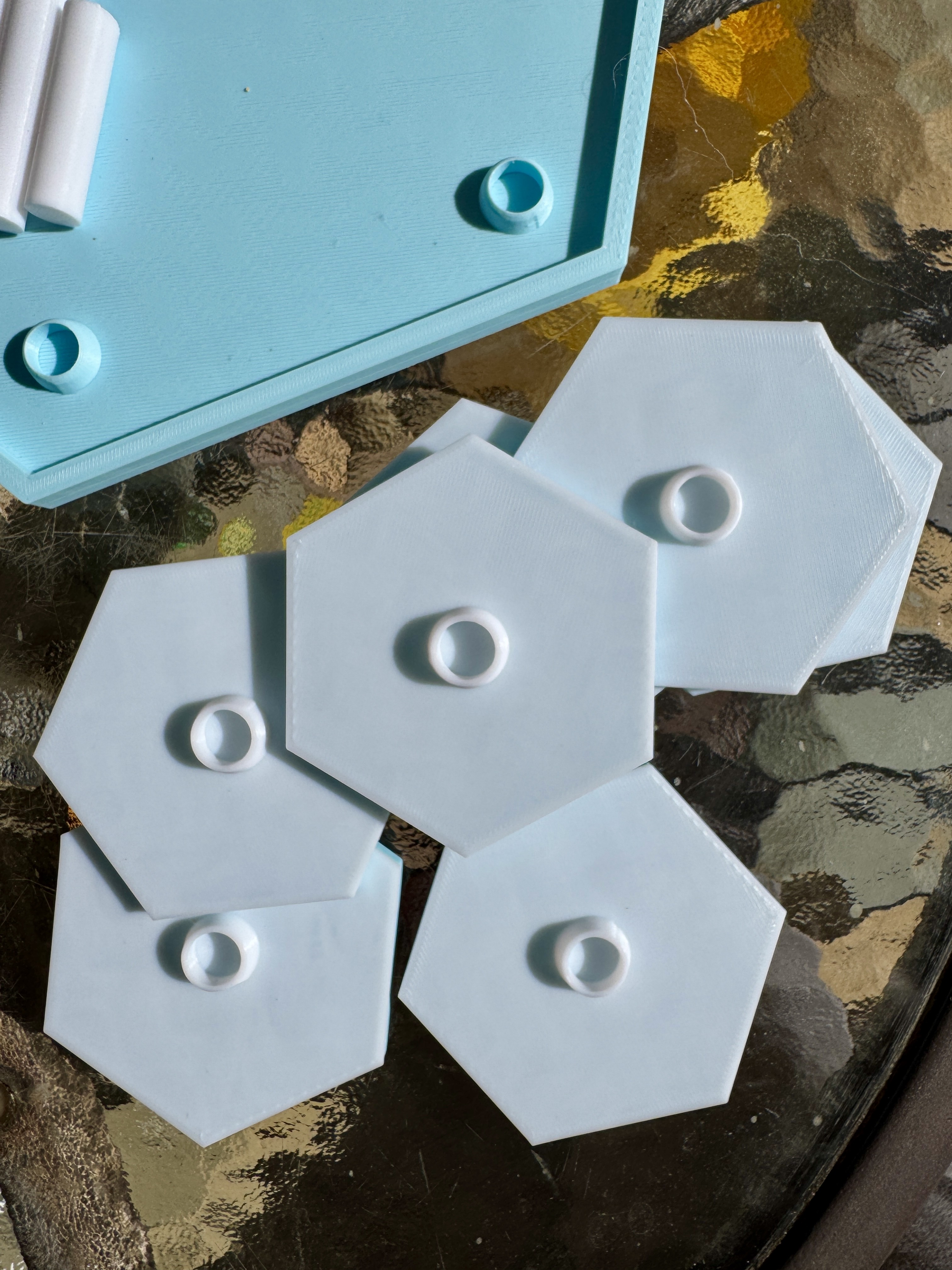

The shelves are 5mm thick and 77.33mm x 66.95mm
The posts are 10.46mm in diameter and are 5 different lengths.

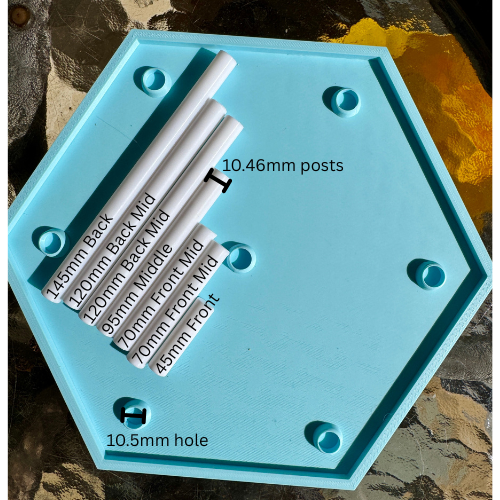

Parts:
145mm Back Post x1
120mm Back Mid Post x2
95mm Middle Post x1
70mm Front Middle Post x2
45mm Front Post x1
Hexagon Base x1
Hexagon Shelf x7
