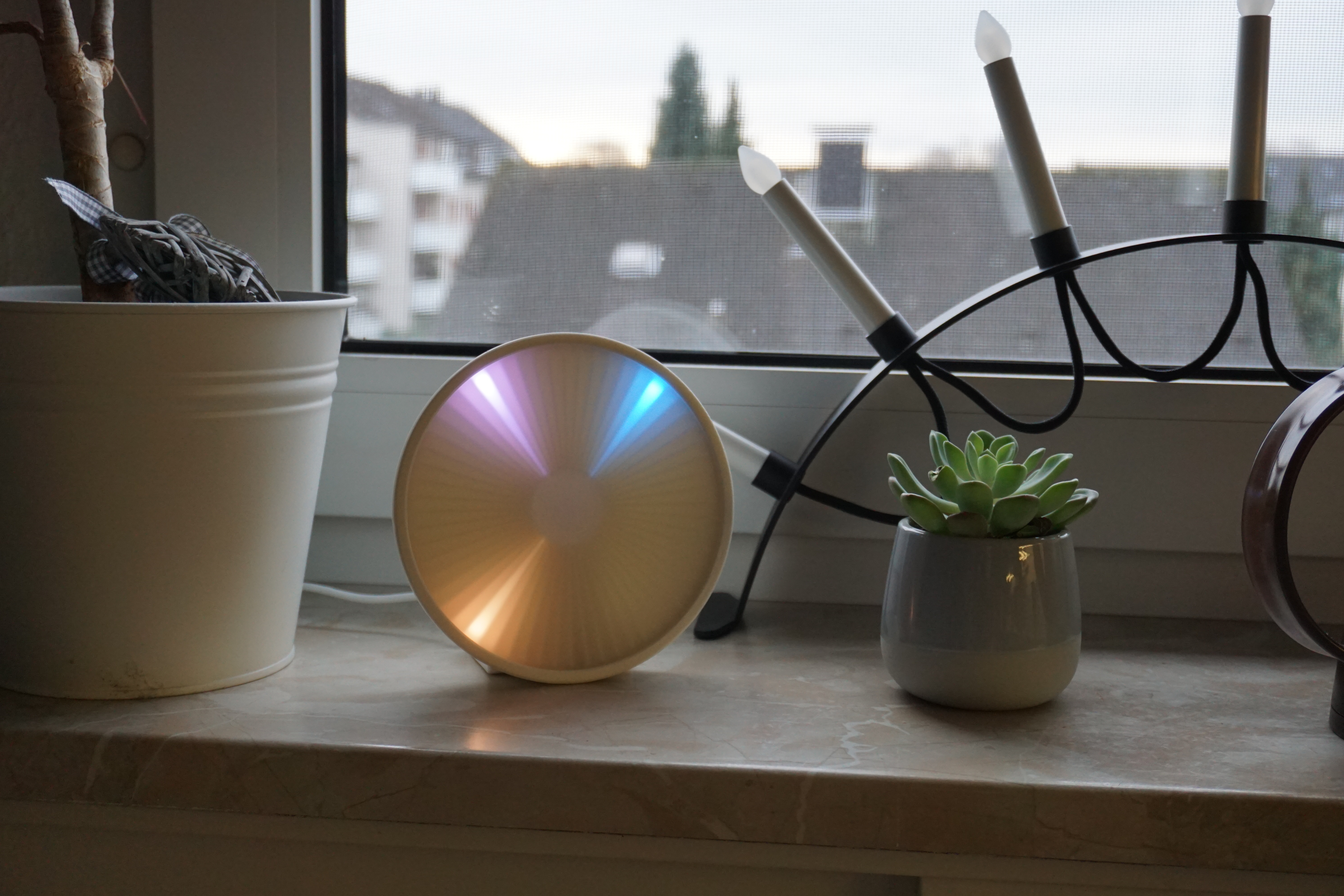

This is my very simple but nice looking SlotClock. It's based on an ESP8266 and ESPhome firmware.

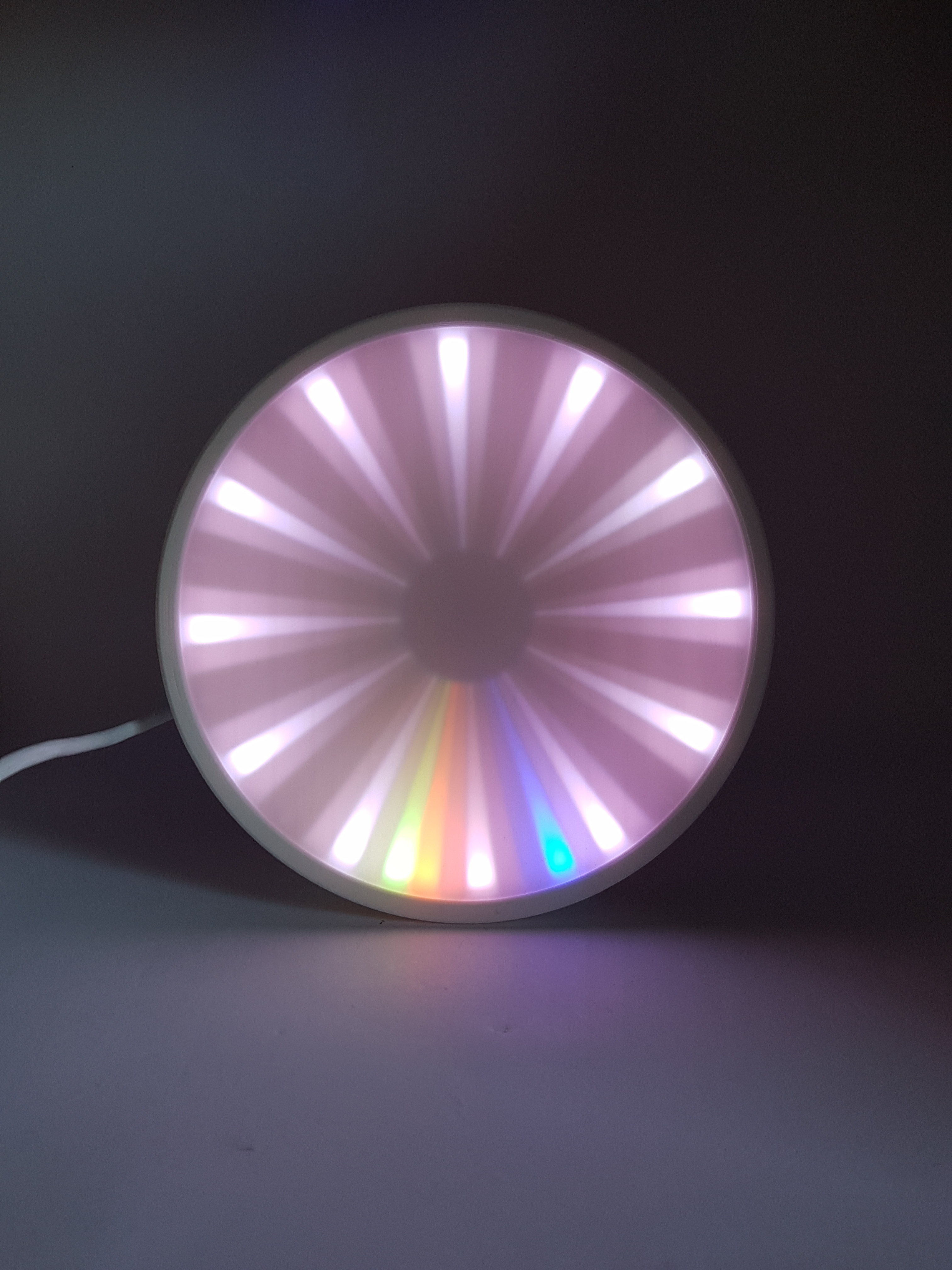

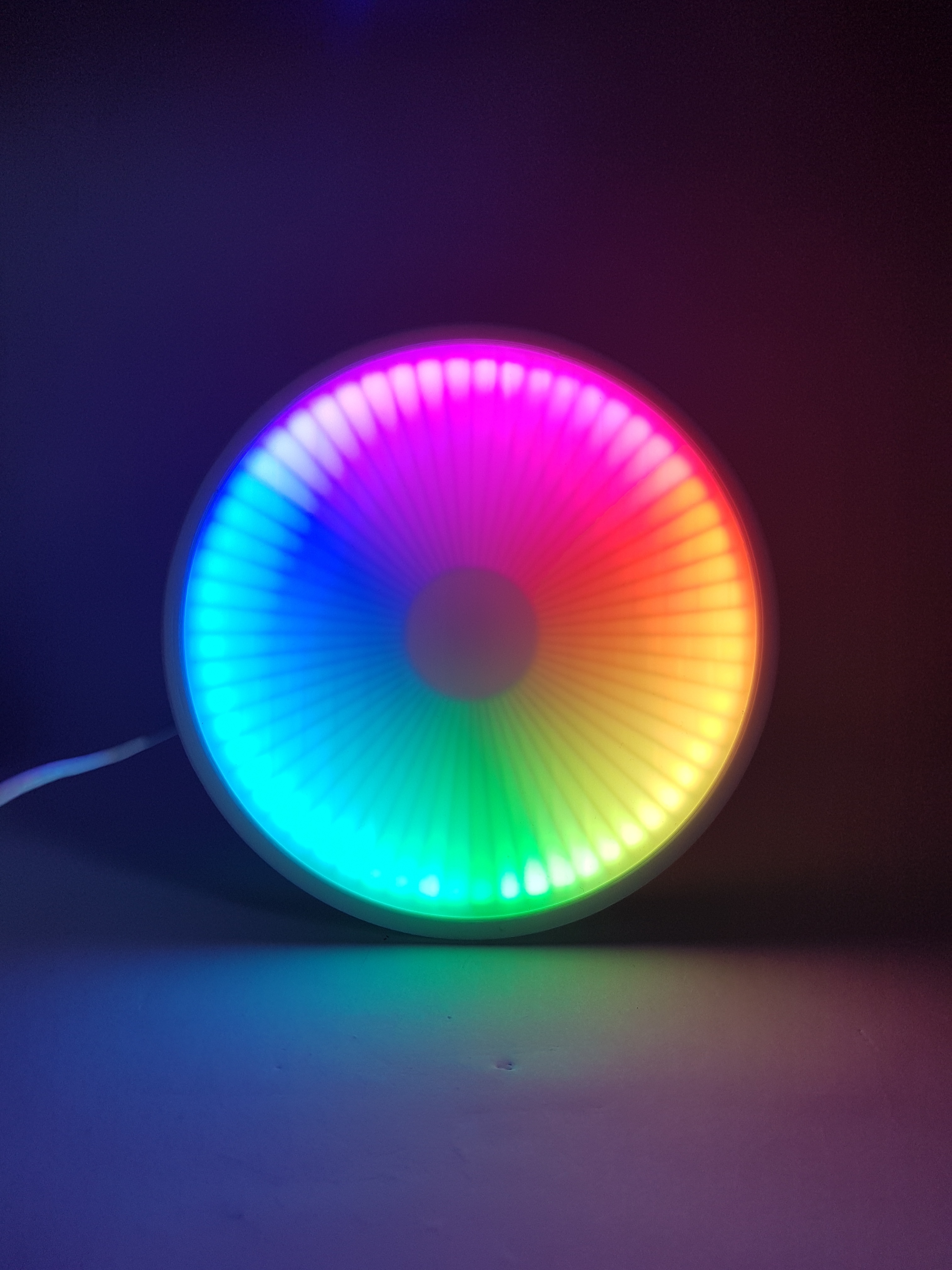

It can display time and different animations. Please take the ESPHome firmware as a baseline for future additions.

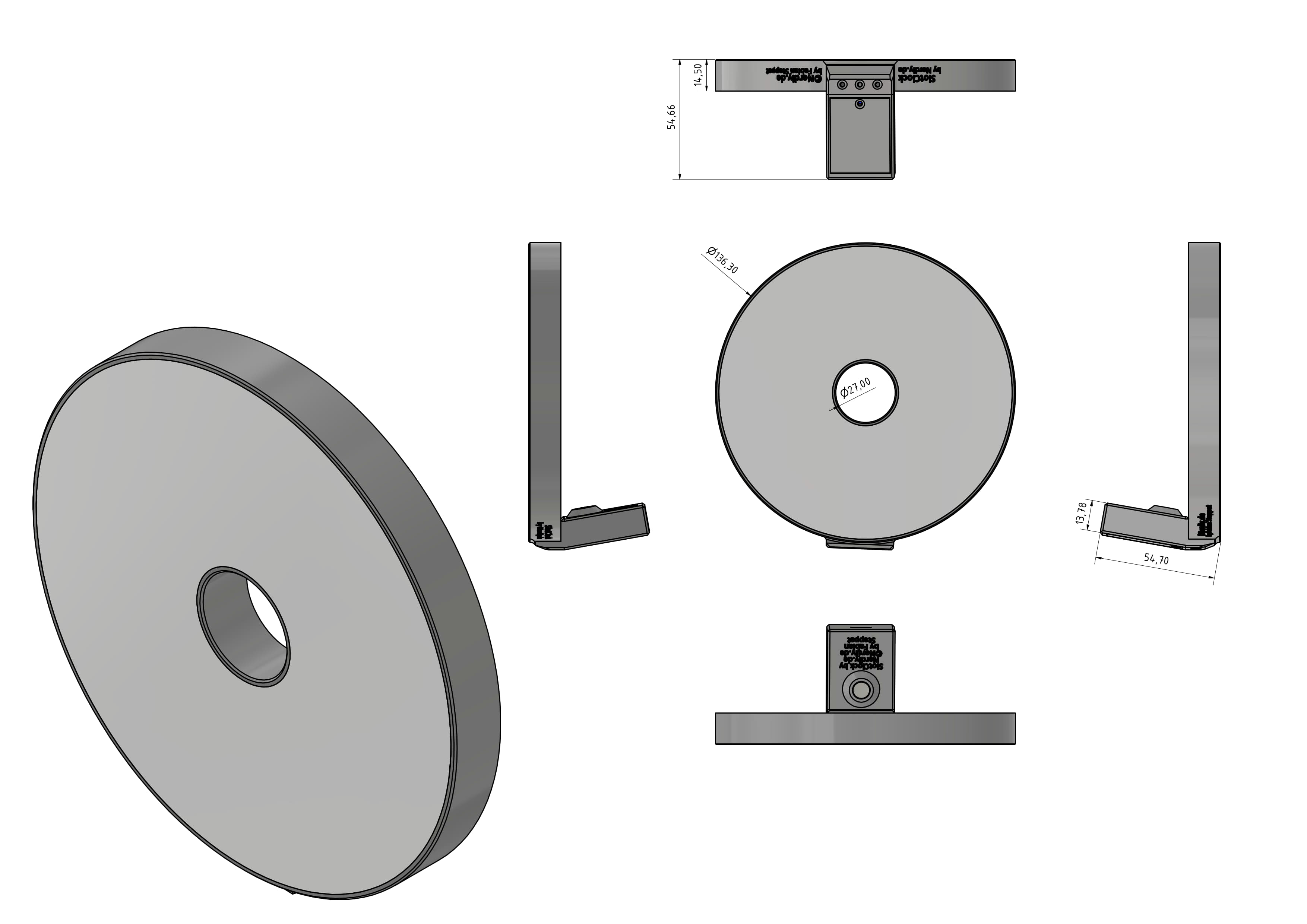

The provided .step file contains the main frame and the diffusor. I highly recommend to print the diffusor from white or transparent filament.
Print settings
Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.
Layer thickness: 0.2mm
Infill: 25%
Wall lines: 5
I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.
Material list, Assembly instructions & more
You can find additional info at the following GitHub repository.
Additional Pictures
