Voron Stealthburner CB09 Plotter Mount

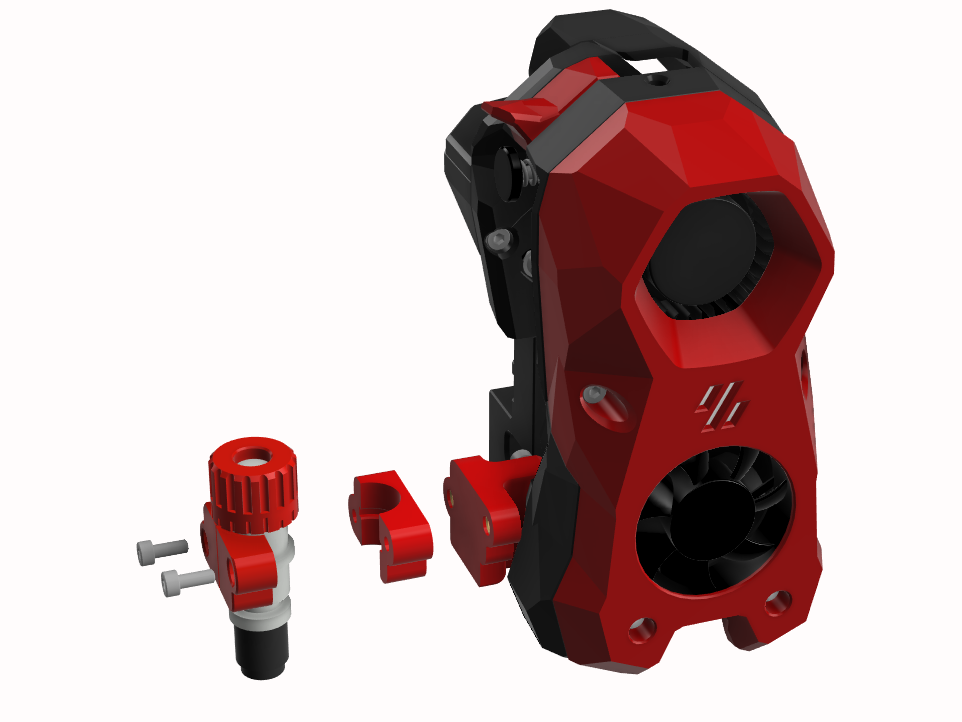

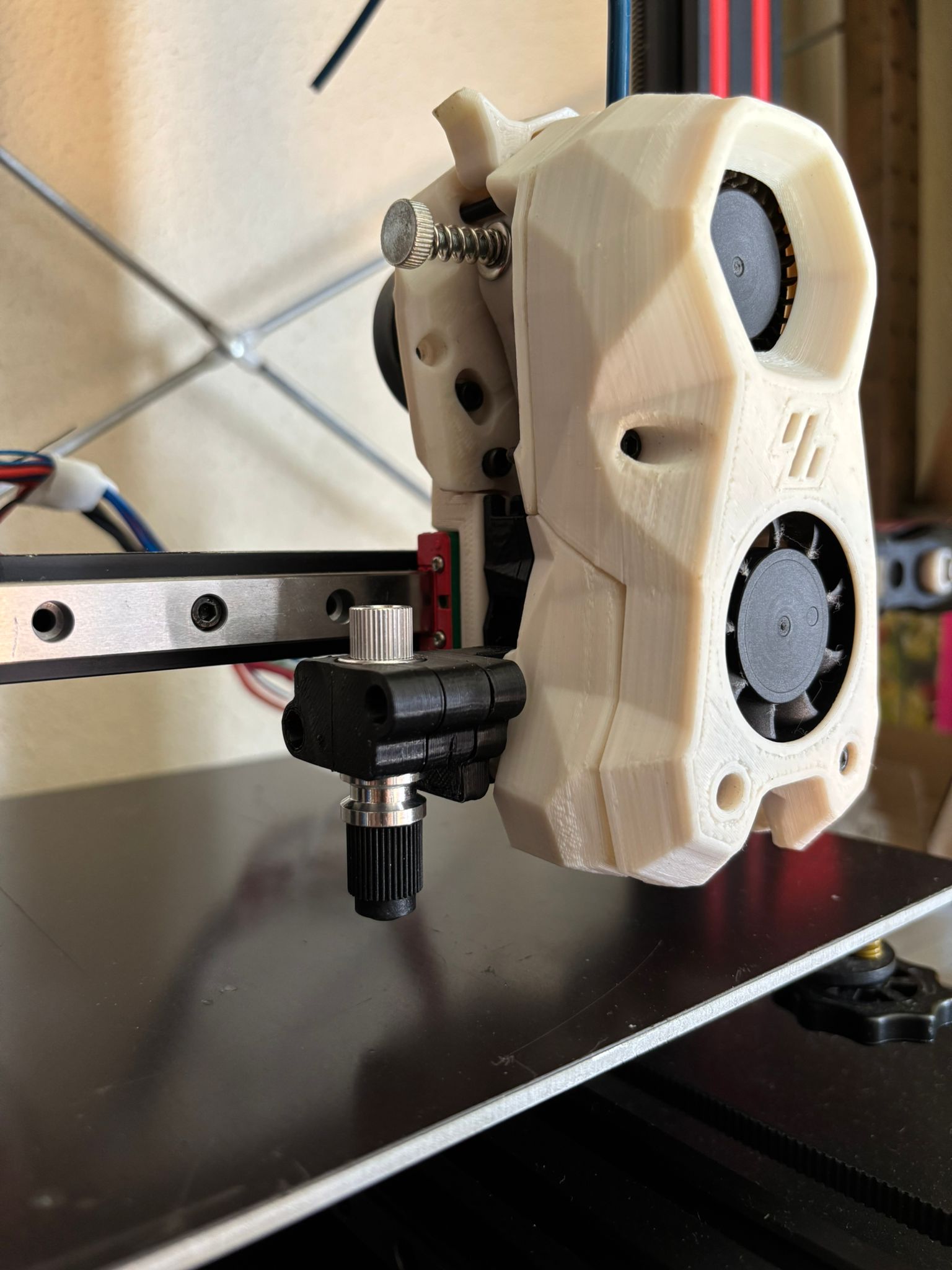

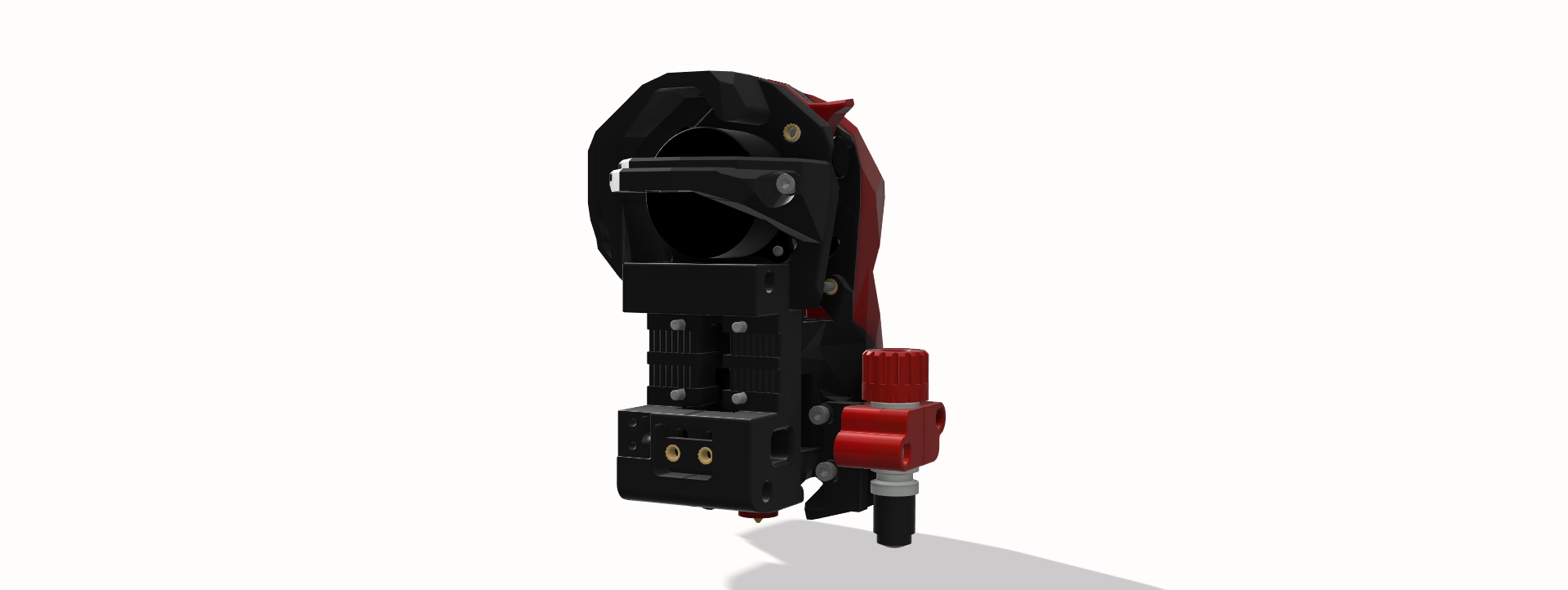

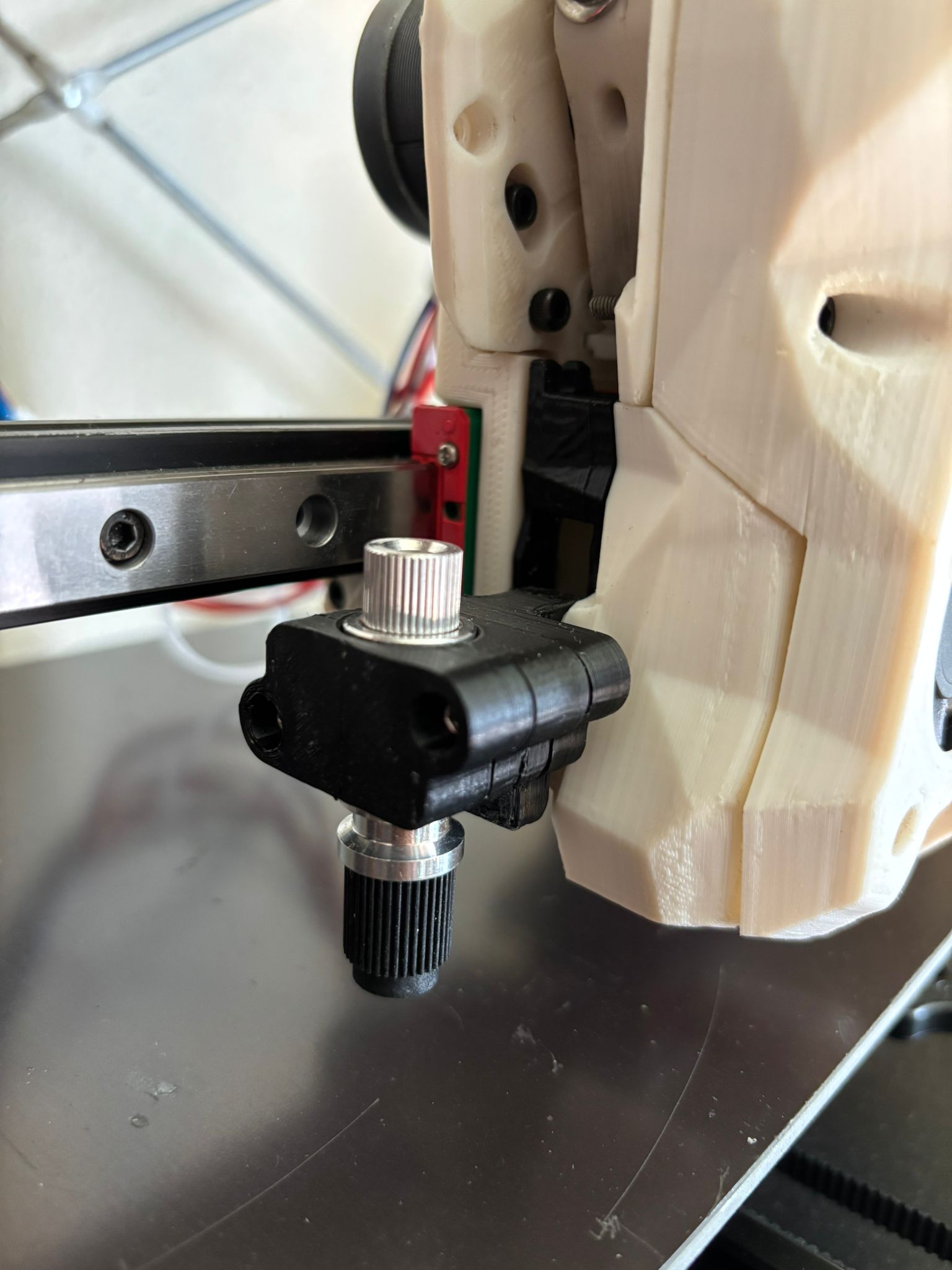

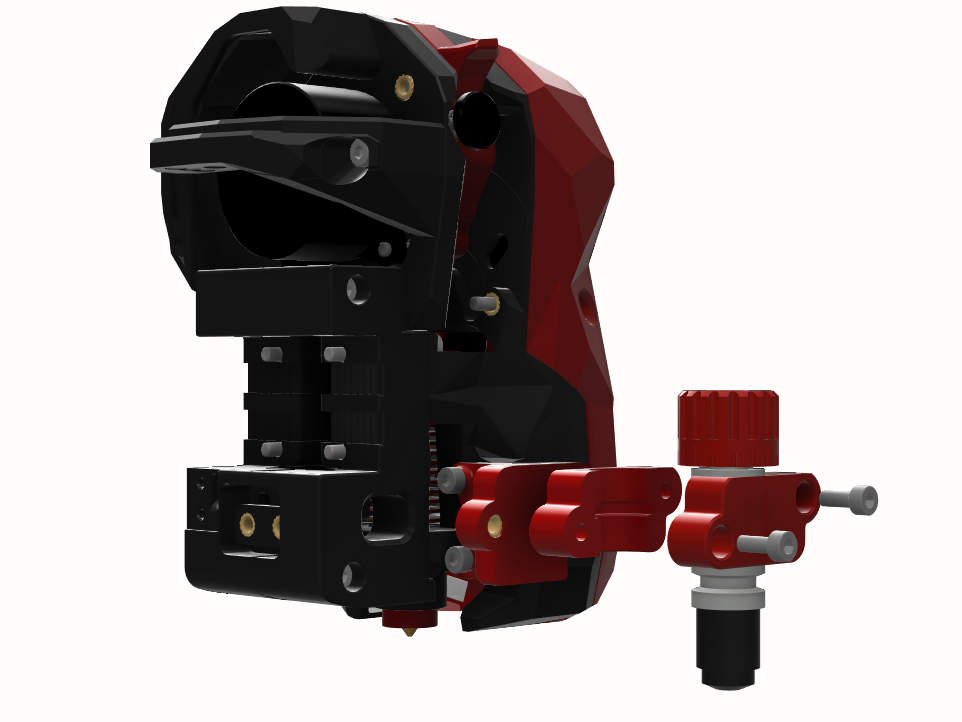

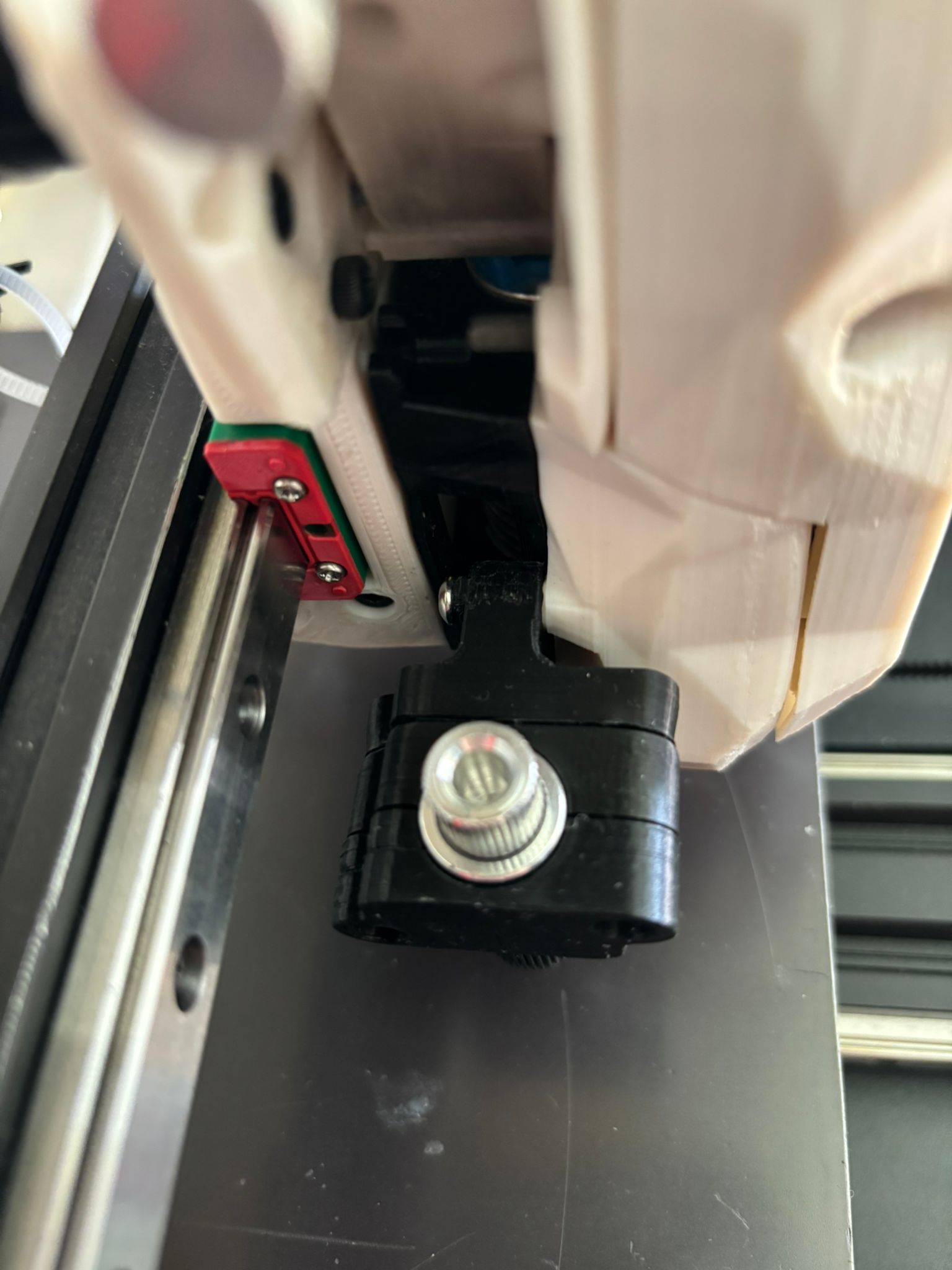

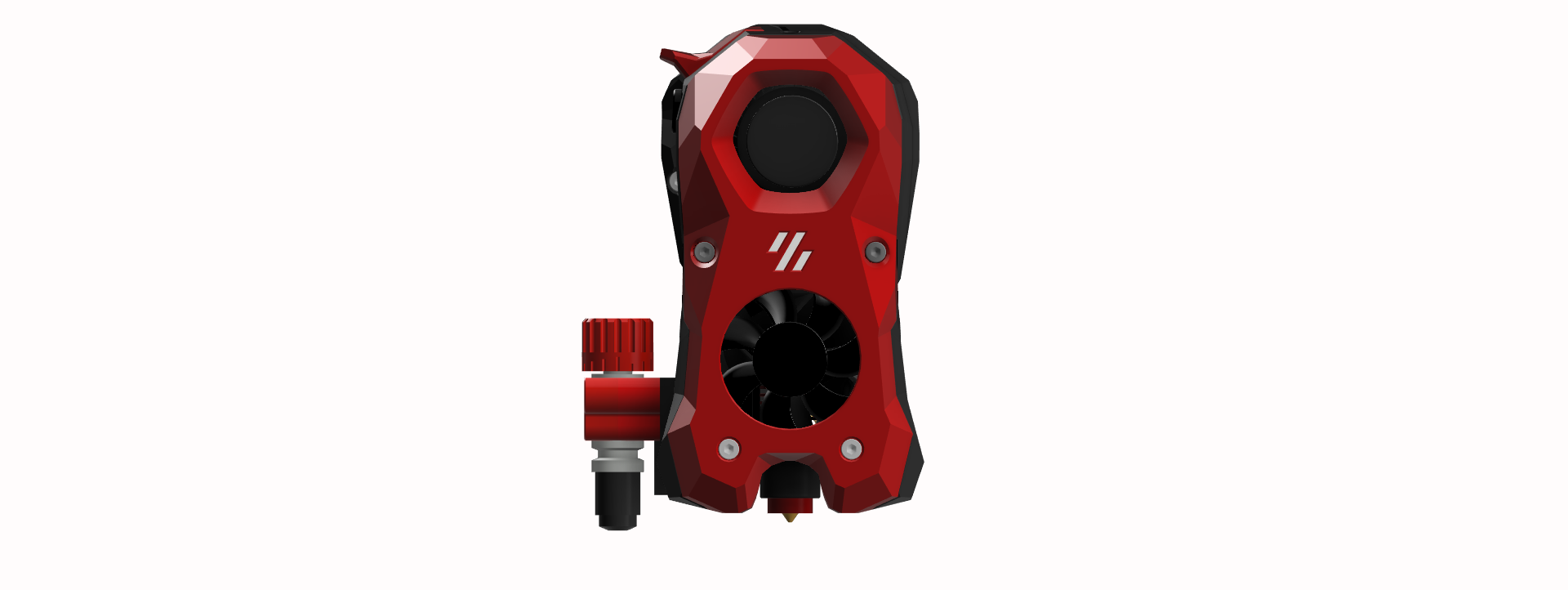

This is a remix of the Drag Knife Toolhead for Voron, adapted to integrate seamlessly with the Stealthburner printhead. It reuses the mounting holes originally intended for the ADXL345 accelerometer to install a custom CB09 blade holder, creating a clean and modular cutting toolhead. The result is a compact, easy-to-install setup that turns your printer into a capable vinyl plotter or precision cutter, all while preserving the Stealthburner’s aesthetic and airflow configuration.

Parts to print:

adxl_mount – ADXL345-based mounting bracket

CB09_front – Front piece for CB09

CB09_back – Rear piece for CB09

Knob – (optional) for easy tool-free tightening

Required hardware:

1× CB09 blade holder

4× M3 threaded heat-set inserts (2 used for the ADXL345 mount)

2× M3x16 screws

2× M3x8 screws

Recommended software:
To generate drag-knife-friendly G-code from DXF files, I recommend PolyCut, a free and open-source tool:
👉 https://github.com/IridiumIO/PolyCut/tree/master

Enjoy!
