Duender Klicky Dock Mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- GNU General Public License v2.0

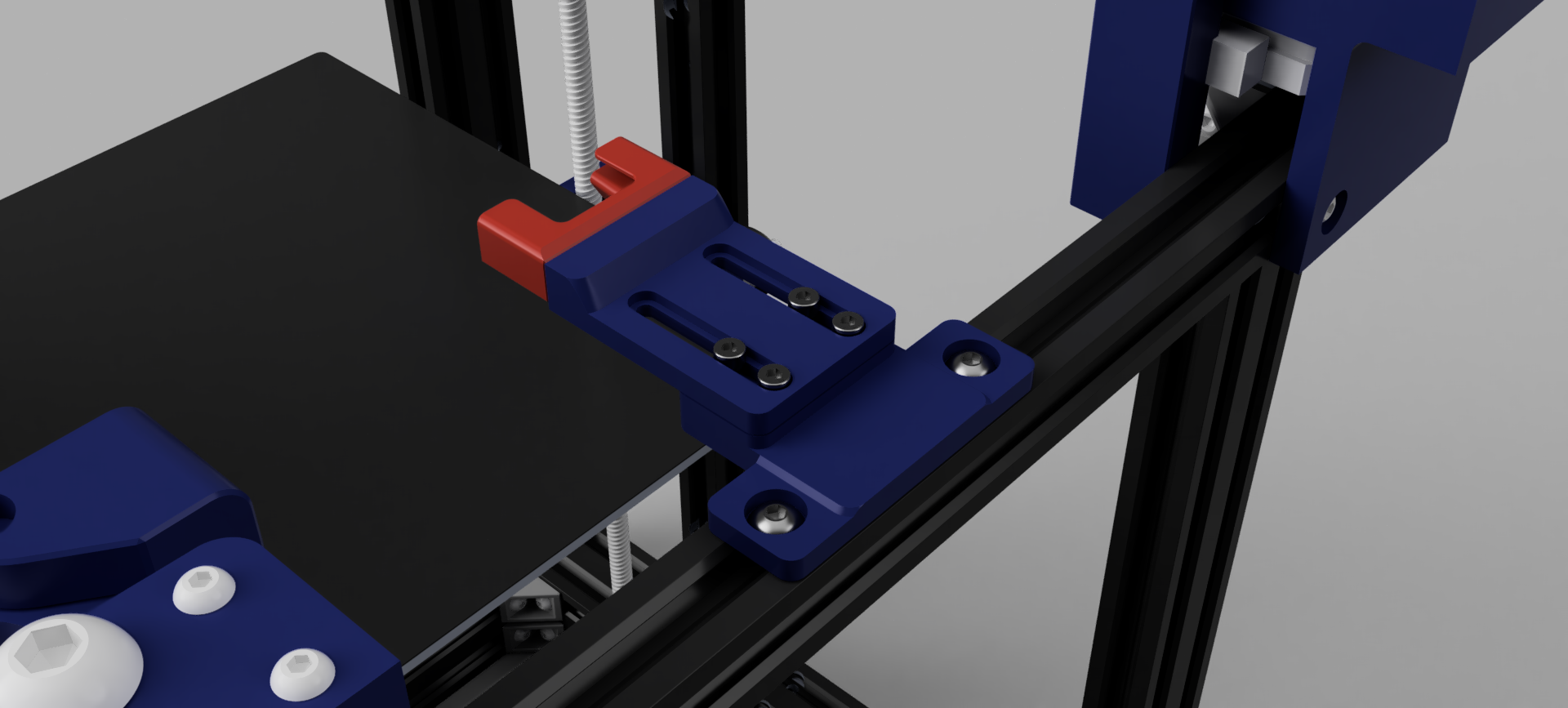

This is a Klicky dock mount for the Duender, I am using it with PCB Klicky on an Xol toolhead. In the files I have included an unmodified file from Better Dock for the PCB Klicky Probe, but it should work with the og Klicky Dock as well.
The dock mount does not have a height adjustment slider currently, but I have included a spacer model in the files which you can scale in your slicer. The default size works with Xol and PCB Klicky.
You need 6x M3 heatset inserts, 4x M3x8 SHCS with the default spacer, 2x M3x16 SHCS to attach the dock. And some M5x8 to attach it to the frame.
