Core One connected switch

/!\/!\/!\ Warning, it use 230V, sou can die if you don't know what you do. I can't be responsible if you do this mod wihtout knowing what you are doing/!\/!\/!\

You must check with your insurance if you won't have problems in case of fire!

If necessary, please ask a professionnal electrician

You can damage or burn your 3d printer or your house if you do something wrong!

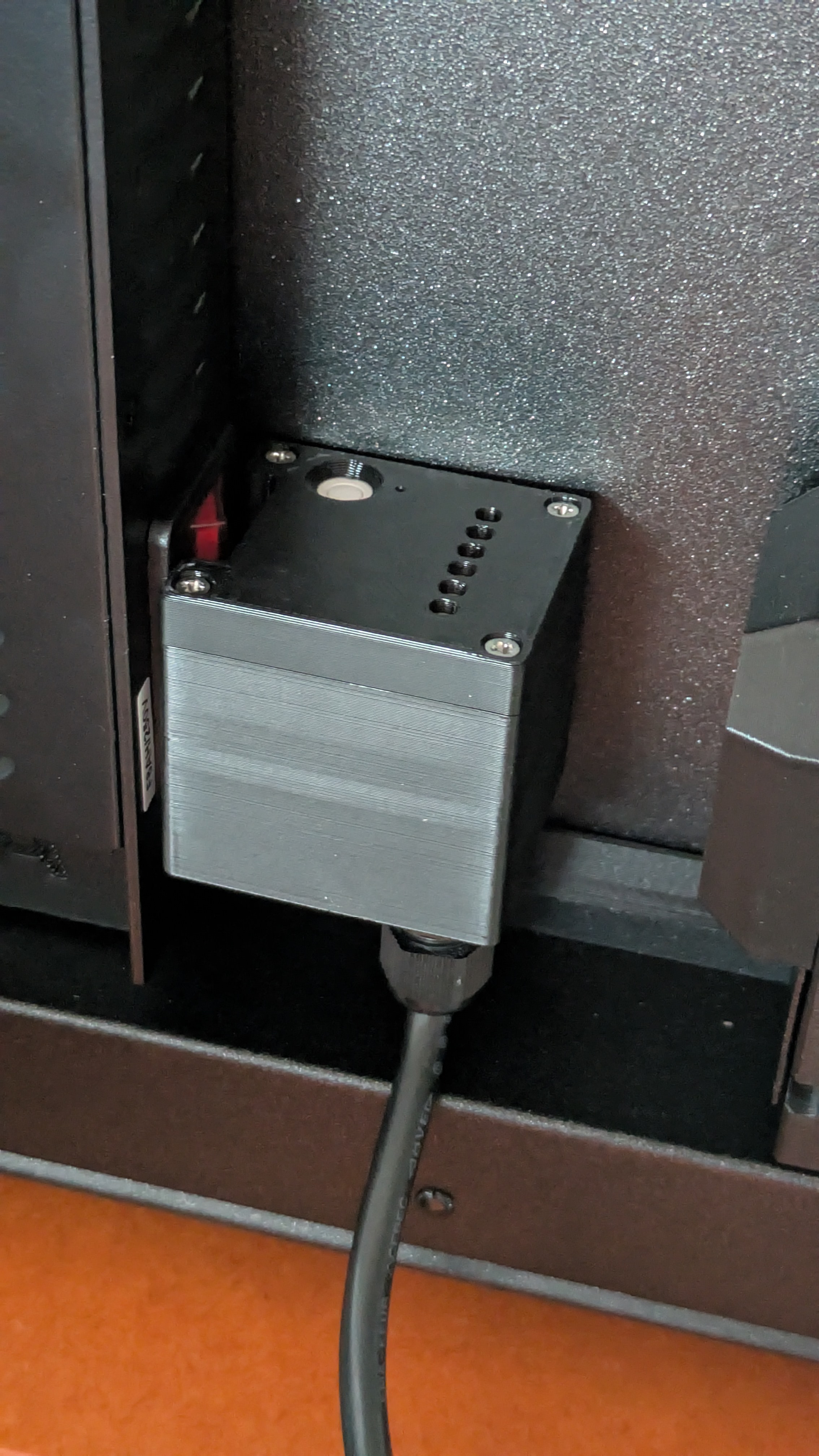

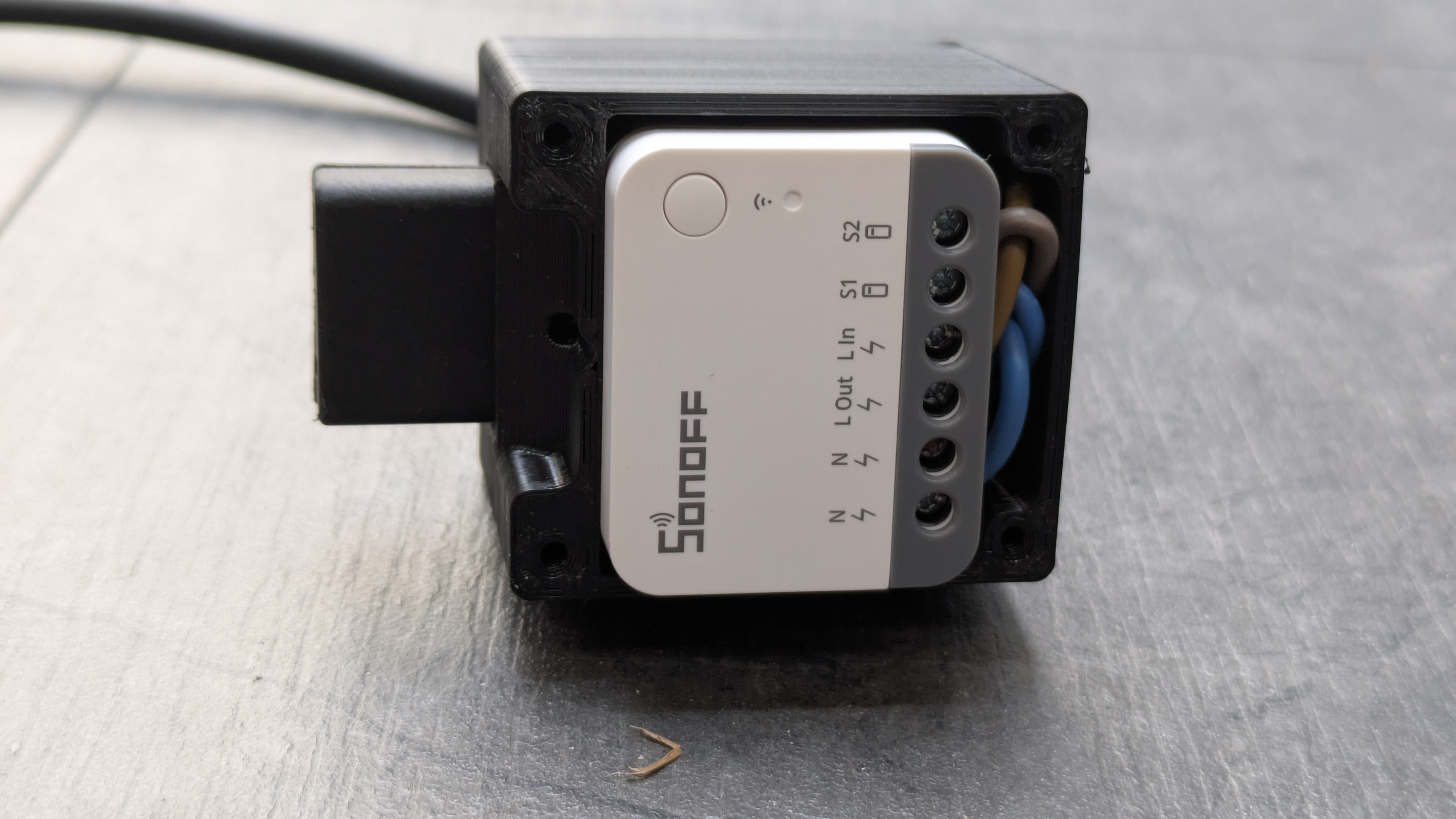

Use a Sonoff ZBMINIR2 (zigbee) or  MINIR4(M) (Wifi, not tested) to turn automatically or manually the printer of with my domotic HA (or other)

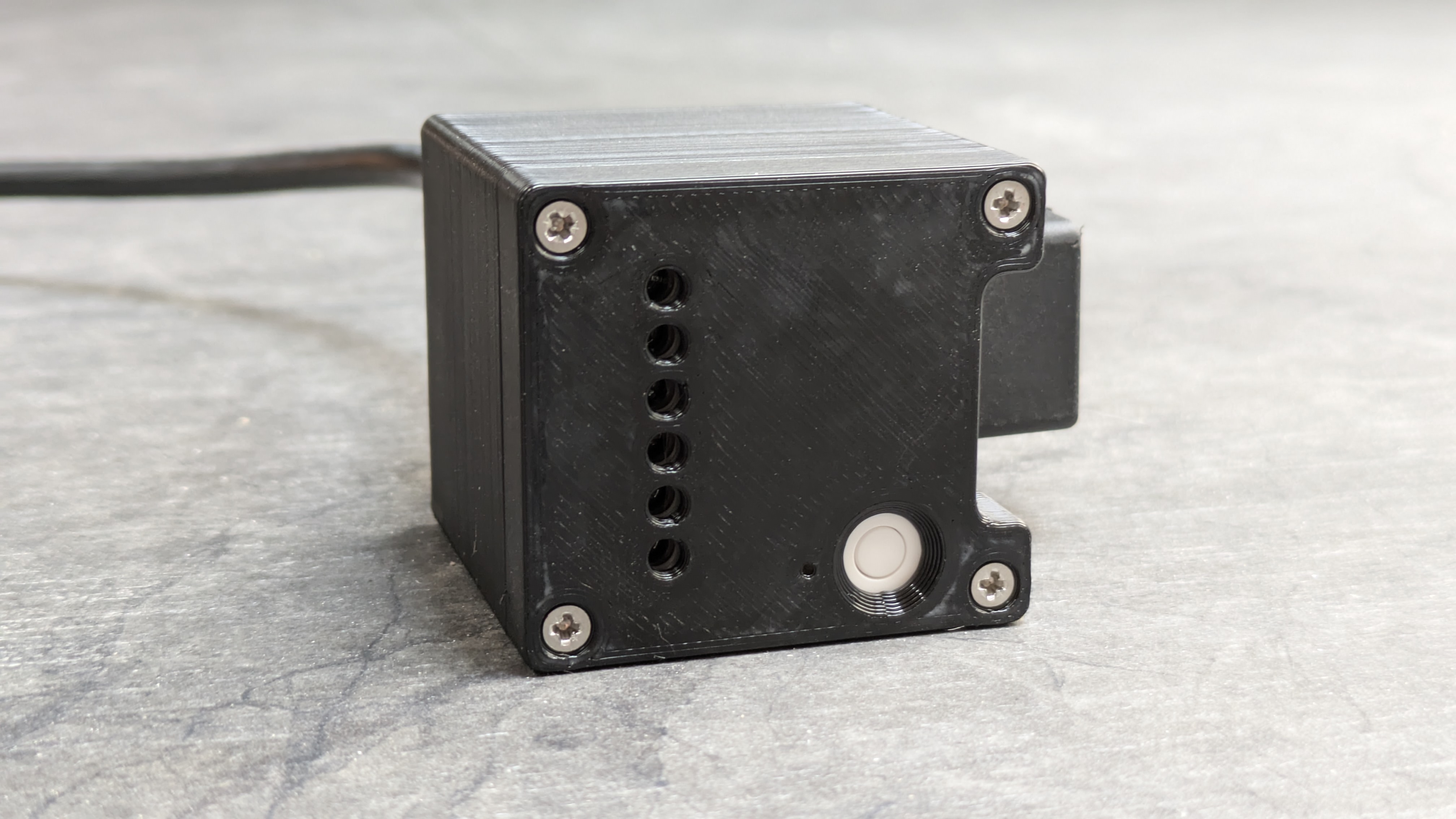

The first version on picture have now upgrade (a bit biger case, 0.2mm more place for Sonoff switch, and no hole for screws on top of closed case.

V2 not tested yet, please confirme me if it works or not

Print in PETG or higher temperature than PLA!

You need :

• 4x M2.5x12mm (between 10 and 15mm lenght)

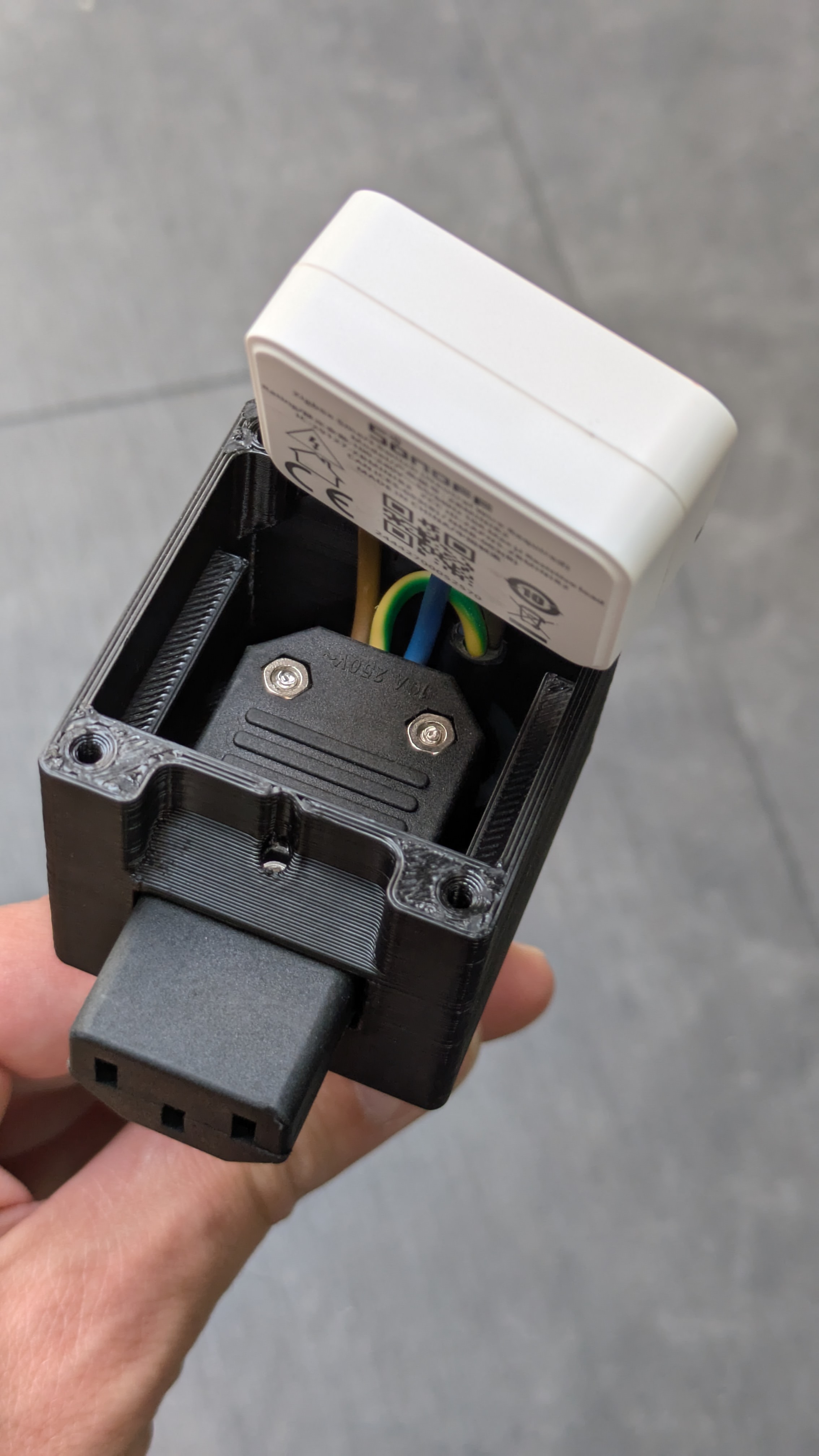

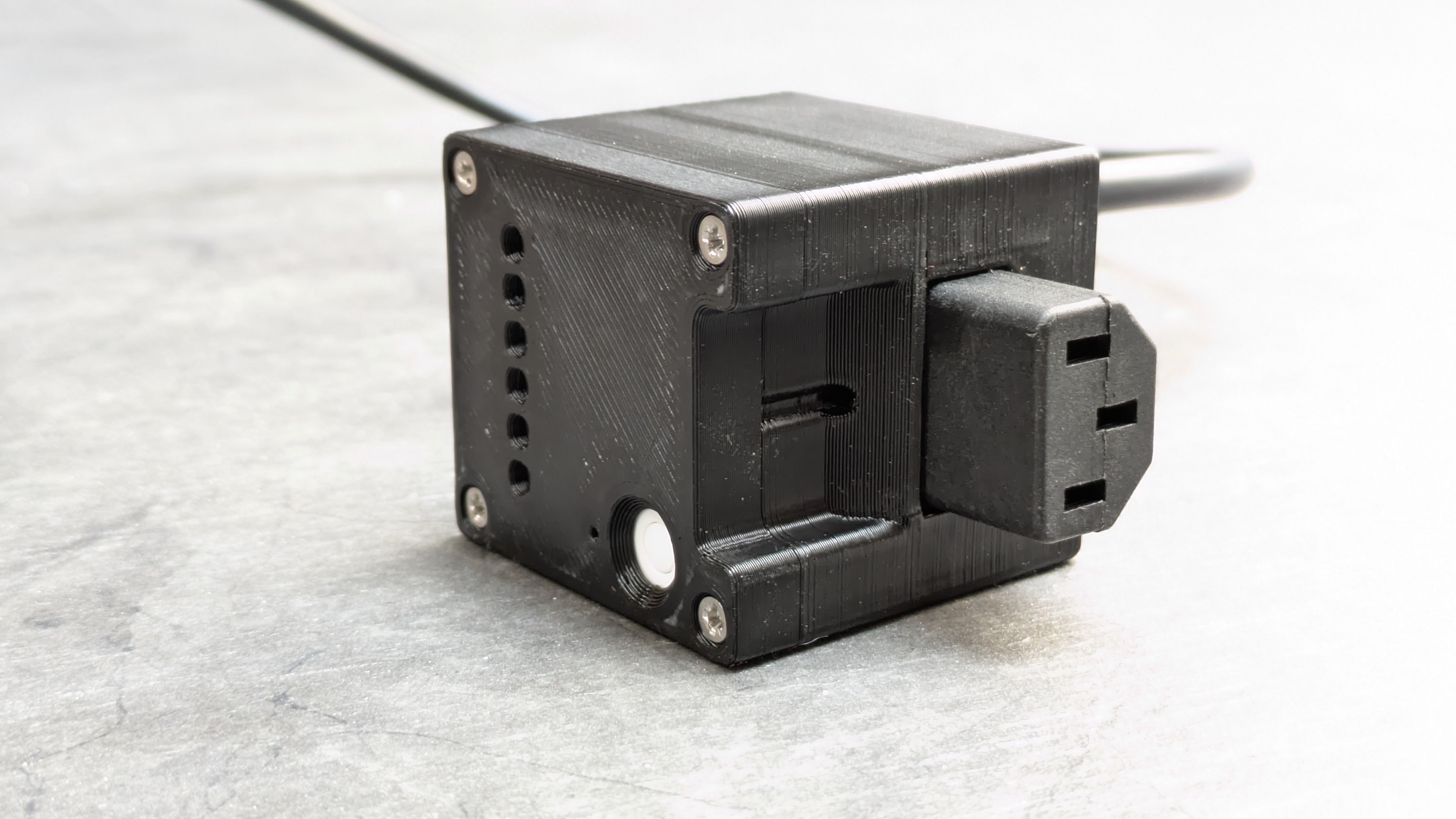

• 1x M2.5x20mm to fix the C13 plug into the 3d printed case
• 0x nut M2.5 (the nut to connect the C13 come from the C13 plug) and the 4 pthers M2.5 screws are directly screwed into the printed part
• A cable with your country plug and the protection earth wire
• Around 5cm 0.75-1.5mm2 wire (for switzerland colors are brown and light blue) You can use wire from the upper describt cable.

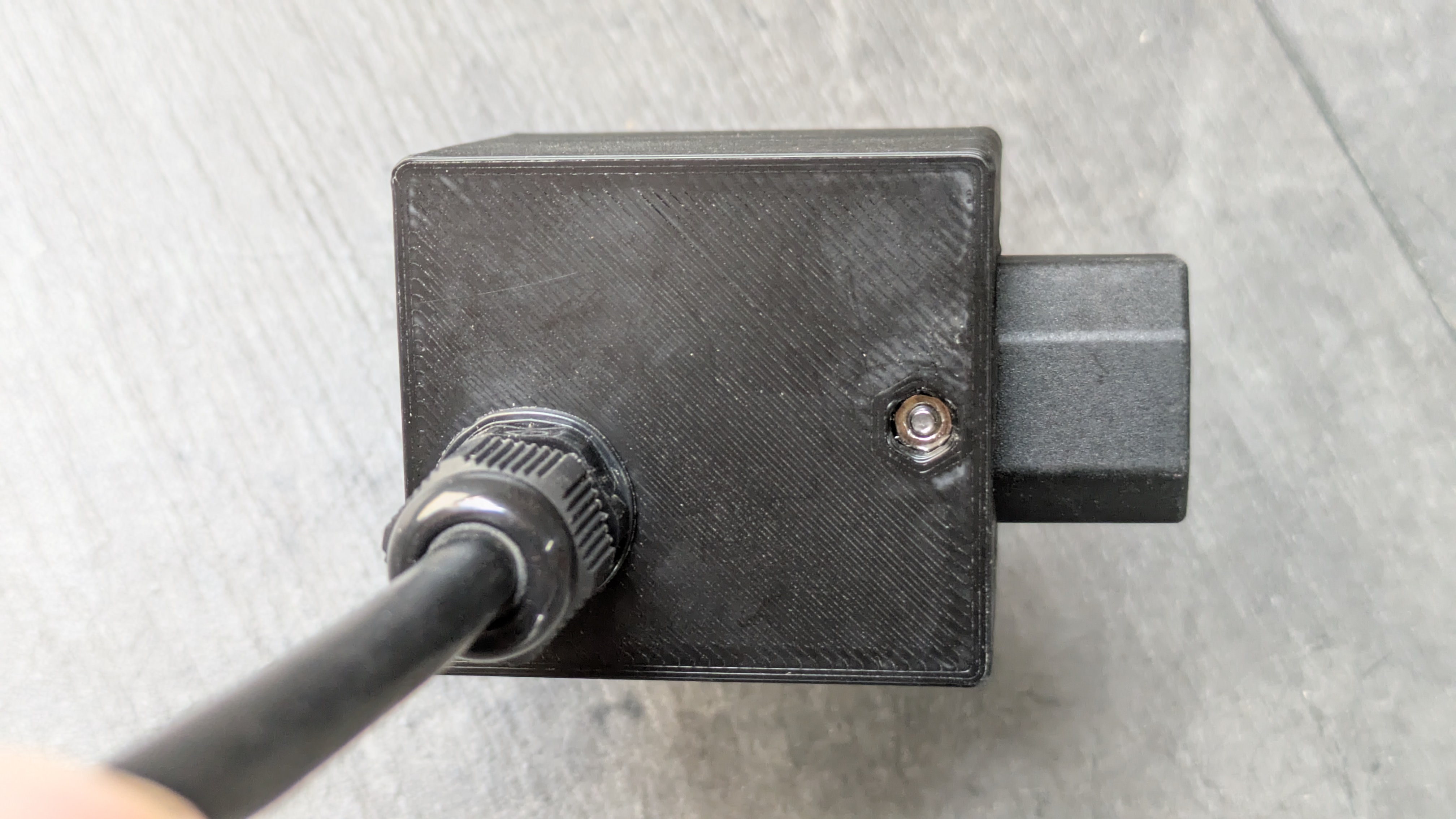

• A cable gland M12x1.5mm

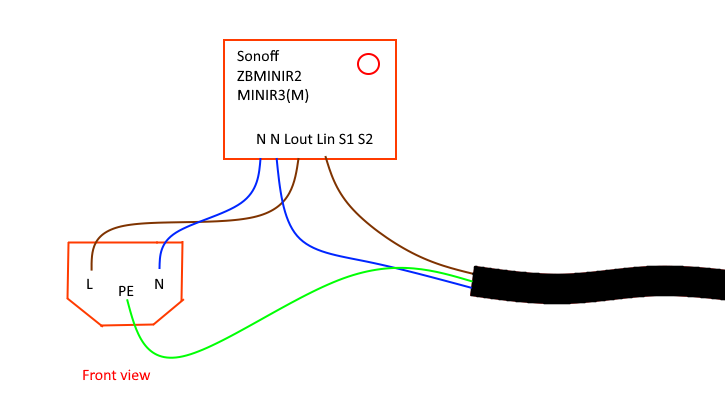

Schematic : Check pictures
