A collection of blanking plugs, bushing, locknuts and washers.

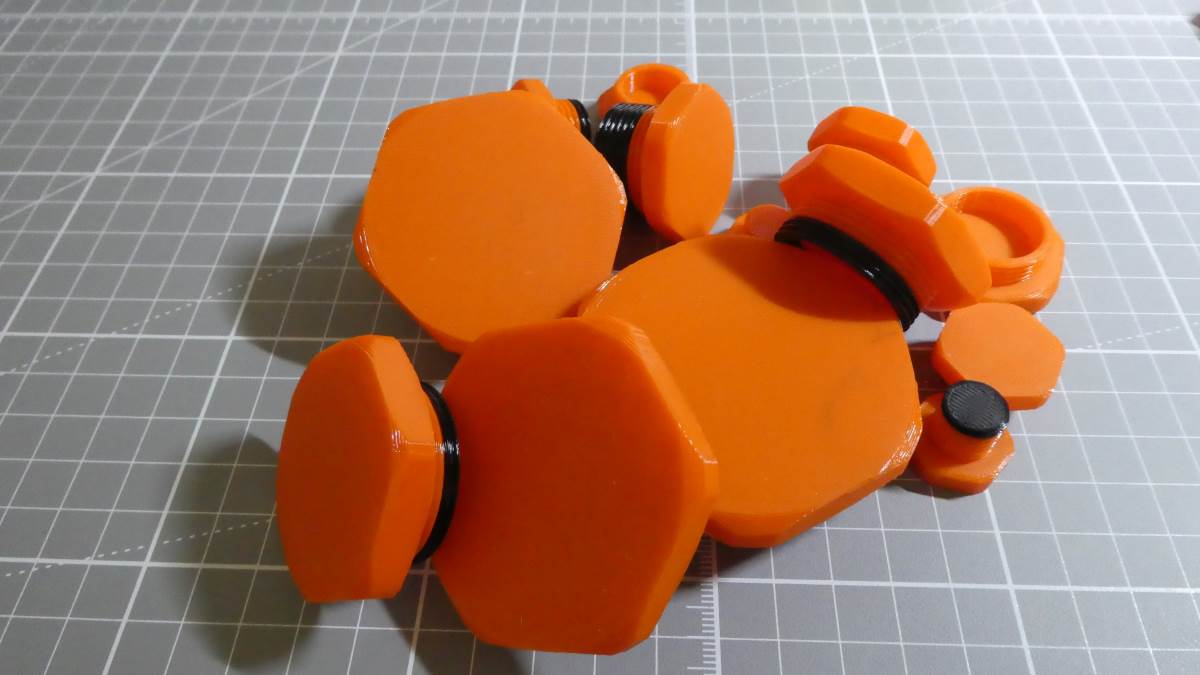

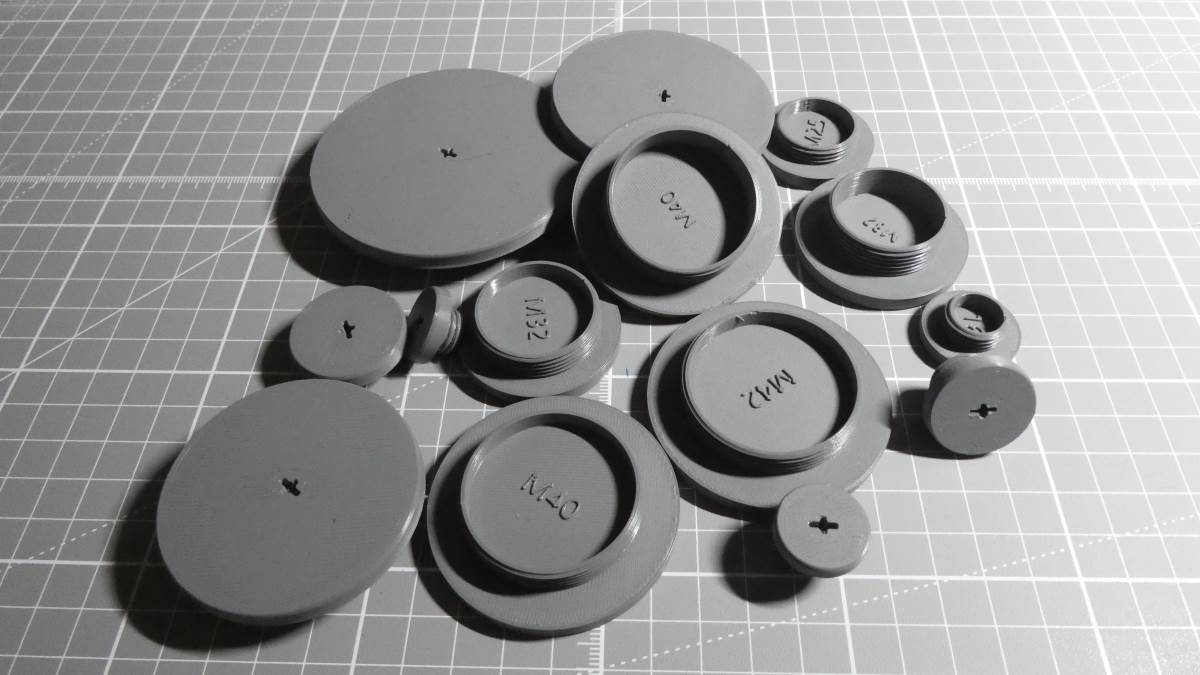

Blanking Plugs: for blocking off holes in metal trunking, panels or equipment racks. Plain circular with screwdriver slots (BPP) or hexagonal (BPH).

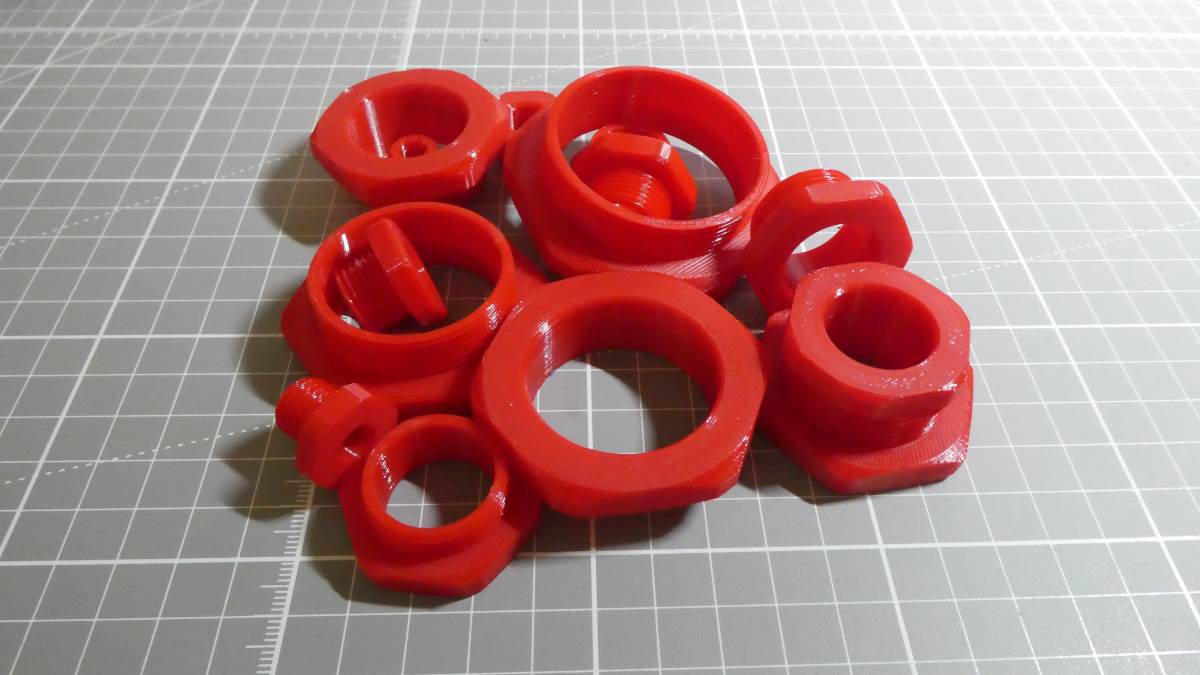

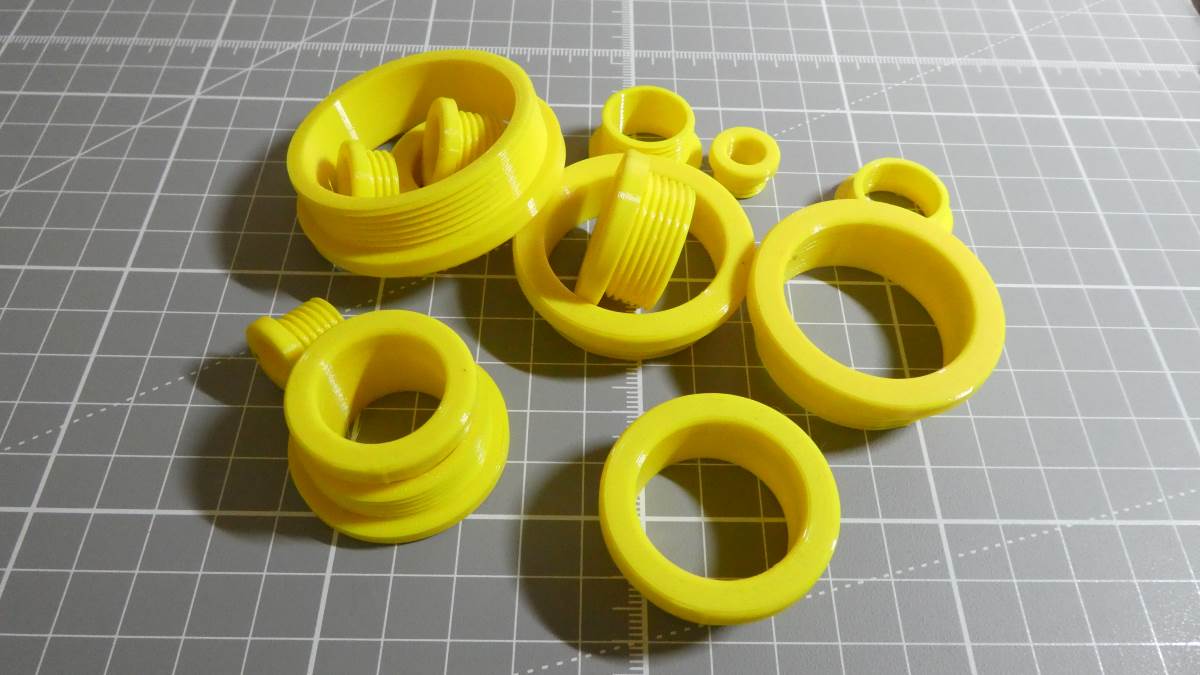

Bushing: for routing a single cable or groups of cables out of metal trunking, prevents damage to cable sheath. Plain circular (BP) or hexagonal (BH).

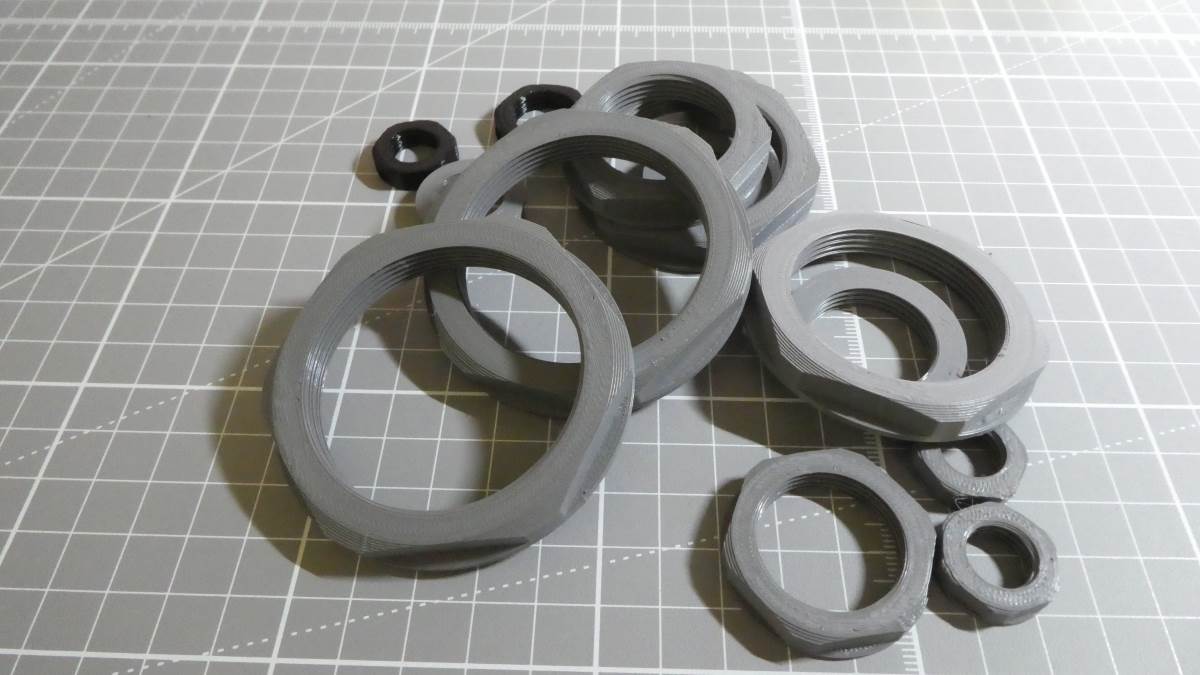

Locknuts: for fixing the above, in three tolerances: 0.0, +0.2 and +0.4.
Washers: for sealing around blanking plugs, not IP rated.
Printing:
Blanking Plugs, bushing and locknuts: print with a layer height of 0.2mm, two walls and 15% infill.
Washers: print in TPU. 95A seems to work ok but it is not flame retardant.
Threads:
All threads have a pitch of 1.5mm.
Feedback:
If you download and print this let me know any thoughts you may have, feedback is always welcome.
