Previous models people have “drilled” into the case to run wires wherever they may. That seems unfinished to me and I do not want a loop of wires hanging out the side or wrapping around.

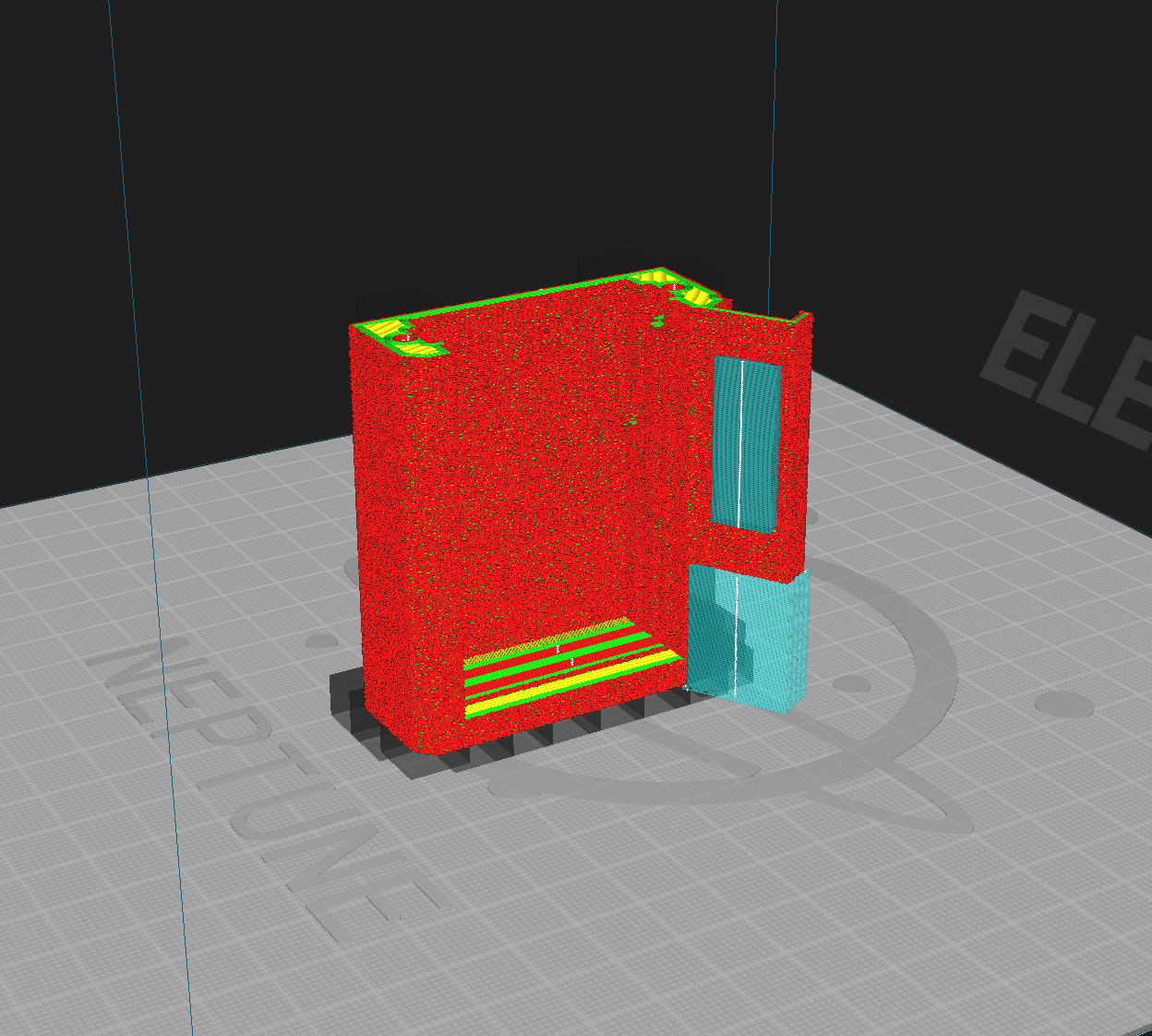

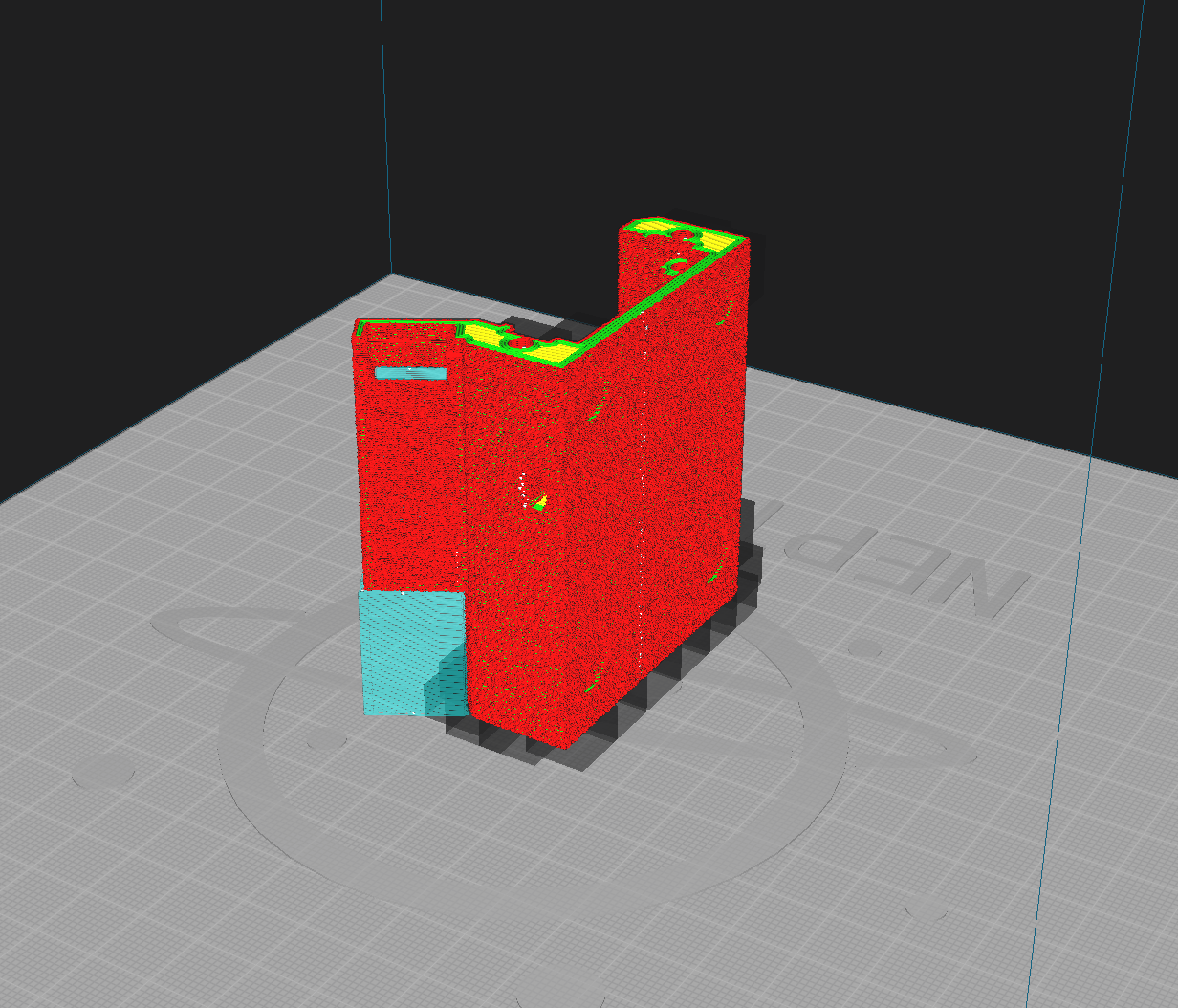

-Supports 100% of the time ONLY for the OLED portion of the model you do not need anywhere else. The higher the % the better. Connected Lines or Zig Zags.
Info on both versions I've modified:
-Hole under PCB = this will let you cleanly route the wiring between the hotswap sockets and out the back of the case. Wiring must be flat to the PCB when sliding everything in.

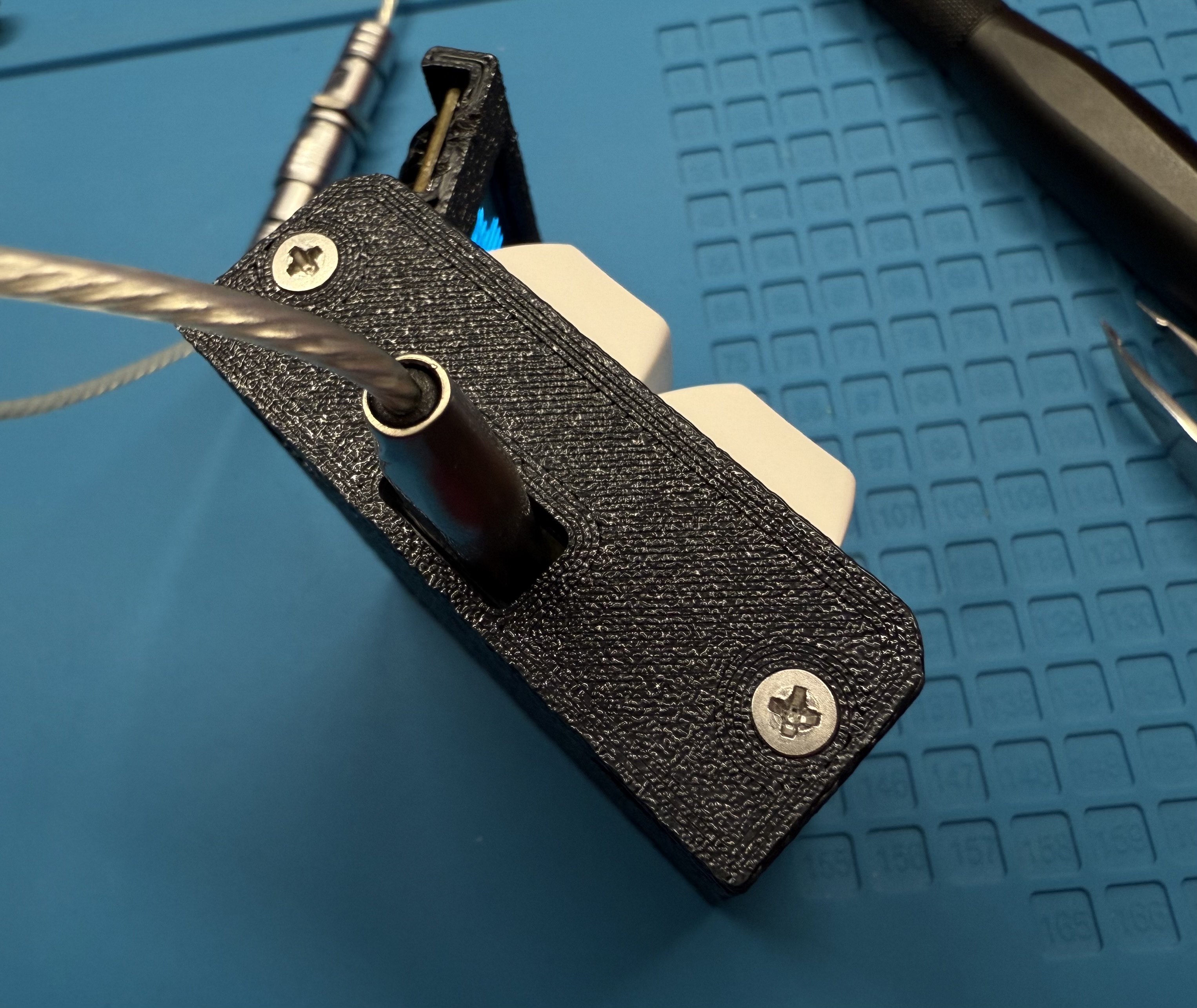

-Hole between Plate & PCB = you can solder the wiring from the top side of the PCB and run the wiring between the switches and out the back of the case. (this is the best option in my personal opinion)
Side Panel - I'd recommend having it printed in the same orientation as the case so it matches.
Two M3 x 4mm Tapered Screws
I'd recommend scaling 1% or 2% (maybe even higher for your liking - I did 3-4% with Fuzzy Skin) larger in size uniformly if you have mega tight tolerances.
