Adjustable sprinkler
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — NoDerivatives

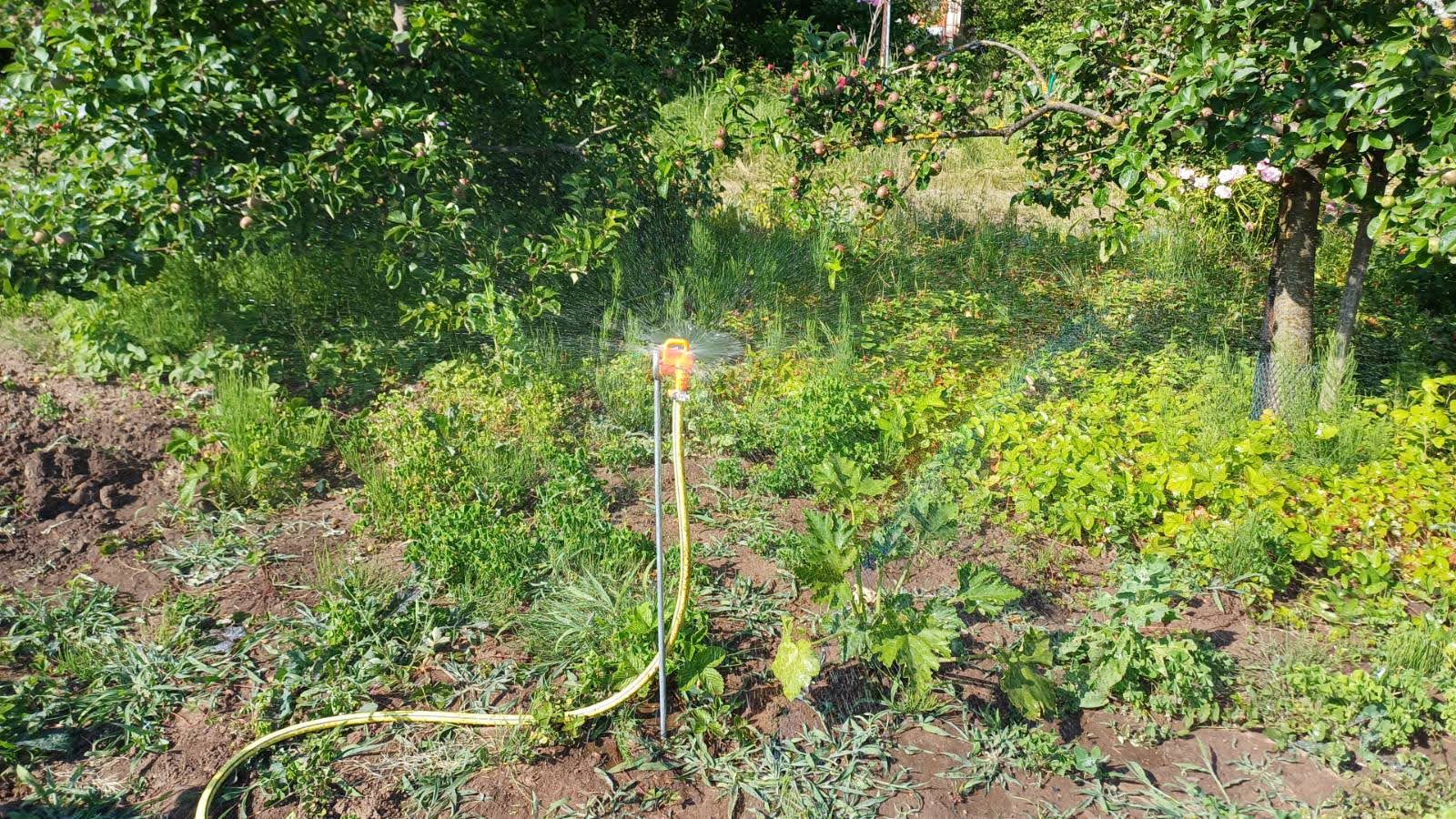

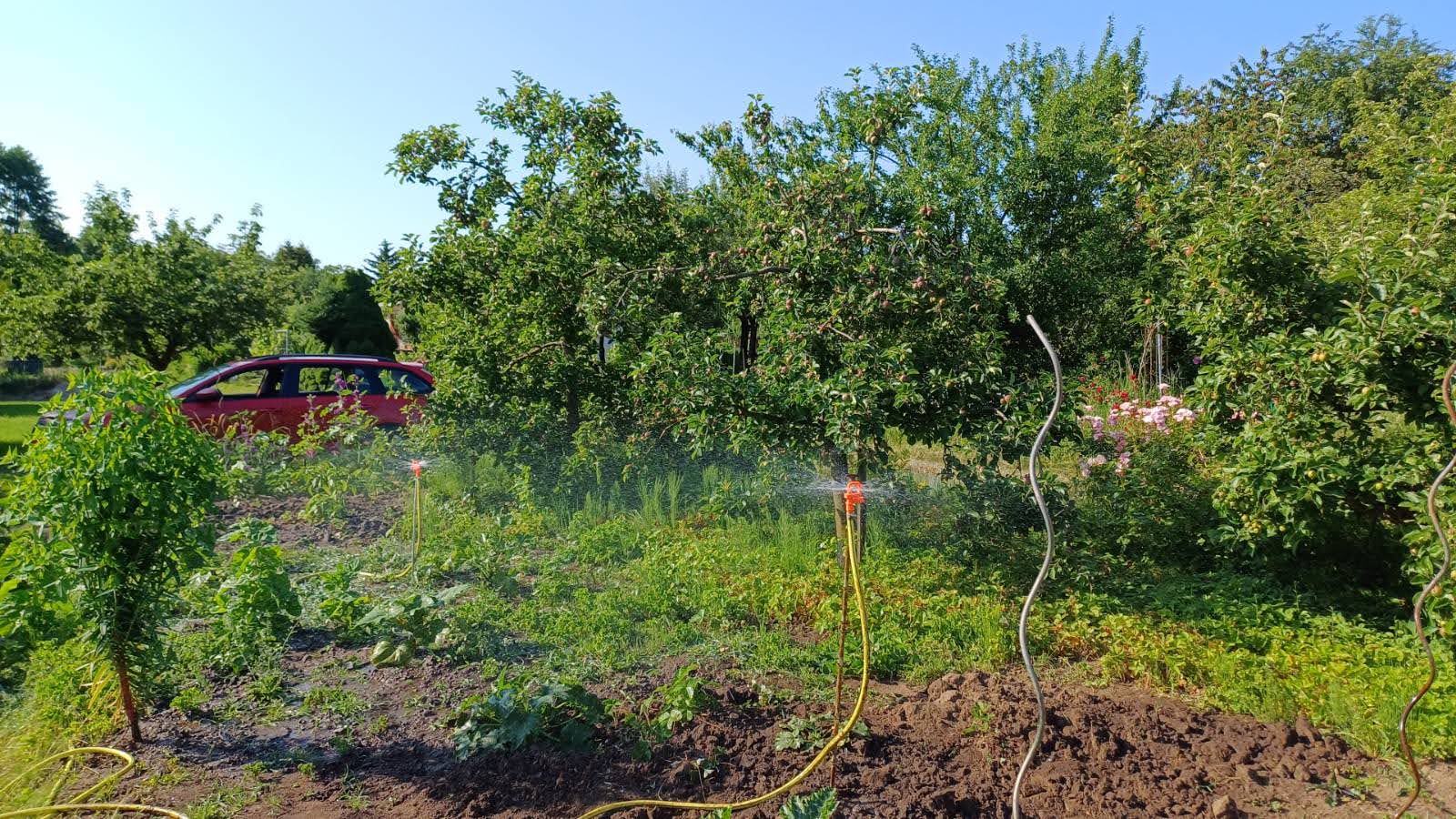

Based on an old design that I could not find for sale anywhere. Spray distance/angle is adjustable by how much the nut is screwed onto the hose end. Includes a ring hook to hang it on a pole or on a stick.
Compatible with both ½" and ¾" garden hoses. The barbs themselves might be enough to hold the hose, but I recommend also using screw clamps.
Threads are M12, nut is offset by 0.1mm to account for printing tolerances. With my MK4S this makes them fit pretty well.
Successfully printed in Prusament PETG and Fillamentum ABS.
Recommended print settings:
- 0.4mm or smaller nozzle
- Larger nozzles might not get accurate enough threads
- Structural profile (or other “slow” profiles)
- Supports on build plate only
- 5+ perimeters
- Most of the strength comes from having enough walls
- Infill 30+%
- Pattern doesn't matter too much, I've tested Gyroid
