The Complete Silicon Dice Making Mold Collection
100% open-source and free, even for commercial use!
Printing Instructions
I recommend the 0.2 mm Structural Profile, 20% infill. Prints 100% supportless. Requires 6x3 magnets to assemble. Technically you could use rubber bands, but I recommend magnets for a secure and satisfying fit.
Assembly Instructions
All parts require 6x3 magnets.
Main Body

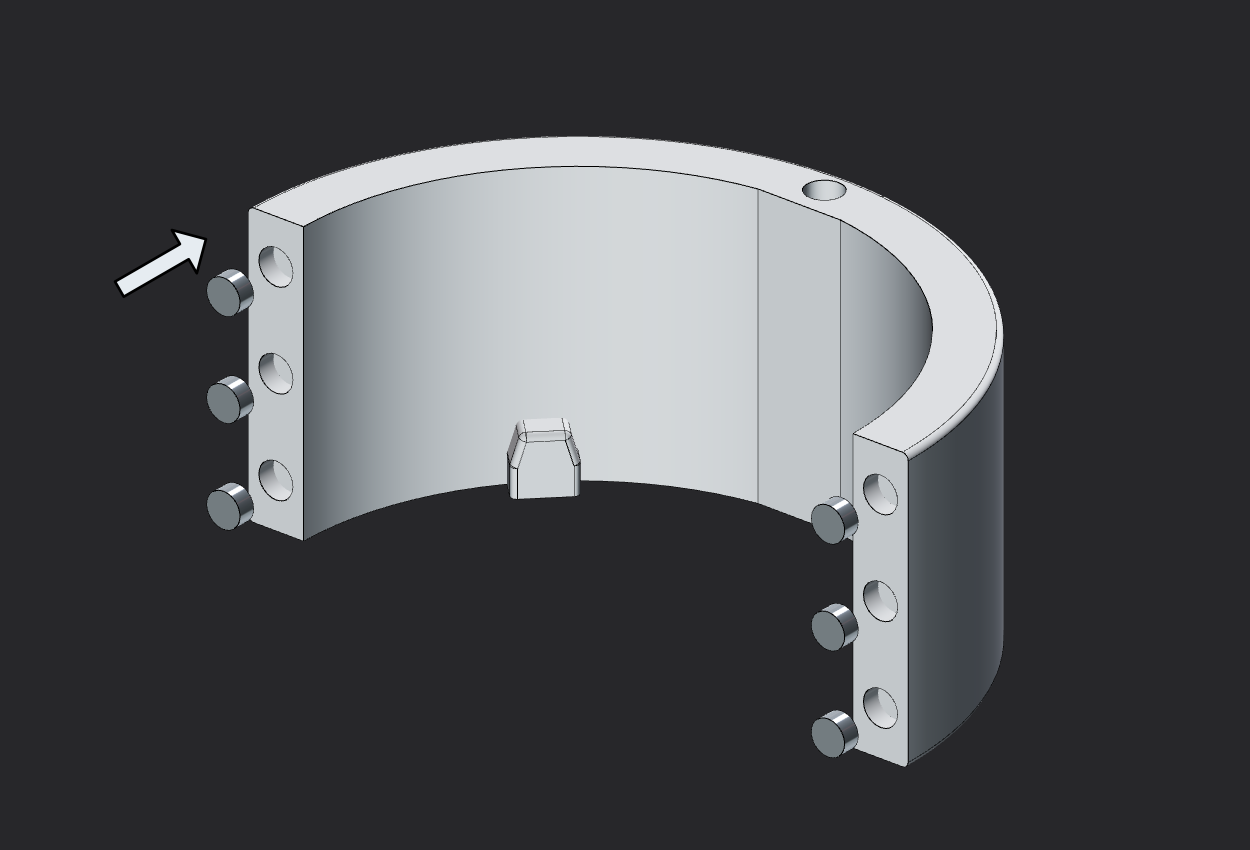

Insert 6 magnets into 1 half of the mold, using a drop of glue.

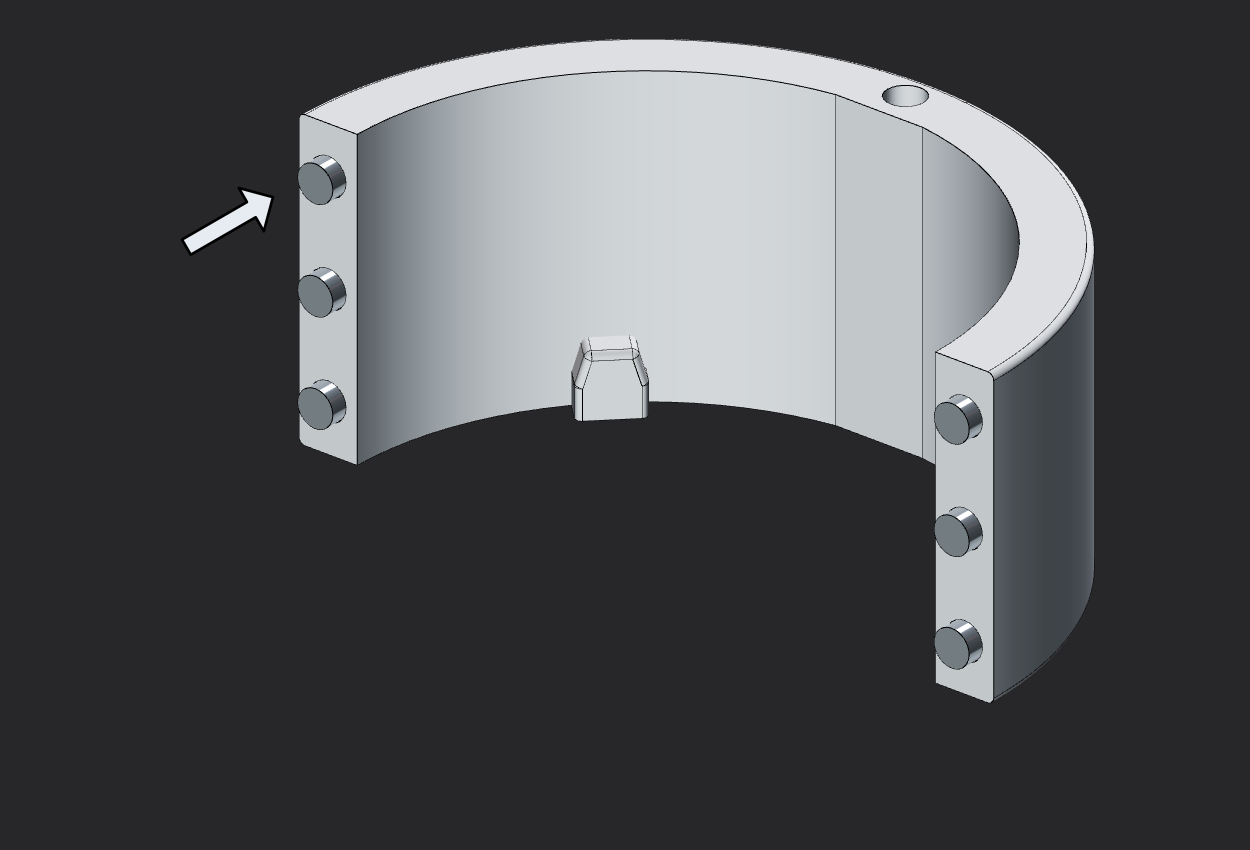

Attach the other 6 magnets to the magnets you just glued in.

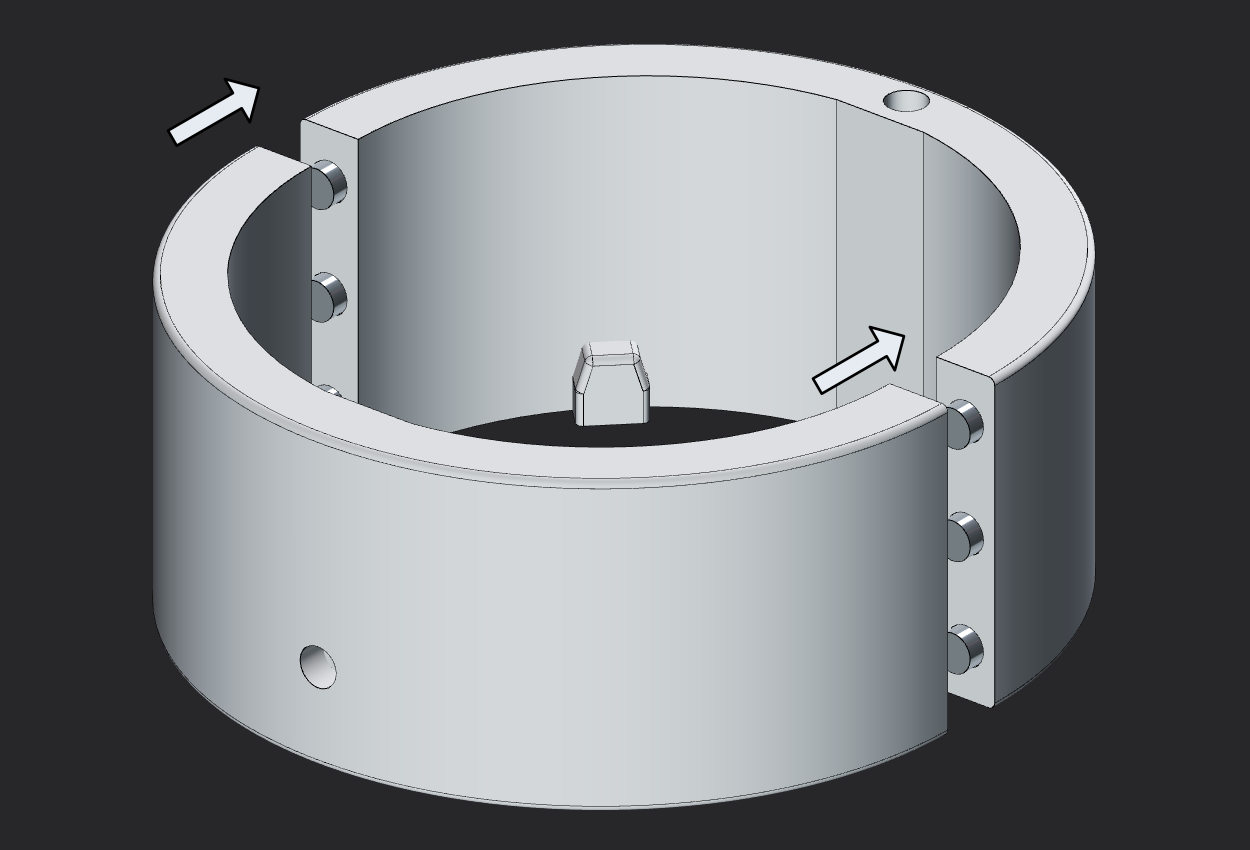

Add a drop of glue into the empty holes of the second half and push it onto the magnets sticking out.

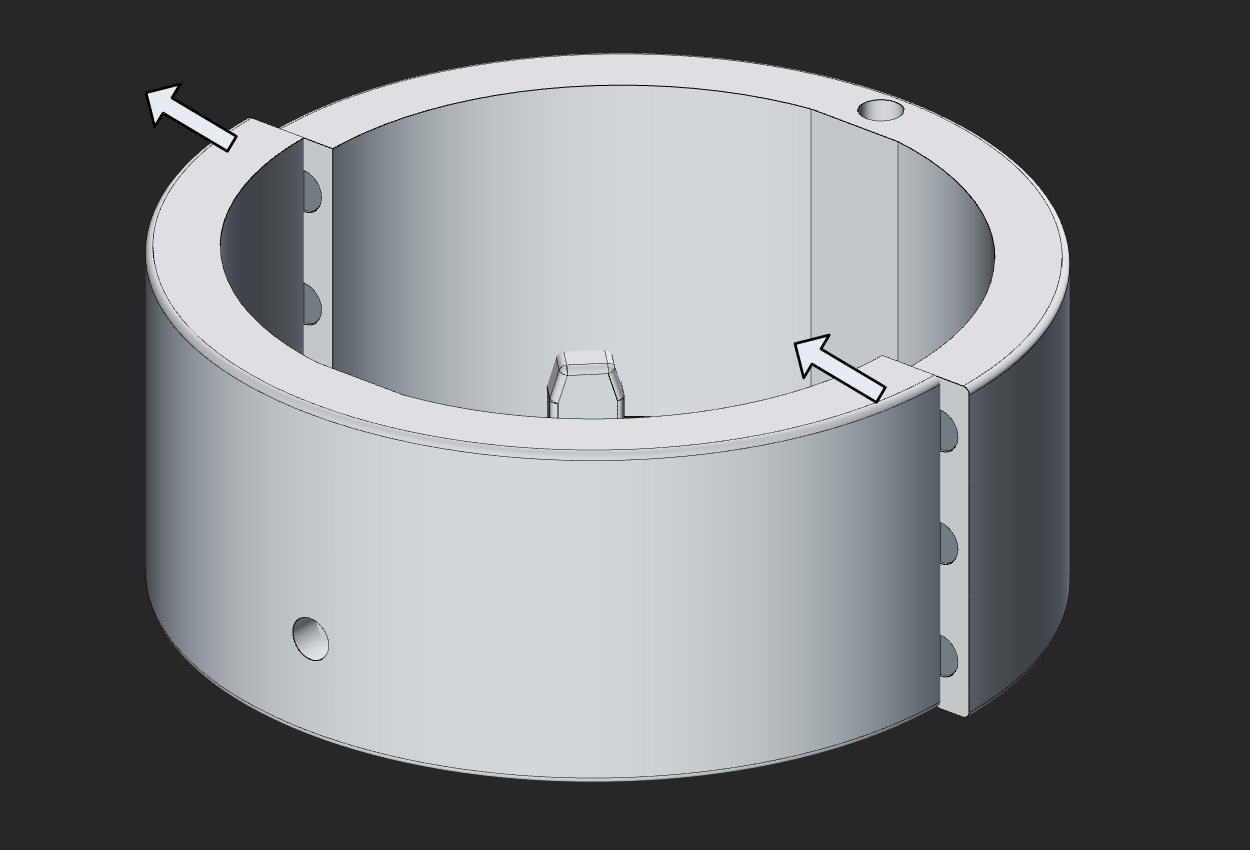

Immediately slide off the halves sideways and make sure the magnets sit neatly.

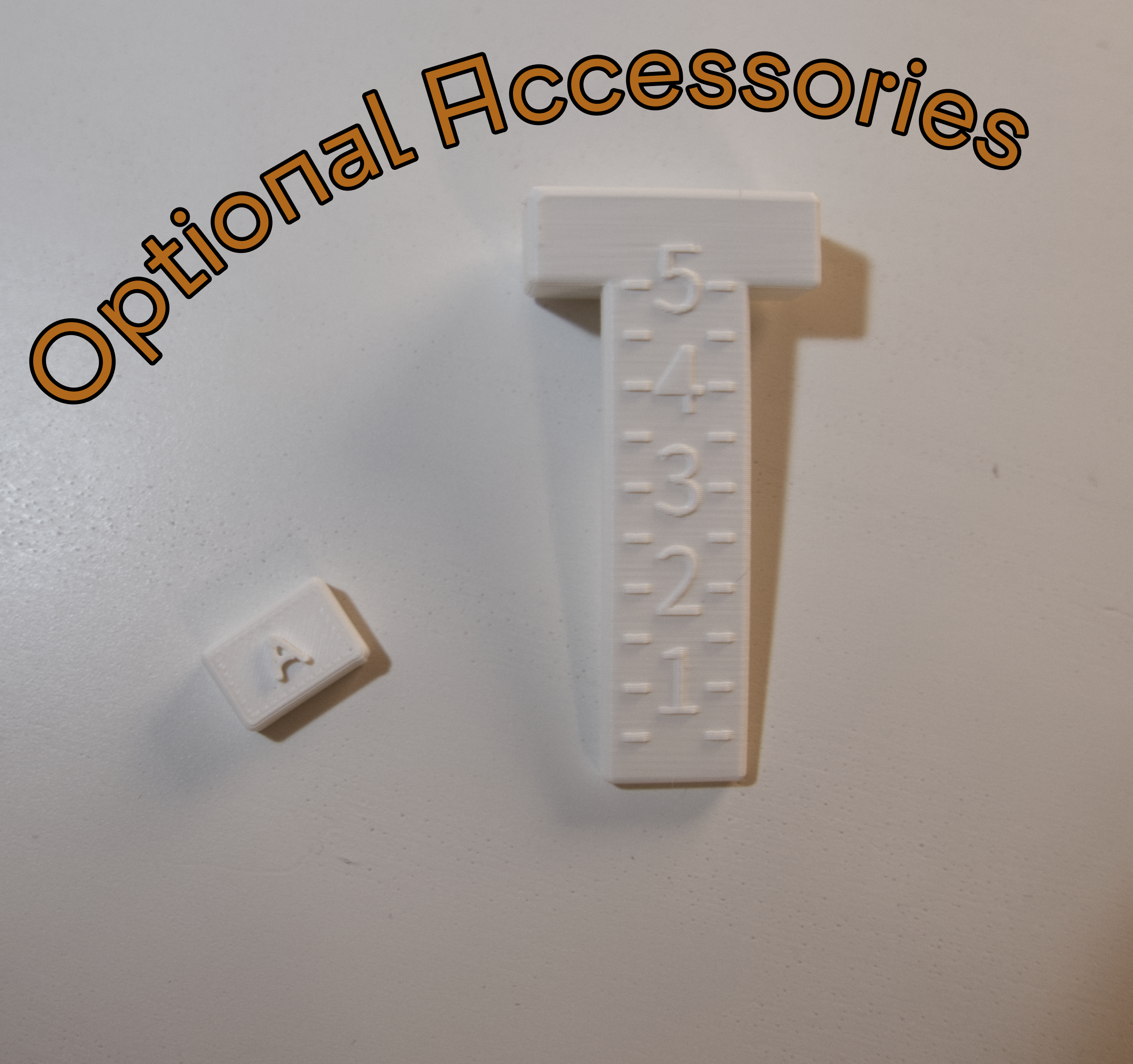

Optional Accessories
Ruler

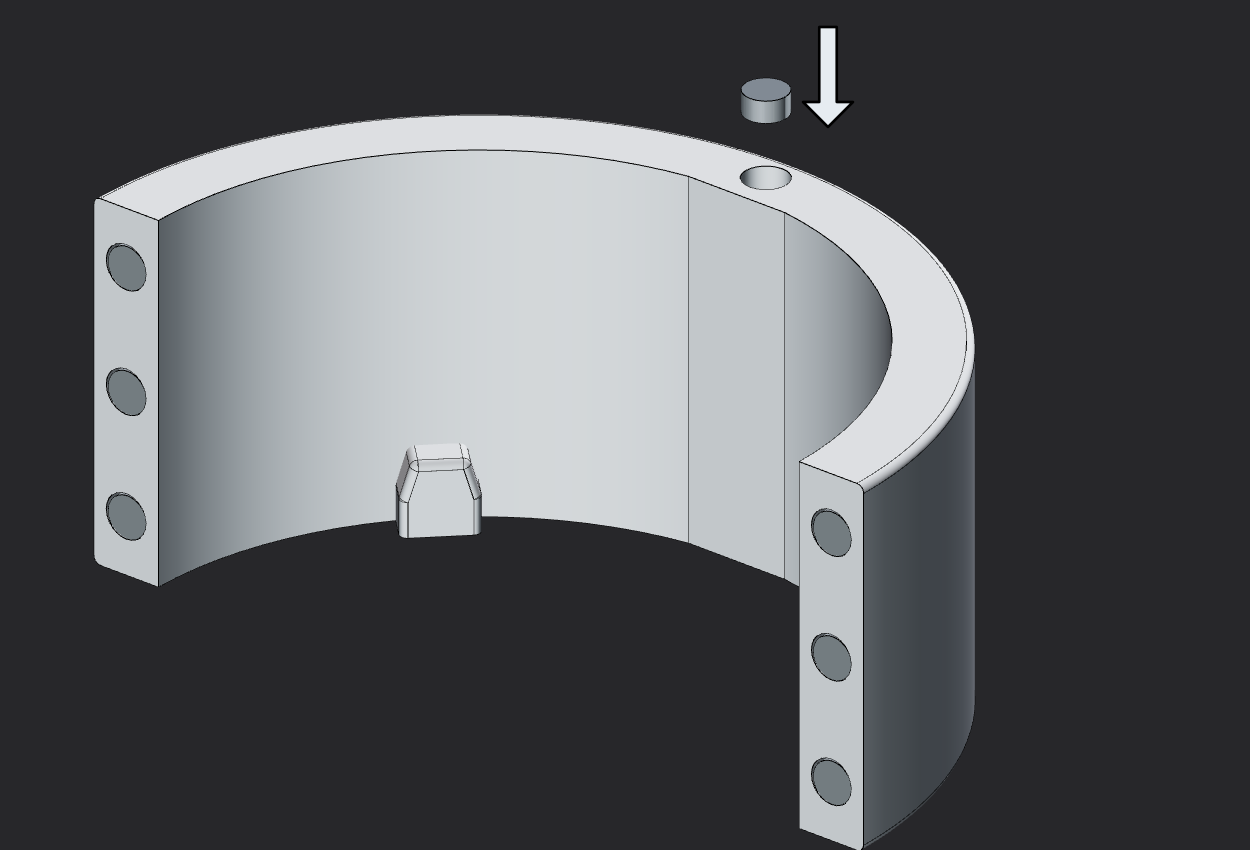

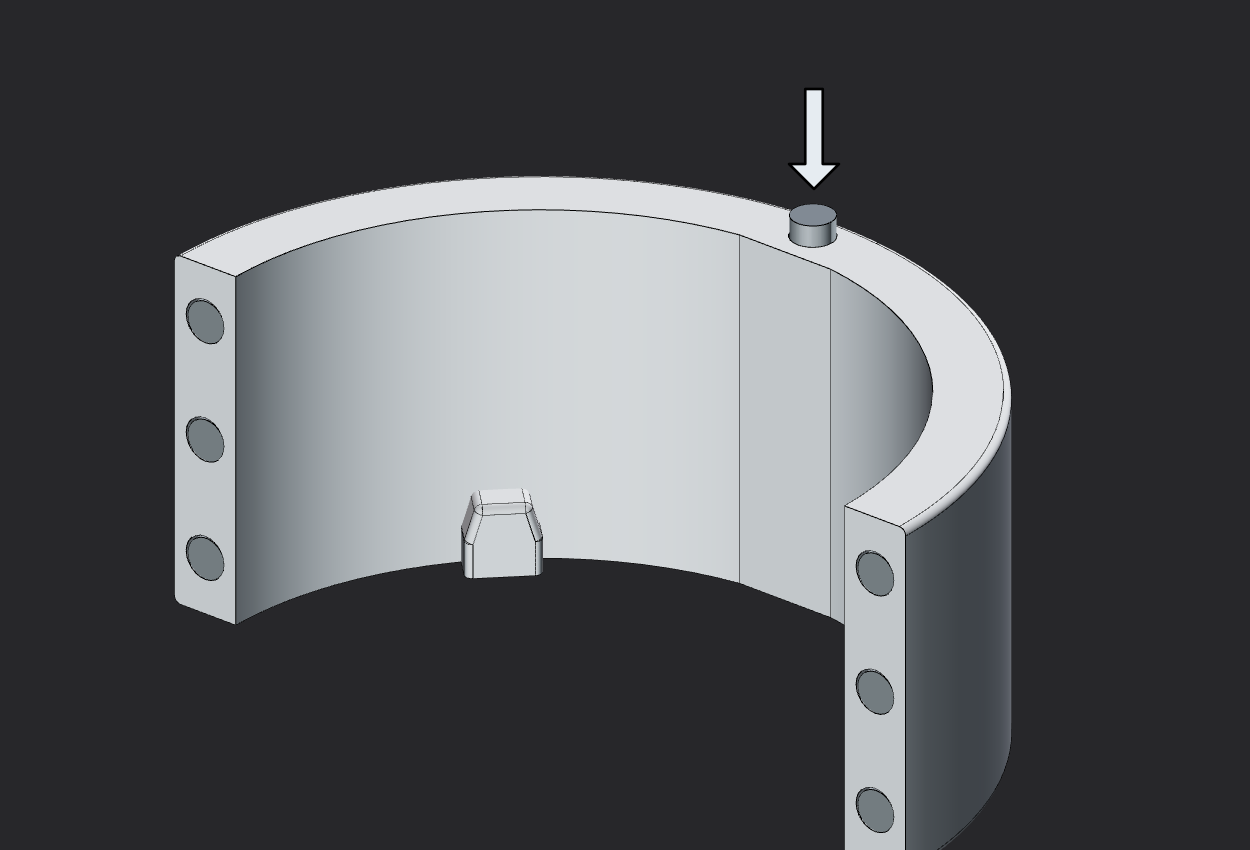

Glue a magnet into the empty hole on the topside of the right half.
Attach another magnet to the magnet you just glued in.

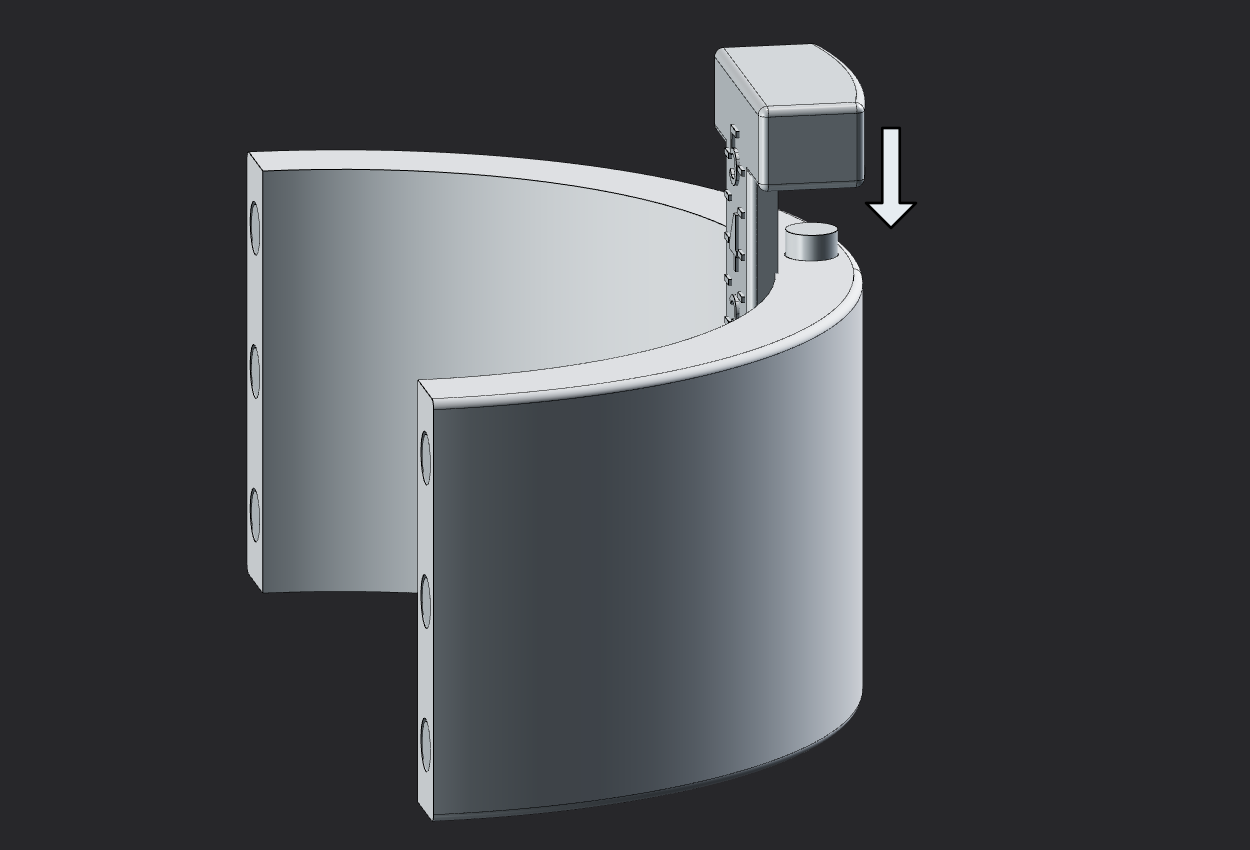

Add a drop of glue into the empty hole of the ruler and push it onto the magnet sticking out.
Label

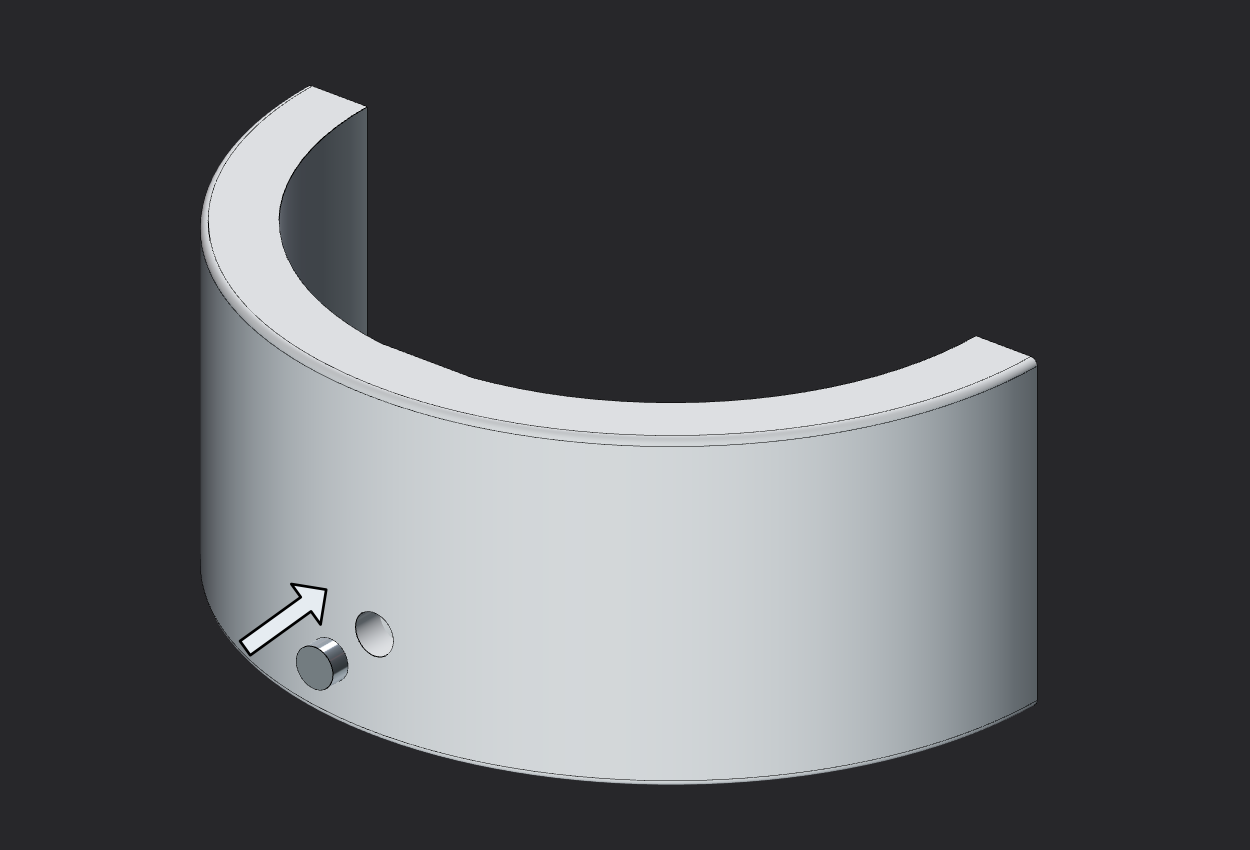

Glue a magnet into the empty hole on the topside of the right half. This magnet seats deeper than the others - push it in all the way.

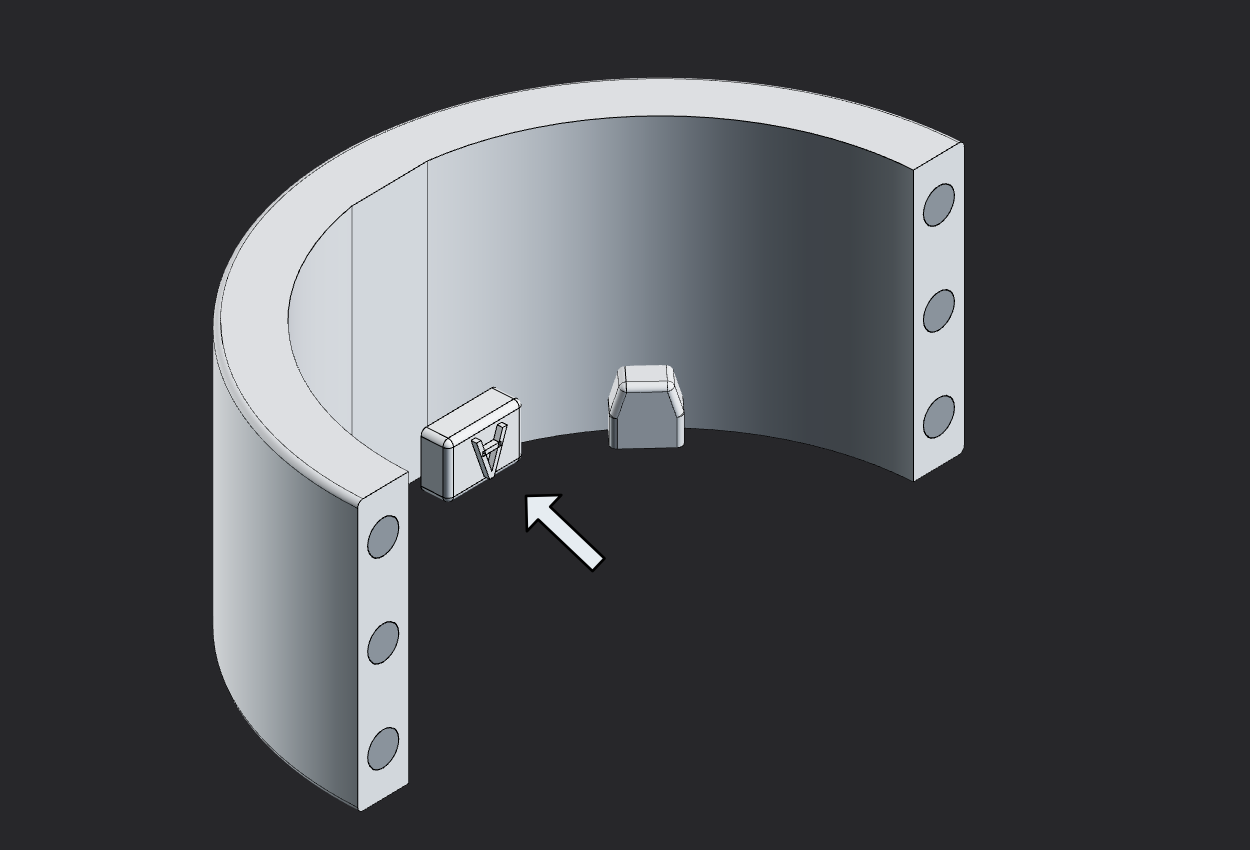

Glue a magnet into the empty hole of the label, making sure the magnet attracts the magnet you pushed in just before when attaching the label to the inside of the mold.
Ruler

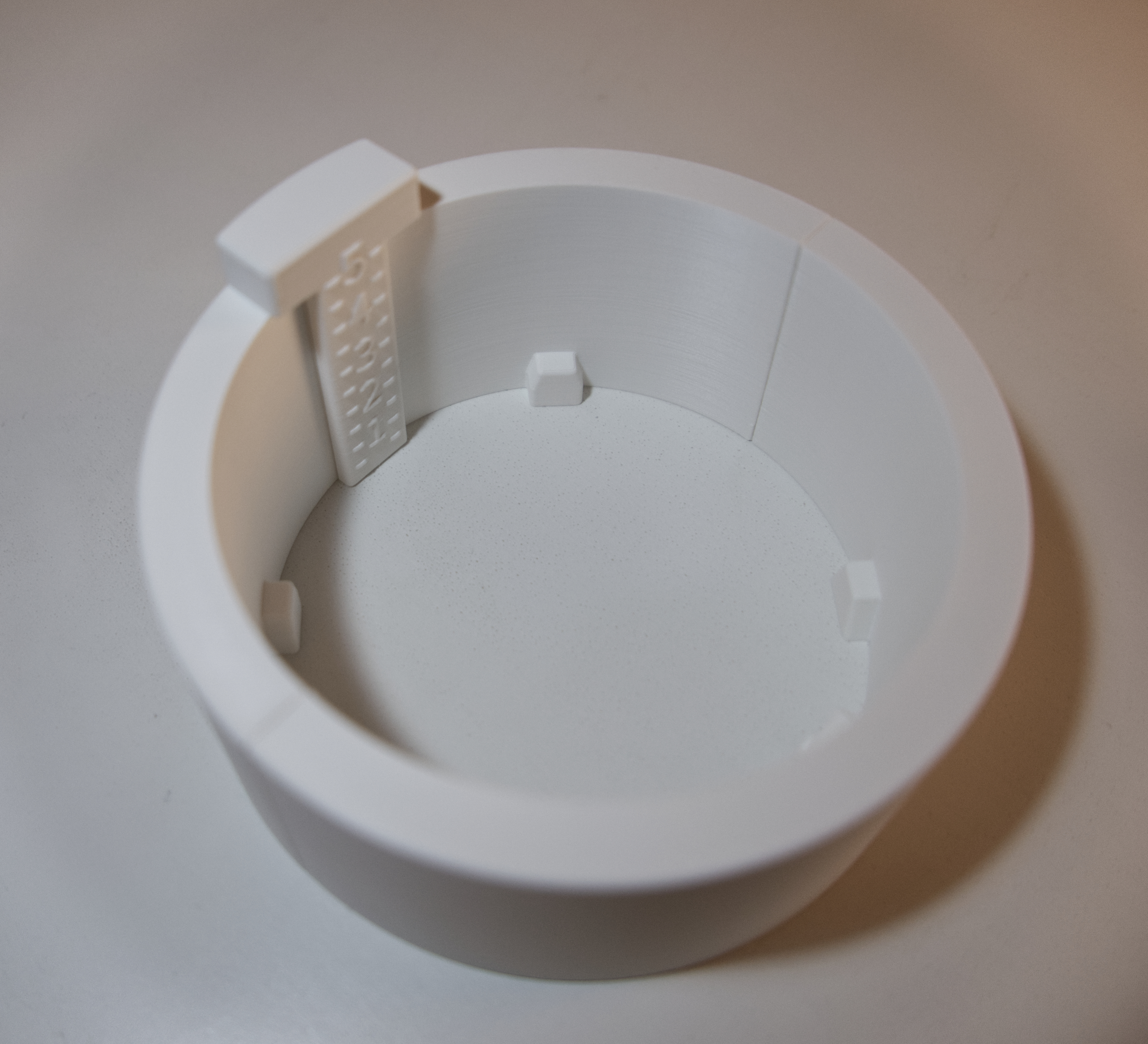

The ruler has markings in cm. Attach it to the top of the mold using a magnet. Reference the table below to know how many ml of silicone you'll need.
Ruler Table
Find out how much silicone you'll need for each line on the ruler.

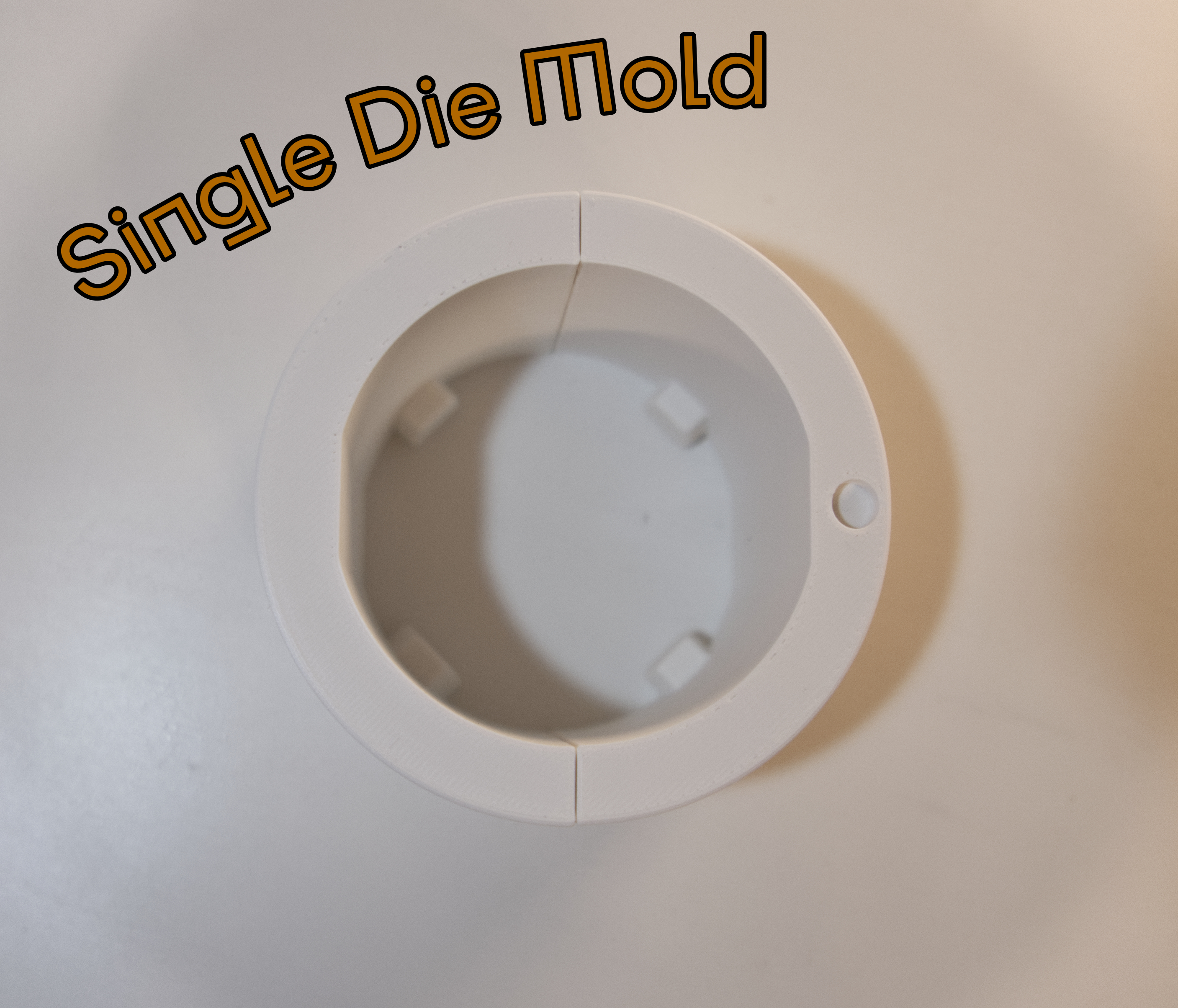

Round Mold Single
| Indicator Line (cm) | ml | g* | US fl.oz. |
| 0.5 | 13 | 16 | 0.44 |
| 1.0 | 26 | 32 | 0.90 |
| 1.5 | 41 | 49 | 1.37 |
| 2.0 | 55 | 66 | 1.85 |
| 2.5 | 69 | 83 | 2.33 |
| 3.0 | 83 | 100 | 2.81 |
| 3.5 | 97 | 117 | 3.29 |
| 4.0 | 111 | 134 | 3.77 |
| 4.5 | 125 | 151 | 4.24 |
| 5.0 | 140 | 167 | 4.72 |
* This is an estimated value and will vary slightly based on the silicone you use.

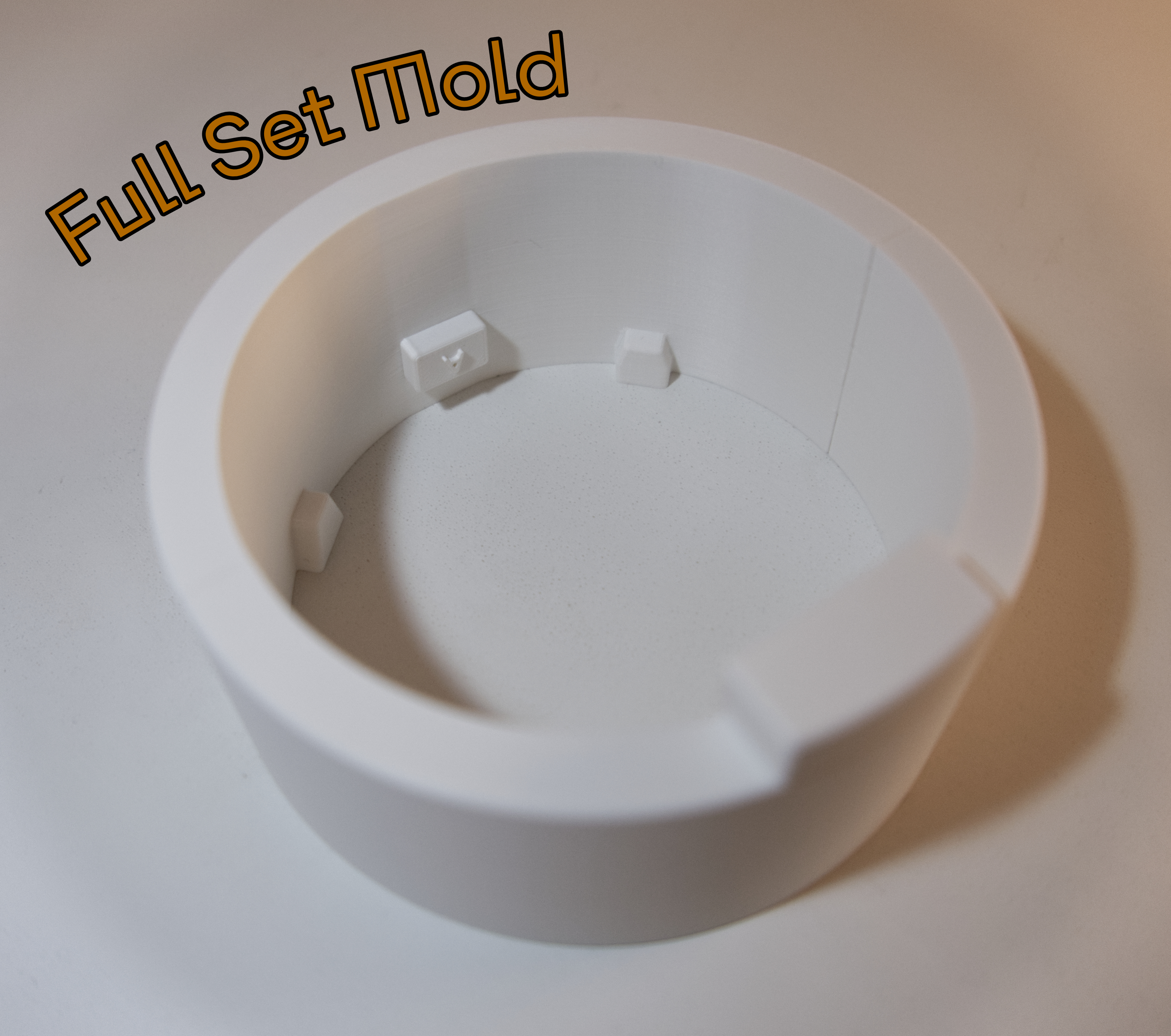

Round Mold Full Set
| Indicator Line (cm) | ml | g* | US fl.oz. |
| 0.5 | 38 | 46 | 1.29 |
| 1.0 | 77 | 92 | 2.59 |
| 1.5 | 116 | 139 | 3.92 |
| 2.0 | 155 | 186 | 5.25 |
| 2.5 | 195 | 233 | 6.58 |
| 3.0 | 234 | 281 | 7.91 |
| 3.5 | 273 | 328 | 9.24 |
| 4.0 | 312 | 375 | 10.56 |
| 4.5 | 352 | 422 | 11.89 |
| 5.0 | 391 | 469 | 13.22 |
* This is an estimated value and will vary slightly based on the silicone you use.

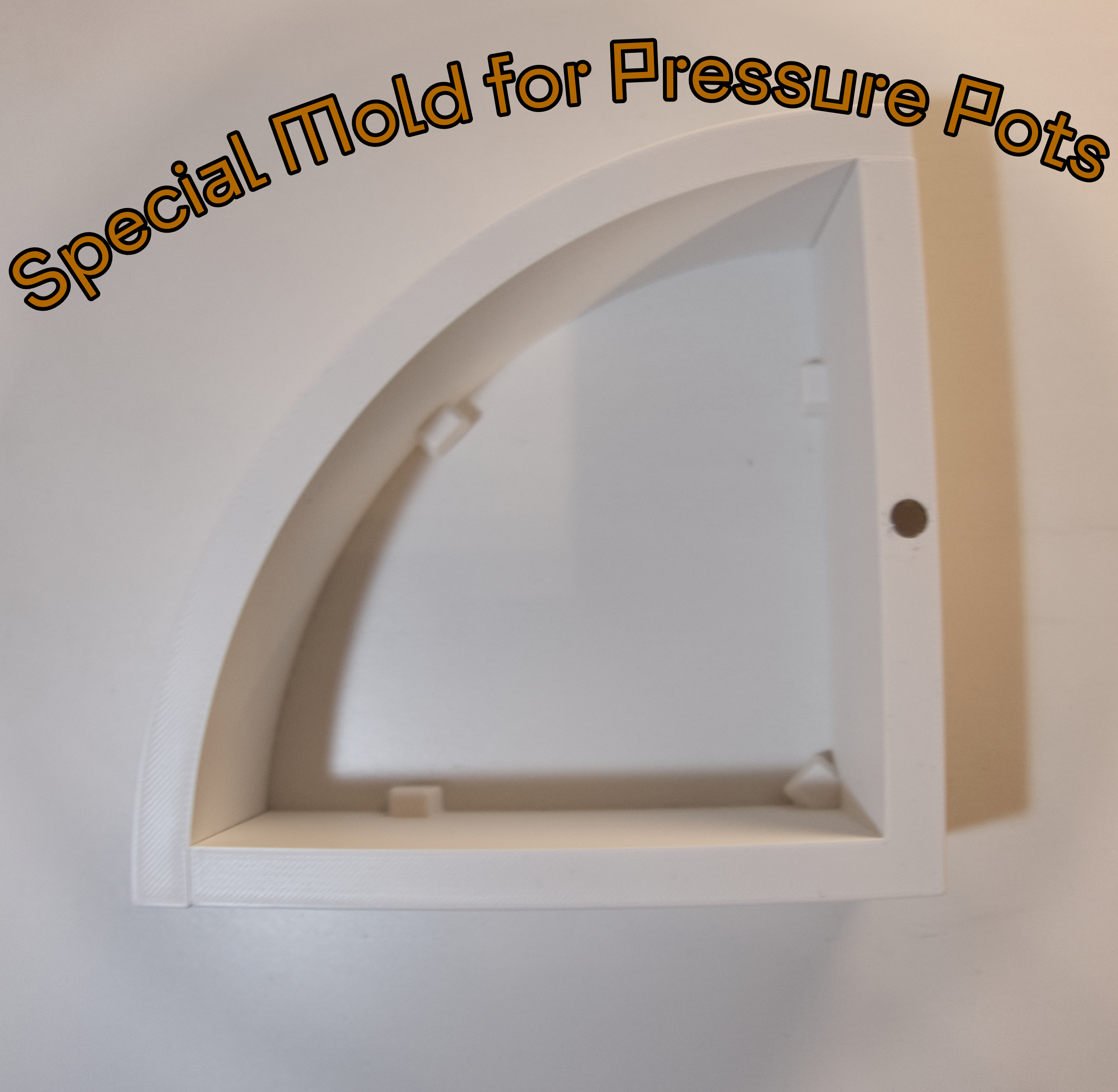

Quarter Round Mold Full Set
| Indicator Line (cm) | ml | g* | US fl.oz. |
| 0.5 | 44 | 53 | 1.50 |
| 1.0 | 89 | 106 | 3.00 |
| 1.5 | 134 | 161 | 4.53 |
| 2.0 | 181 | 217 | 6.13 |
| 2.5 | 227 | 272 | 7.66 |
| 3.0 | 272 | 326 | 9.20 |
| 3.5 | 317 | 381 | 10.73 |
| 4.0 | 362 | 435 | 12.26 |
| 4.5 | 408 | 489 | 13.80 |
| 5.0 | 453 | 544 | 15.33 |
* This is an estimated value and will vary slightly based on the silicone you use.
Label

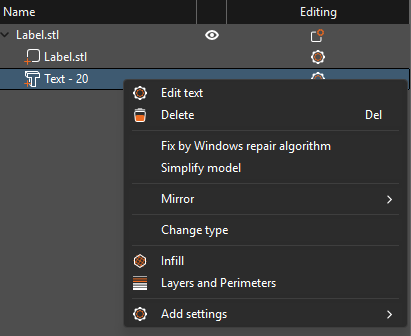

The label allows you to permanently mark your mold. You can edit the text in your slicer.
Before pouring in your silicone, attach it to the inside of the mold. Make sure you put it in upside down, and do not remove it until both halves are fully cured. Use the image from the assembly instructions for reference of orientation.
Video Instructions
I highly recommend this video by Wyvern Tyrant
