Monoprice Mini Delta Replacement Base

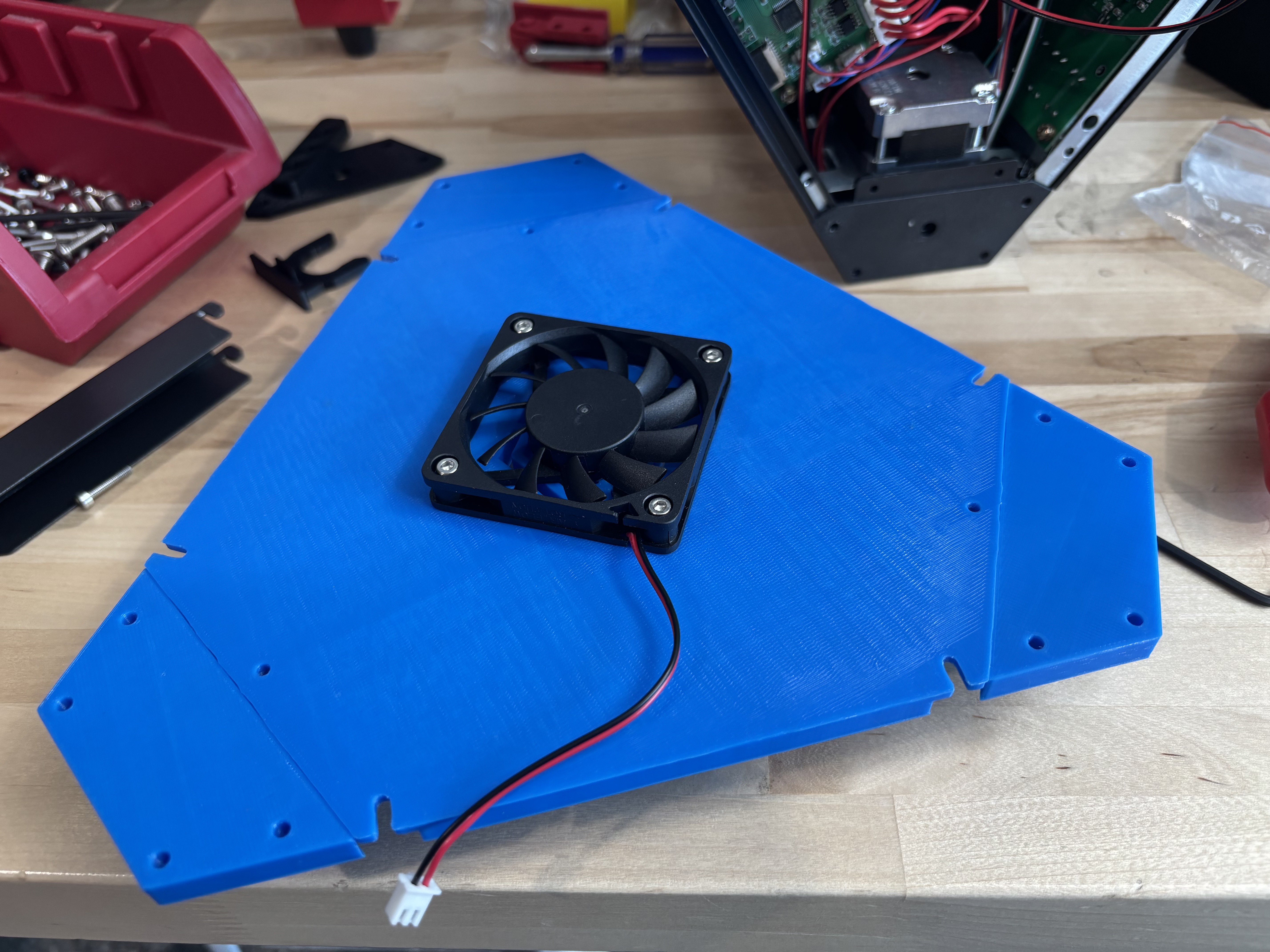

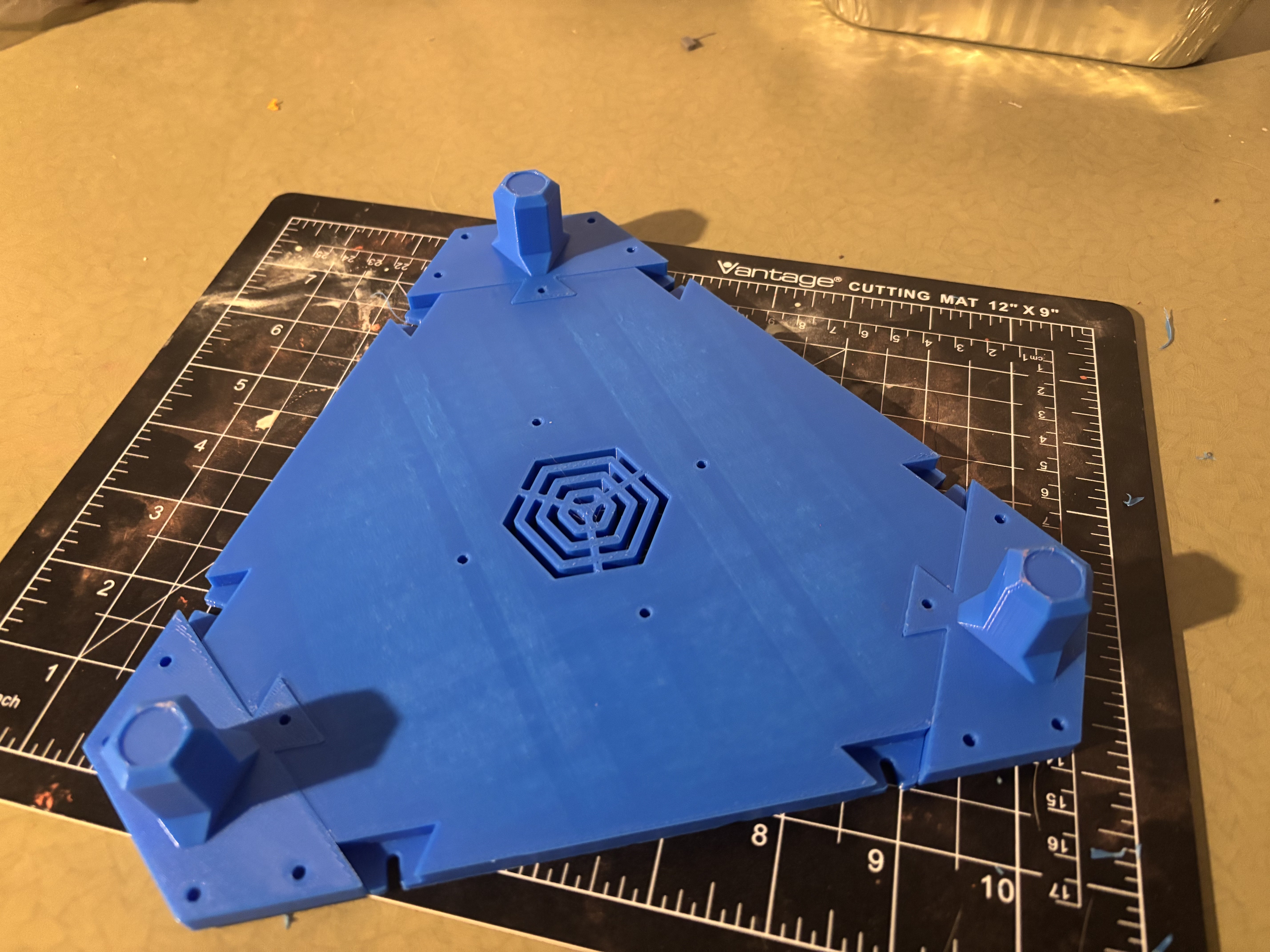

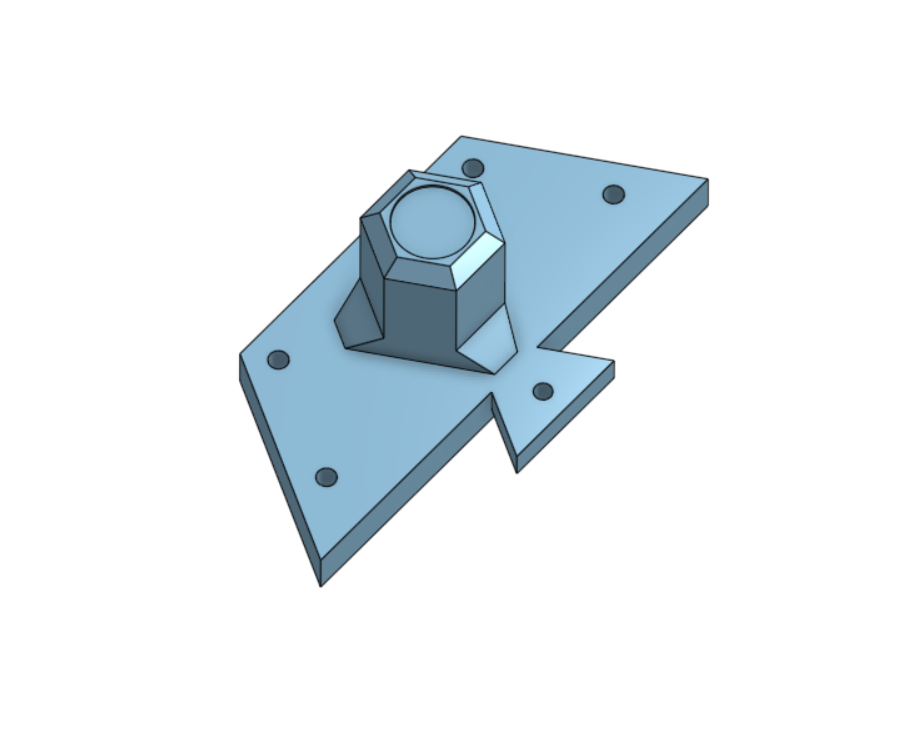

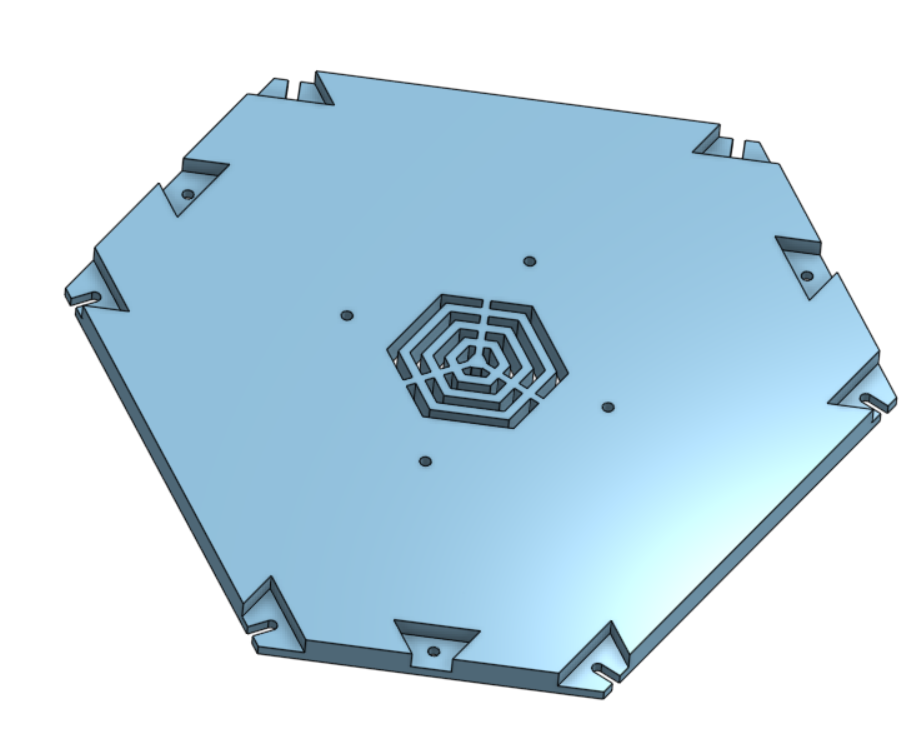

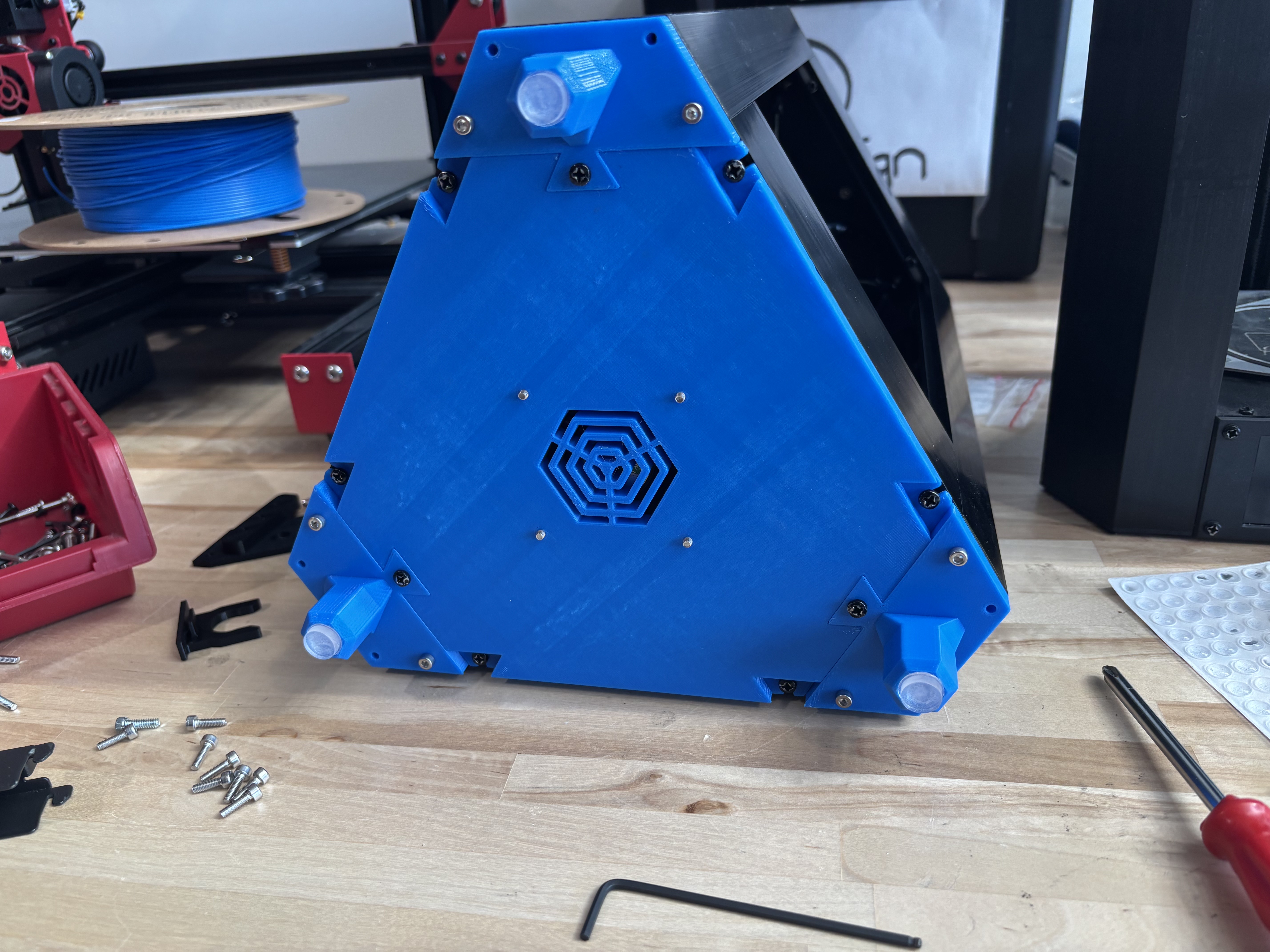

This is a replacement base for the Monoprice Mini Delta 3D Printer. This works for V1, V2, and V3 versions of printer. This model includes a mounting point for a 6010 fan that the printer comes with along with mount points for future mods. It uses standard M3 screws for mounting the fan, without need for a nut, as it will simply thread into the plastic. Recommended for use with M3x14 for mounting to 3d printer endcaps, M3x16 for mounting the fan, and the screws on the endcap for mounting to the frame (otherwise M3x8). If want you can add screws to the frame connections points/mod mounting points (M3x8). On this model there are 2 screw holes at the top of each endcap but i was unable to get them to fit right. Can be used without non-slip feet but has a place for ½ in non-slip feet on the legs. The model is split into 4 pieces (3 of which are the same) so it could be printed easier. I was able to assemble and install it without any glue or doing any sanding. This may change based on your setting or printer but I used 0.20mm Speed on a Prusa MK3S+ with PLA and was able to tap it in with a rubber mallet.
