Side table

Would you like to support my work? :)
Check out my  full catalog with exclusives, early access and commercial licences.
—

A modular design for crafting a small table. You decide size and shape.

The parts are optimized to be very robust. I tested and optimized them until the screws would break out of the wood before the 3d printed parts would give in.

I stood on my print a jumped a little so it can hold at least 80 kg of weight.

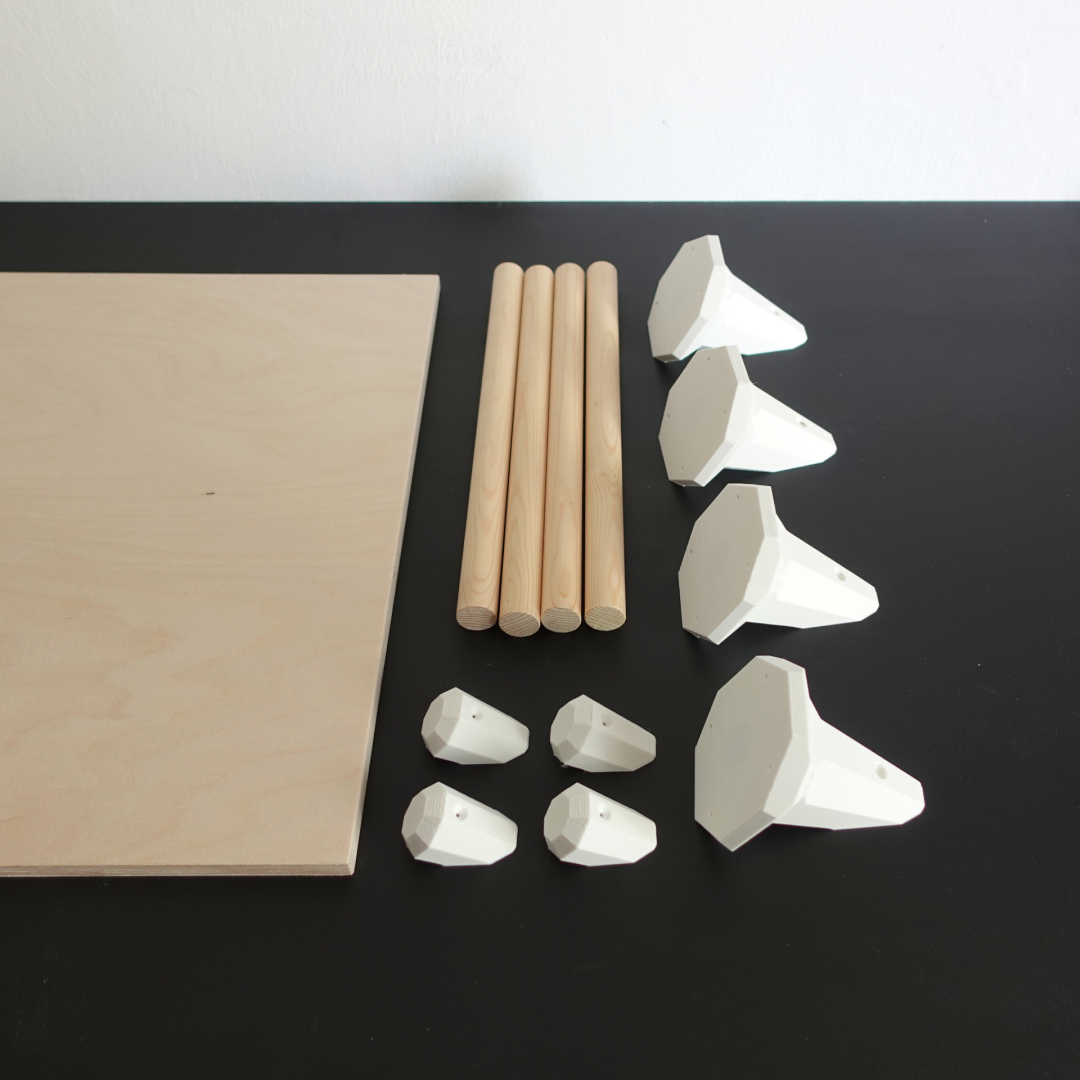

Required parts:

• One print each of the two provided parts for every table leg

• recommended screws for the legs: 3,5 x 20 mm countersunk universal or wood – 3 per leg

• recommended screws for the tabletop: 3,5 x ?? mm countersunk universal or wood (length depends on the thickness of the plate) – 4 per leg

• alternative diameters that work, too: 3,0 mm; 4.0 mm

• 22mm (7/8” In) round wooden rods in the length of your choice. (I used this diameter because it works for the metric and us system)

• A wooden board of the size of your choice

Instructions (also provided in the images)

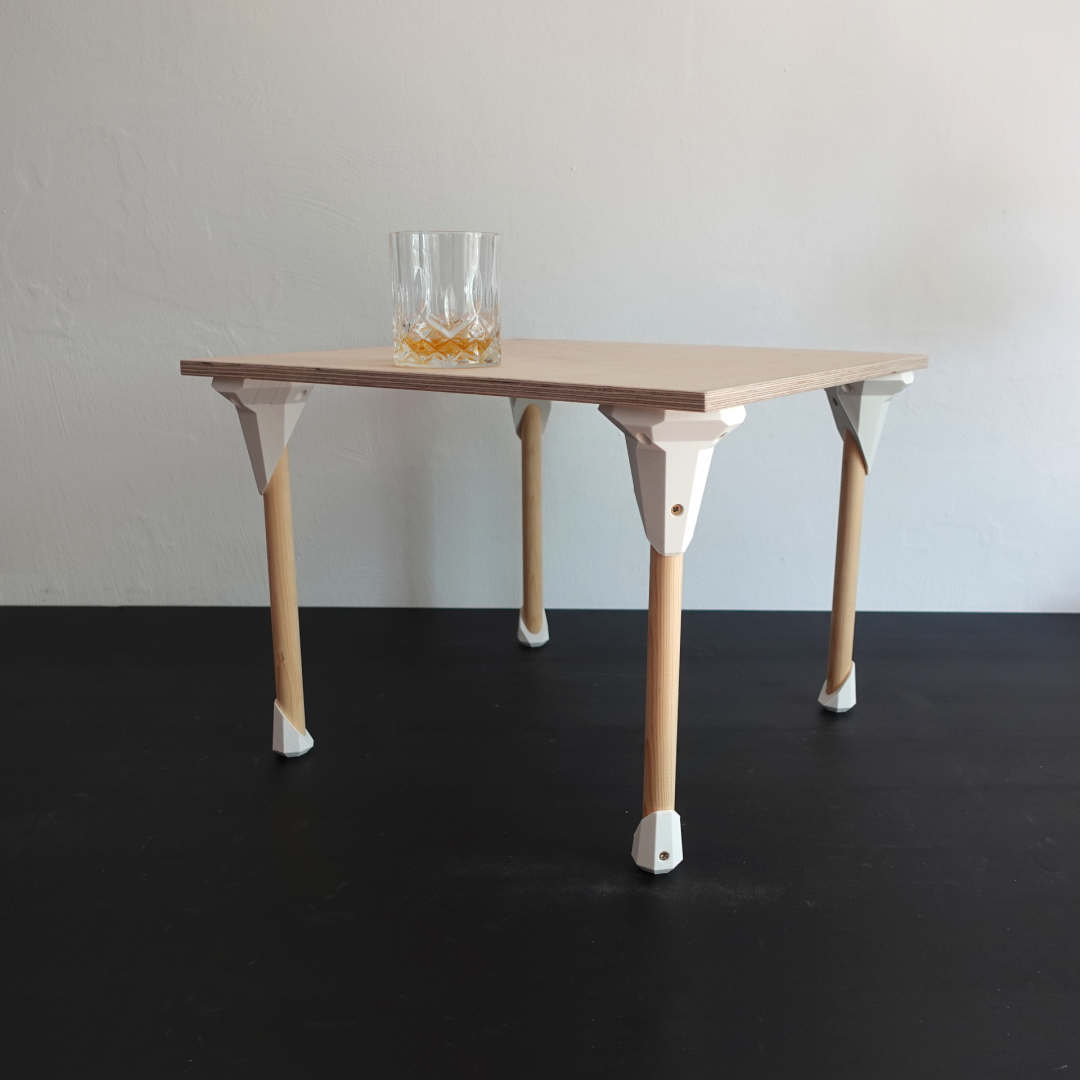

• Decide on the size and shape of your table. Th design is for a small coffee or couch table (Mine is 460 x 460 x 340 mm). I have not tested if it works for a full-scale dining table. You can try it out but enter uncharted territory.

• Gather all resources according to the list of required parts.

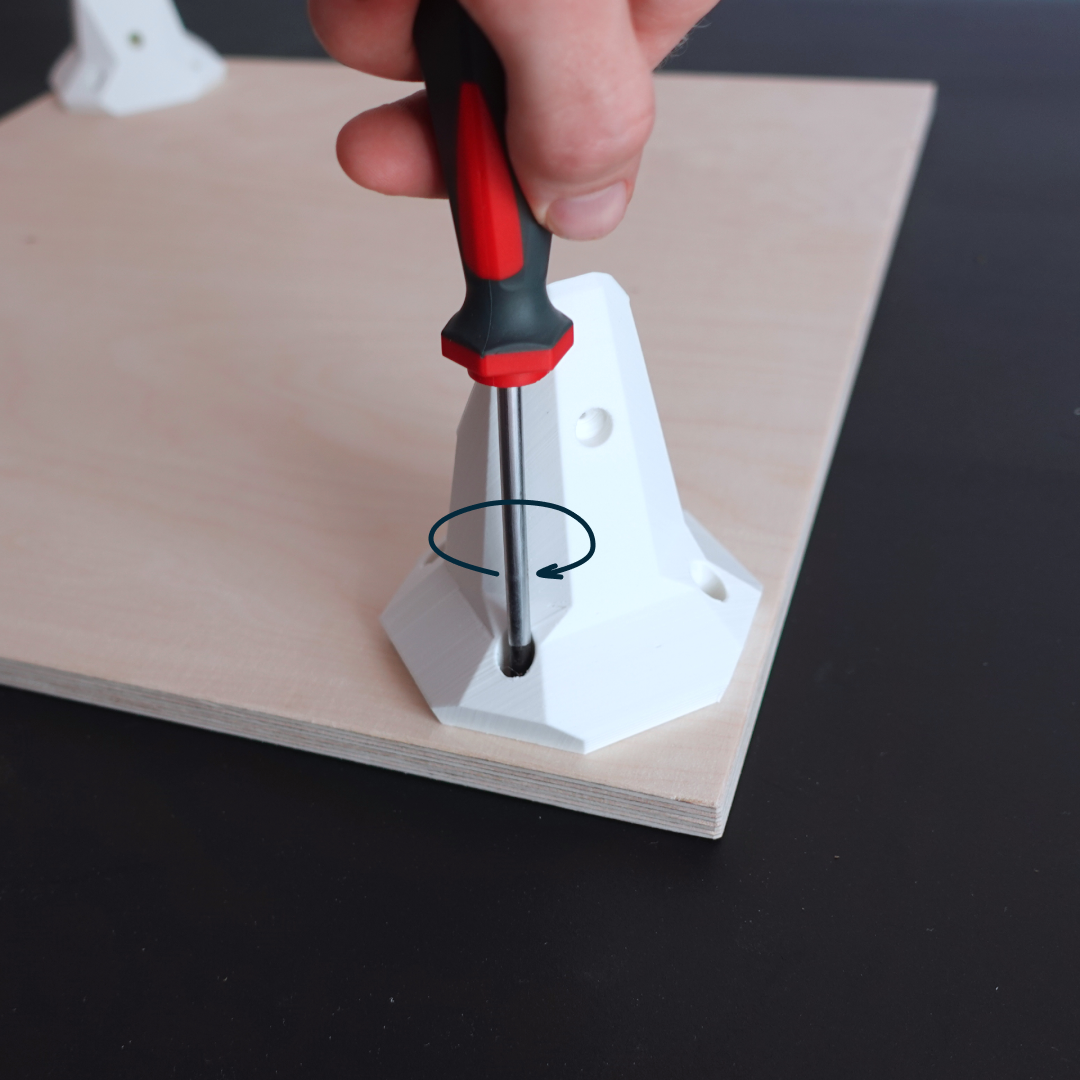

• Decide on where to place the legs and screw the 3d parts onto the plate.

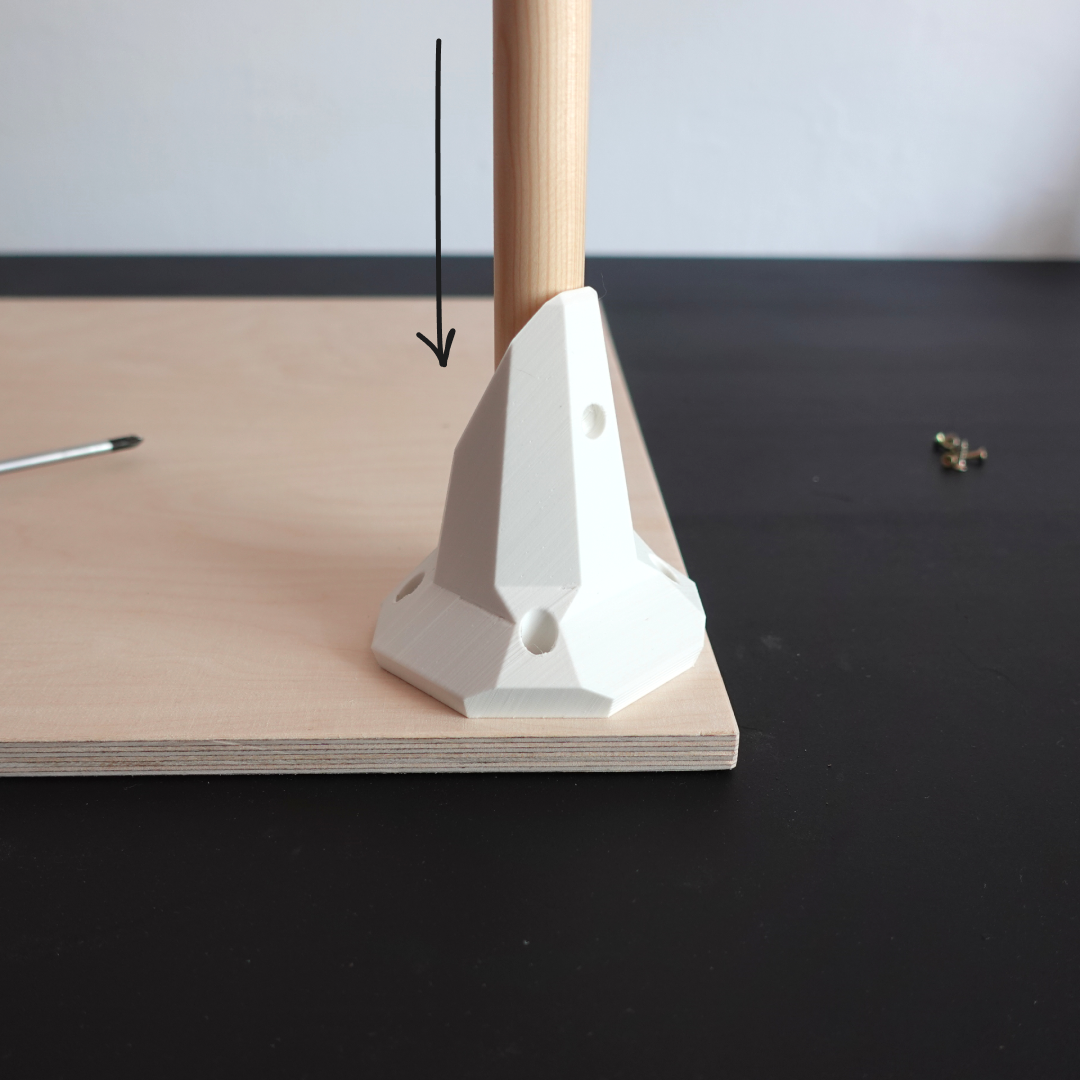

• Insert the rods and fix the with the screws

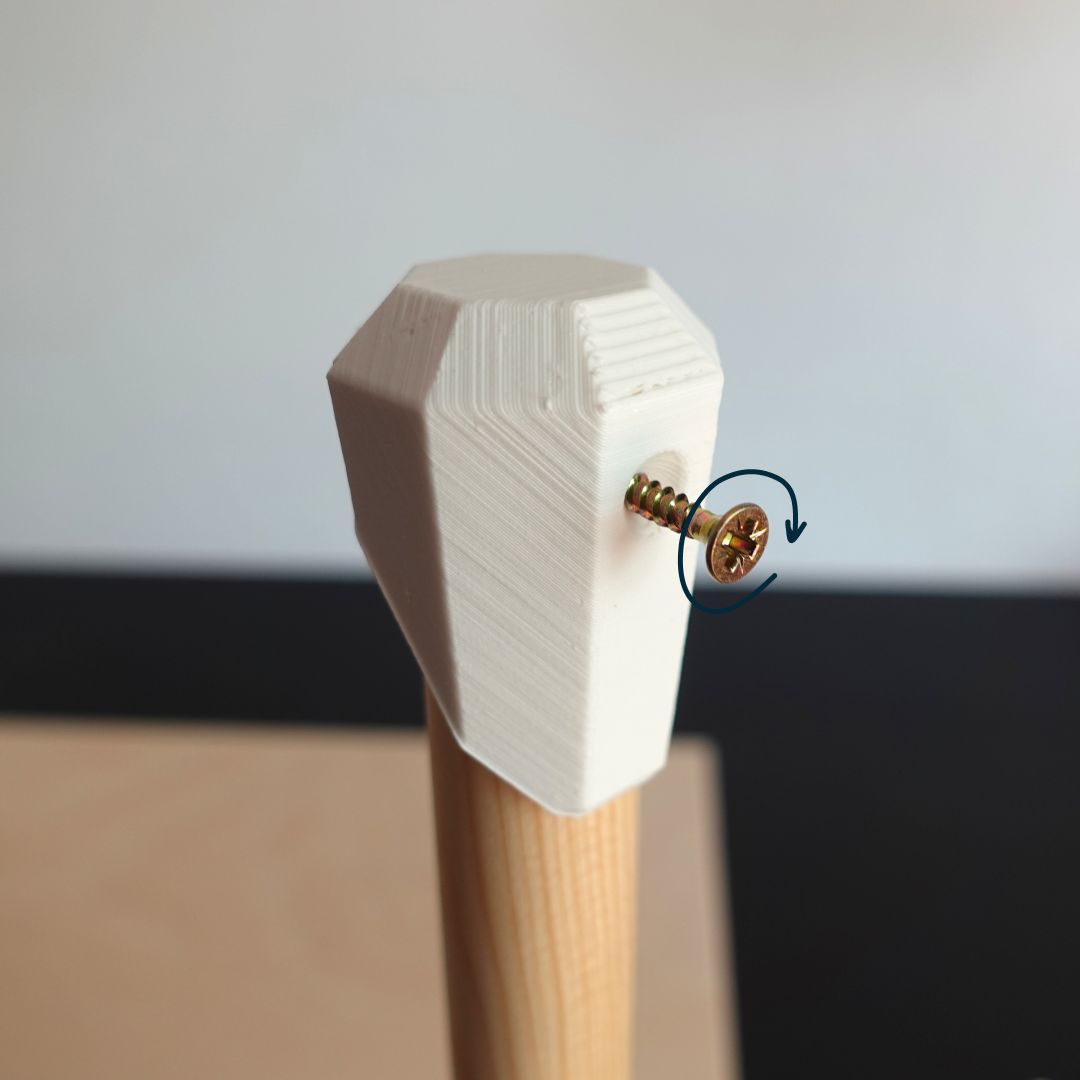

• Attach the foot to the rods and fix them with screws (before screwing in the last one – turn around the table and adjust the position a bit to make sure it does not wiggle)

Print settings

Required build volume: 120 x 120 x 100 mm

Material usage: 100g for the two printed parts of one leg (400g for a table with four legs)

Print time: 9h per leg (36 for a table with four legs)

Material: PLA

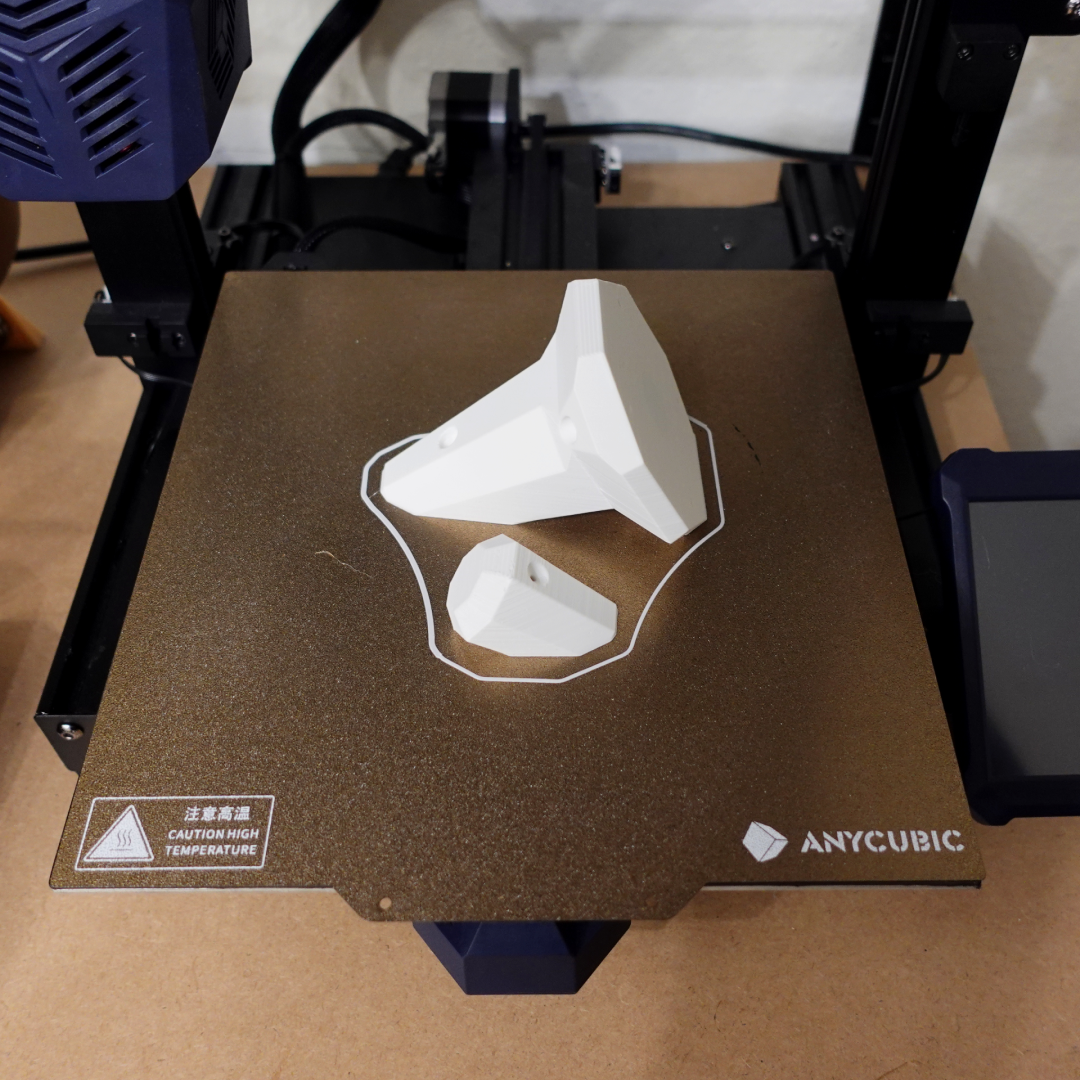

Print direction: stls are rotated correctly, check images

Support: none

Nozzle size: 0,4 mm

Line width: 0,4 mm

Layer height 0,2 mm

Outer walls: 4 or more

Top/Bottom Layers: 5

Infill: 30%

Build plate adhesion type: none
