First of all, a big thank you to Matt for the outstanding development work on the world's fastest printer (accelerated by Volgger to WR), the T250.

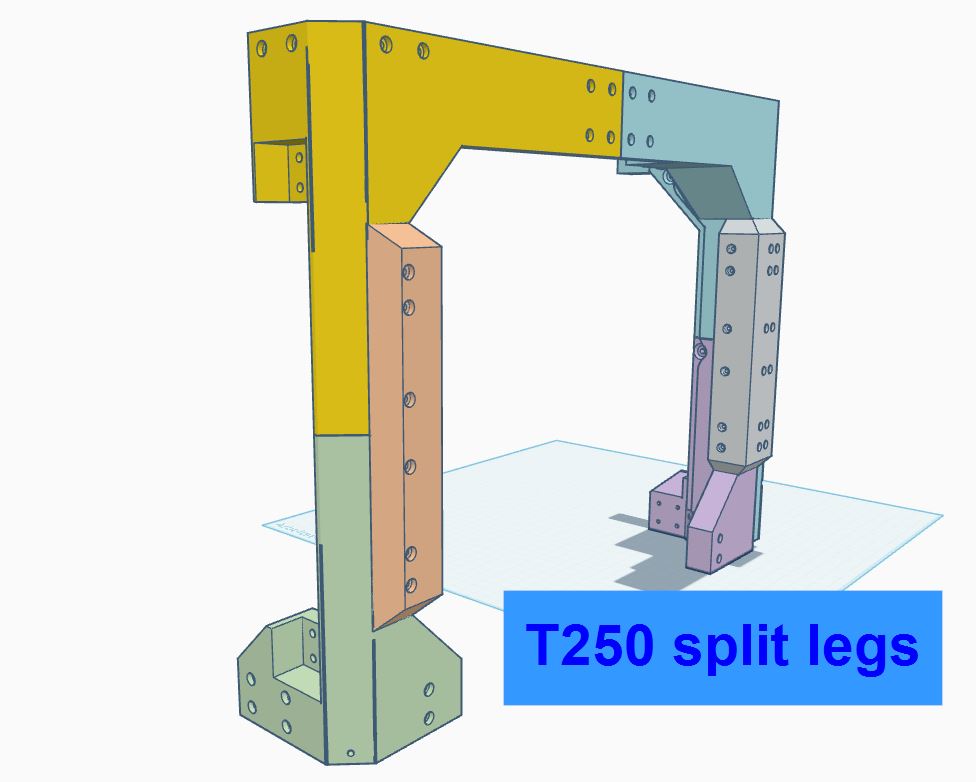

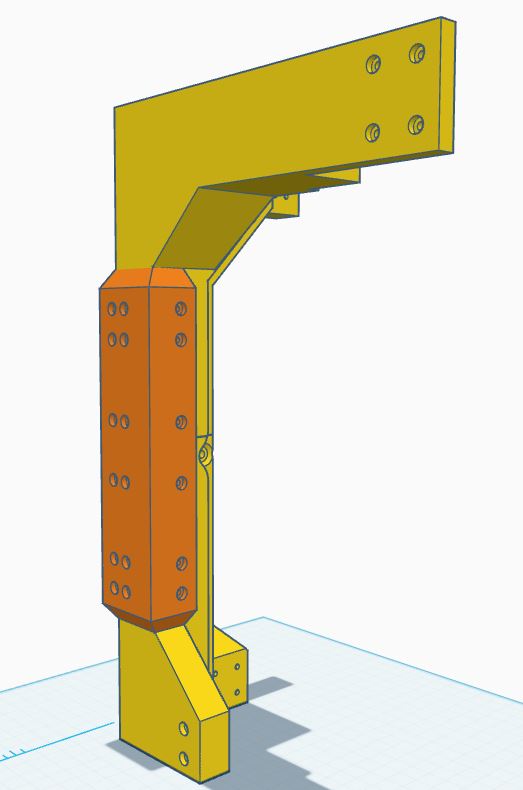

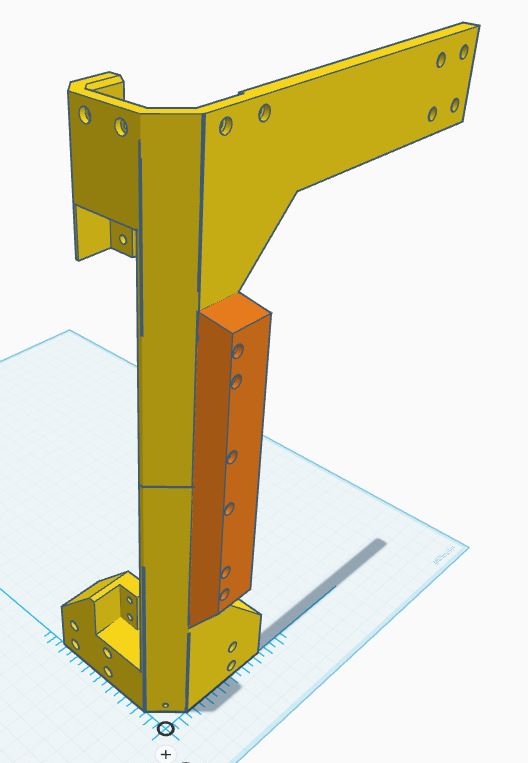

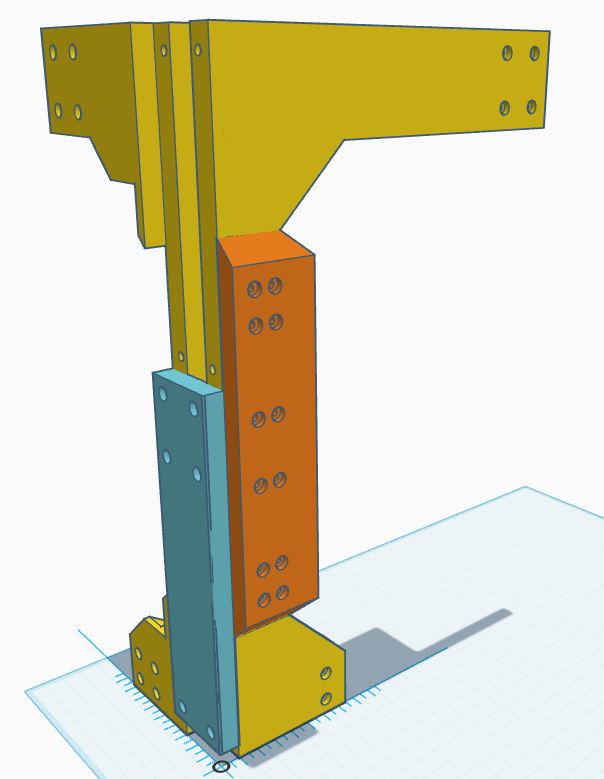

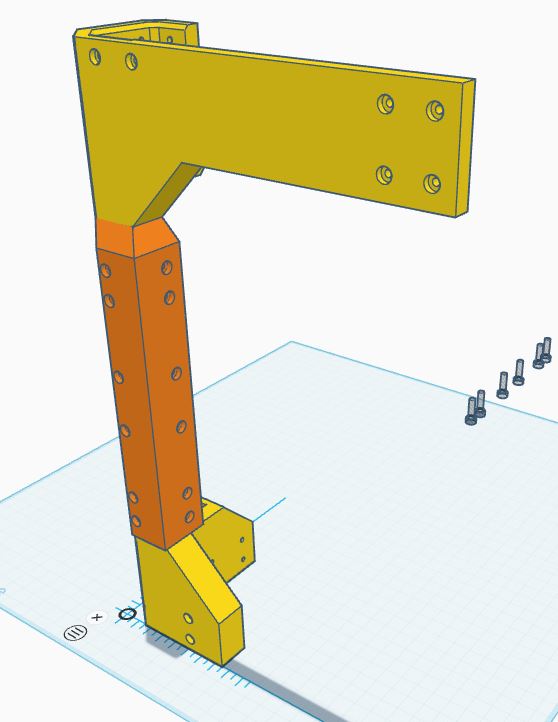

On the T250, the four legs are so high that not everyone can print them. I split the legs, and the split legs are screwed together with a connector. There are additional screw holes in the lower cable cover.
It won't win a Red Dot Award, but it's definitely 100 times more stable than a dowel joint from a slicer. Printing the connectors in the same color as the frame makes them more subtle, or printing them in a striking accent color makes them stand out.

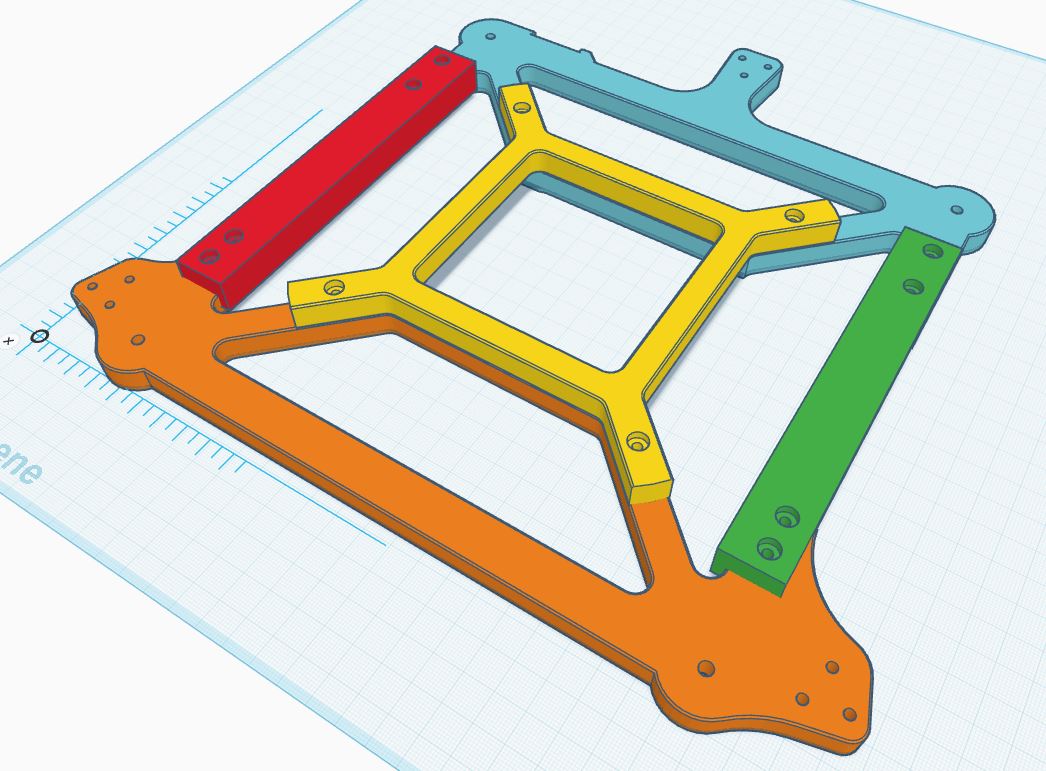

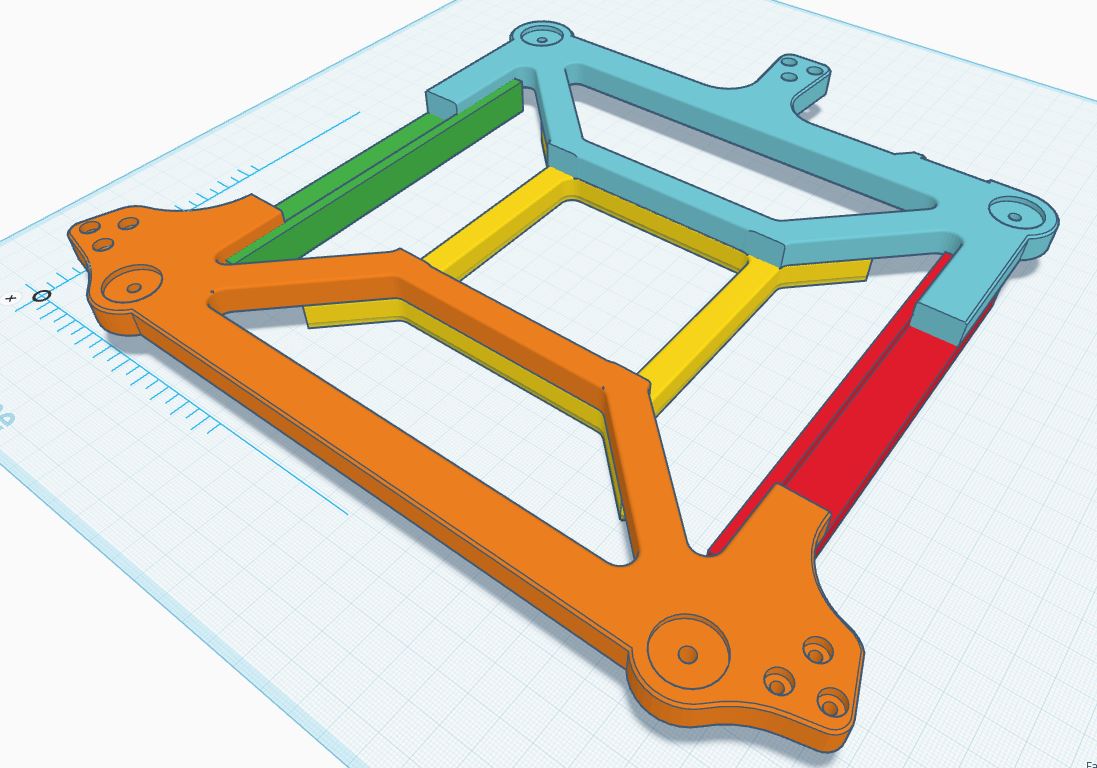

The bed frame is now also split. The front and rear fit diagonally onto a smaller print bed.
I haven't tested the mod myself, but several people have already printed and assembled the legs. No one has complained. I would be happy to see a make or even a remix.
T250 - The worlds fastest 3D Printer
https://www.printables.com/model/1341051-t250-the-worlds-fastest-3d-printer
