Liquid Draining Station

Tired of balancing your half-empty liquid bottles upside down in a mug, only to end up with more frustration than liquid?
This clever little gadget is here to save your day – and your juice!

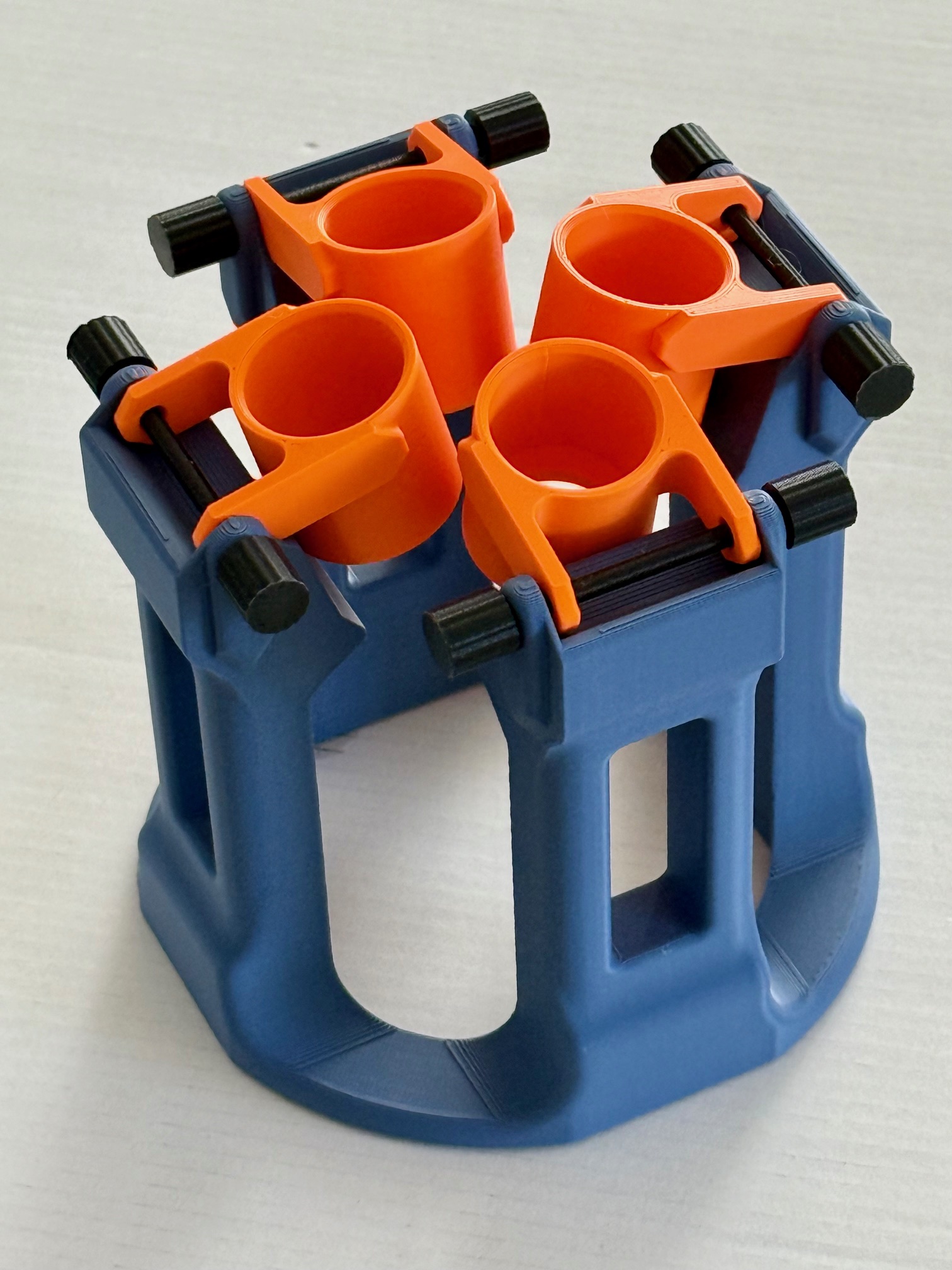

The Liquid Draining Station holds up to four 10 ml liquid bottles and lets you flip and drip like a pro.

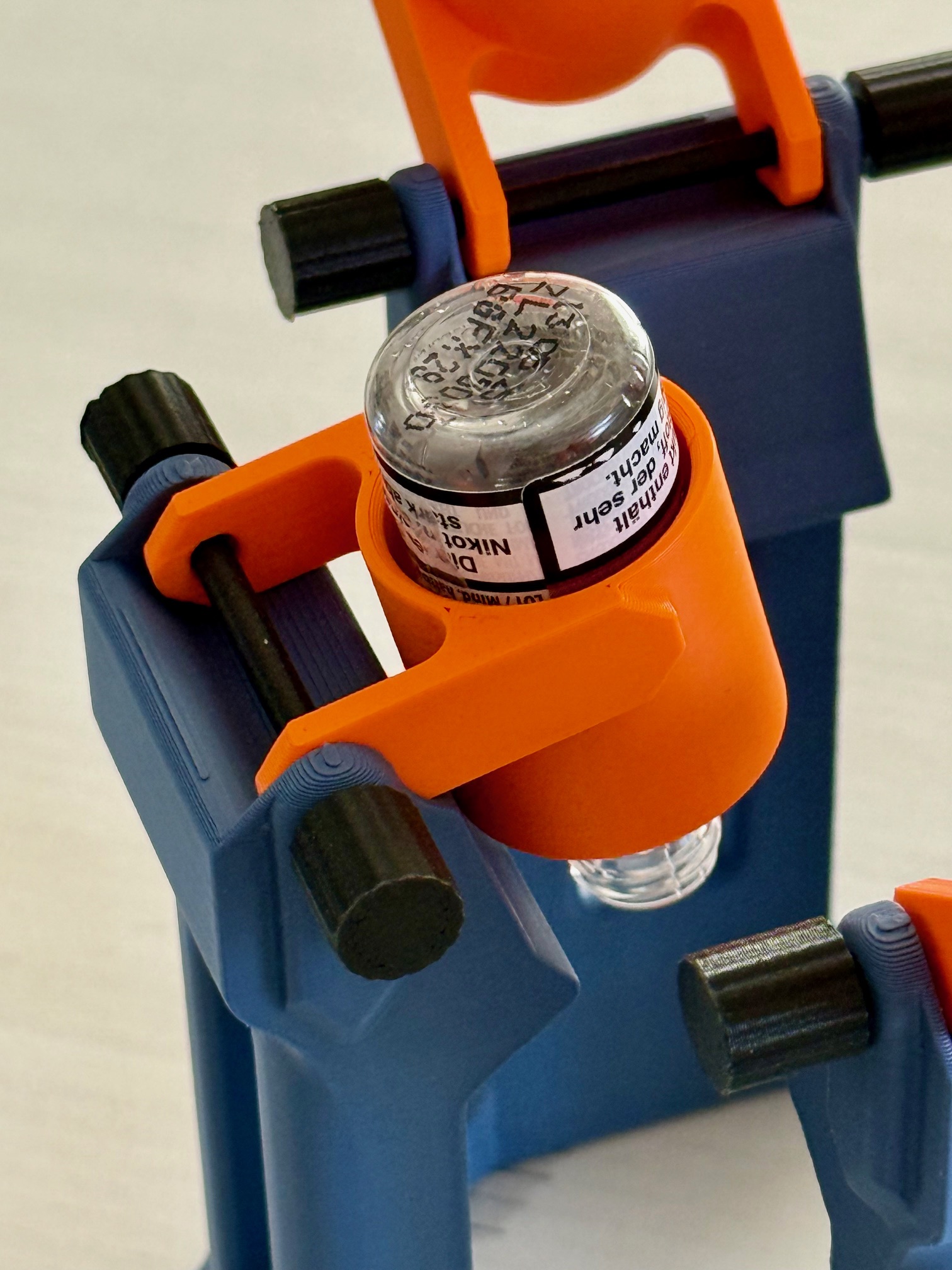

Before use, remove the cap and dropper tip from the bottles. Then slide each bottle from below in the cylinders, and let gravity do its thing.
No mess, no stress – just sweet, sweet efficiency.

It fits common containers (Ø 55–65 mm) and comes in two flavors:
Stand A for containers up to 73 mm high and Stand B for up to 120 mm.
The cylinders fit bottles with a max diameter of 22 mm – standard stuff for most vapers.

Printing information

All STL files are correctly aligned.

Layer height: 0.2 mm
Perimeter: 2
Infill: 10-15% for the stand and cylinders, 100% for the rods and end caps.
Brim: Not needed – unless your rods are rebelling against the build plate.
Support: no

Assembly Instructions

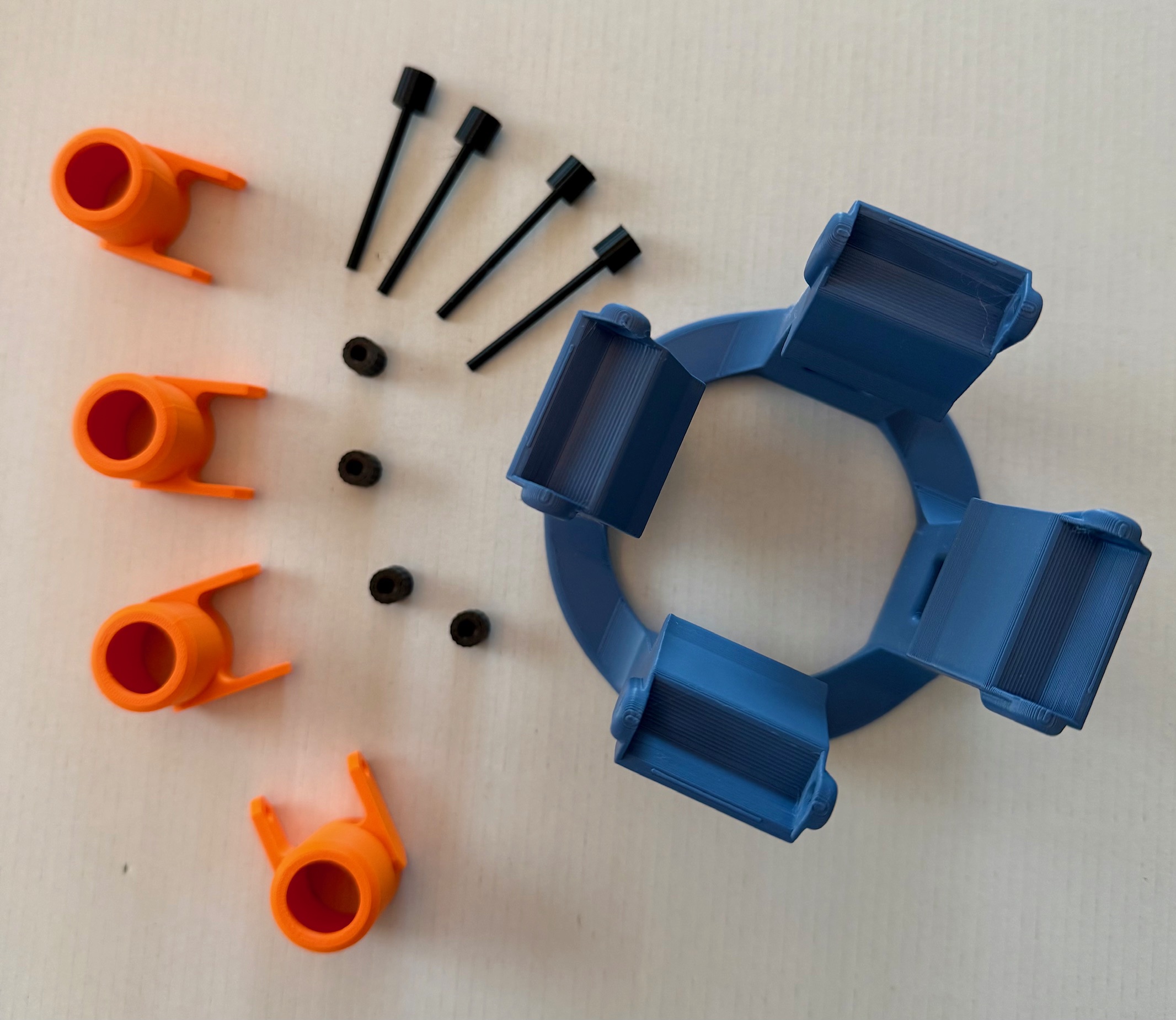

Position the four cylinders as shown in the photos.
Insert a rod through each set of aligned holes and push an end cap onto the rod.
If needed, you can secure the end cap with a small drop of glue – but be careful to use very little, so the rod doesn’t stick to the stand.

I am looking forward to your Makes! :-)
