Case for the NanoVNA test fixture PCB.
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

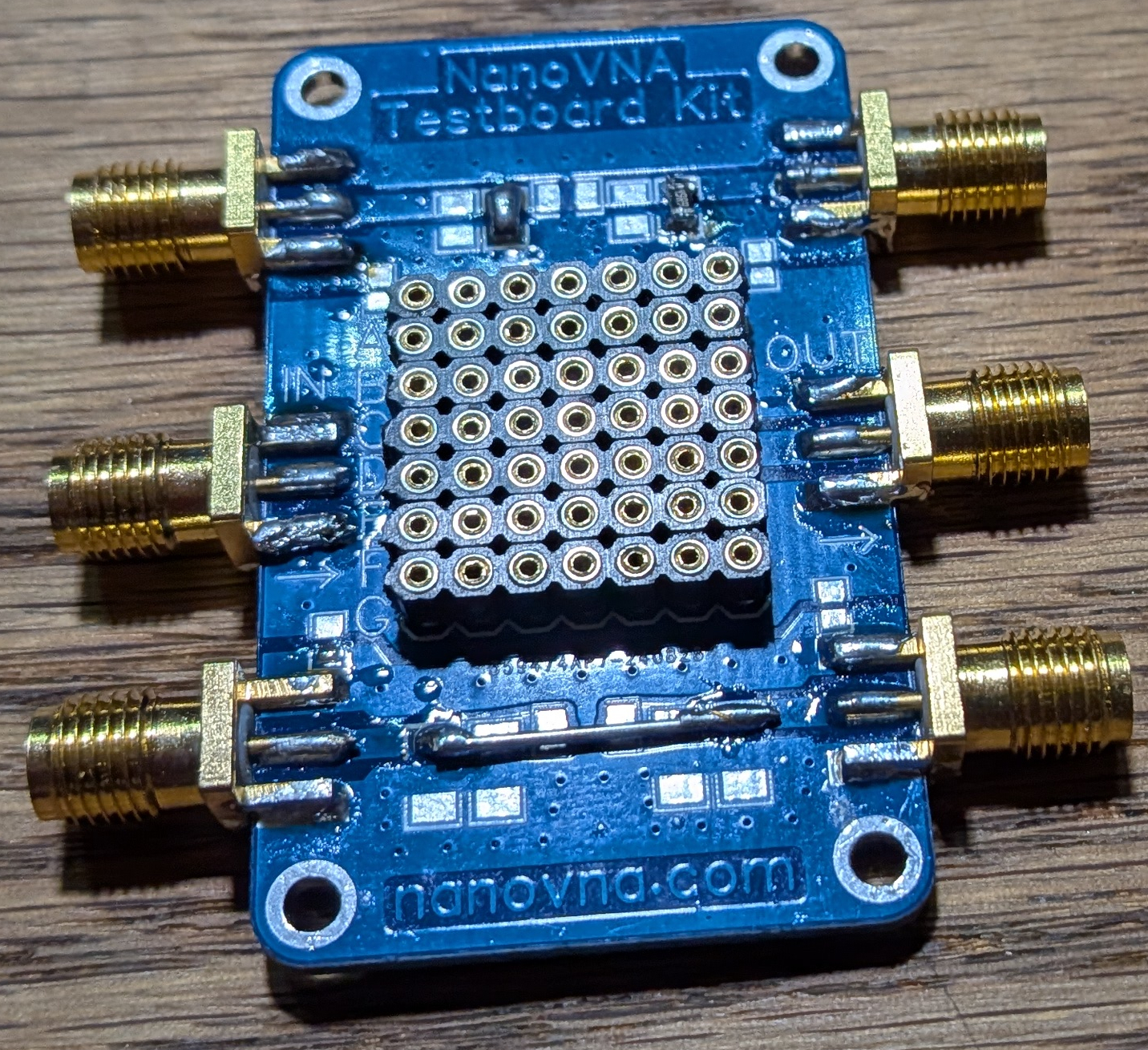

This is a case for the little test board. There are two versions of the top. I configured my board with the top left connector shorted, the top right connector has a 50 ohm resistor, and the bottom two connectors are bridged. I use these for calibration of the VNA before making measurements. If your board is configured differently, there is a blank version of the case top without labels.
The case is designed for M3 x 8mm screws, however the PCB holes will have to be just slightly drilled out to allow the screws to go through.
Modeled in FreeCAD
