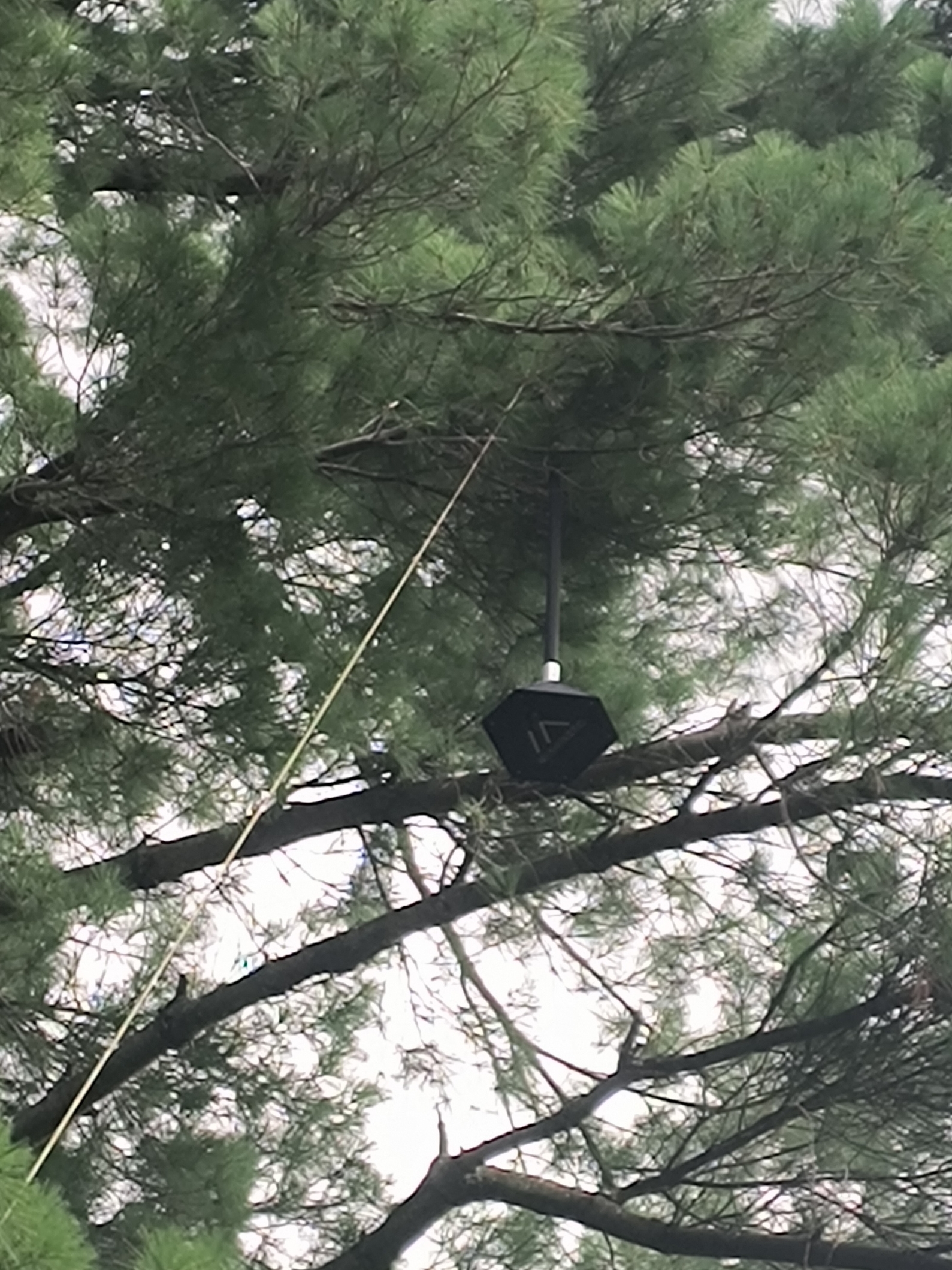

"Rattlesnake" Meshtastic Tree Node

This node design requires many parts to complete, and documentation is solidly a WIP. However - here are the parts I designed around:

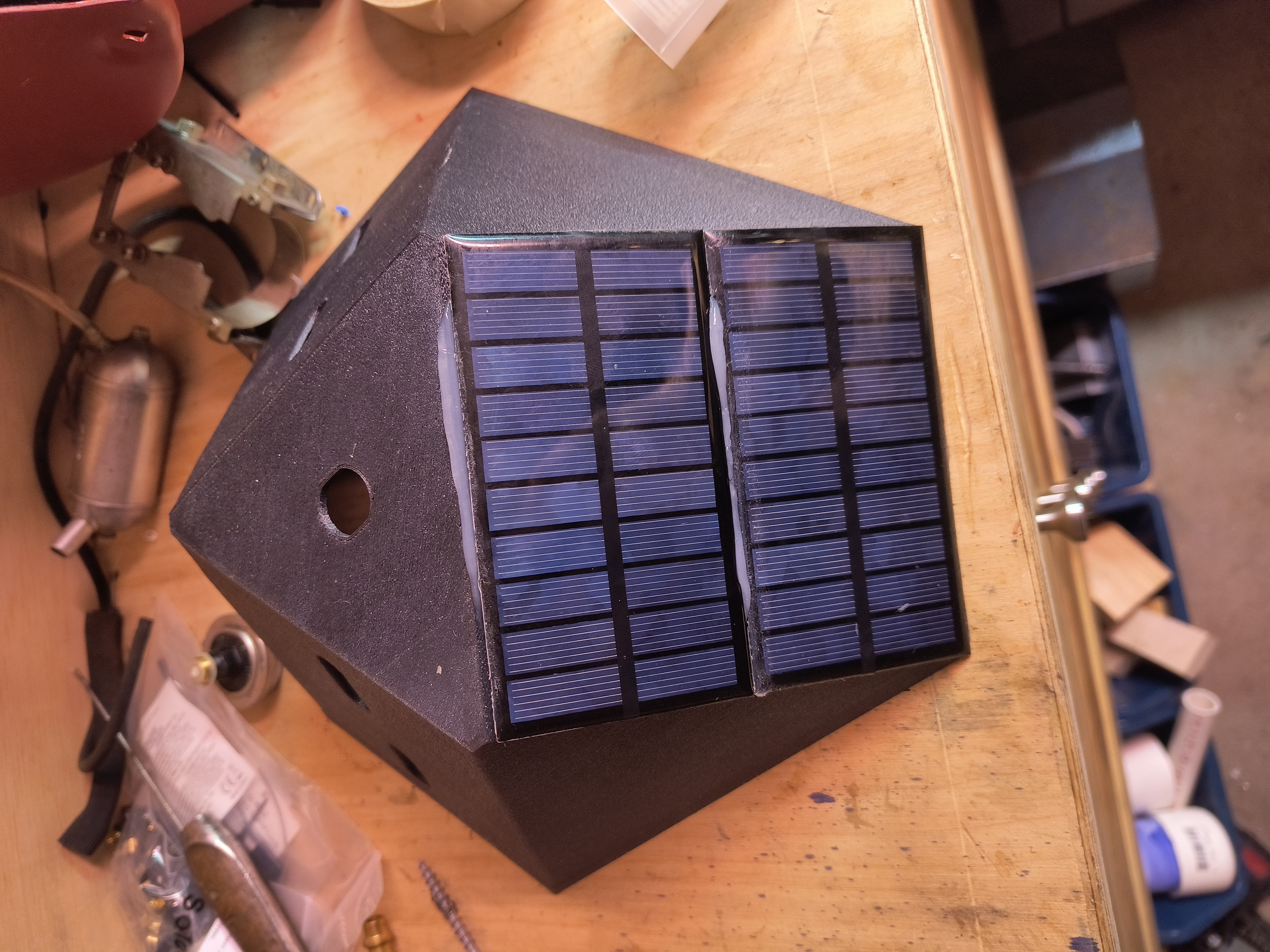

• Solar Panels (6x): https://a.co/d/8jMYsYe

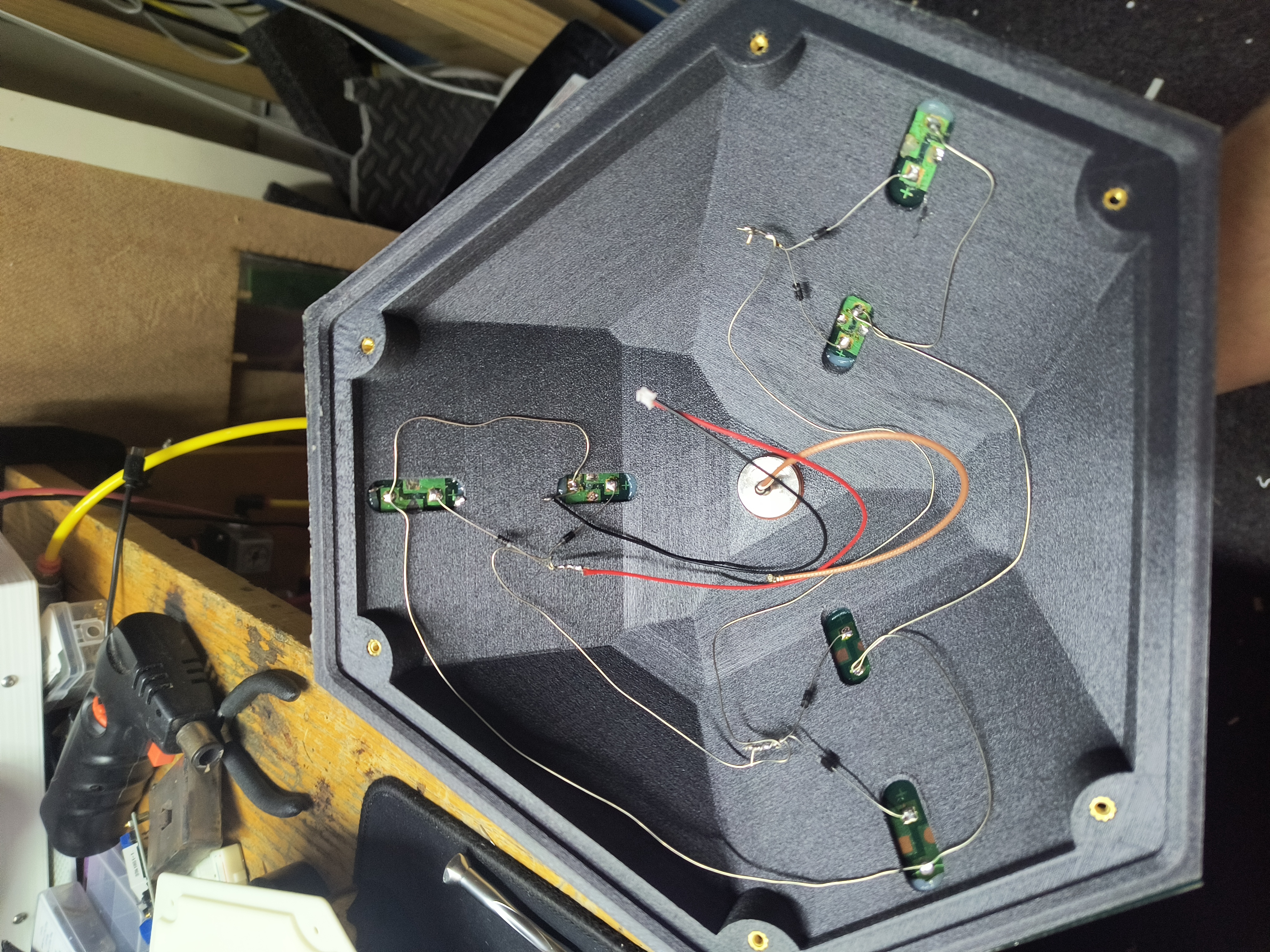

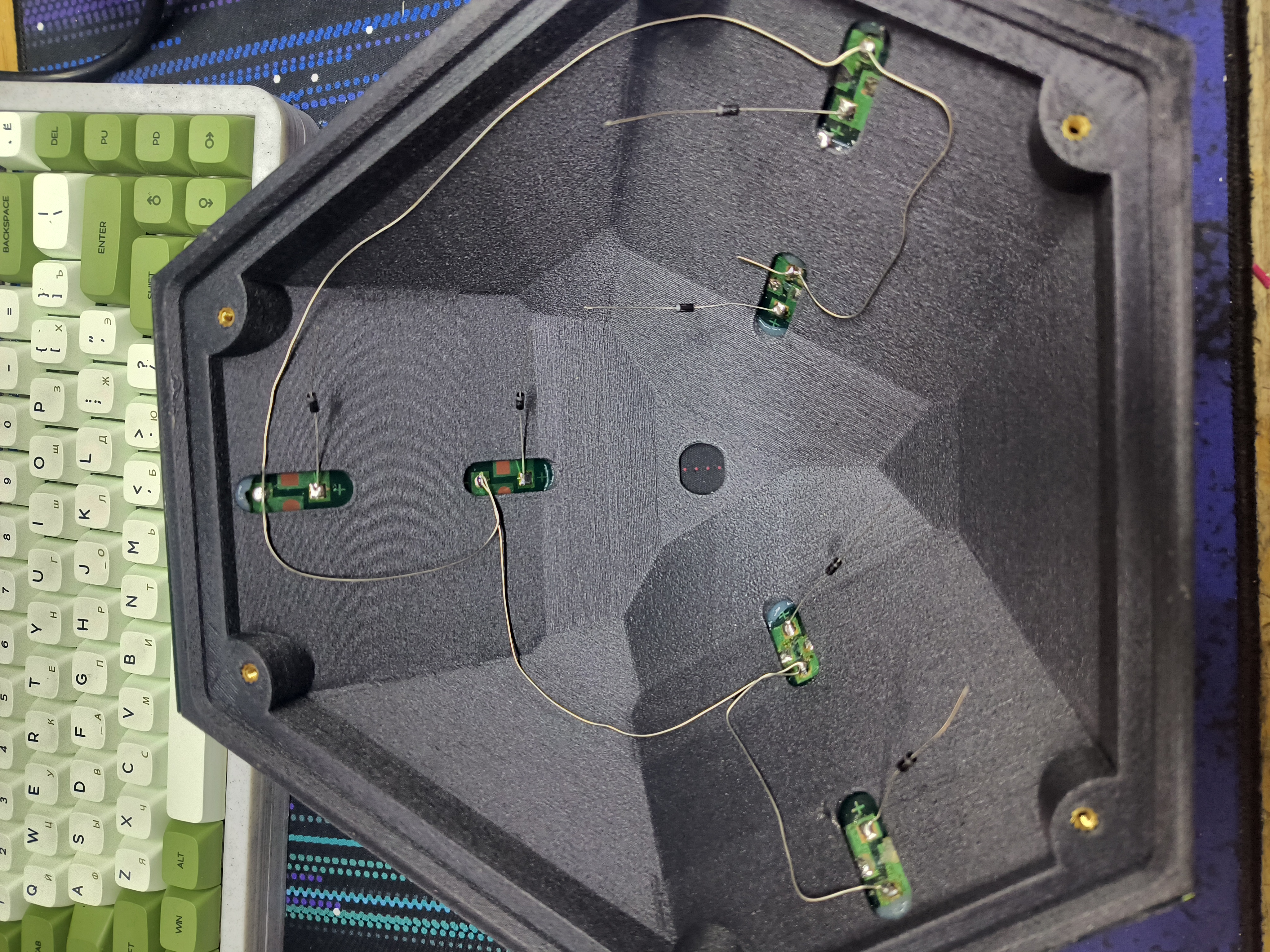

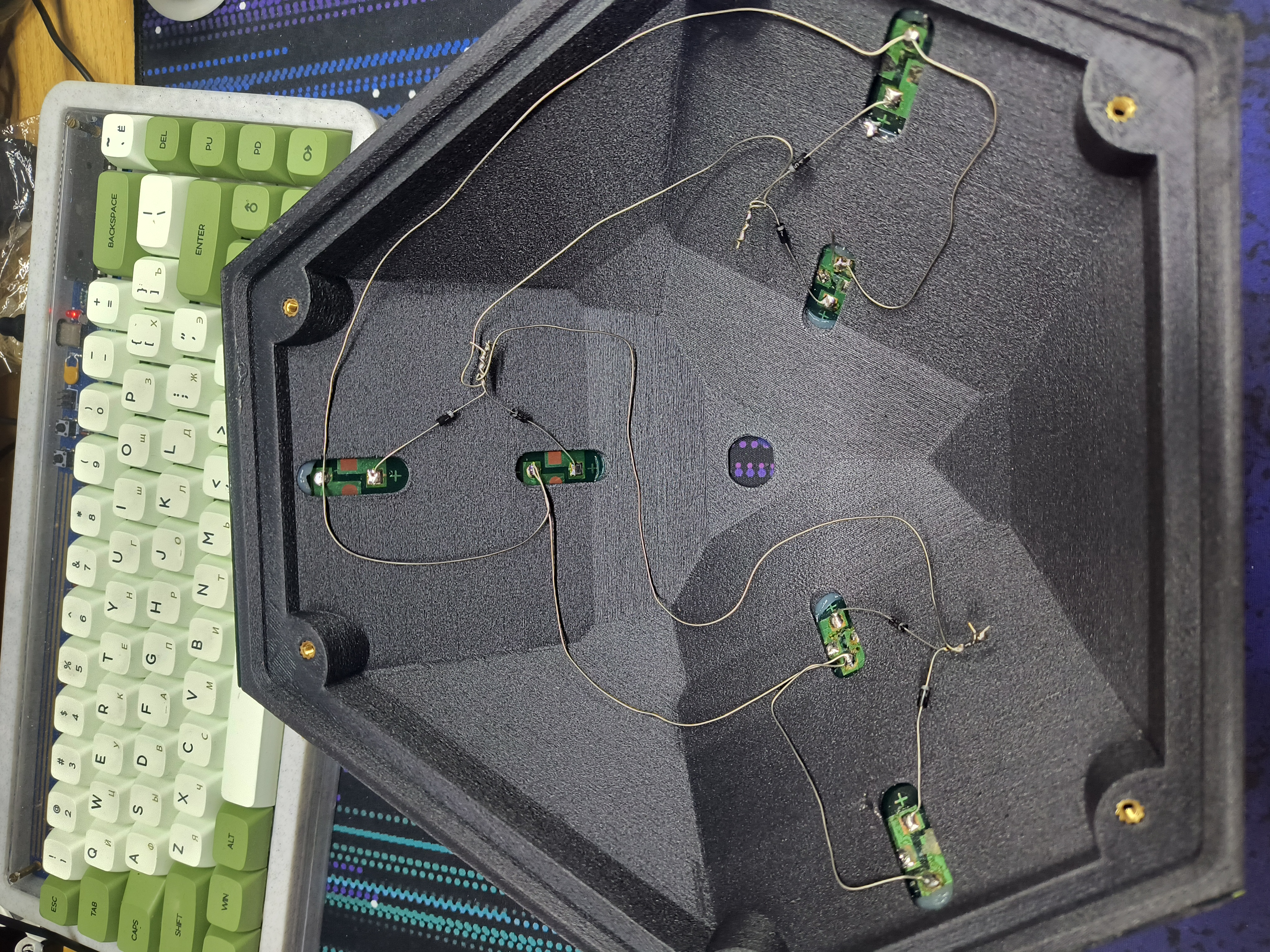

• Shottky Diodes (6x 1N5817): https://a.co/d/blj1DMV

• Battery (10,000mAh): https://a.co/d/8SC7JIw

• 8" Type N to u.fl: https://a.co/d/3u58ccz

• u.fl to RP-SMA (For bluetooth antenna): https://a.co/d/4evLJJ7

• Bluetooth Antenna: https://a.co/d/6g1S1M2

• LoRa Antenna (As long as it is fiberglass!): https://store.rokland.com/collections/all-helium-antennnas/products/rak-wireless-5-8-dbi-outdoor-black-fiberglass-helium-hotspot-antenna

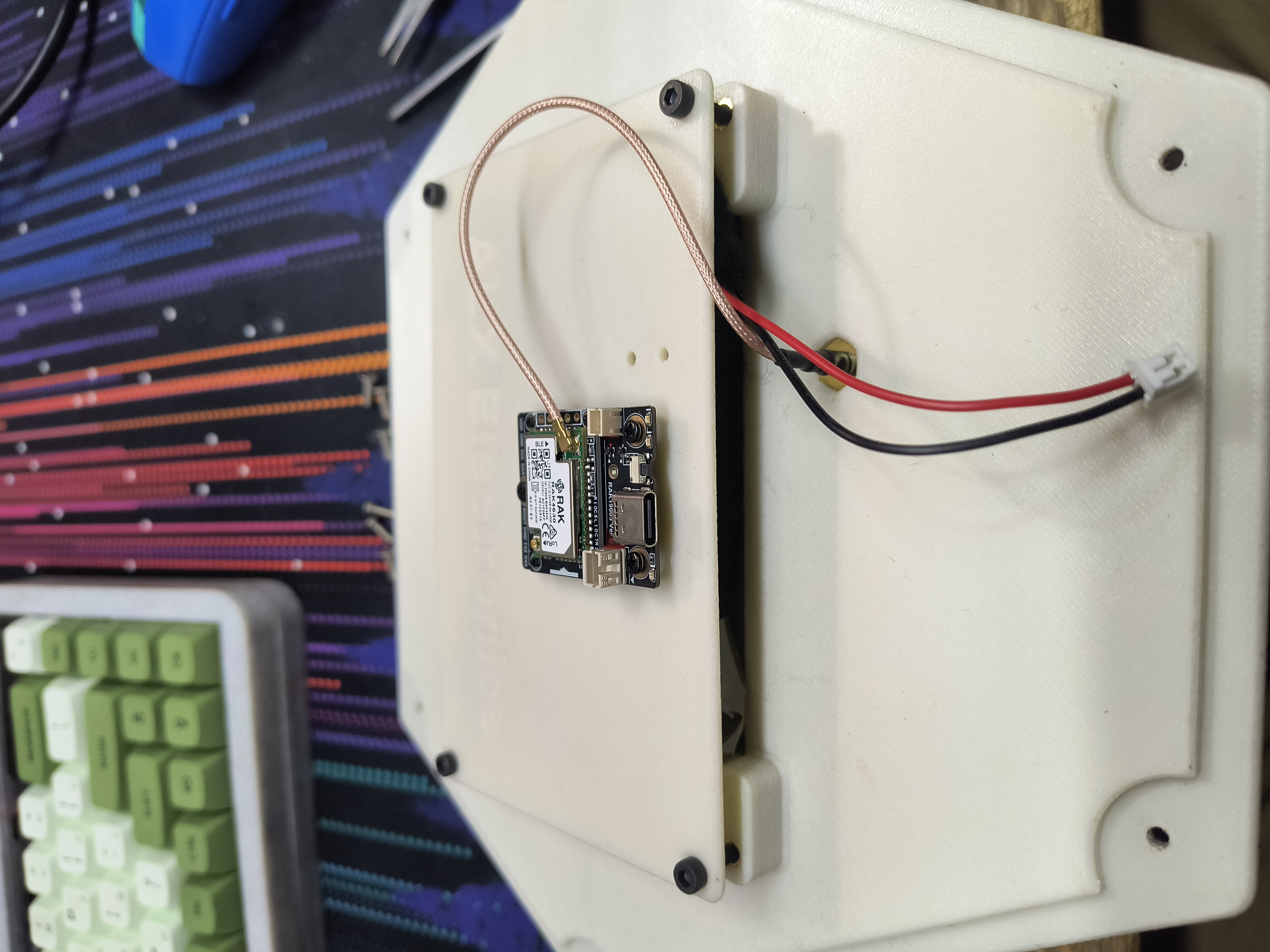

• RAK Mini (Or Full-size) Starter Kit: https://store.rokland.com/collections/rakwireless-products/products/rakwireless-mini-meshtastic-starter-kit-us915-rak19003-4631-sku-115093

You will also need the following hardware/glues:

• 8x M3x8 Stainless screws

• 12x M3x5mm Threaded Inserts: https://a.co/d/eVIKZhk

• 4x M3x10 Screws (might be able to use M3x8's… these are for attaching the RAK mount to the base)

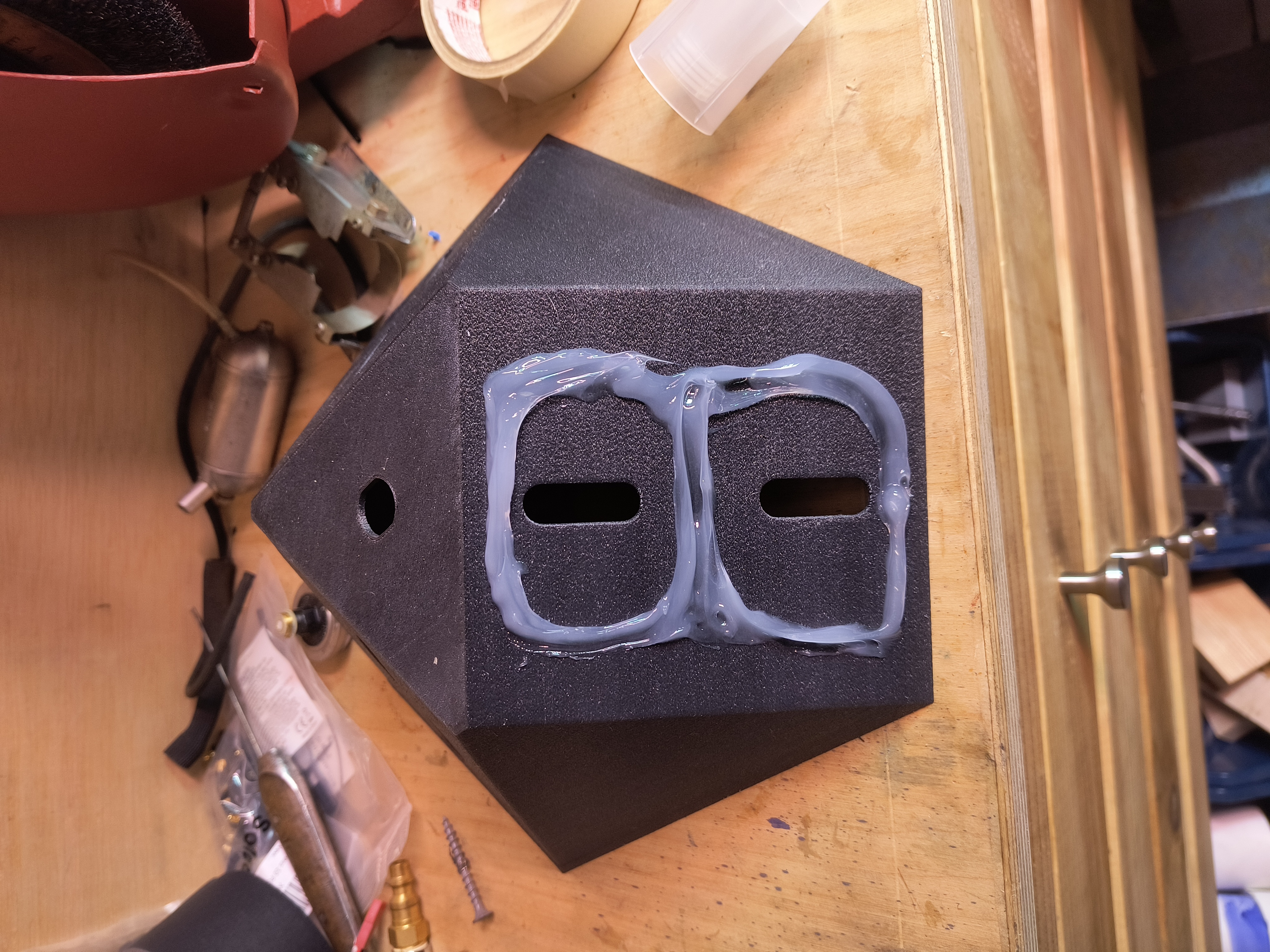

• Outdoor-Rated Sun-Safe Silicone Sealant: https://a.co/d/7yoreKK

Version 2 - I added some reinforcement to the top cover, and added an SMA hole in case you want the bluetooth antenna pointing up. If you don't want to use it, fill it with sealant, or... eventually I'll do up an SMA plug to glue in.

I would very much recommend printing this out of ASA-GF - it's going to bake in the sun 24x7x365. Internal temps frequently top 50F above ambient!
