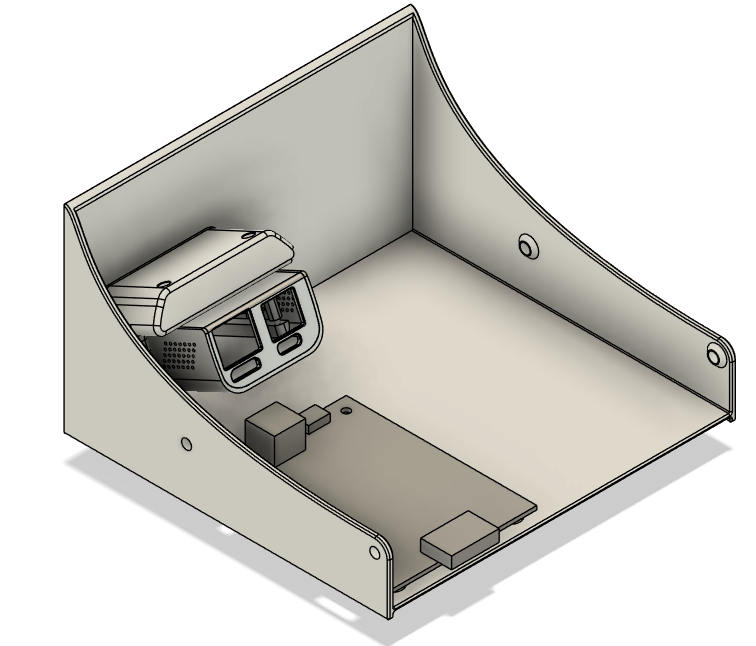

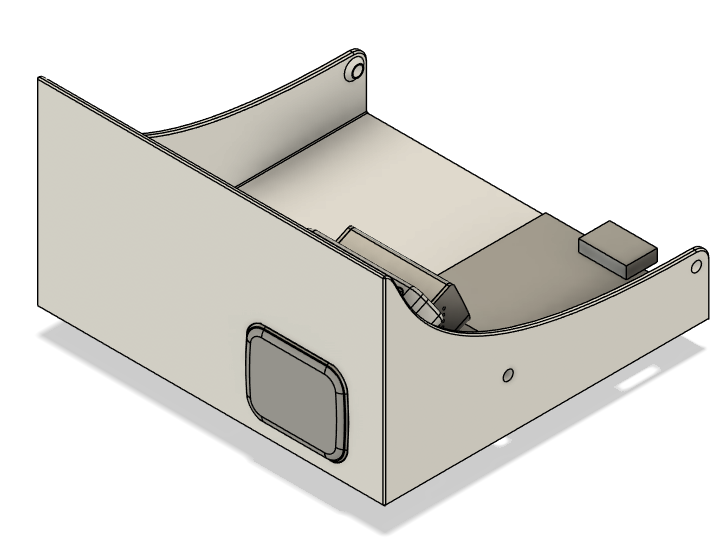

JetKVM 5.25" Flush Mount v13

Computer bay mount for JetKVM. Fits into a double-height 5.25" bay.

The JetKVM itself is now flush(ish), so it doesn't stick out so much.

Additional parts:

• JetKVM & ATX Power Control

  • https://jetkvm.com/

• Mounting bolts for the JetKVM: 2x M2x16, socket head

  • Numerous sources

  • eg https://www.amazon.com/gp/product/B094NSV83Q

• Mounting inserts: 6x M3xH4

  • eg McMaster-Carr 94459A130

• Hard drive screws: 6x M3 coarse

  • This should be your typical hard drive screw

  • 2 hold down the ATX Power Control board

  • 4 are for holding the bracket in the cage

    • Optional if your case has a toolless system

• Zip tie

  • Holds down the other end of the ATX Power Control board

  • Possibly optional

• Cabling

  • The RJ11 cable that came with the JetKVM

  • You may want to chop up a power-only USB-C cable to power the JetKVM from an always-on source (eg, +5VSB from the computer power supply)

    • Plug into the ATX Power Control board

v13 added a grid of holes to zip tie/bolt any additional hardware you wanted.
