Mount to attach a BTT HDMI7 display to a RatRig V-Core 4 (when/if you have a door in the front of the printer)
- Ocena
- 0 / 5
- Polubienia
- 1
- Pobrania
- 4
- Wydruki
- 0
- Wyświetlenia
- 177
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial

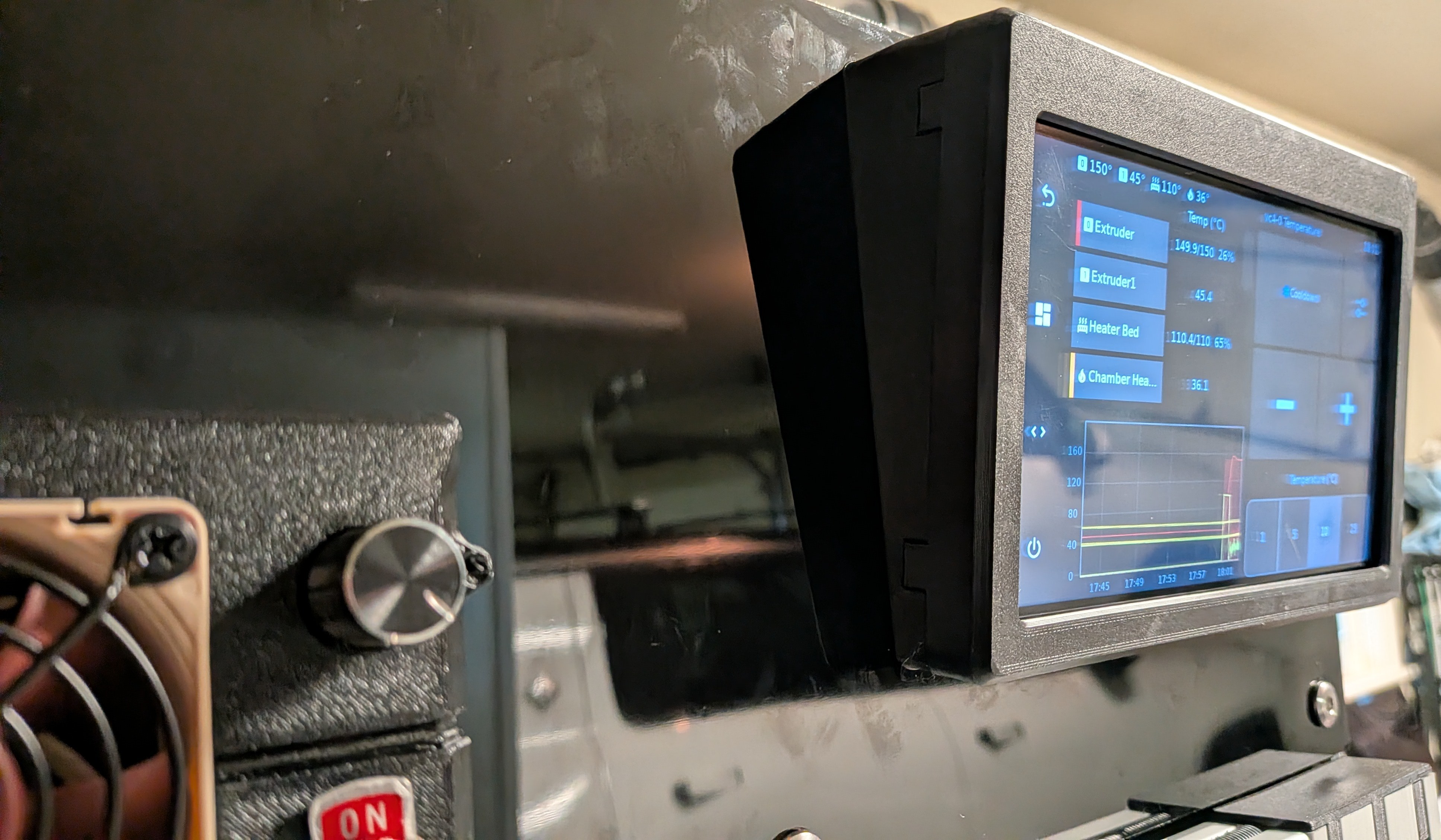

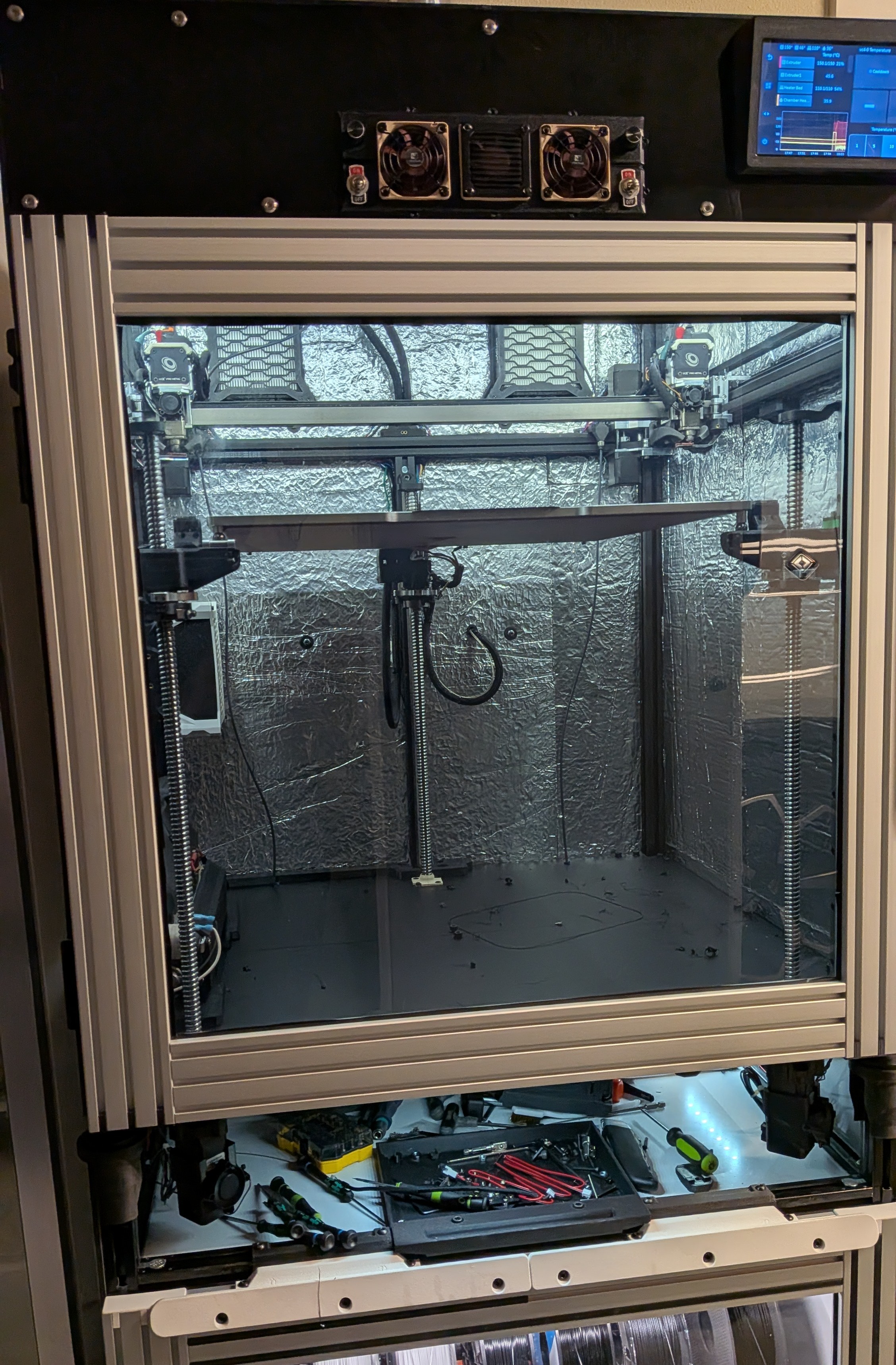

Ratrig V-Core 4 with a door on the front panel instead of the all clear front paneling seems like it's missing something without a display, so mounted a 7" HDMI touchscreen. This one is for the BigTreeTech HDMI7 (tried to insert a link but seems like can't be done here) but should be adaptable to any one or modified to work with the 5" on. There are 2 version, on with a 5 degree tilt and the other with a 10 degree tilt. The printed model is the 10 degree type.
I also created some cable routing mounts meant for the HDMI and USB cables that are required for this particular display to work. Will add those when I get chance.4
