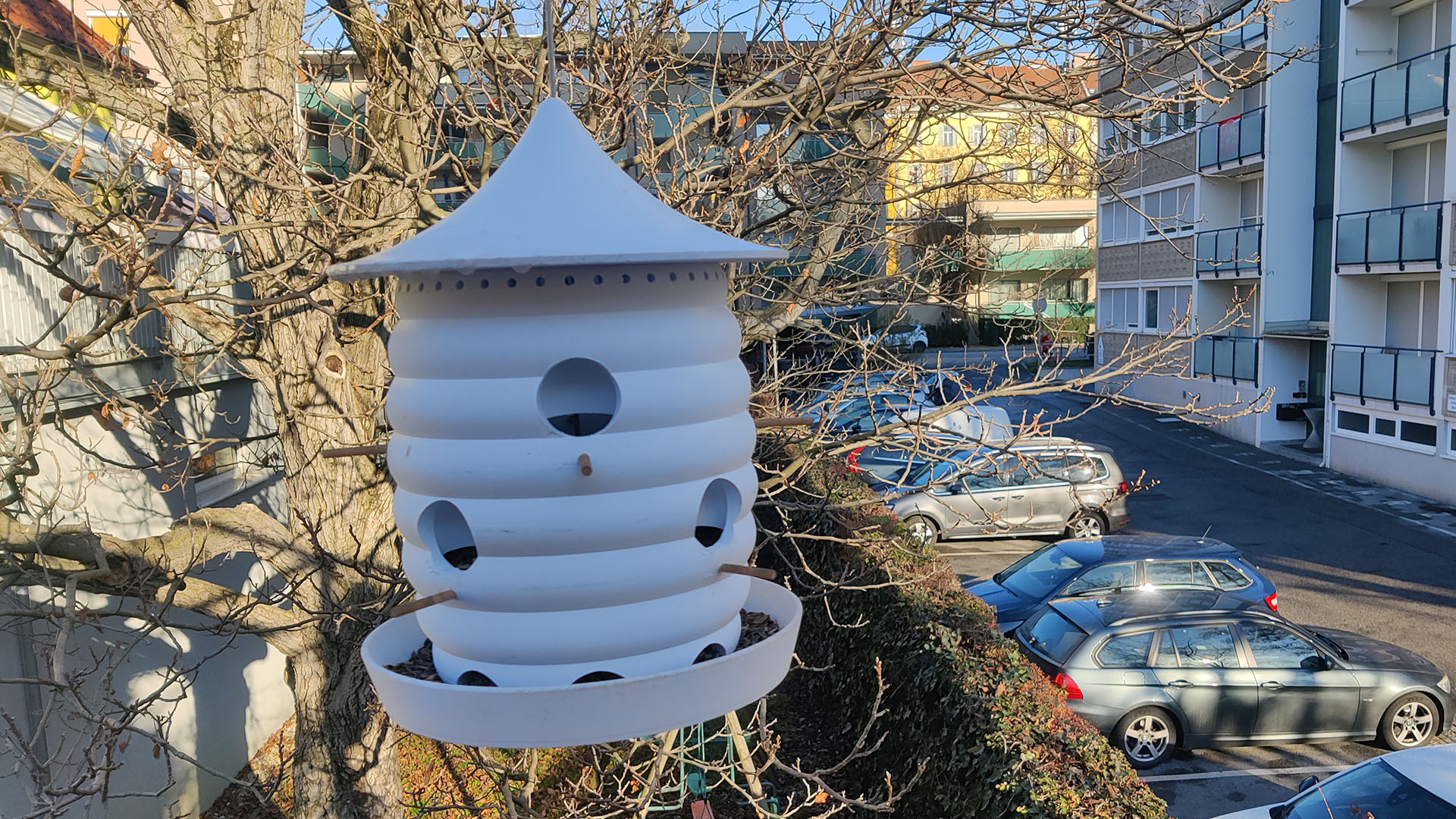

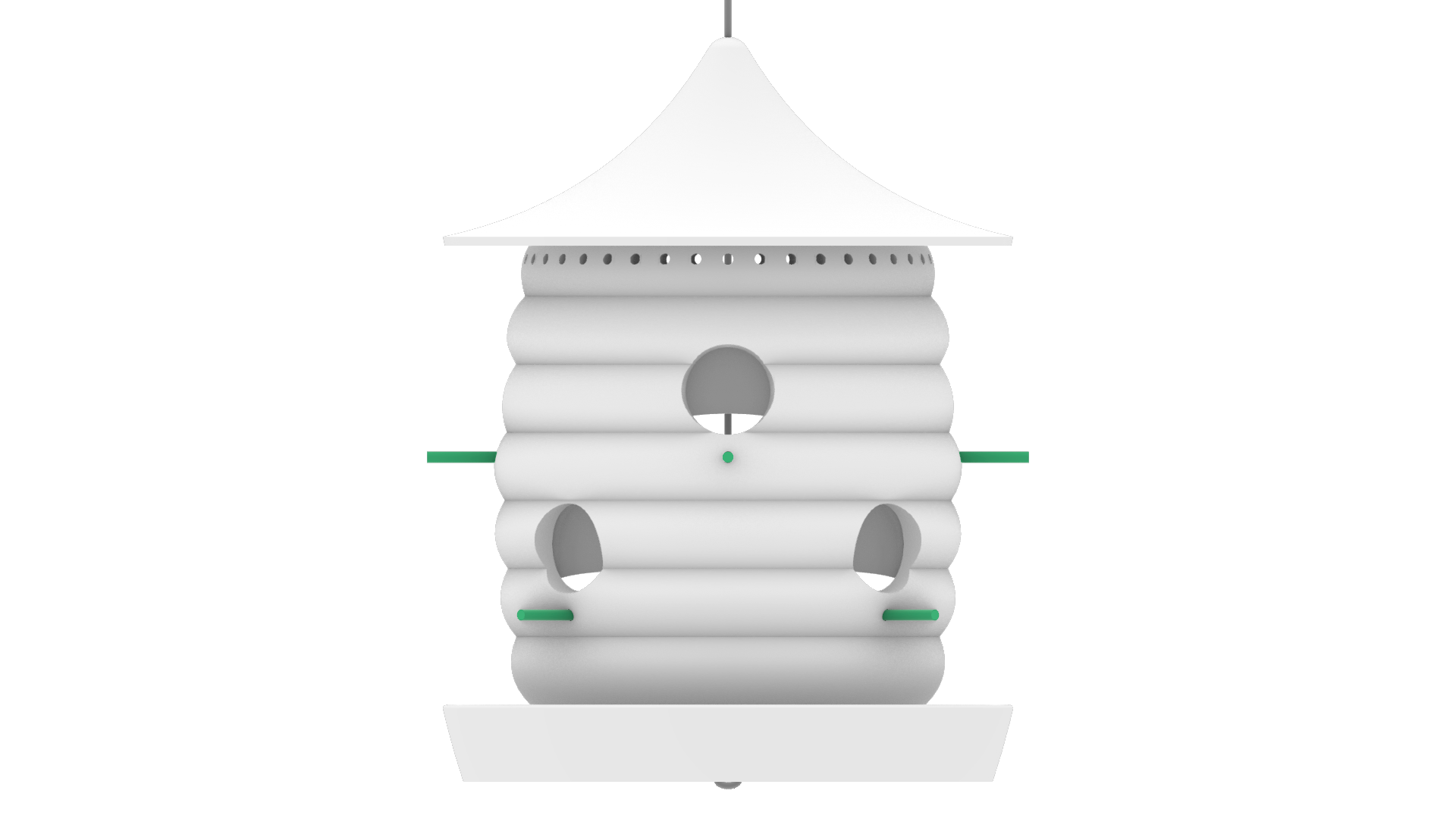

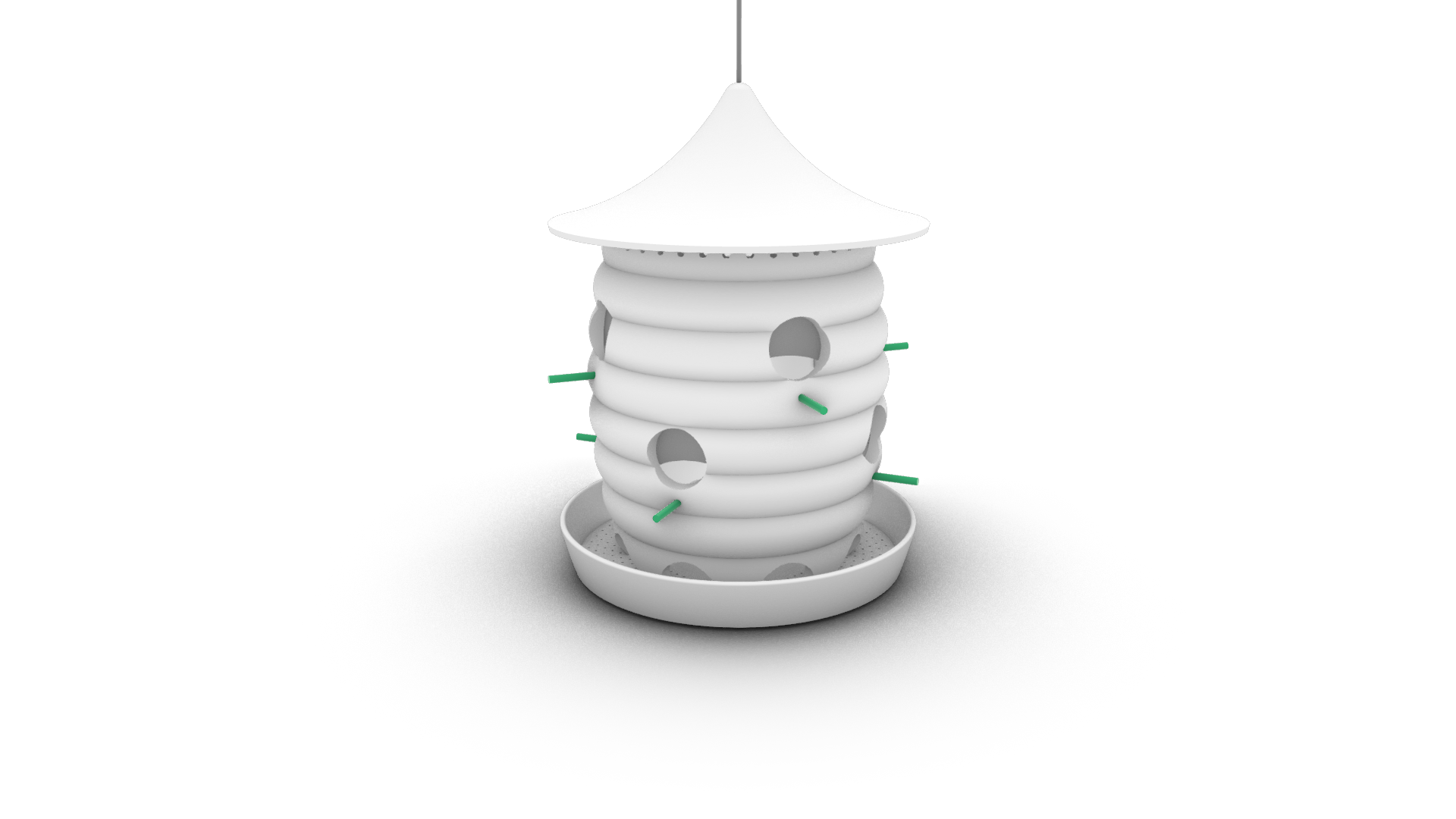

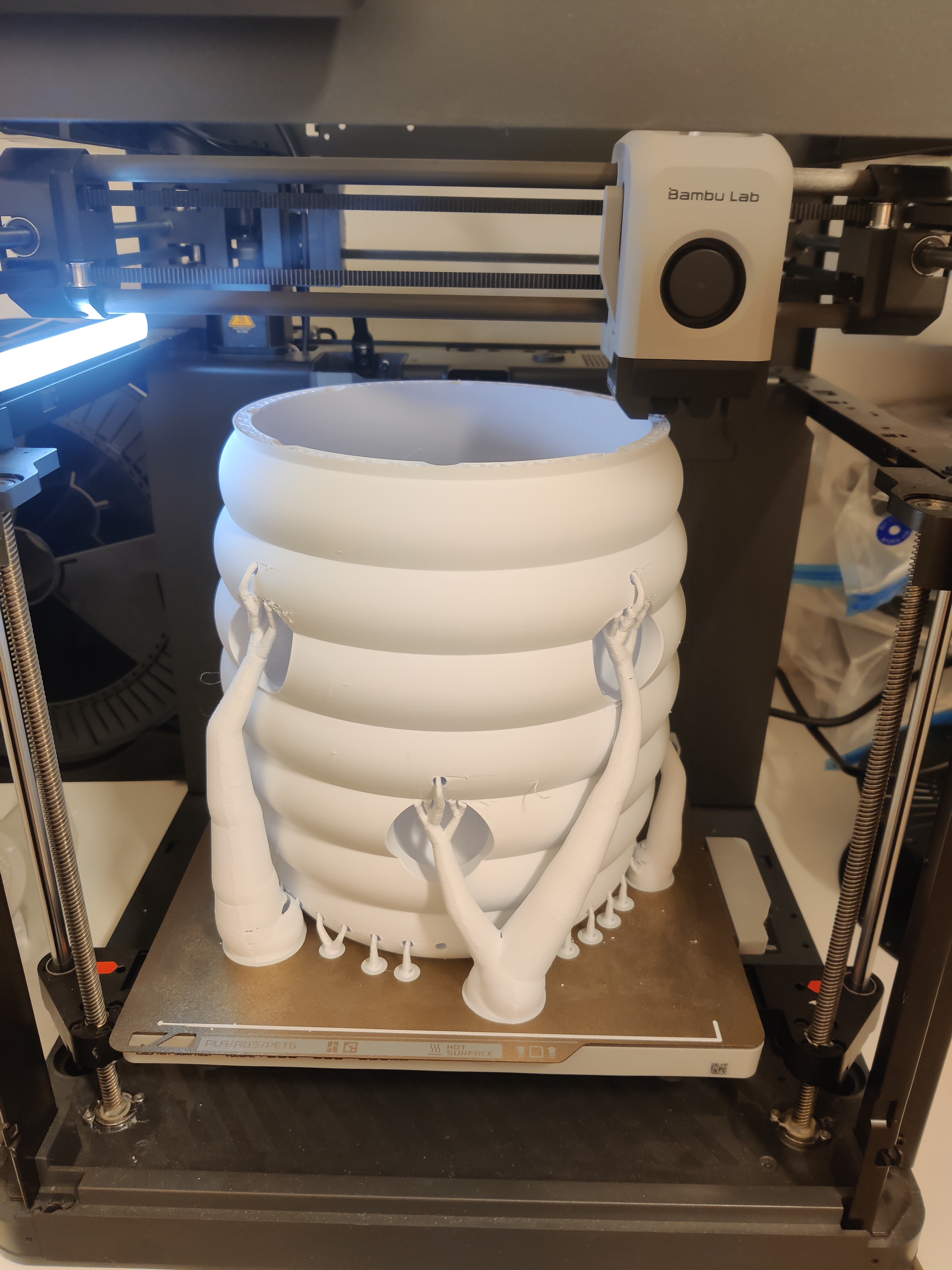

A birdhouse inspired by a beehive. It consists of four parts in total and was designed to maximize the build volume of my printer, which is 256×256×256 mm (Bambu Lab P1).

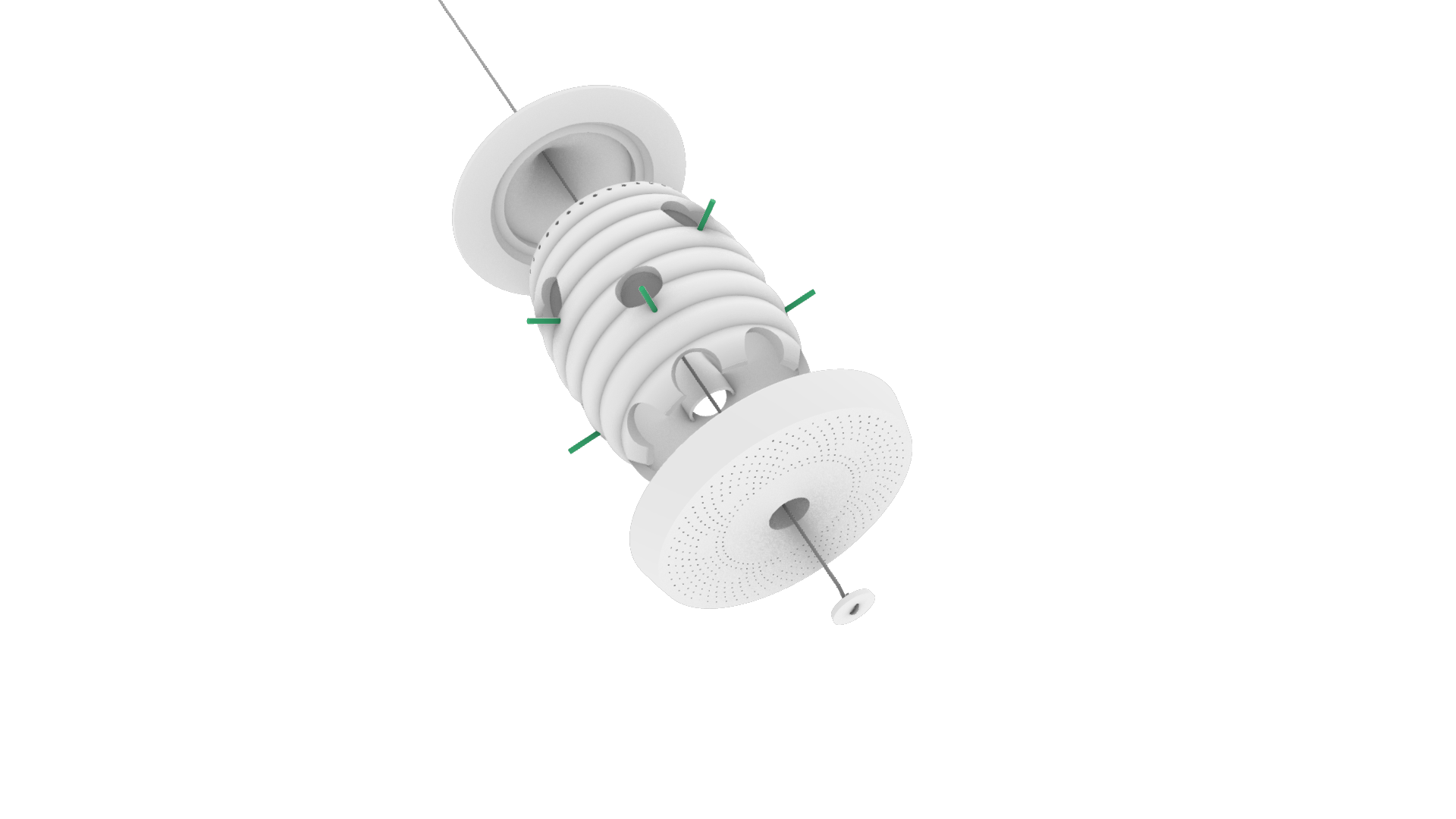

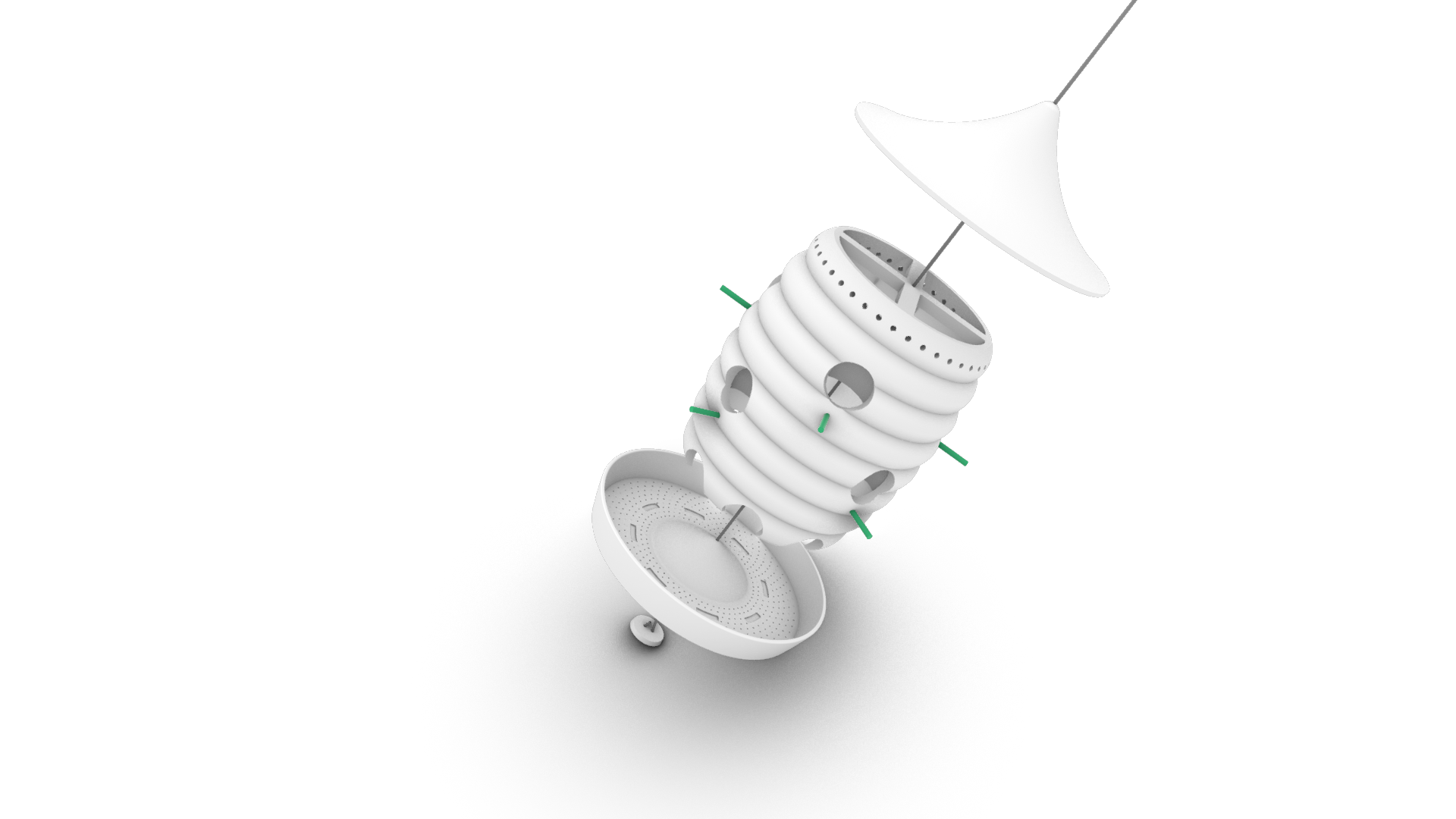

The parts are as follows:

A base plate with holes for water drainage.

A main body that serves as a container for birdseed (also with ventilation holes).

A lid/roof.

An end plate through which the wire cable can be threaded, allowing the birdhouse to be hung.



The only additional parts needed are:

a rope (maximum diameter 3 mm).

Sticks with 5 mm diameter and approximately 40mm length.



I glued the base plate and the main body together – although they would probably also hold just by gravity.

Feel free to improve the model and/or give suggestions.
