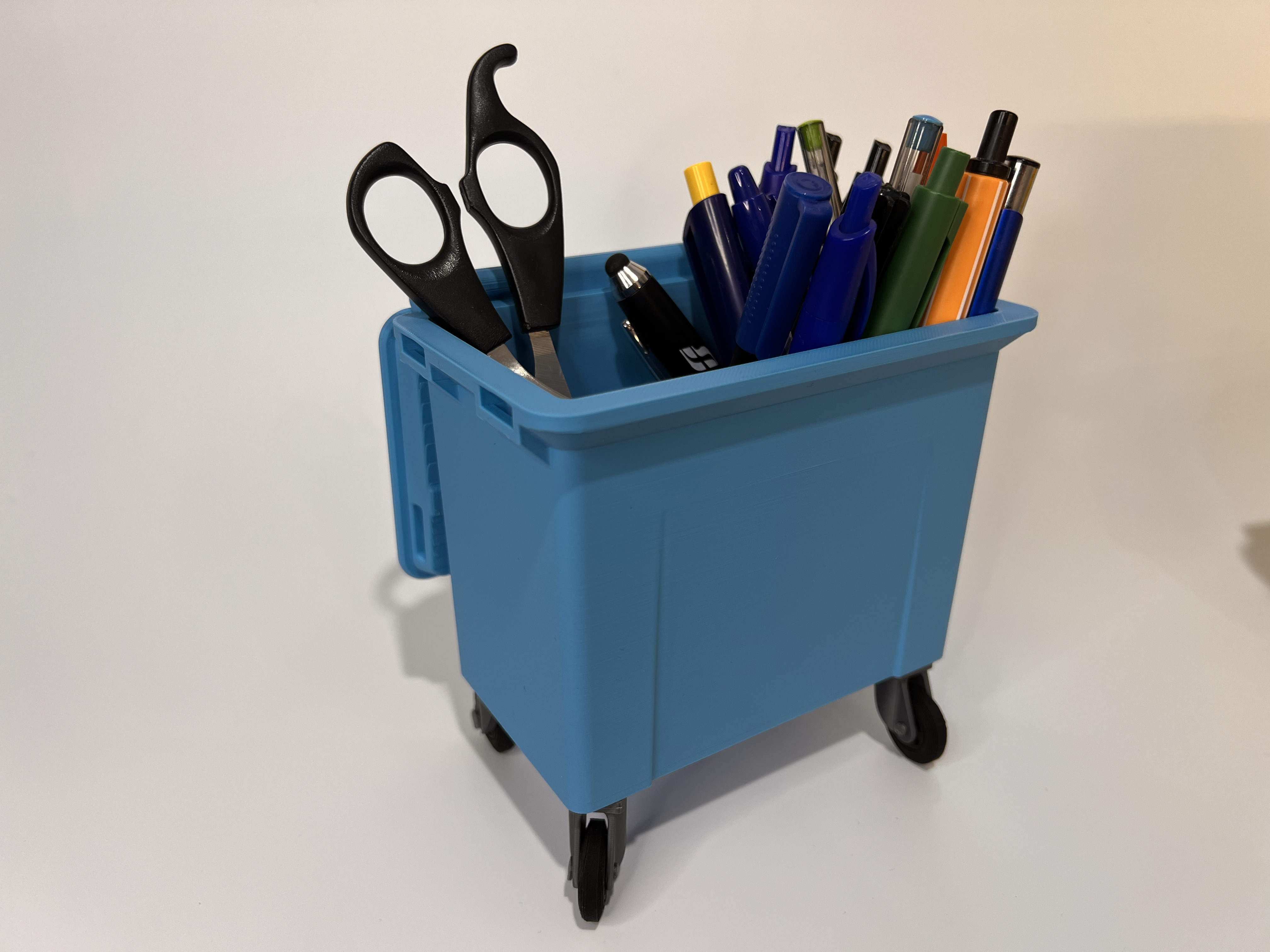

This is a waste container I design to use for multiple propouses like waste, pencil holder, store boxes…
- Ocena
- 5 / 5
- Polubienia
- 1413
- Pobrania
- 3299
- Wydruki
- 29
- Wyświetlenia
- 15 818
- Oceny
- 26
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

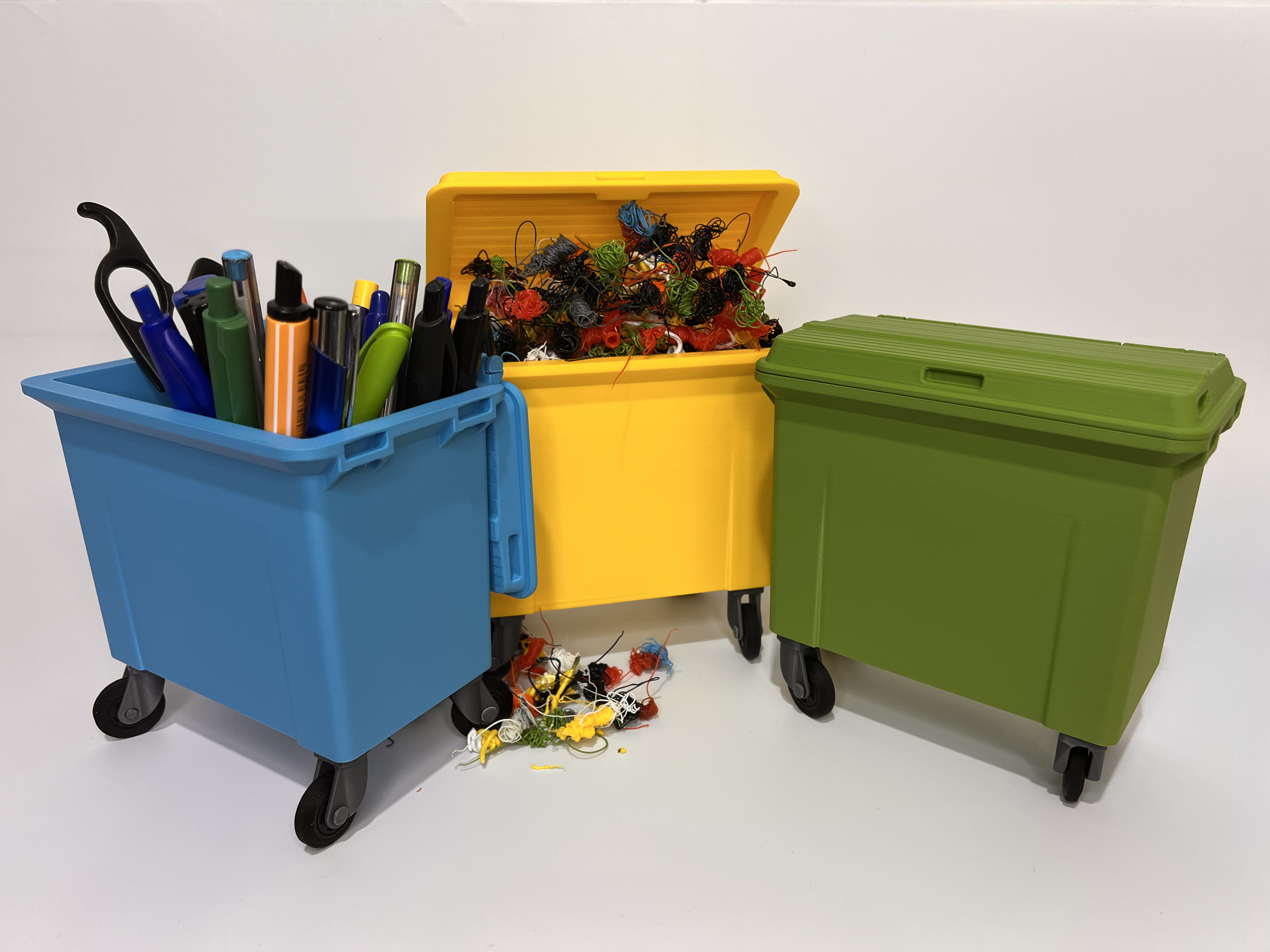

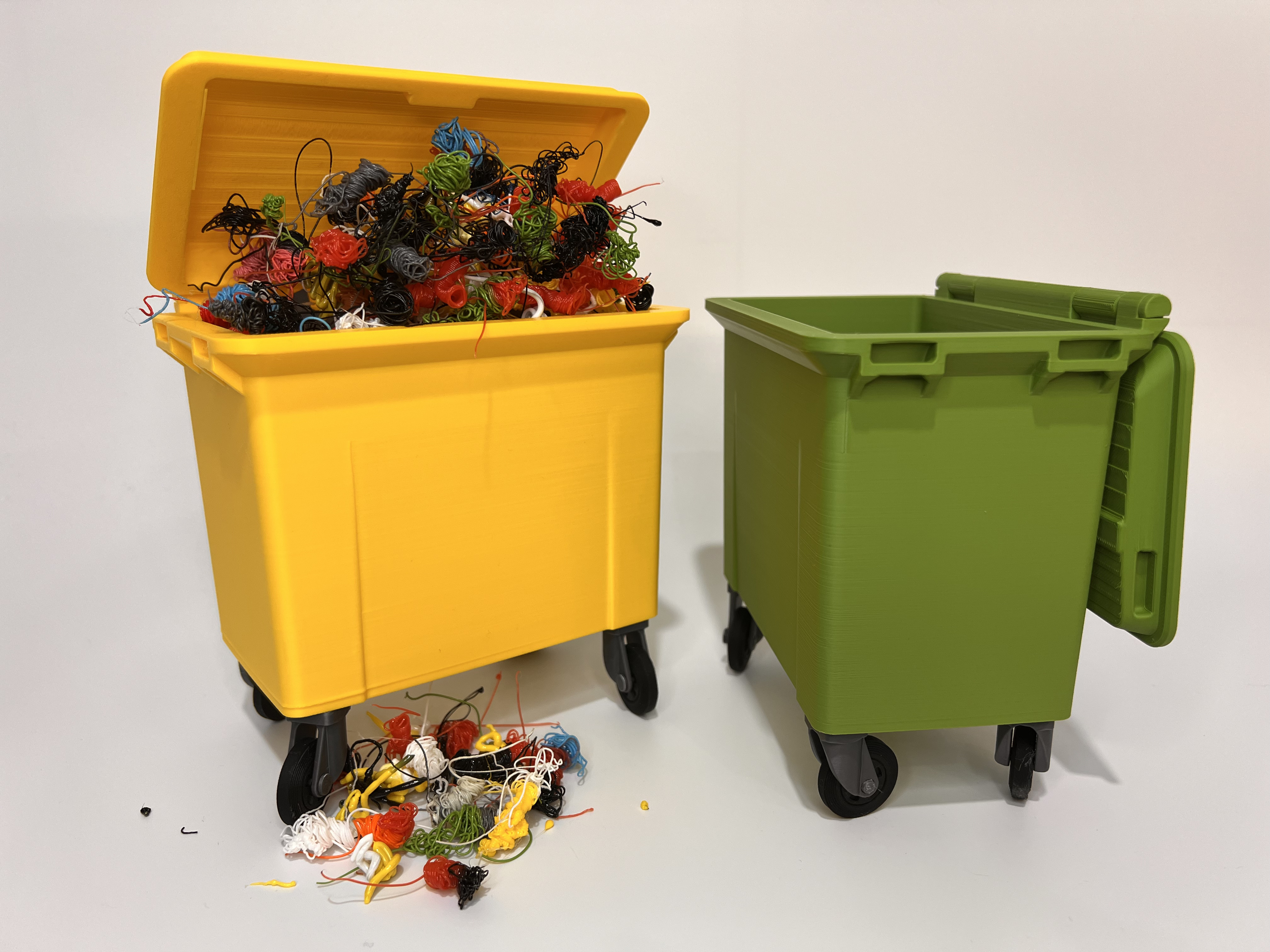

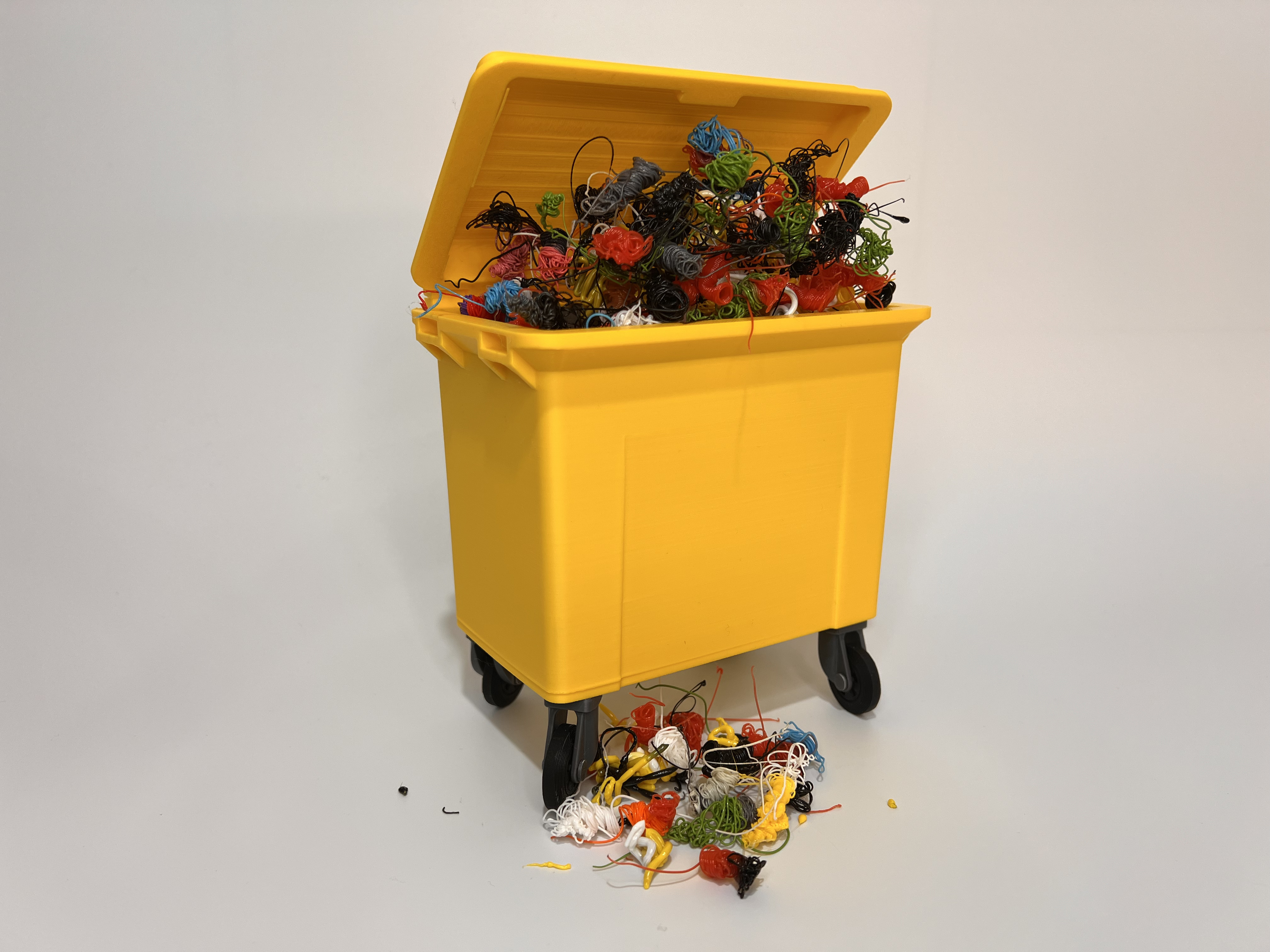

This is a waste container I design to use for multiple propouses like bambulab X1/P1 waste, pencil holder, store boxes… and other propouse you can give it.
In the following steps, I'll explain what you need to do to assemble the container. It's very simple. Enjoy it
Printer parts
- 1 unit - Container body
- 1 unit - Container top
- 4 units - Wheel
- 4 units - Wheel support
- 4 units - Wheel pin
- 4 units - Wheel clip large
- 2 units - Pin container top
- 1 unit - Divider (this is opcional if you want divide in two parts the inside)

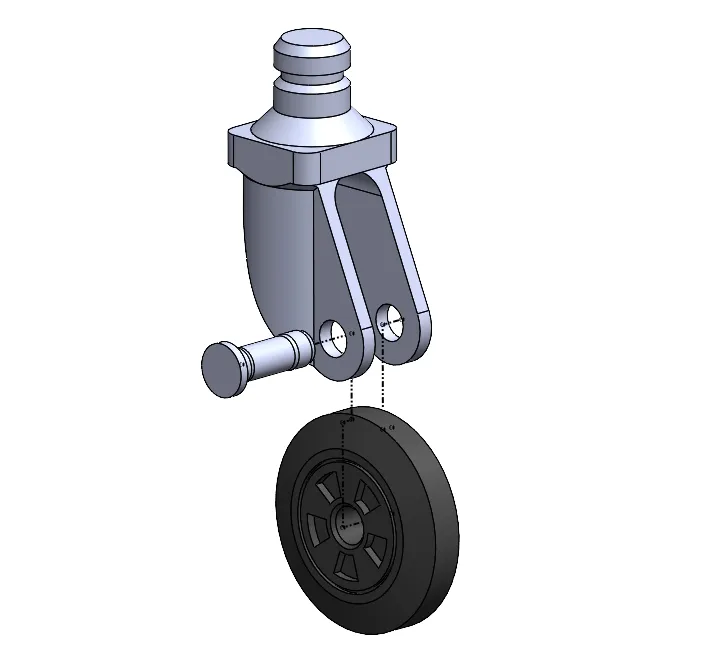

1.Assemble the wheel set ( 4 units)

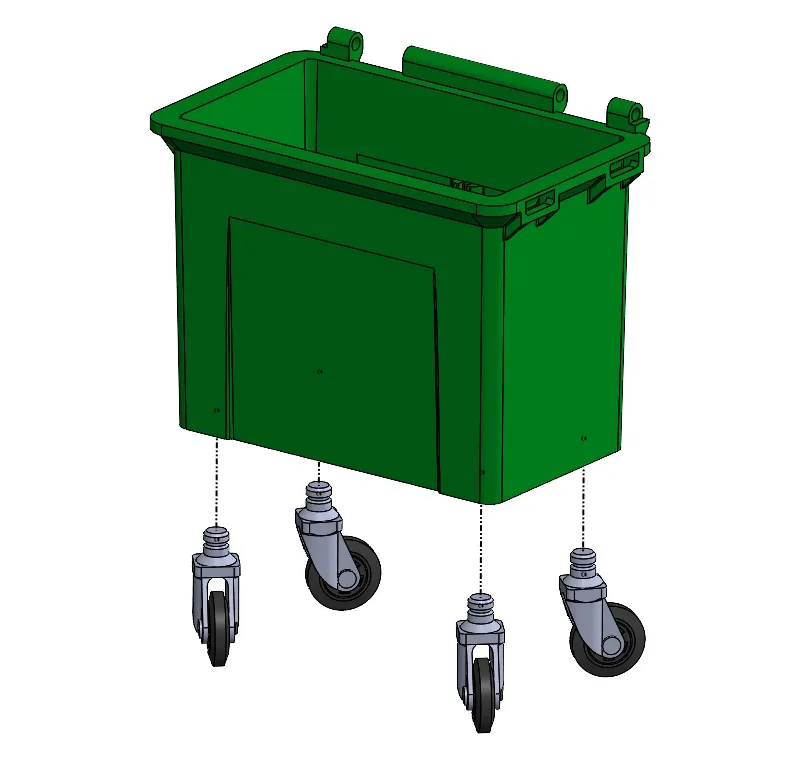

2.Place the wheels in the container d secure them with the clip

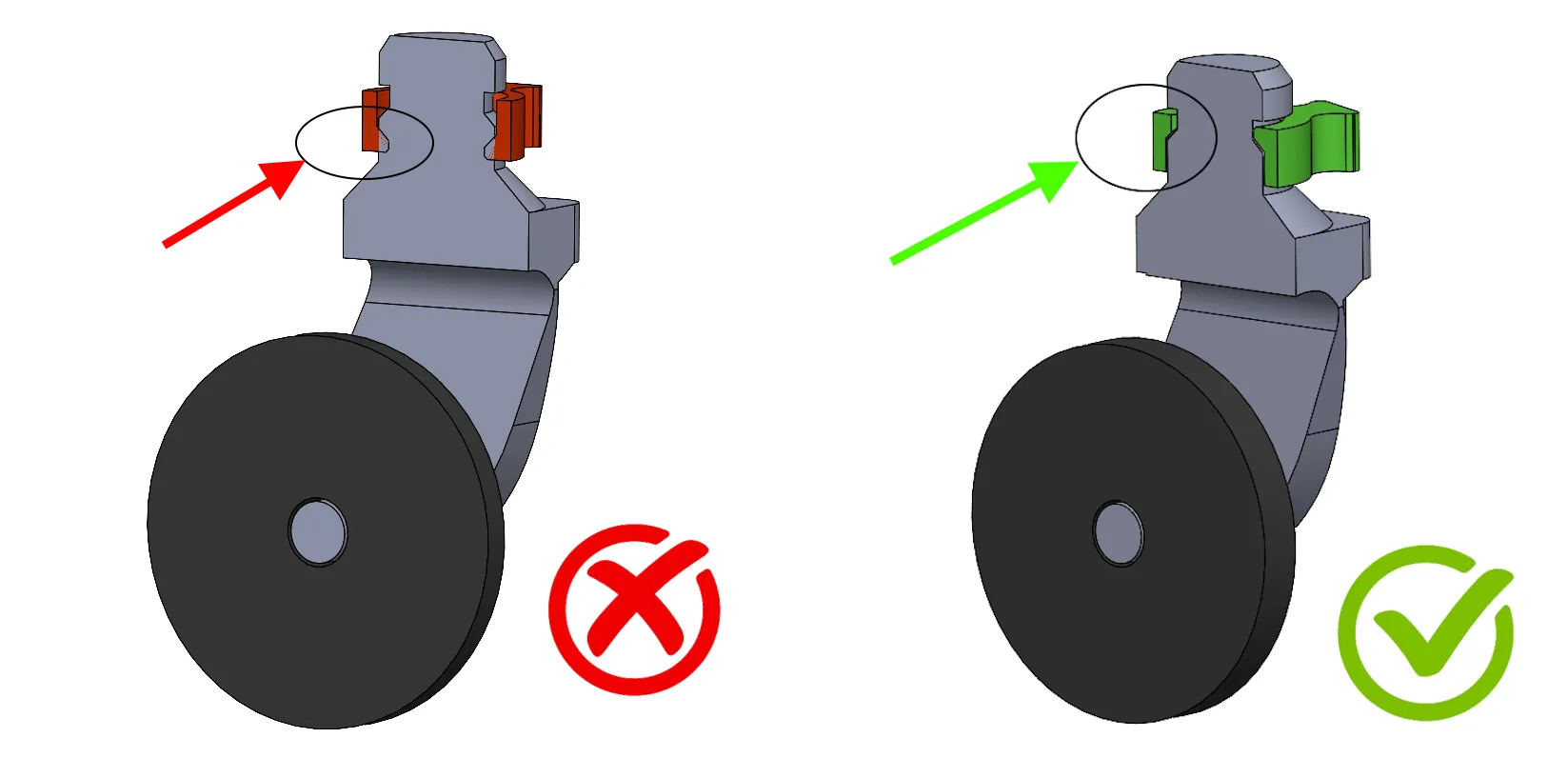

NOTE: Pay attention to the correct position of the clip, flange at the top
3. Place the cover with the two pins
NOTE: Pay attention to the correct position of the pin, chamfer for the bottom

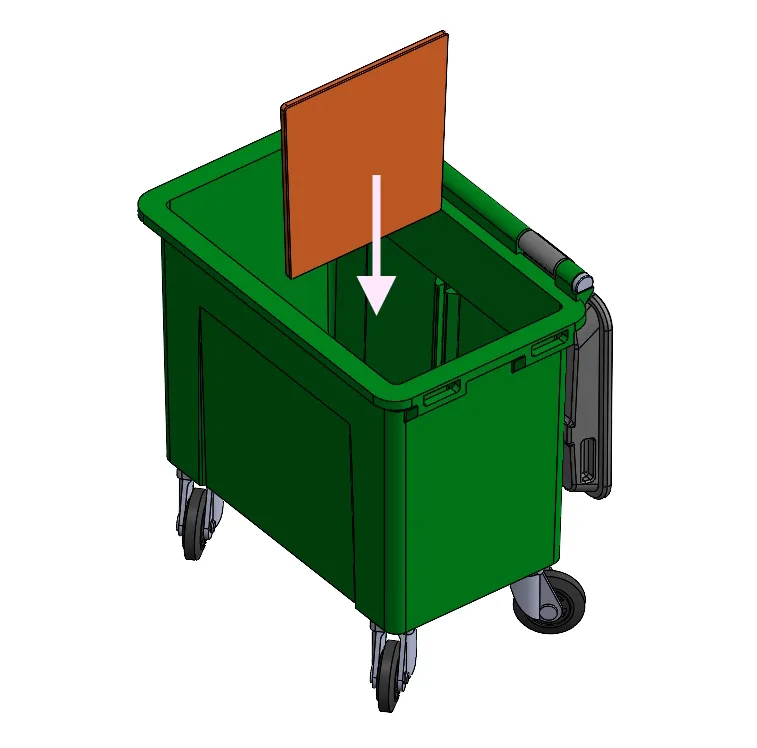

4. Install the divider
