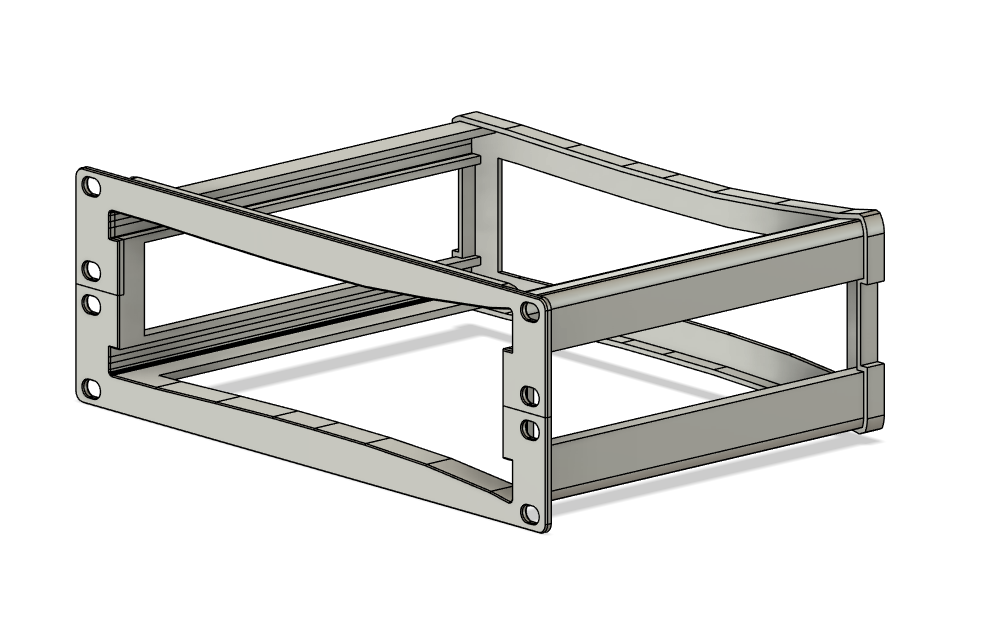

Spectrum Modem 10" (10 inch) Rack Mount Bracket
Should be compatible with the following models:
- E31N2V1
- E31T2V1
- E31U2V1
- EN2251
- ET2251
- EU2251

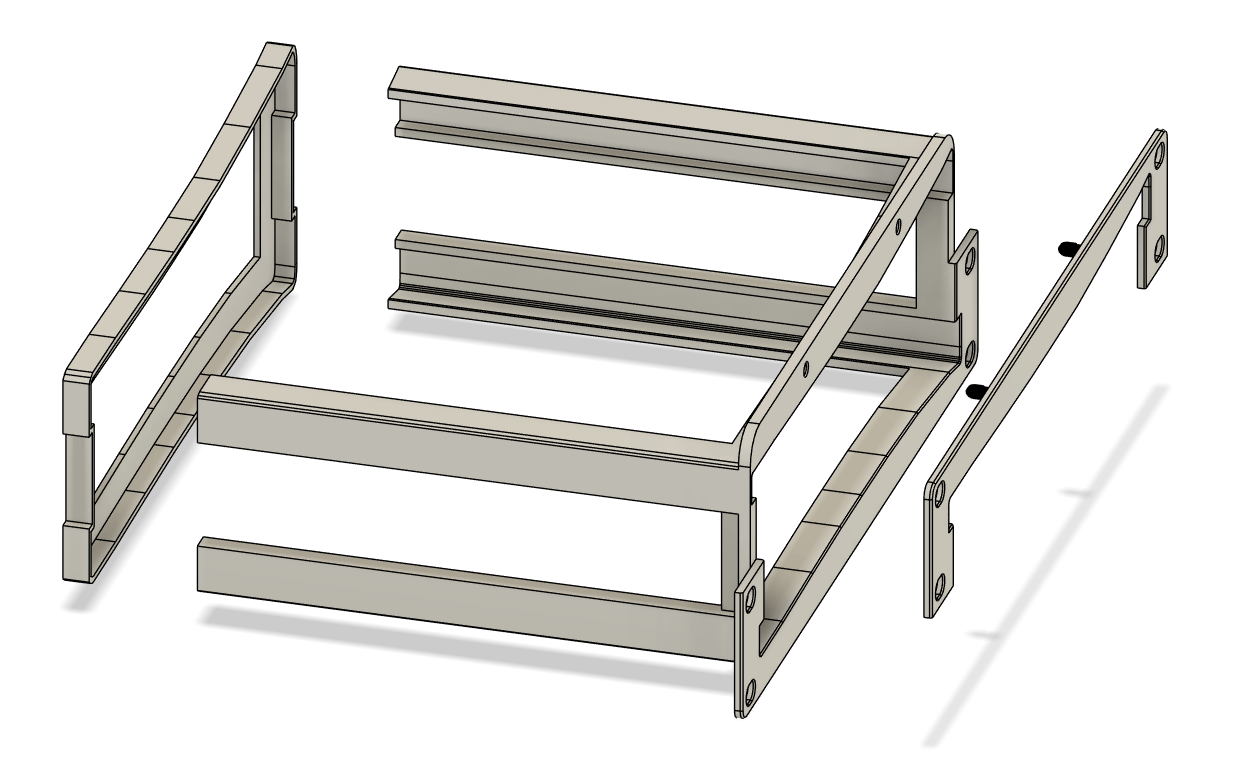

In order for this to fit on my print bed I removed half of the front face of it and created a separate snap-in faceplate to finish out the look once mounted. There is probably a better way to do this but it worked for me.
Also, I didn't want to have to print tall supports for the back bridges so I removed that and created a separate piece that slides over the rails. With the modem in place it holds everything together nicely.
Printed everything facedown diagonally on my Neptune 3 Pro. Supports required on the main portion.
