Over-engineered Microphone Arm
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
An over-engineered 10mm microphone arm with clips for 6mm cable.
The arm is very strong and can hold a lot of weight. It can also be used to hold any item you like if you design a suitable holder for it
I printed it with ABS 0.2mm. I recommend 3 wall loops, 3 Top/Bottom Layers and >25% infill
For the arm to be stable you have to screw it to your desk via the bottom flanged hub

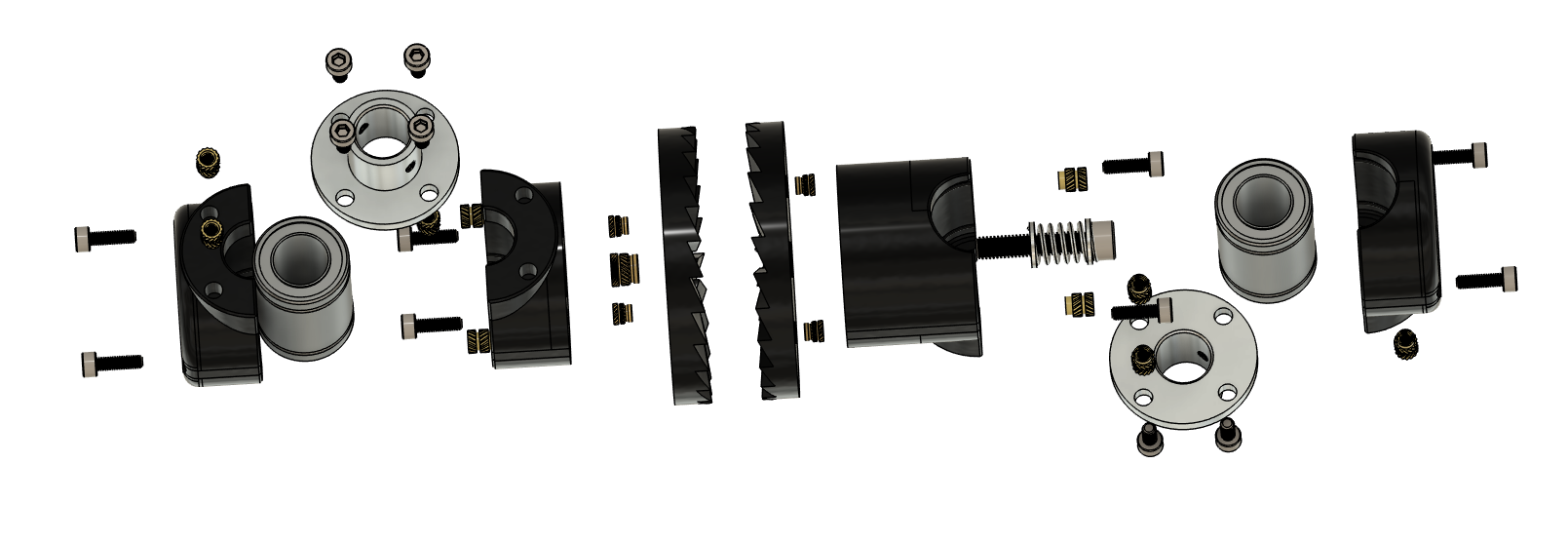

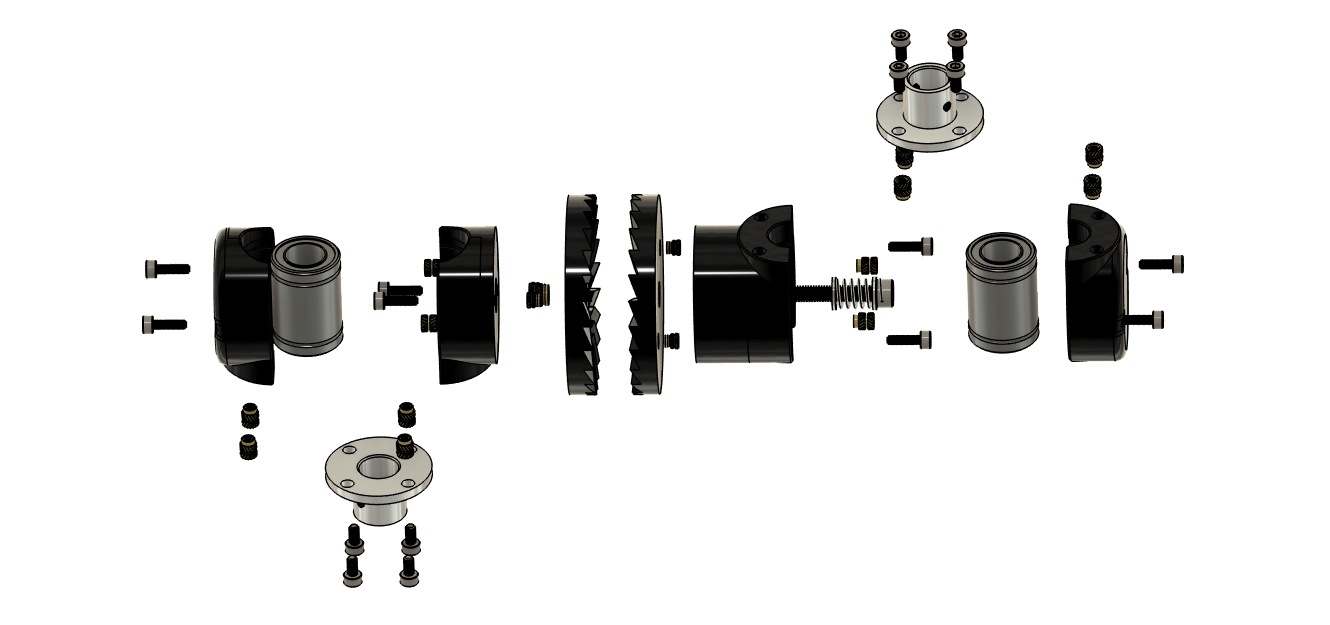

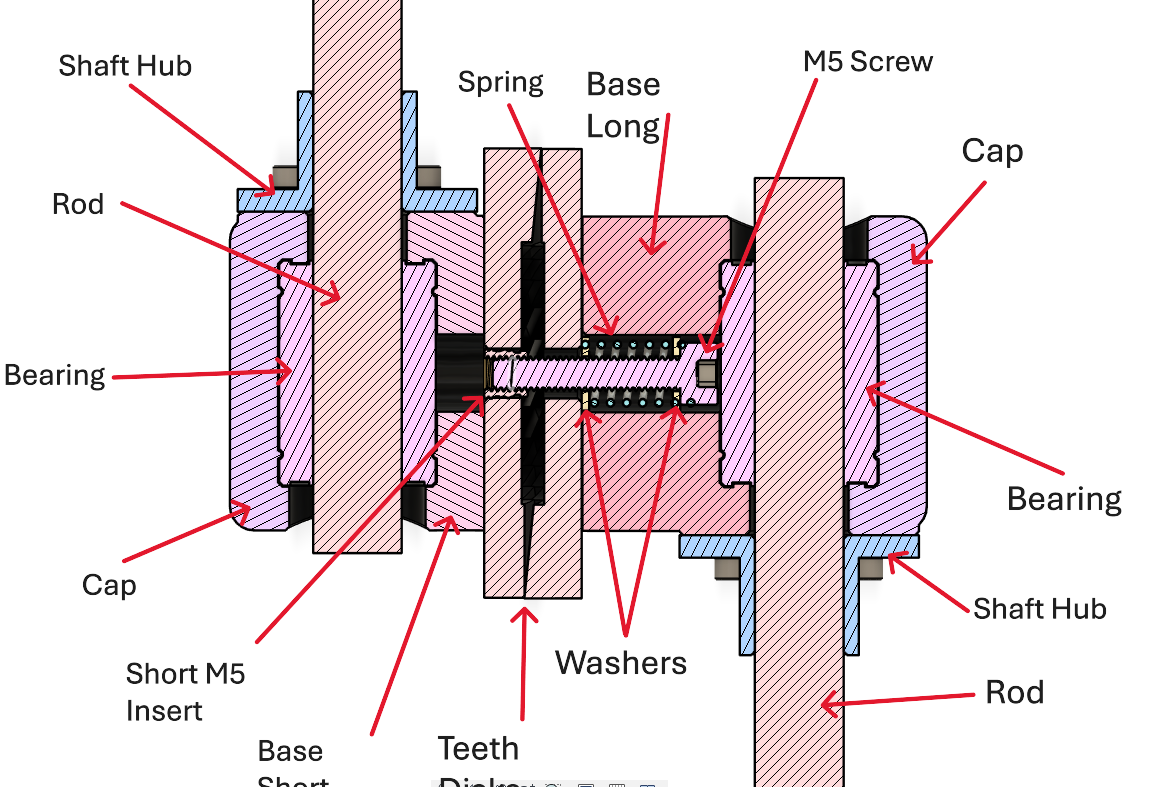

Hardware BOM
- 1x 200x12mm Shaft
- 2x 300x12mm Shaft
- 4x LM12UU Linear Bearing
- 2x Short M5 Insert
- 2x 15x9mm Spring
- 4x 10x5x1mm (OD, ID, Thickness) Washer
- 2x DIN912 M5 30mm Screw

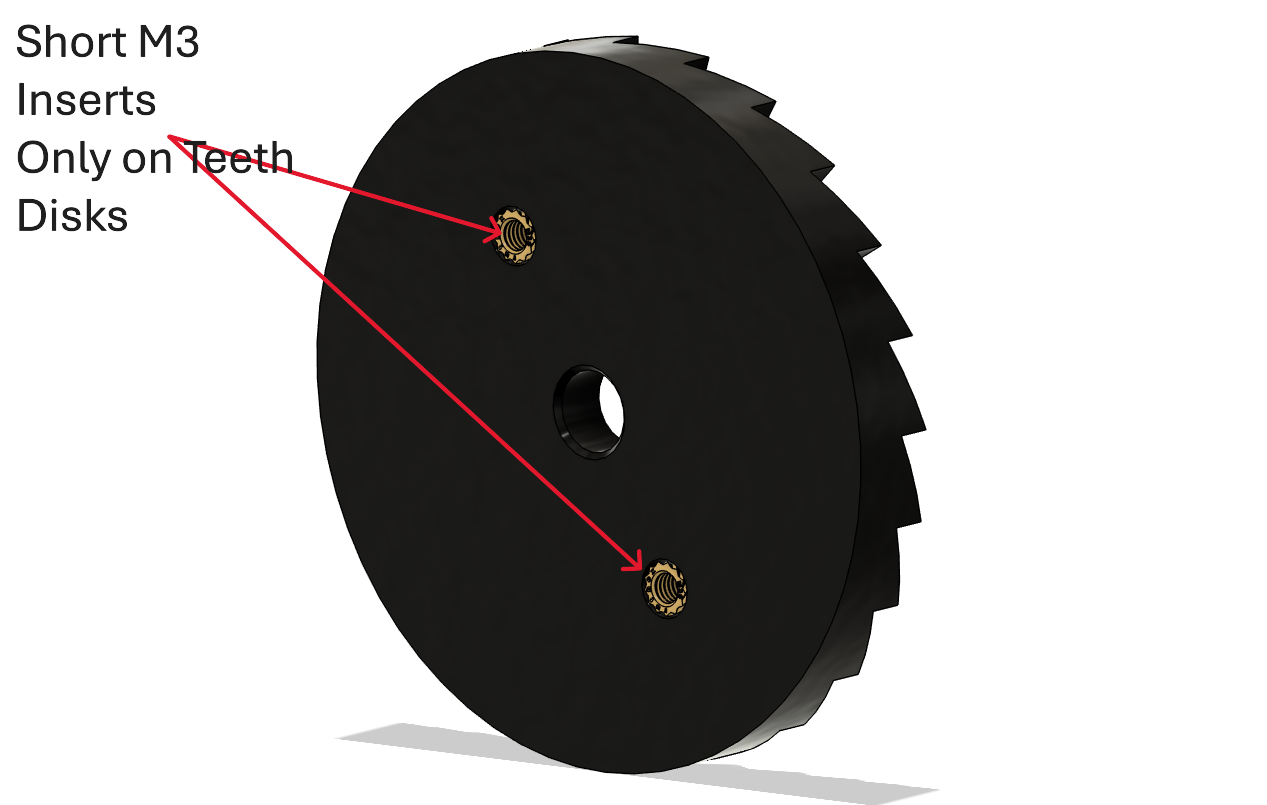

- 8x Short M3 Insert
- 24x M3 Insert

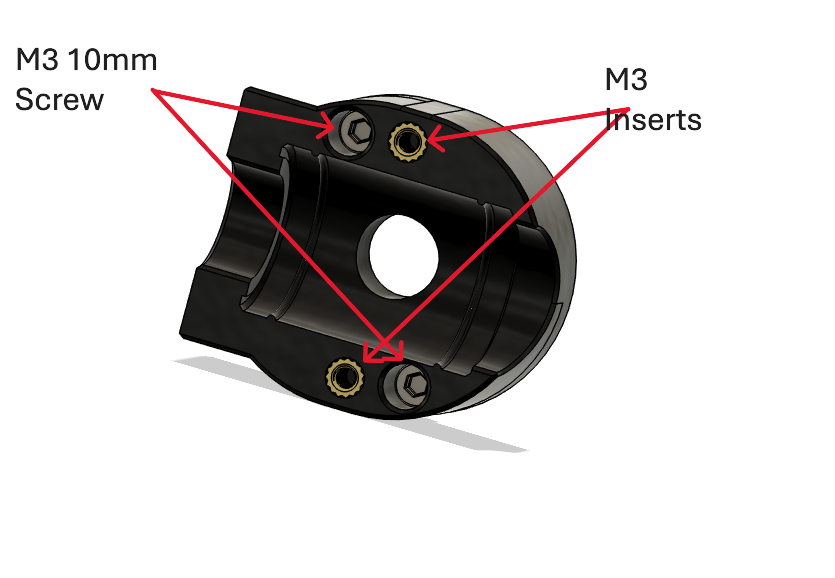

- 16x DIN912 M3 10mm Screw
- 16x DIN912 M3 6mm Screw

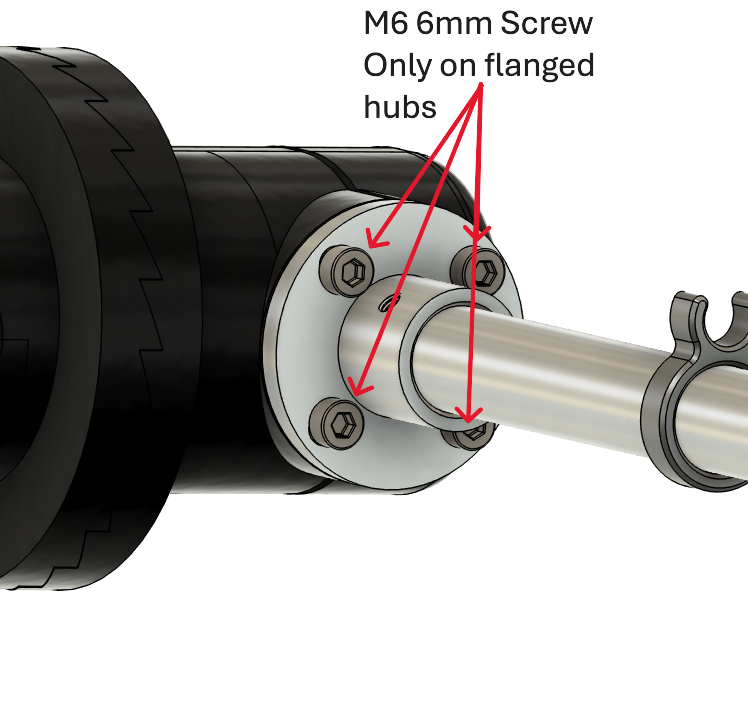

- 6x 12mm Flanged Shaft Hub
Printed Parts BOM
- 2x TeethDisk
- 2x TeethDisk(Mirrored)
- 4x Bearing Hub Cap
- 2x Bearing Base Short
- 2x Bearing Base Long
- 1x Holder
- 1x Holder Base
- 4x Cable clips
