Many old Polaroid 600 cameras (the black original 600s from the 80s) suffer from brittle strap loops.

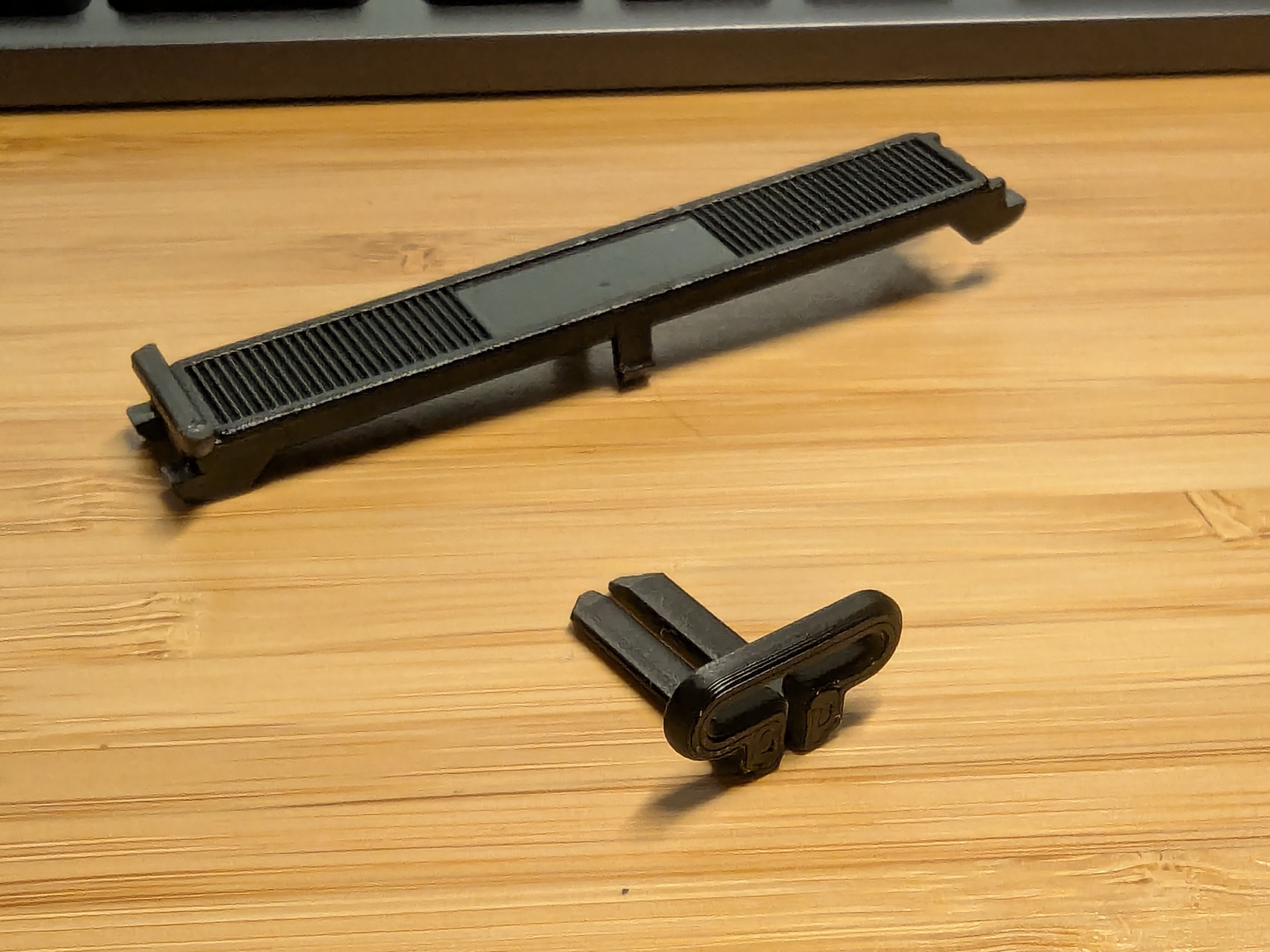

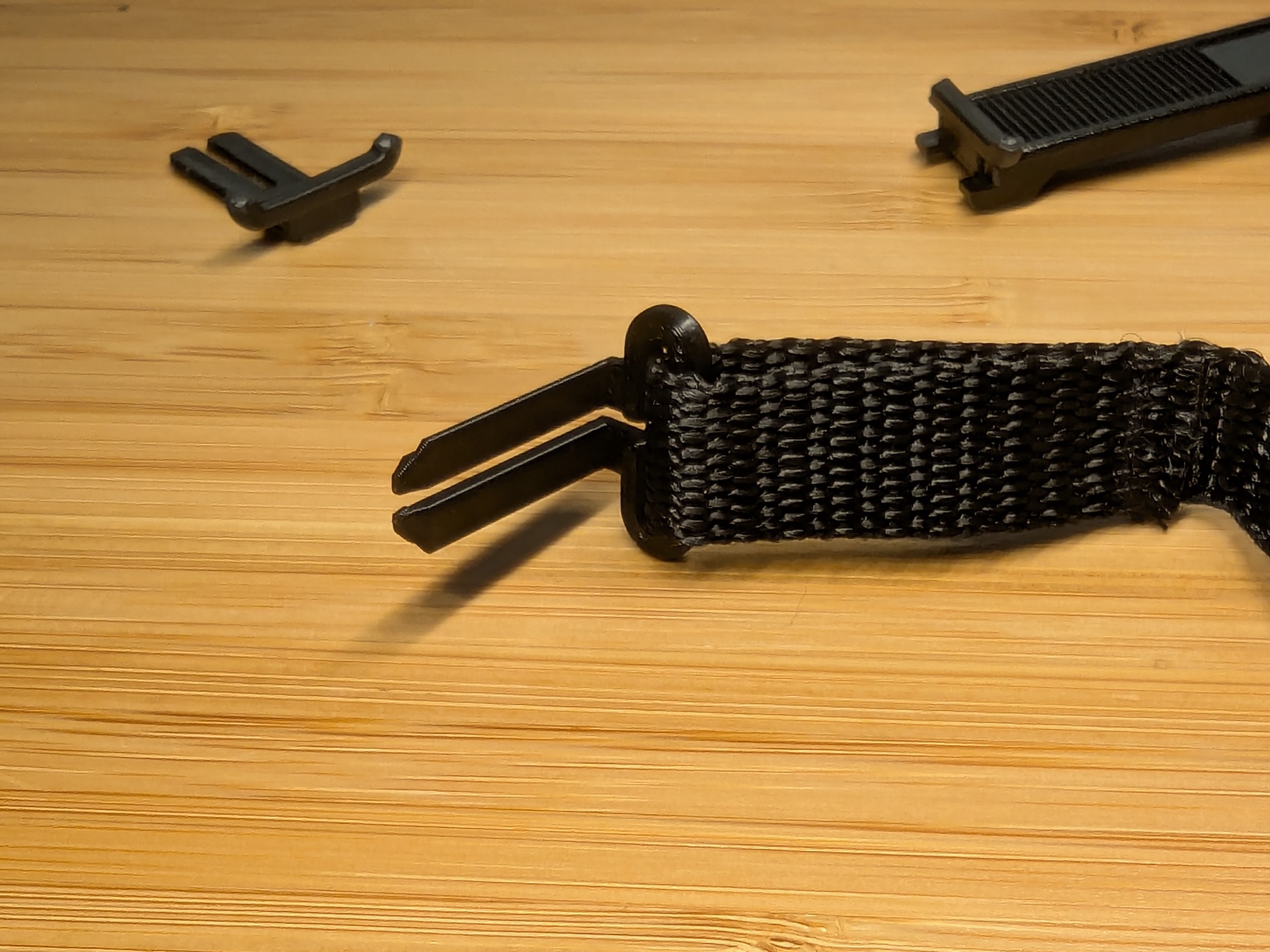

I have designed and successfully printed these replacement ones, that are slotted to reuse the original sewn straps. Print with the loop on the bed (= the 2 prongs on the Z axis). PLA is fine, I used .12mm layers and it seems to be holding quite well.

To replace, you need to pop the back bracket, and then the loops slide from the sides. Please refer to youtube or other online tutorials on how to remove this part. It's relatively straightforward with the camera completely disassembled, which is what I strongly recommend, but it is possible to remove it with the camera fully assembled with a lot of care - and greater risk of damage. YMMV, this part comes with no warranty, etc etc. Do this at your own risk.



Note: I'm aware that at least 2 versions of this part exists, a larger and a smaller one. This is the large one, that fits 15mm wide straps. The smaller straps should fit fine as well though.
