So your spotlights have too short spikes…
A common problem! I found some metal tube, and decided to use it. I also made some upgrade and repairs while I was at it.
Spotlights are ~40mm wide.

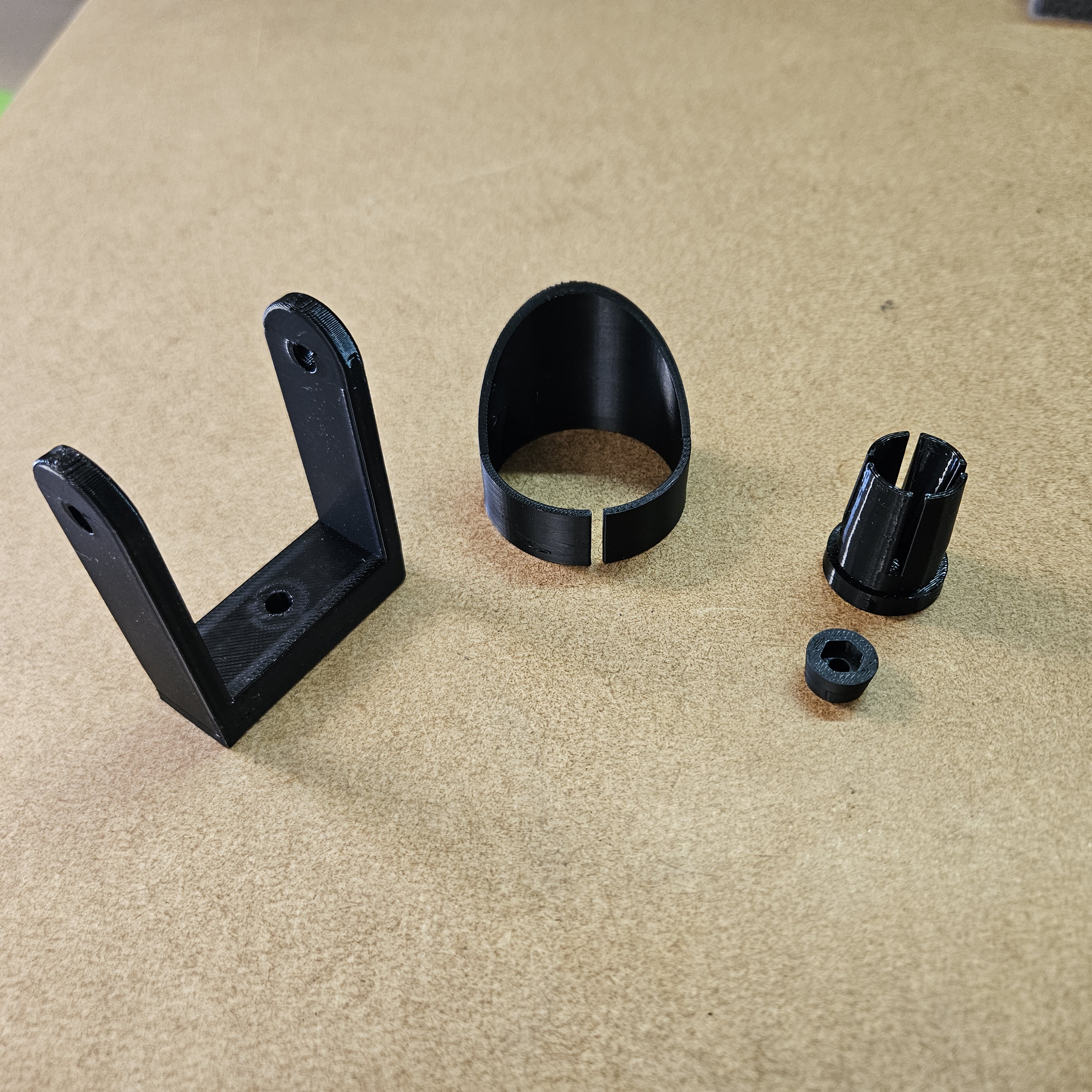

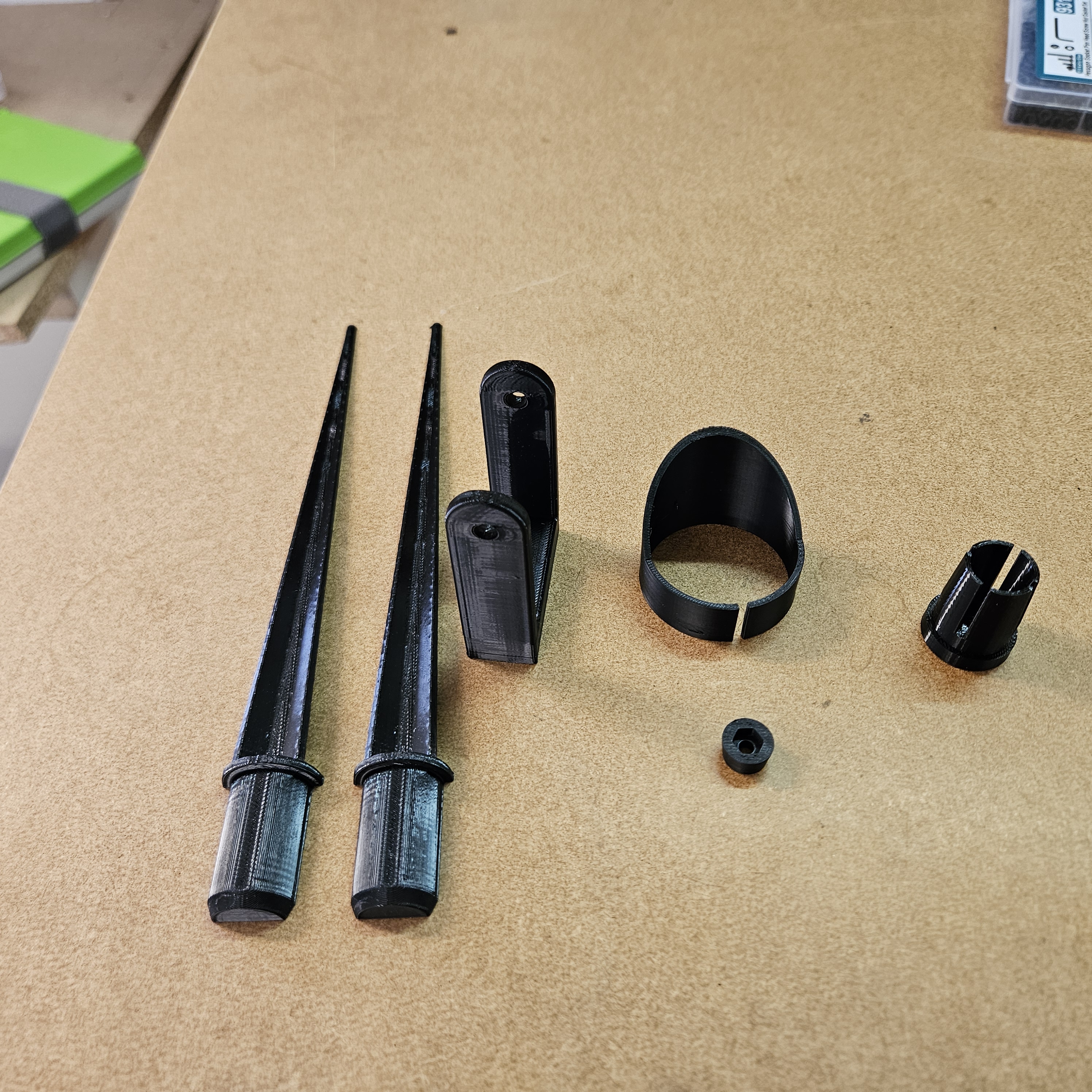

It contains:

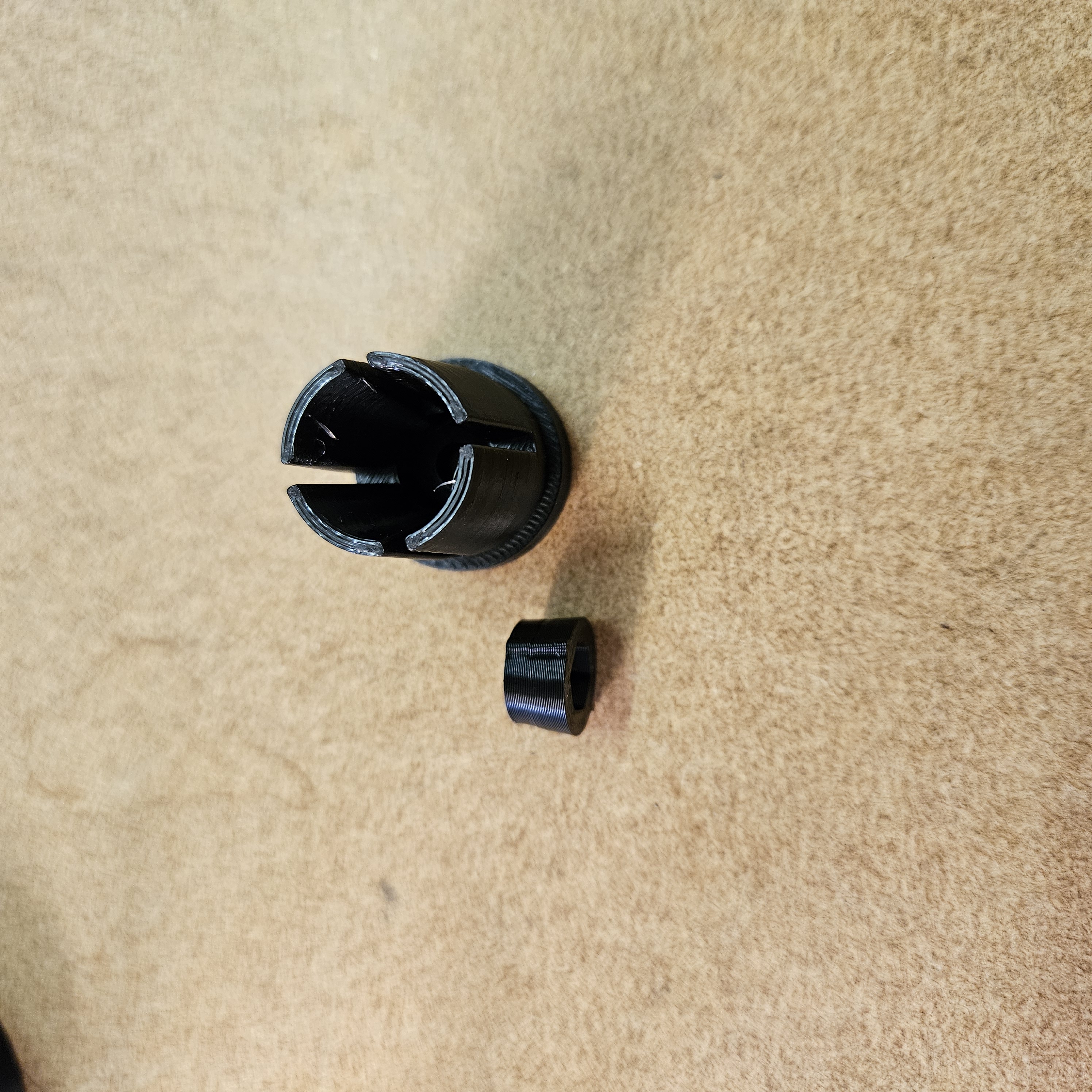

- What is special with this modell is the internal collet (if that's the correct word) for both holders and the old spikes. You fit the collect it inside the tube, together with an M5 nut. A flange holds the nut in place, so you will have no problem fastening it.
- Spikes. I used these from Lord S, they were the most easy ones to print (2 parts). Download from there and rescale.
https://www.printables.com/model/469376-costco-solar-garden-light-spike - New holders for the spotlights.
- Shades.
Extra material:
- Tube, inside diameter 20mm. I used a metal tube I found.
- M5 nuts and screws
Printing:
- Outdoor - print with at least PETG or ASA.
- 30% infill and add a few walls for strenght.
- No support.
- Rescale and remix as you see fit.
