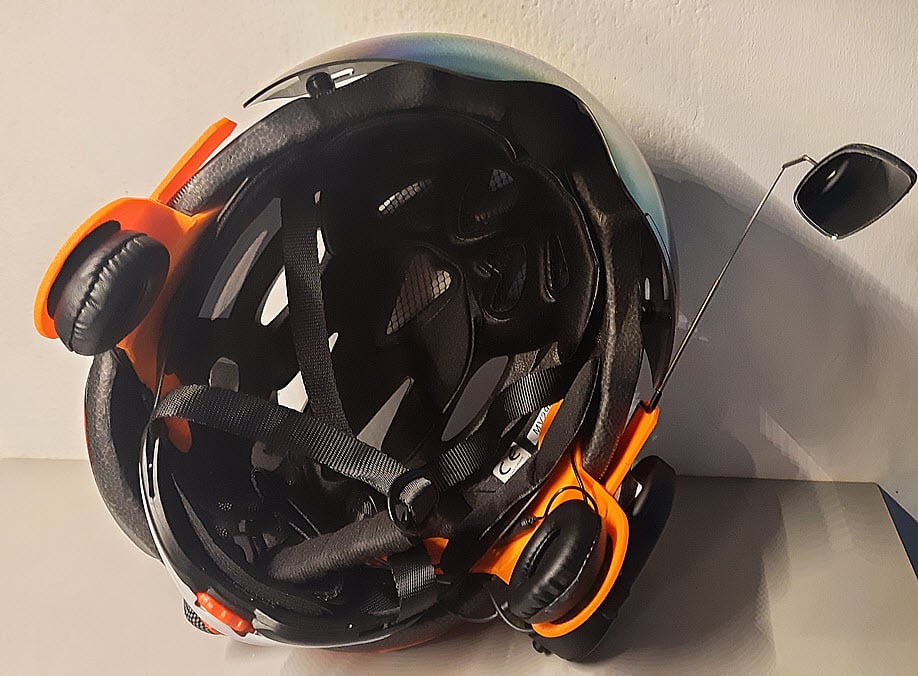

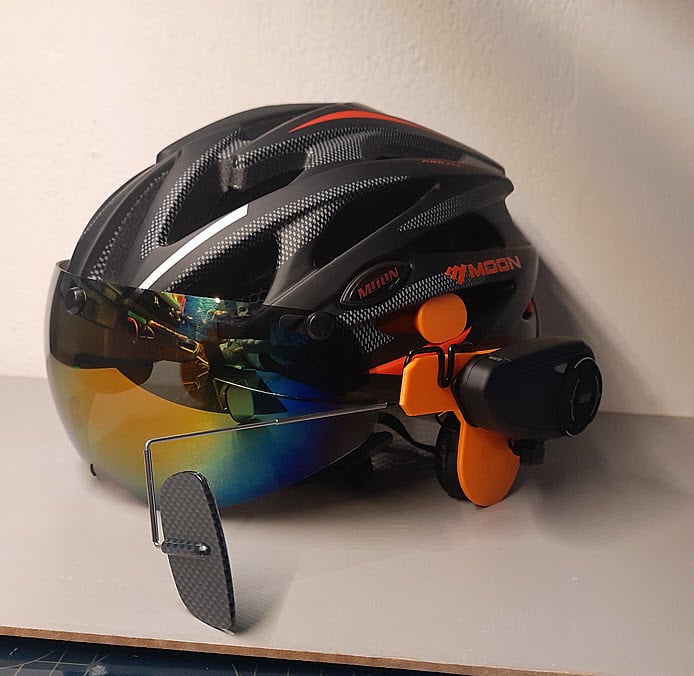

In order to be able to attach the intercom to the MOON cycling helmet, I created an adapter that is attached through the side holes in the helmet with two M3 x 20 mm screws. A rearview mirror can be attached to the side arm and there is enough space to attach a side microphone. The parts were printed with PTEG filament, layer height 0.25 with 15% infill. Printing does not require supports.
The file HolderInterkomCyklo_M_Q8.stl is for size M and HolderInterkomCyklo_L_Q8.stl is for size L. Both models have an integrated holder for the Q7-Q8 model.

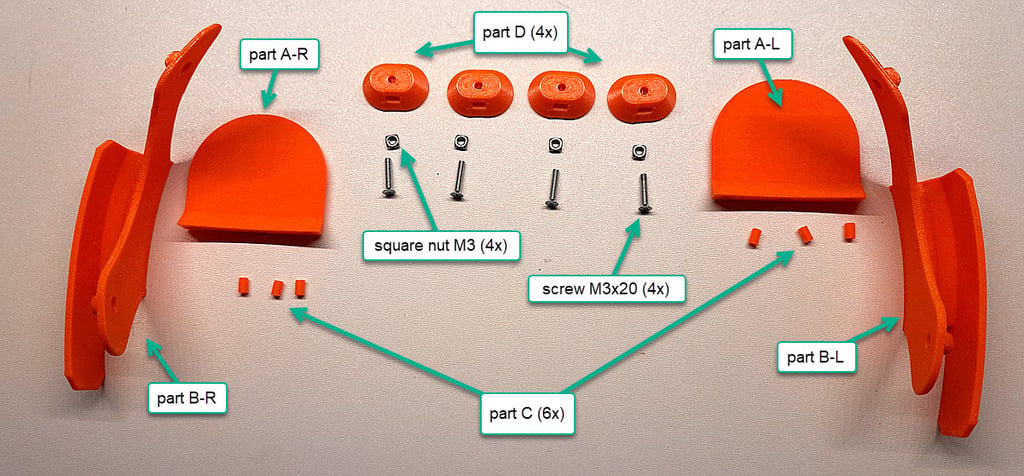

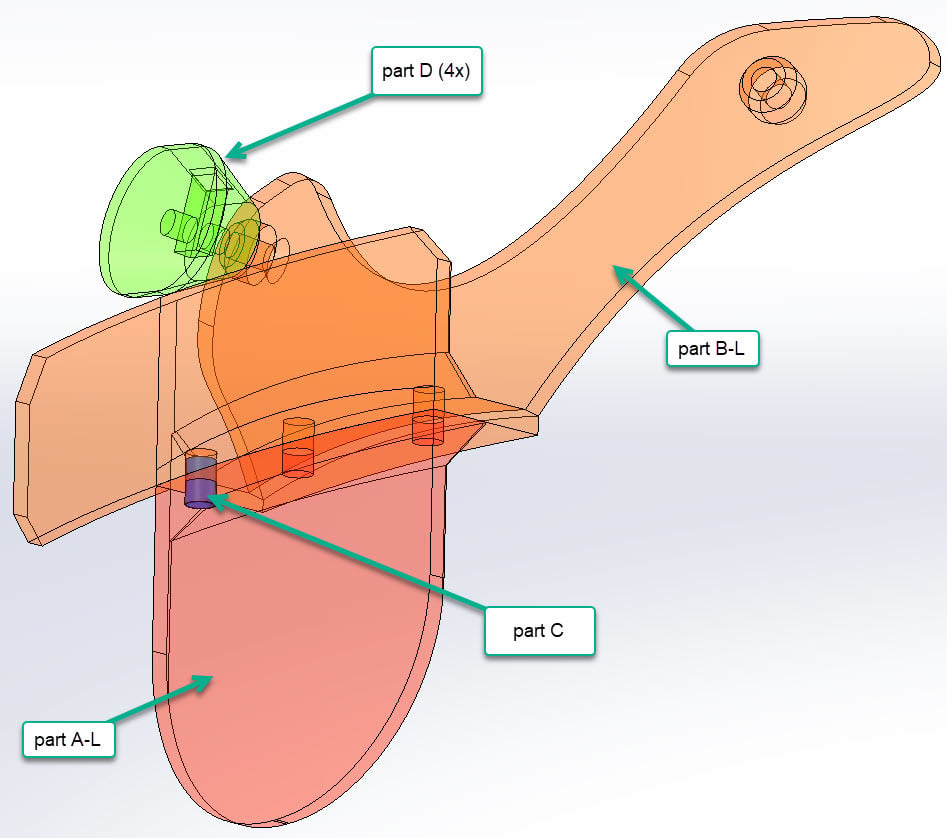

1 pc - part A-L
1 pc - part A-R
1 pc - part B-L
1 pc - part B-R
6 pcs - part C
4 pcs - part D
Non-printed parts:
4 pcs - screw M3 x 20
4 pcs - square nut M3
1 pc - Cycling helmet MOON
1 pc - Intercom EJEAS Q8

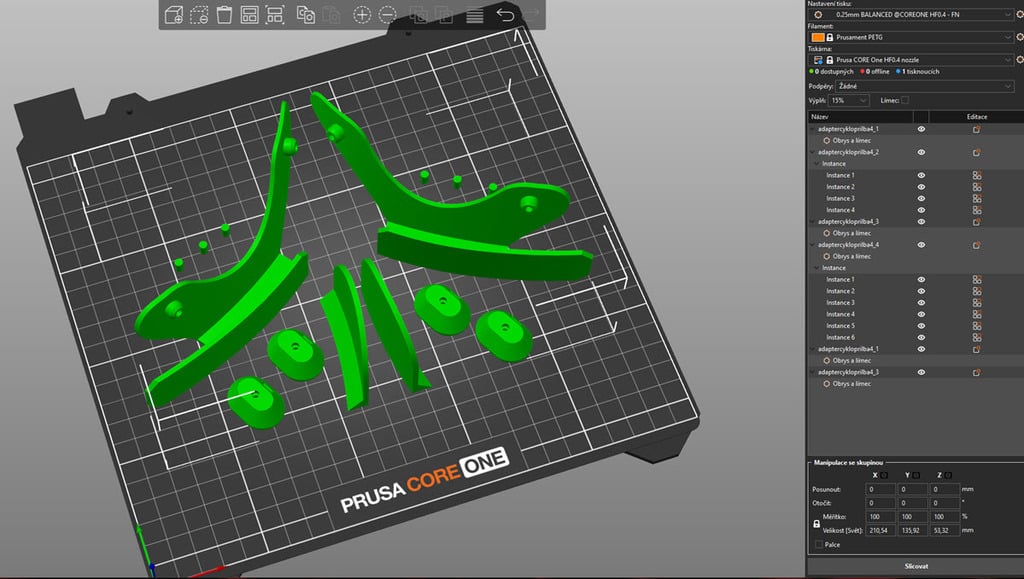

Print Settings
Printer Brand: Prusa COREONE
Supports: No
Resolution: 0,25 mm
Infill: 15%
