Team Raffee Landrover Discovery Gen 1 - Body Parts / Fender / Roffrack / Dashboard / Interior

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
RC & Robotics
Licencja
Creative Commons — Attribution
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

General Description:

  • L and R mean left and right. Most parts are available for both sides; if not, they must be mirrored in the slicer.

  • The body sits on my custom SCX10 chassis. You can also find it here on Printables.

Parts description - Fender:

  • Designed for 110mm wheels.

  • Requires cuts to the body.

  • Print in ASA or ABS and then bond it to the body with ABS adhesive. Extremely durable.

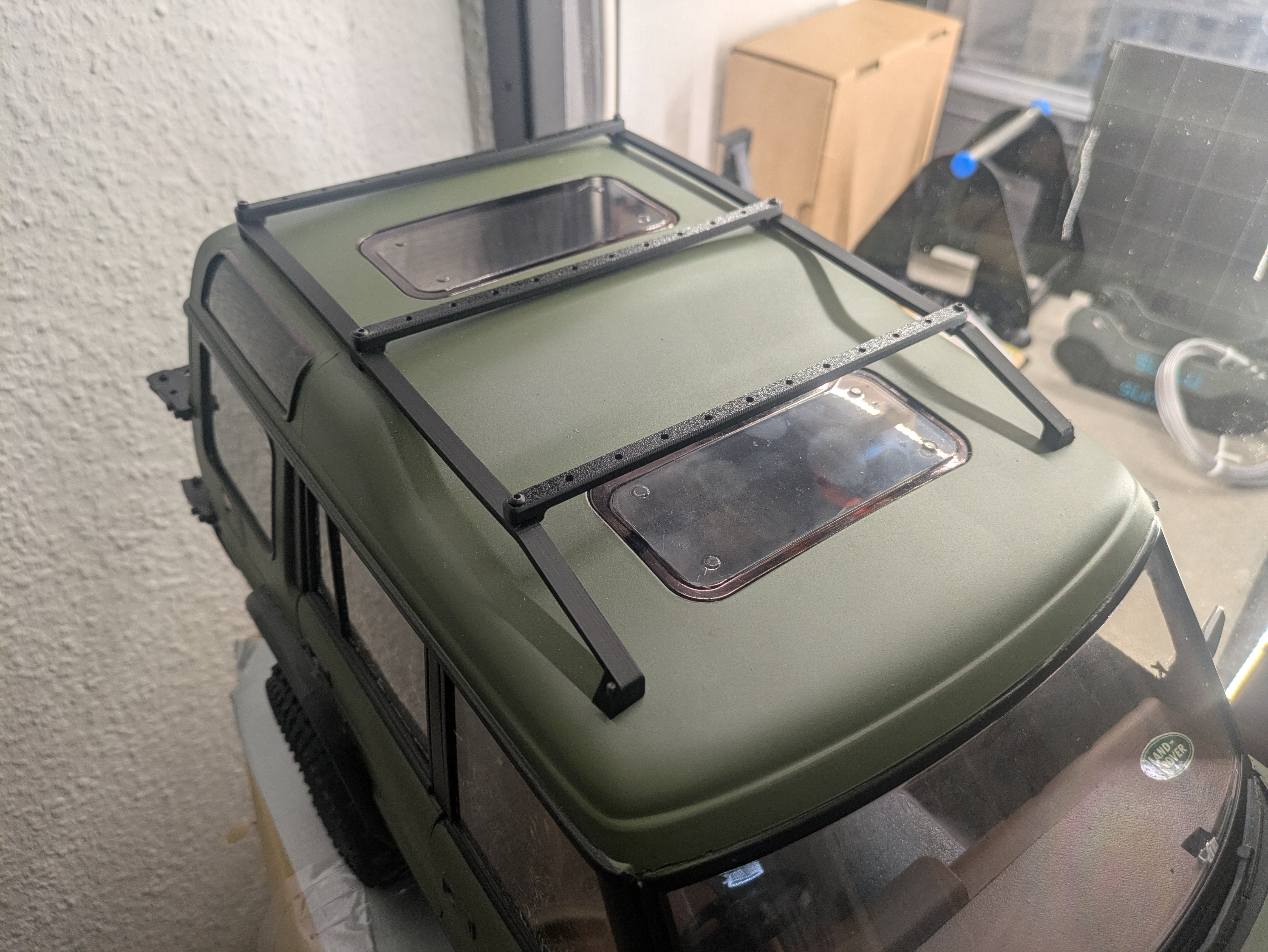

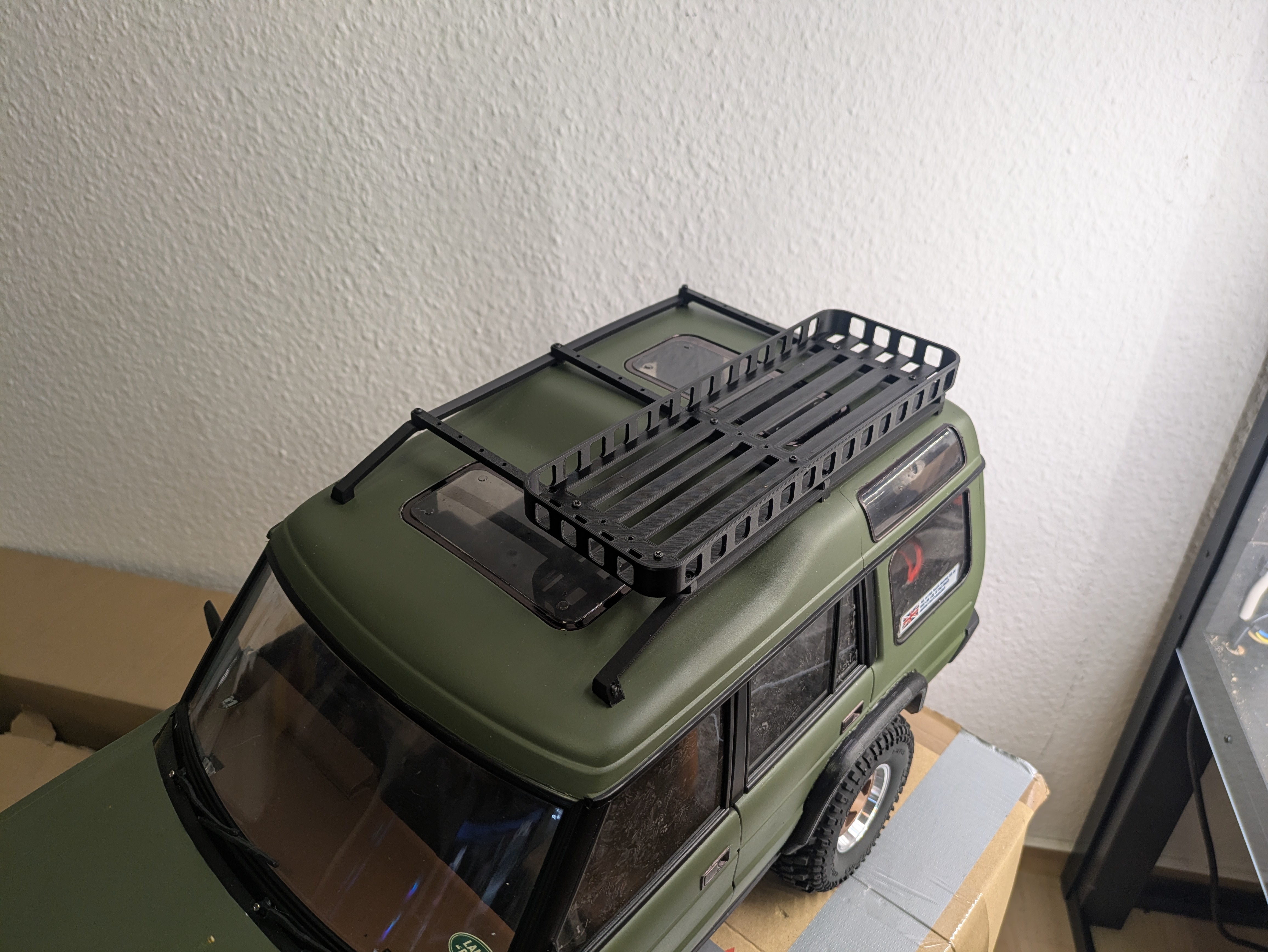

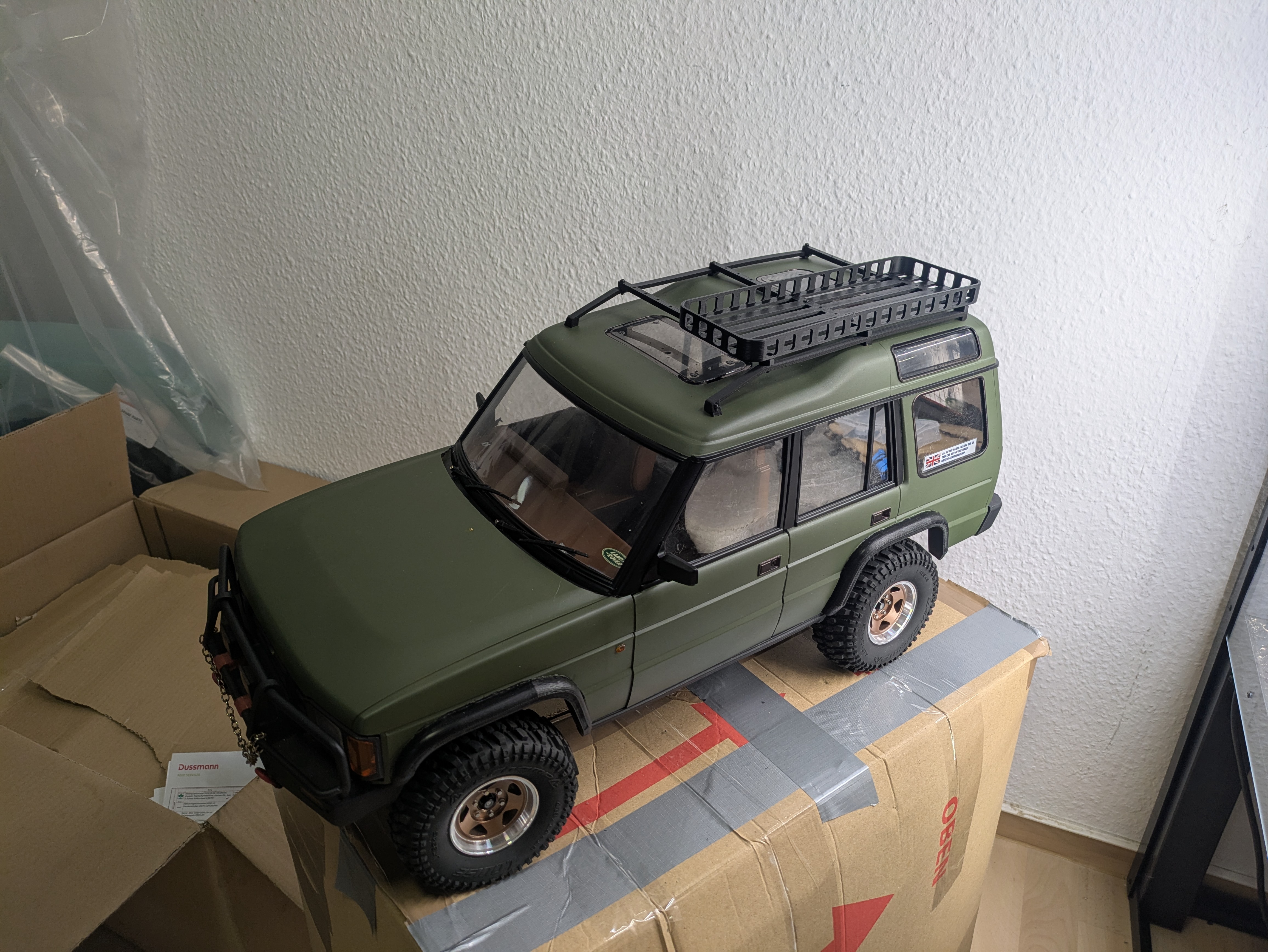

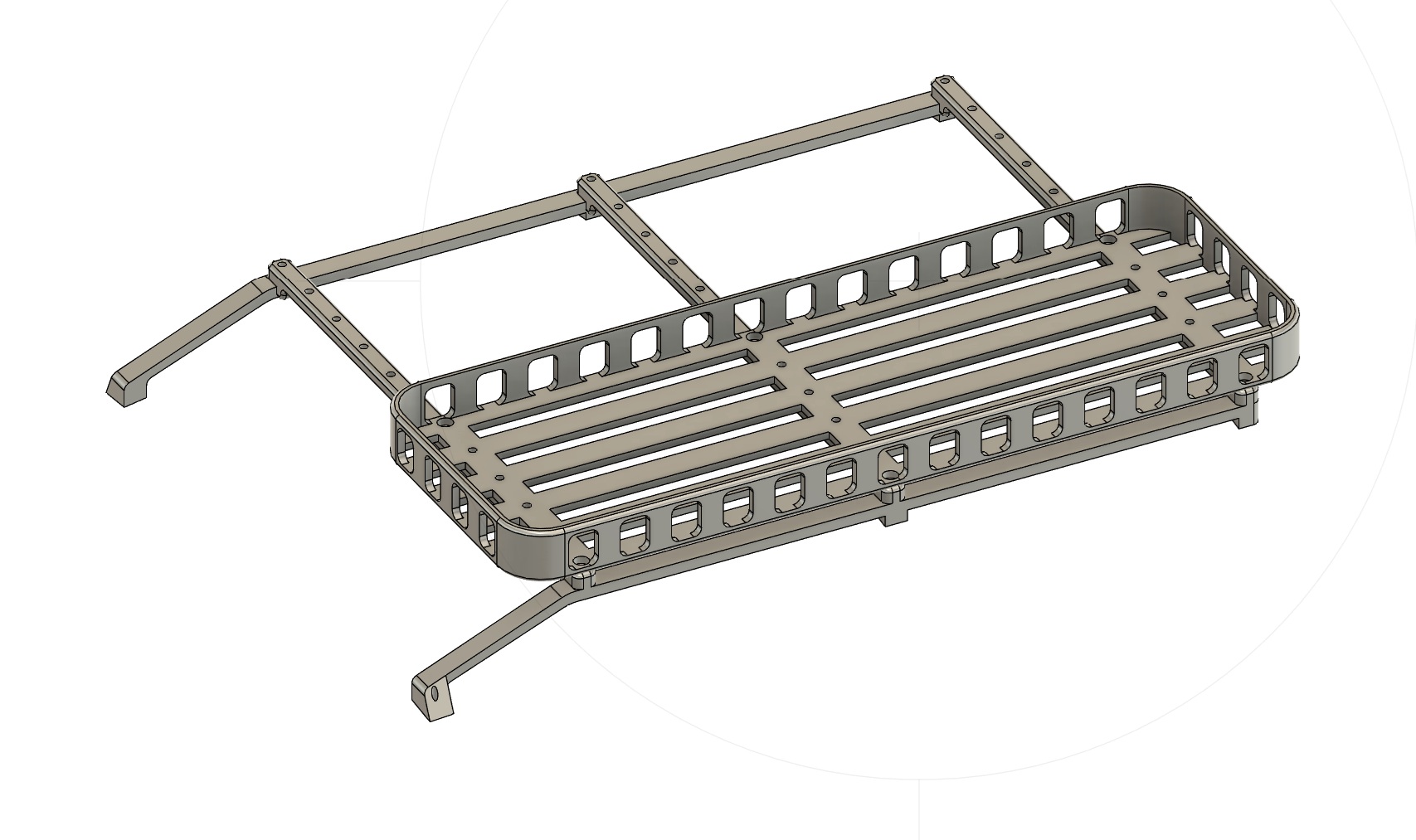

Parts description - Roofrack + Half Roof Box:

  • A roof rack with an optional roof box to put useless scale stuff on.

  • The original holes are used at the front and center. New ones must be drilled at the rear.

  • Secure with M2 screws and nuts. Except for the front, screw the screws into the rails from below.

  • The middle part must be printed three times.

  • The Roof Box is connected to the Roofrack with M2 screws.

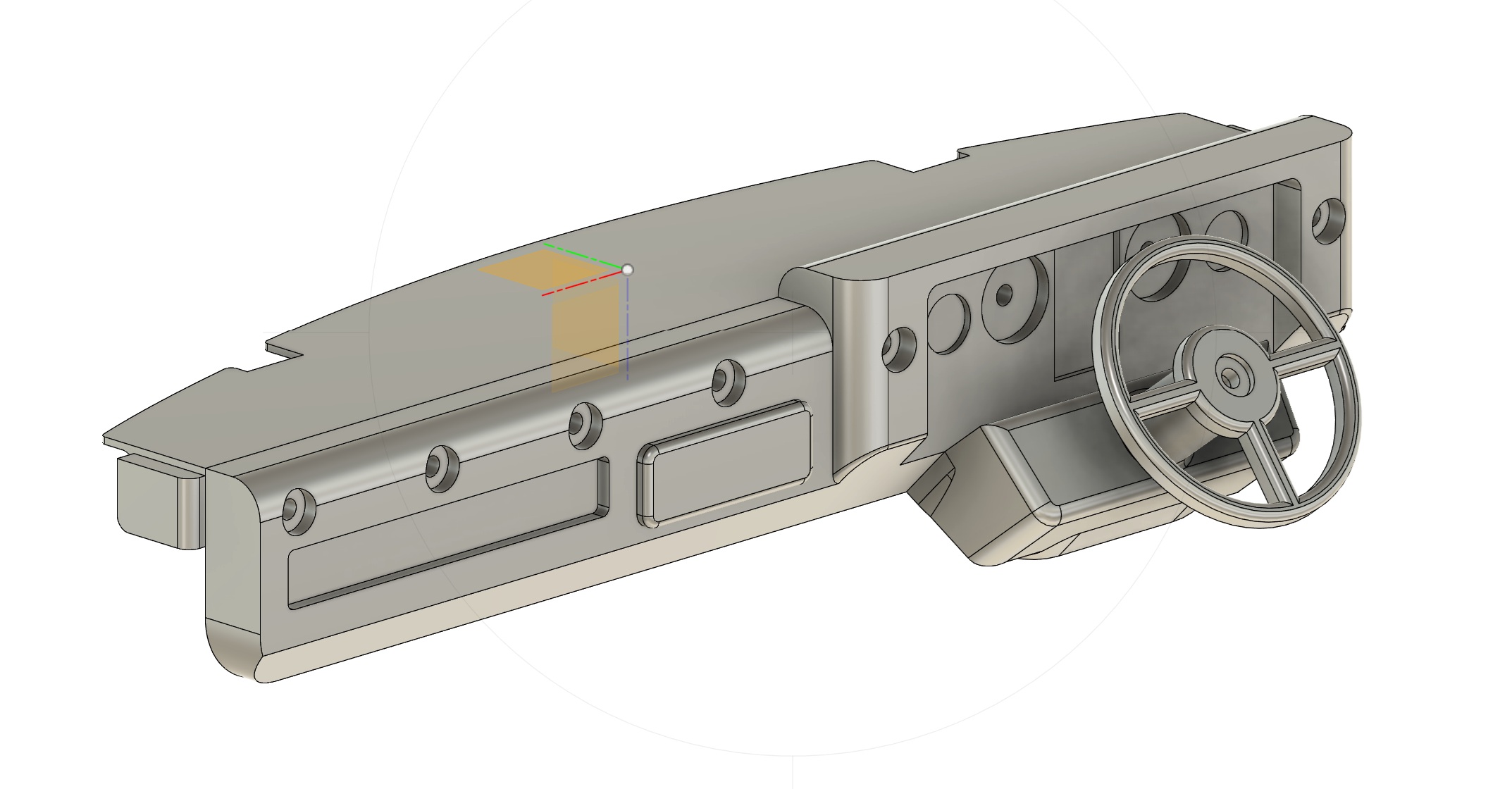

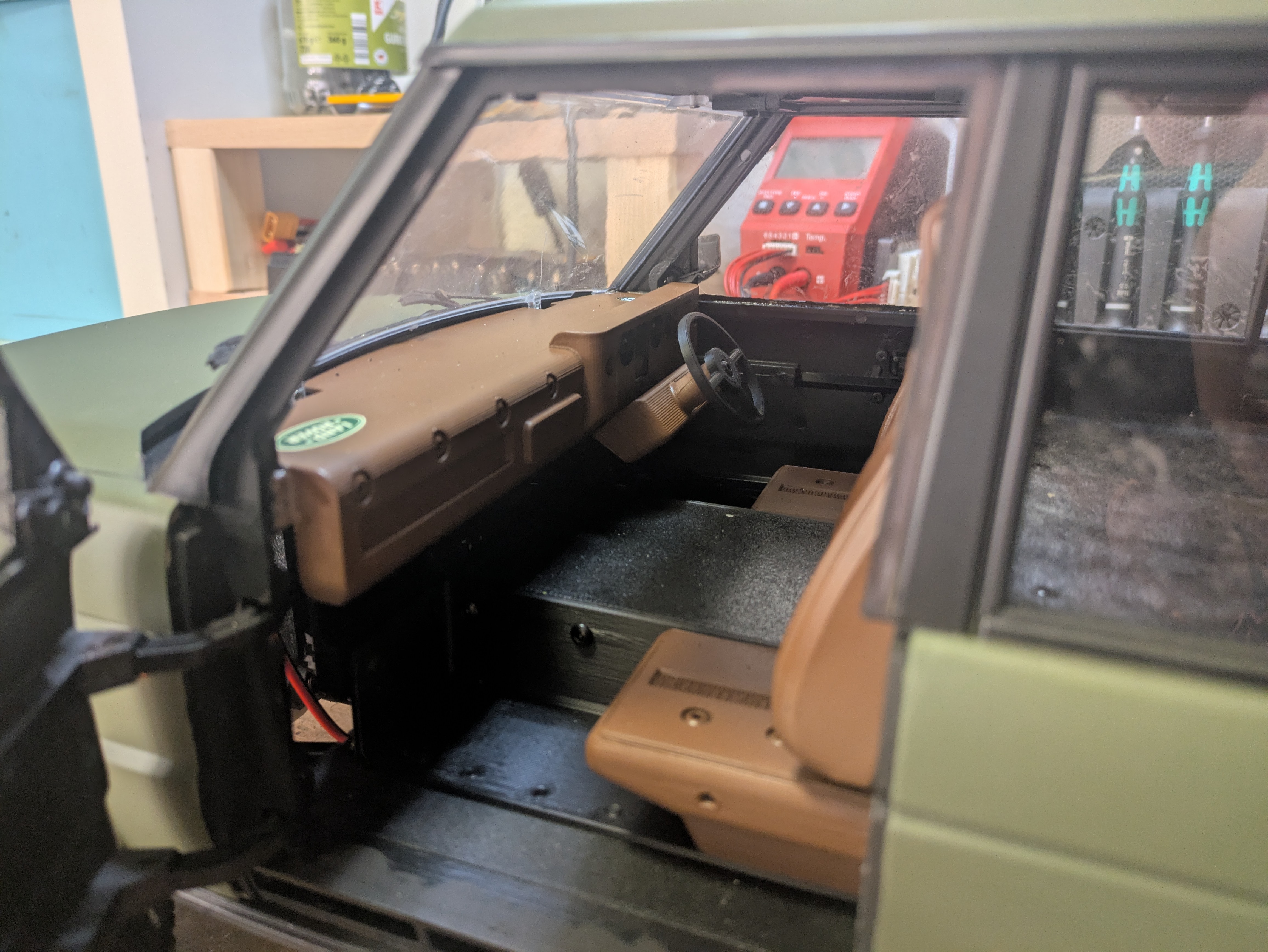

Parts description - Simple Dashboard:

  • Absolutely not true to the original, but that's all I can do with Fusion at the moment.

  • If desired as a left-hand drive, mirror in the slicer.

  • Parts are connected with m3 screws, the entire dashboard is then glued into the body.

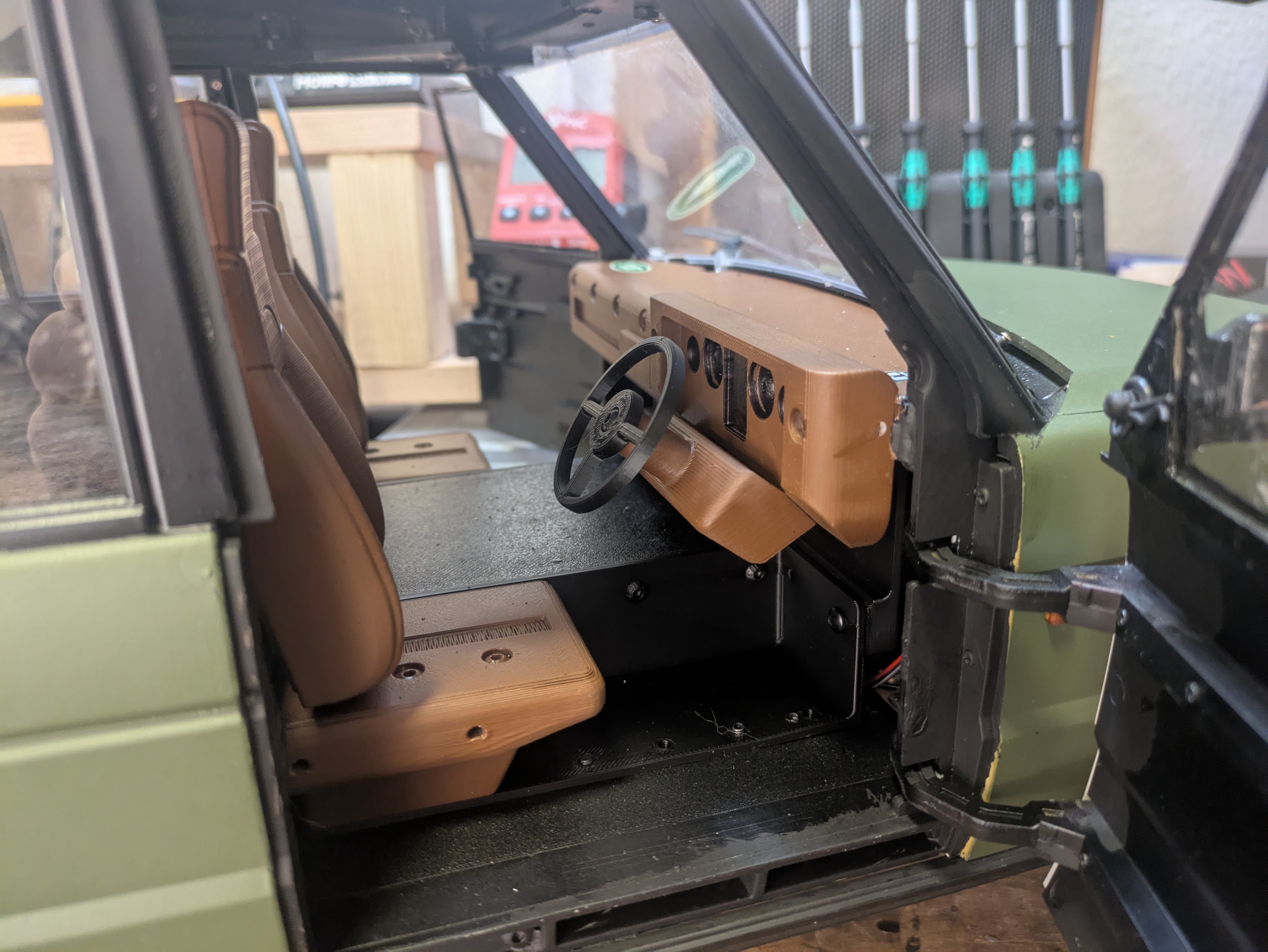

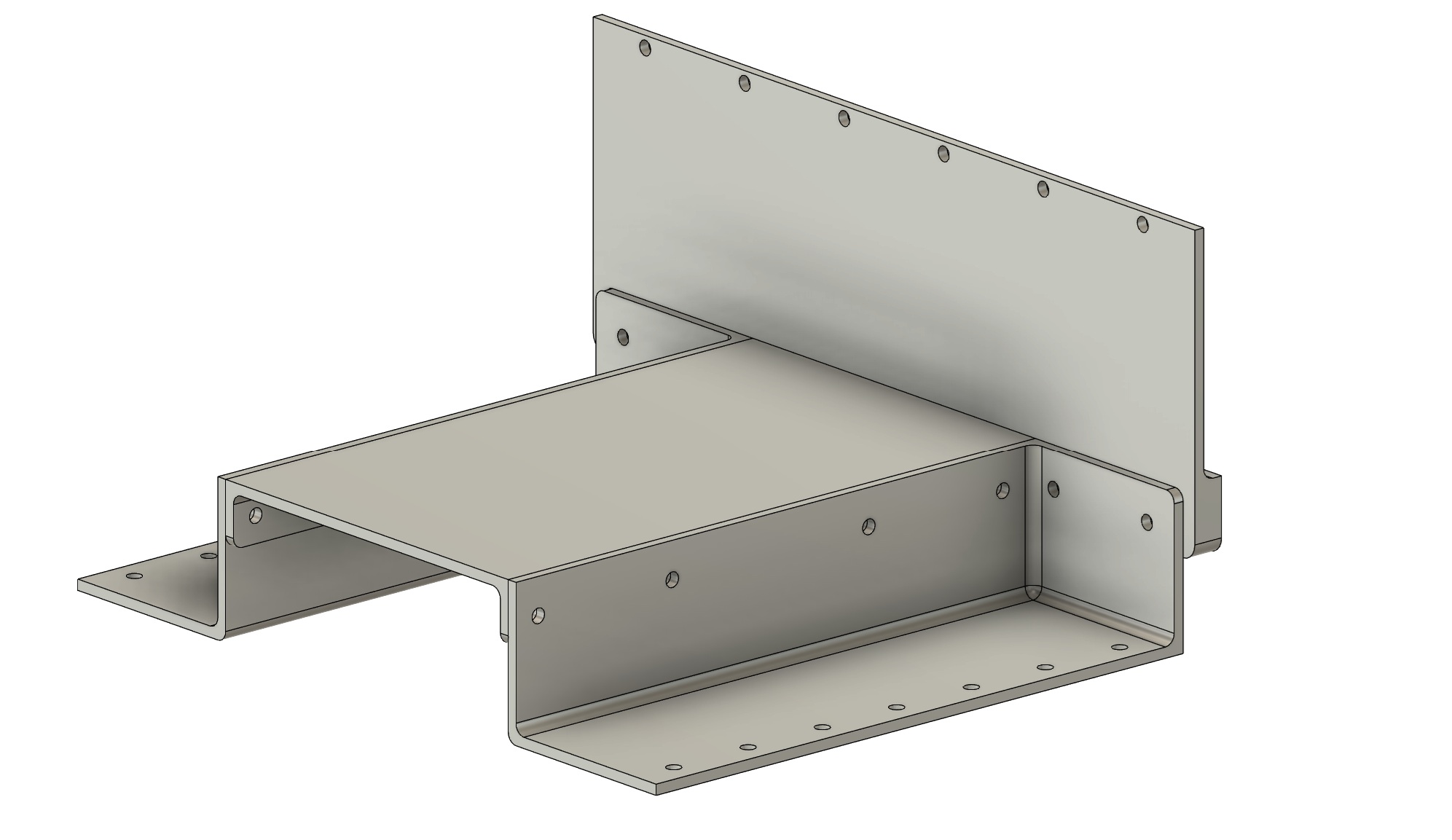

Parts description - Interior:

  • Front interior that is connected to the body mounts of my SCX10 custom chassis (only works with that).

  • Rear part was built from polystyrene.

  • Can be screwed to the dashboard.

Parts description - Magnet Lock:

  • The original locks were too fiddly. Here's a very sturdy alternative.

  • Requires 15x3mm neodymium magnets (glued in with epoxy).

  • The hood part is printed in ASA and glued to the hood. The other part is screwed to the body.

  • The door magnet holders must also be printed in ASA and glued to door and body.

  • The door parts require cuts on the body and door.

Parts description - RCRUN LC80 Parts:

  • I use the RCRUN LC80 bumper here, for this is the adapter to the AXIAL SCX10 hole pattern.

  • I also use the RCRUN LC80 spare wheel holder, which has a clamp that is screwed to the door (M2 screws).
