mini ITX Case Project 009 Micro

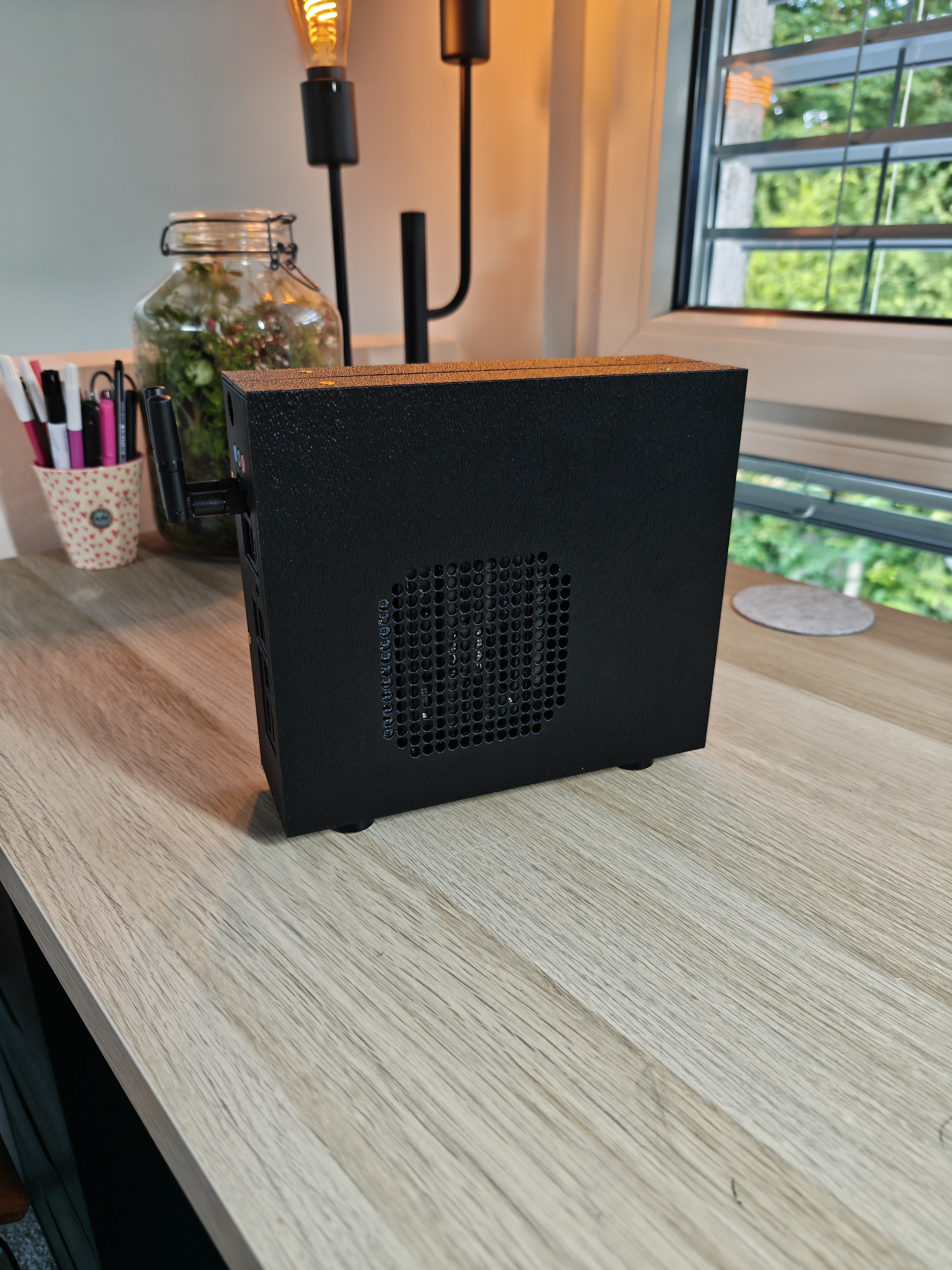

Micro was my very first project that I designed entirely from scratch. While it was loosely inspired by a concept from Optimum, the Nano Rig. I pushed the idea further: making it even smaller, simpler, and built without a dedicated GPU.

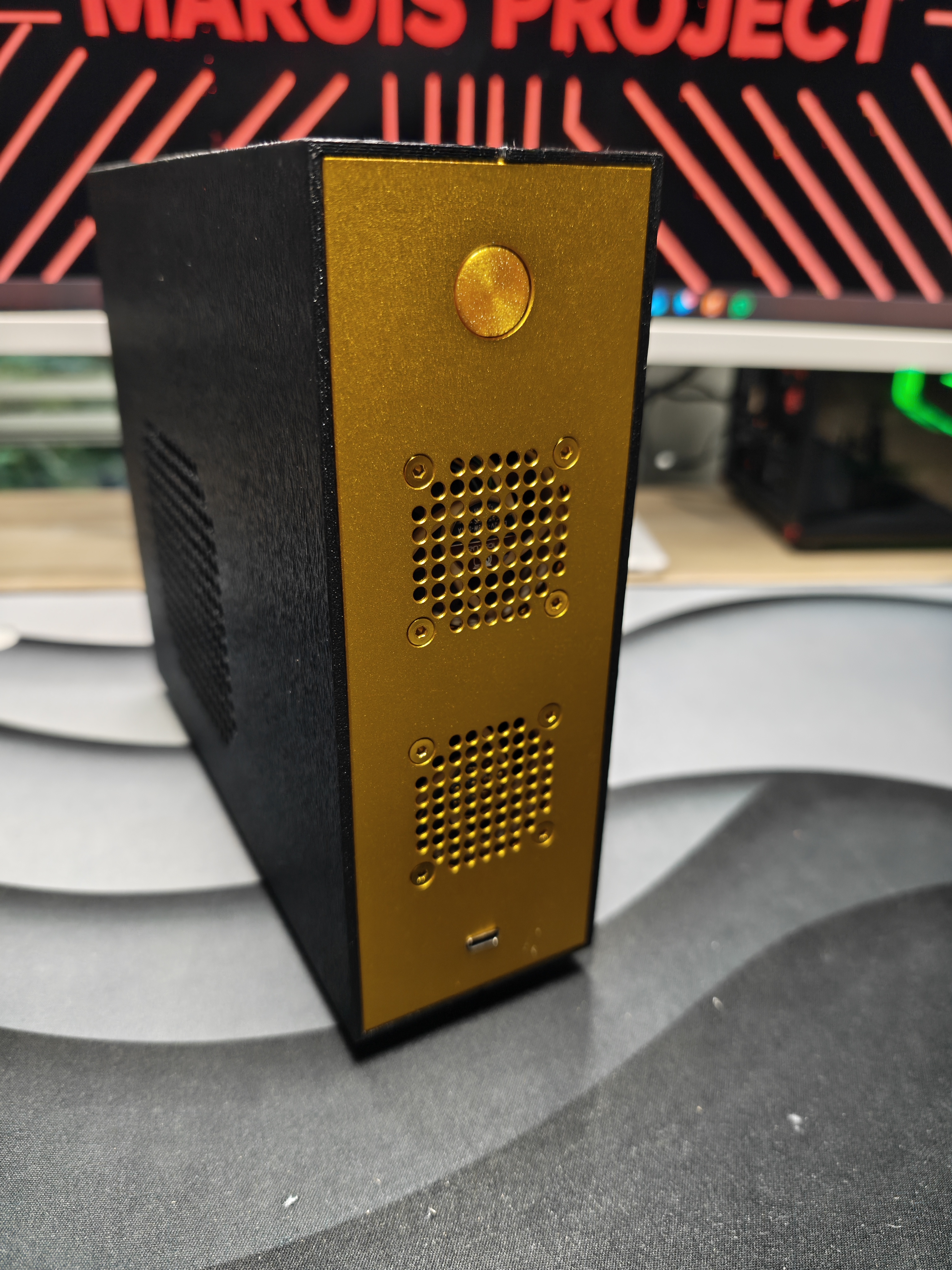

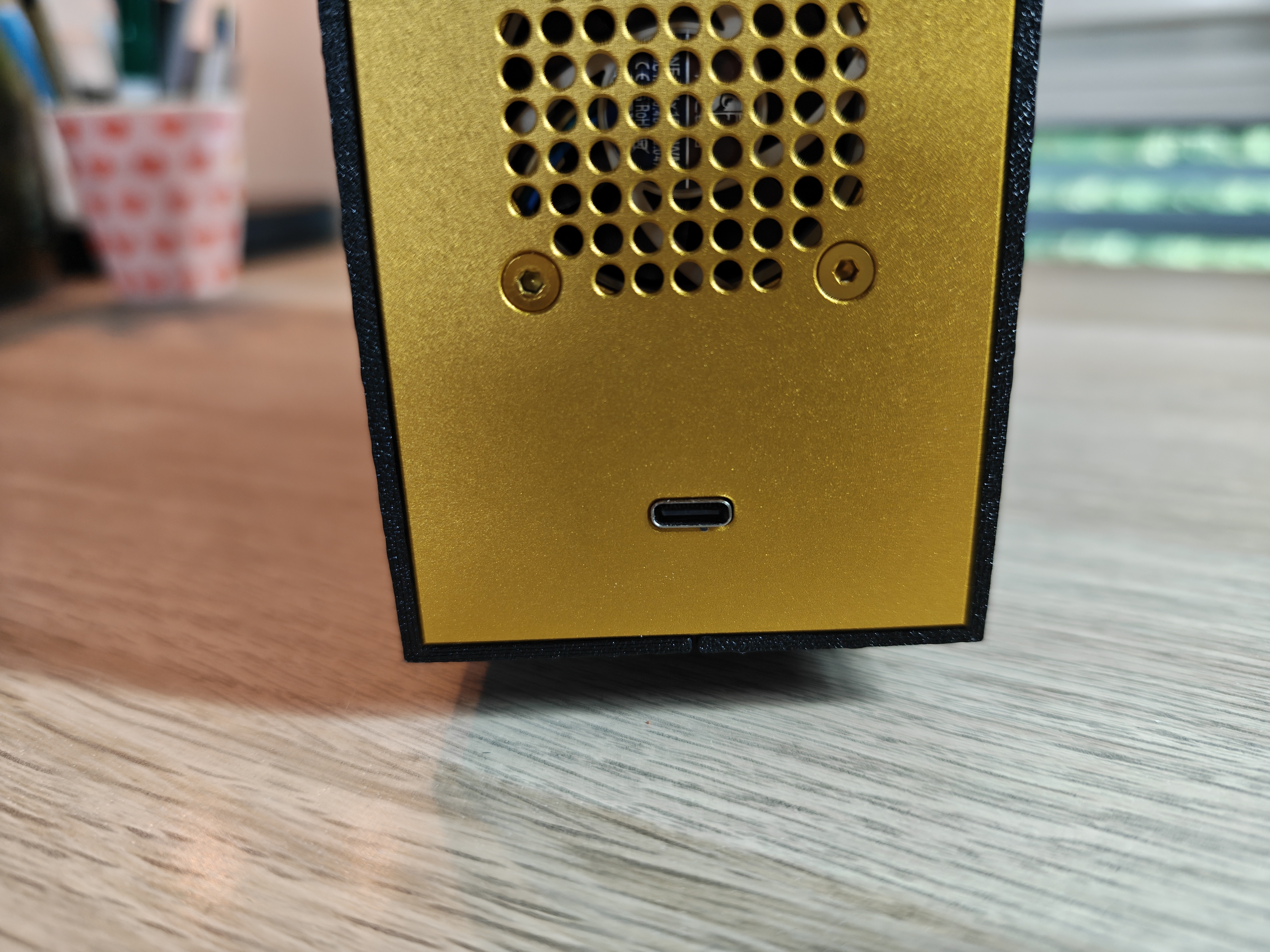

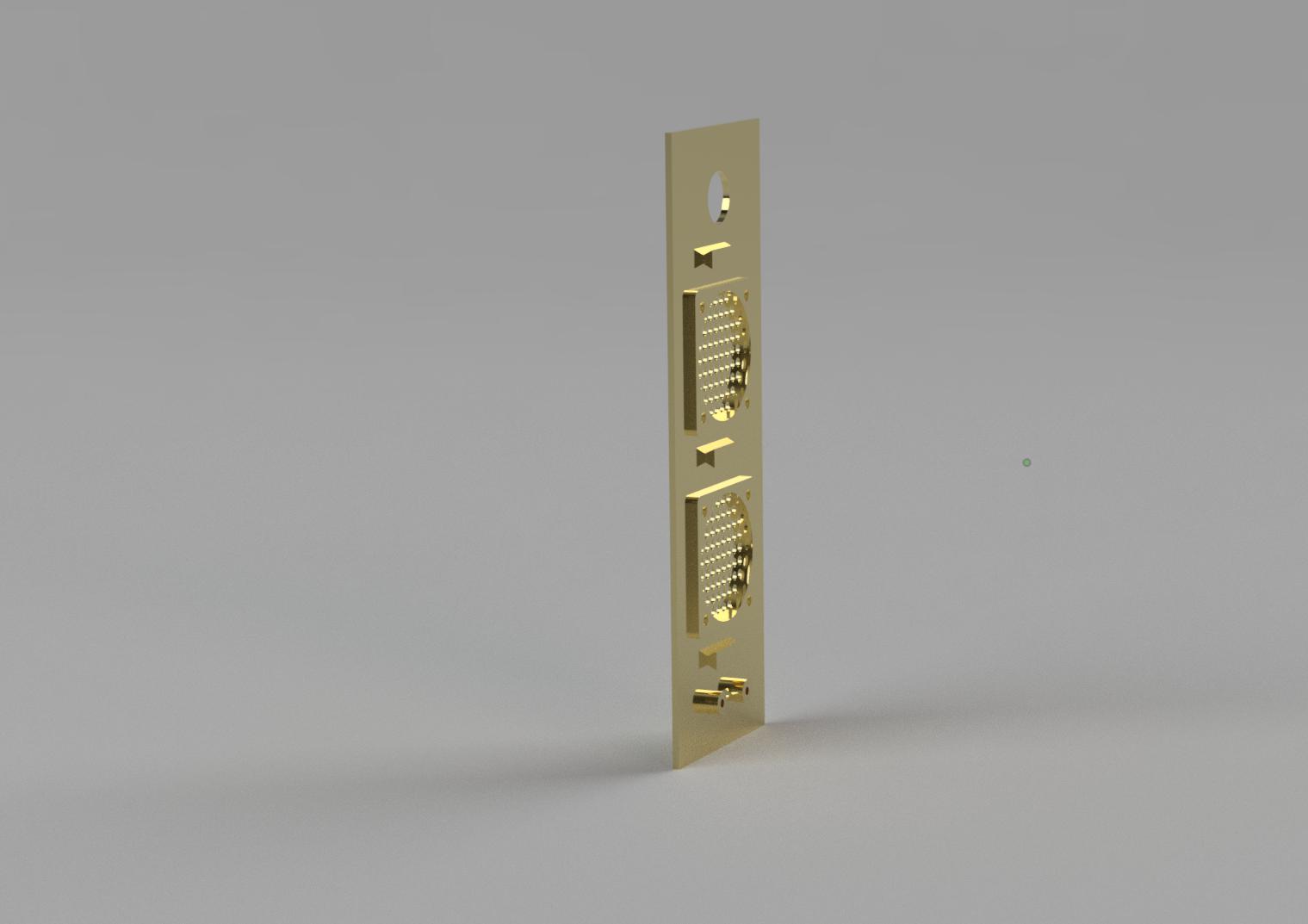

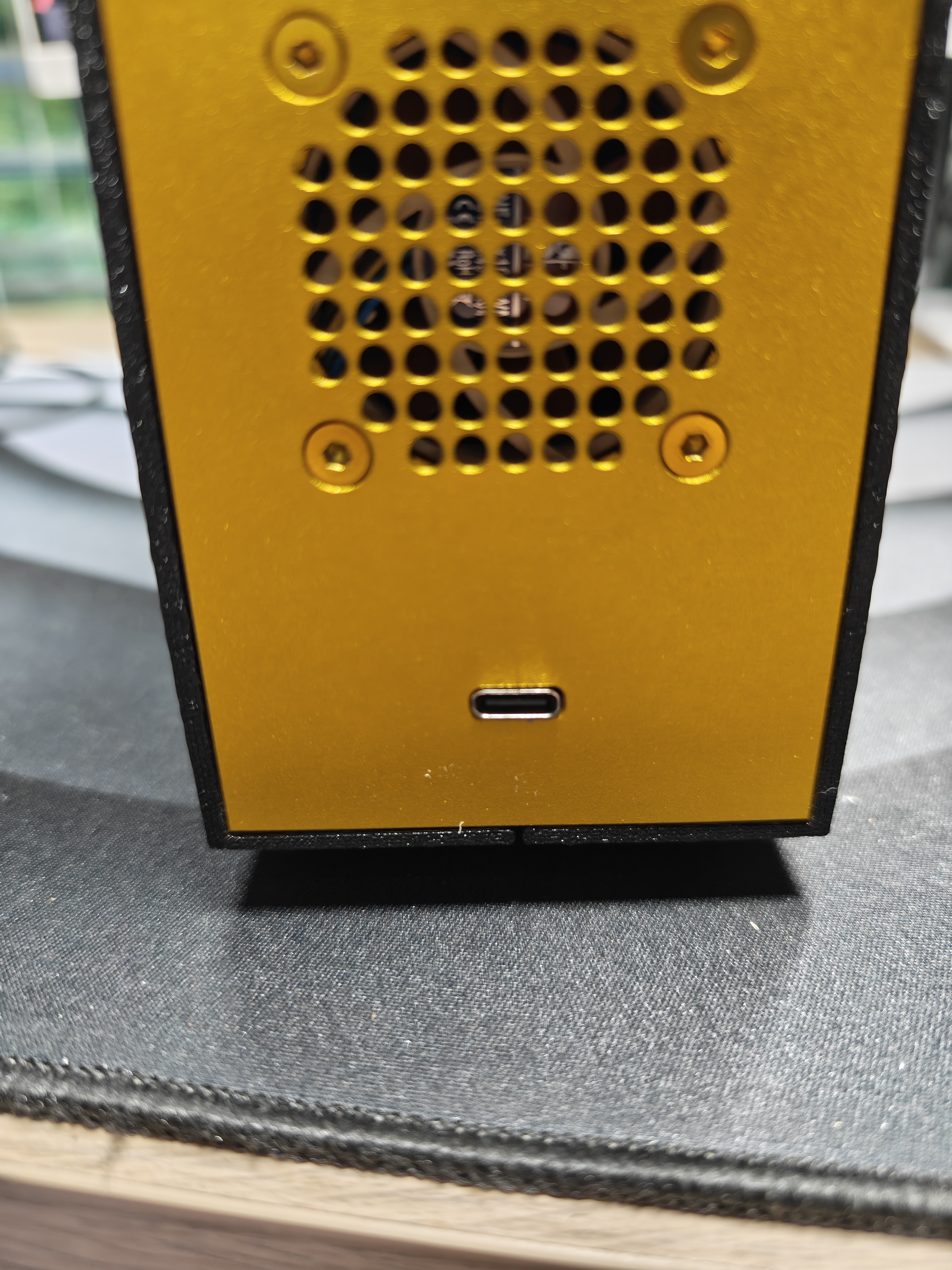

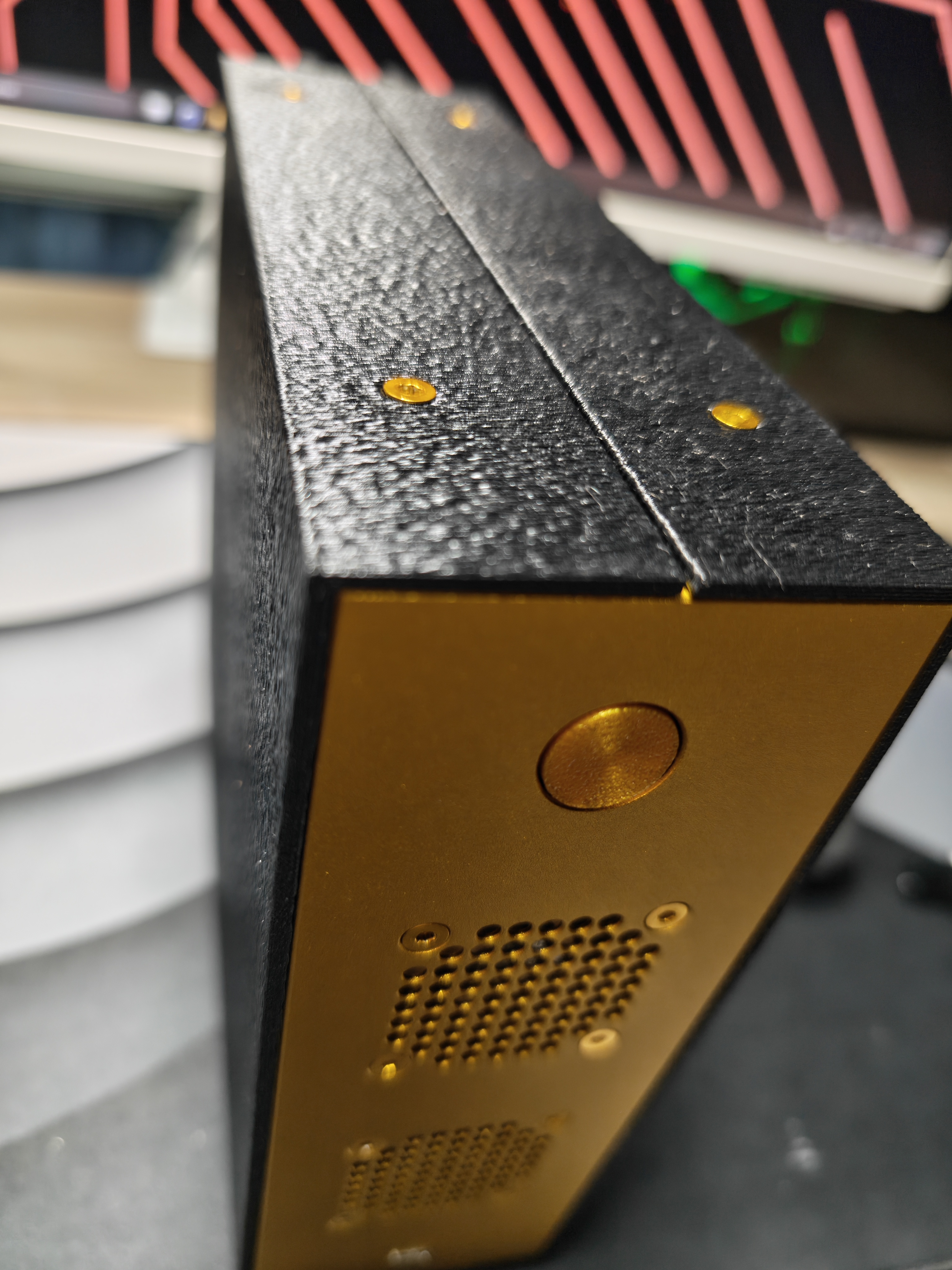

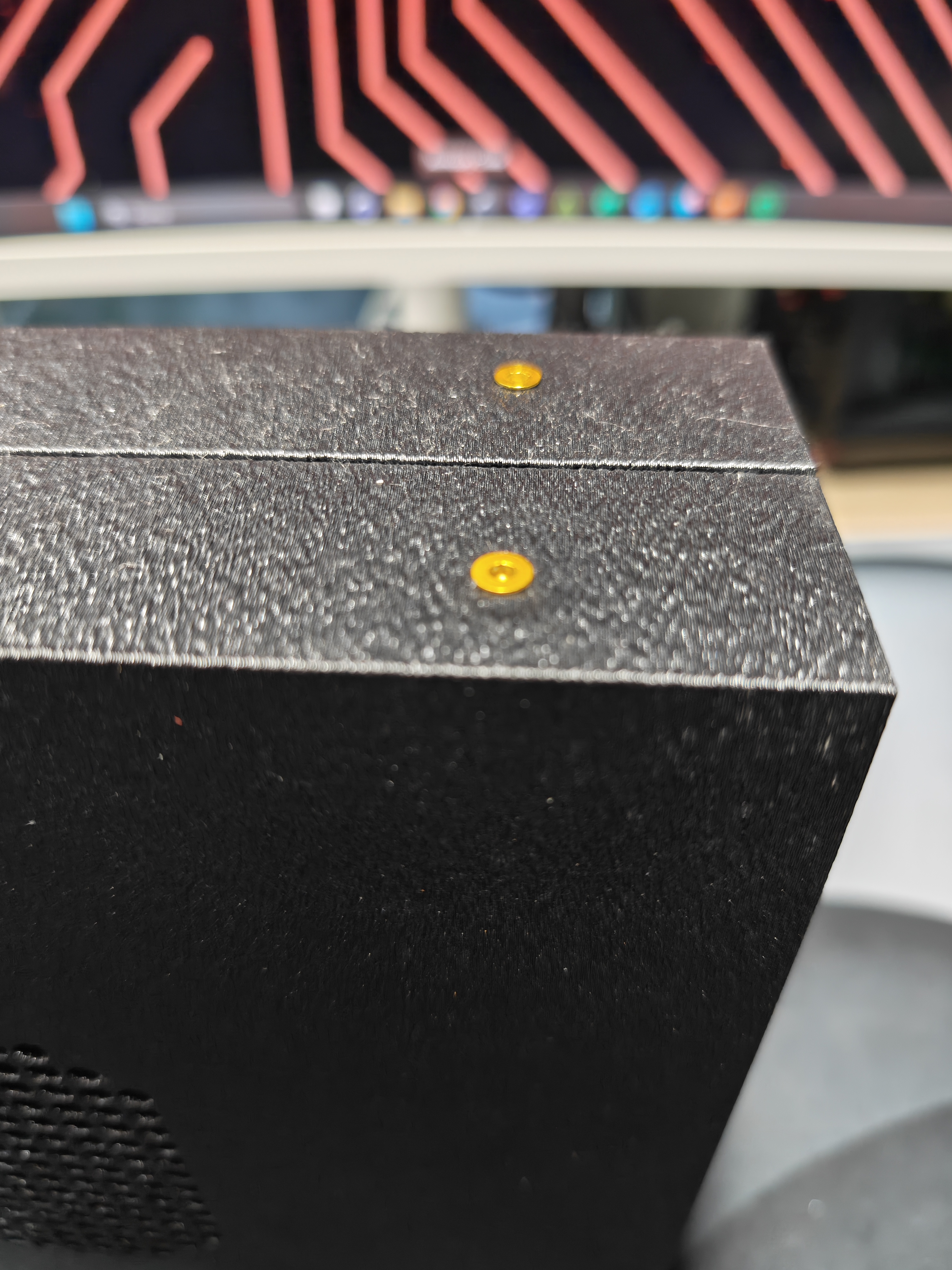

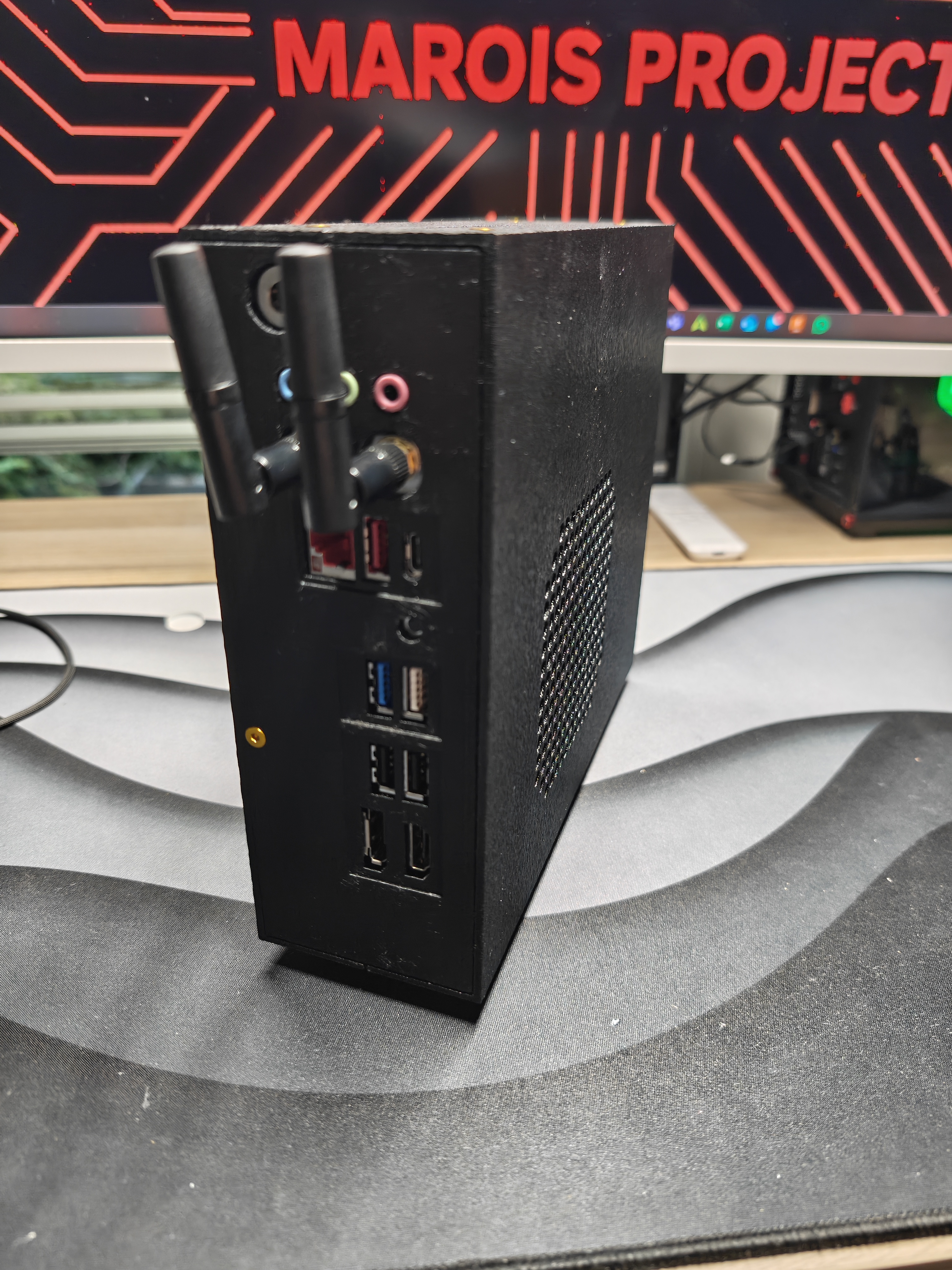

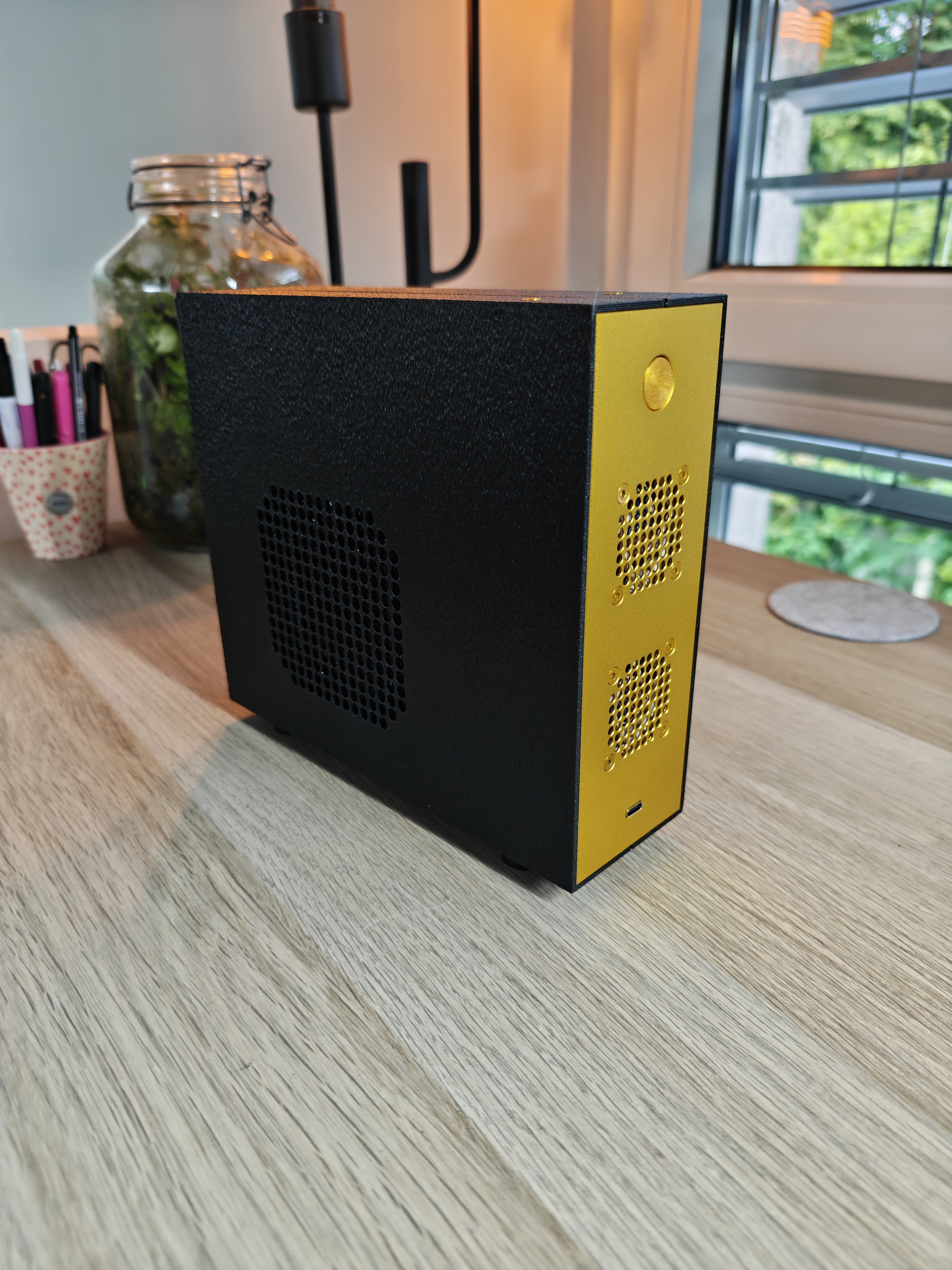

The case was a huge milestone for me – 3D-printed in carbon fiber with a custom anodized aluminum front plate I had produced to my own design. Power was another challenge: instead of a standard PSU, Micro runs on an external power supply paired with a Pico-style DC-ATX unit, keeping the internal volume incredibly tight.

For performance, I chose the AMD Ryzen 7 8700G – a powerful APU with strong integrated graphics, ideal for such a compact system. Cooling was solved with a Noctua NH-L9a-AM5 low-profile cooler and two tiny Noctua 40 mm fans in the front, proving that even in ultra-small form factors, airflow and stability can be maintained.

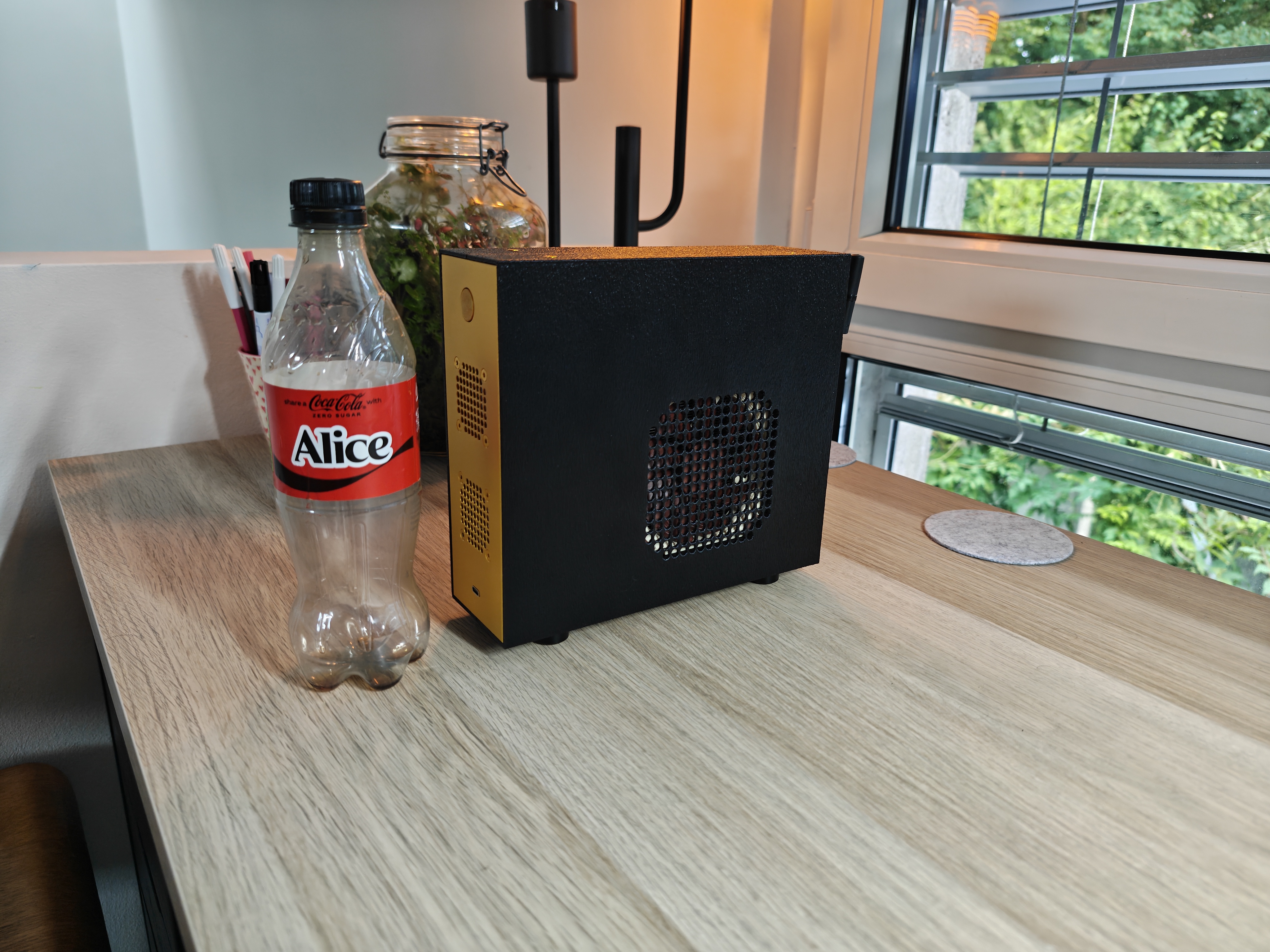

The goal was simple but ambitious: build an ultra-compact PC that still delivers excellent everyday performance. Micro achieved exactly that – and today it has found a new owner who is absolutely thrilled with the result.

Bring the iconic Project 009 – Micro to life with these downloadable 3D print files.

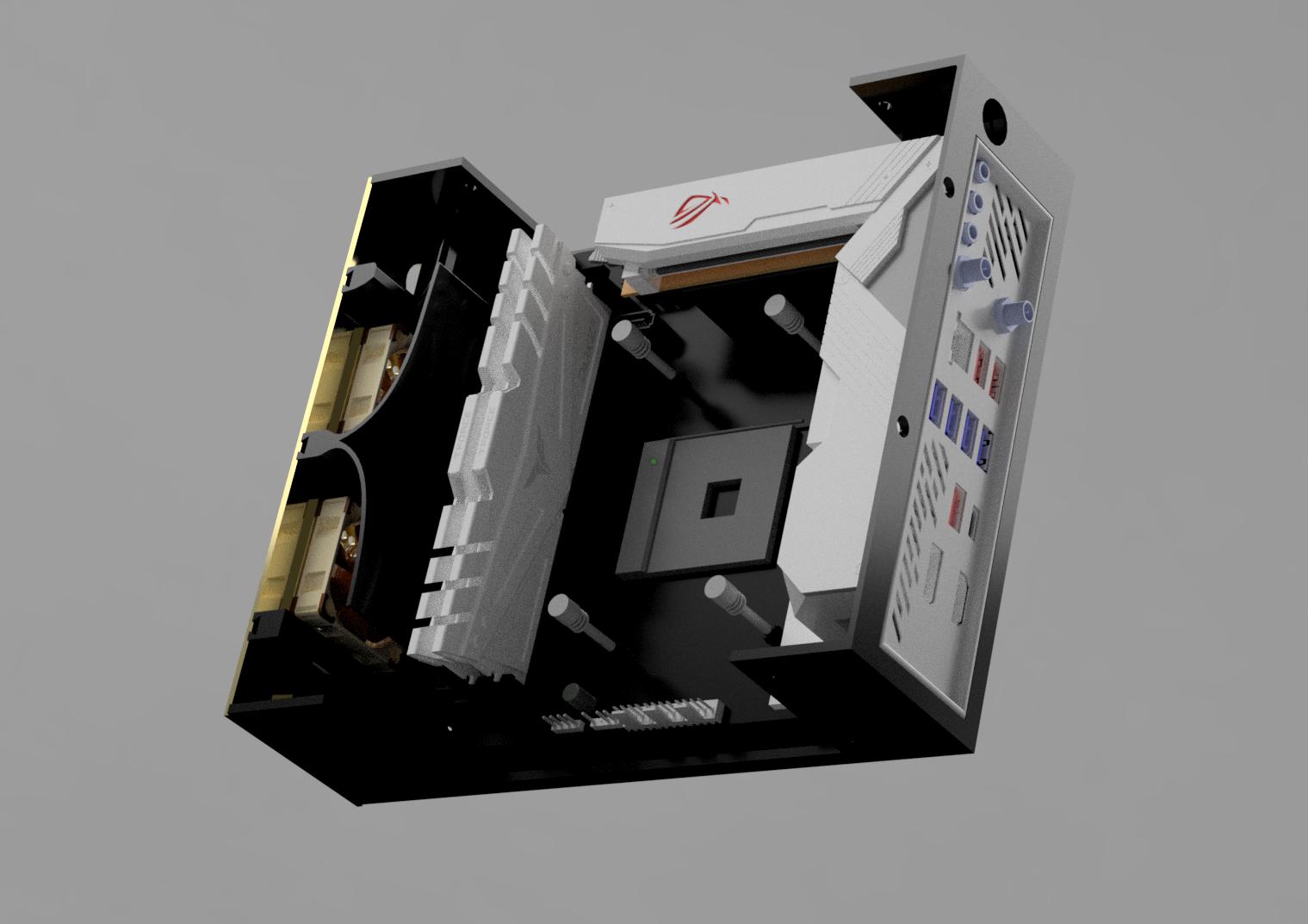

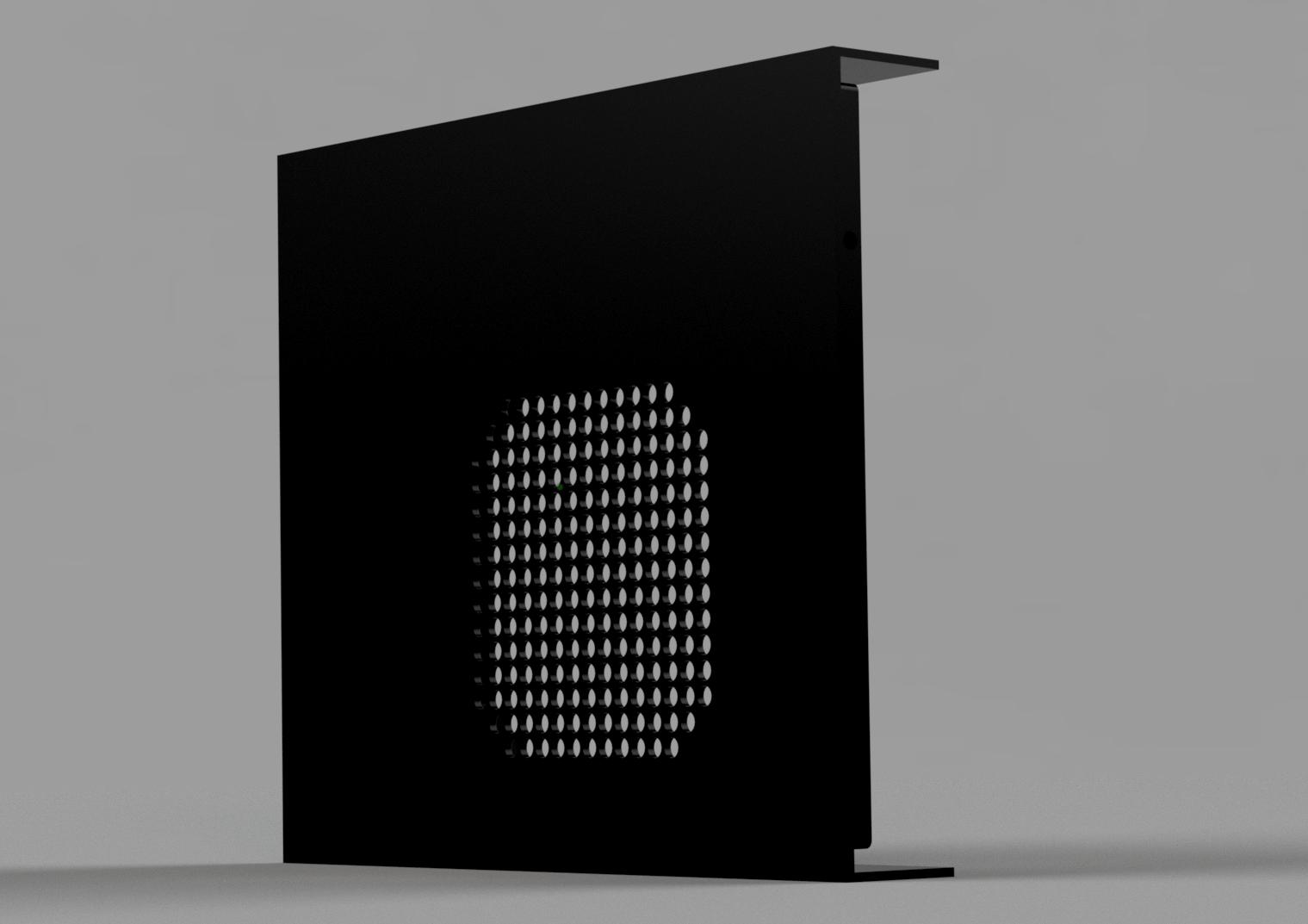

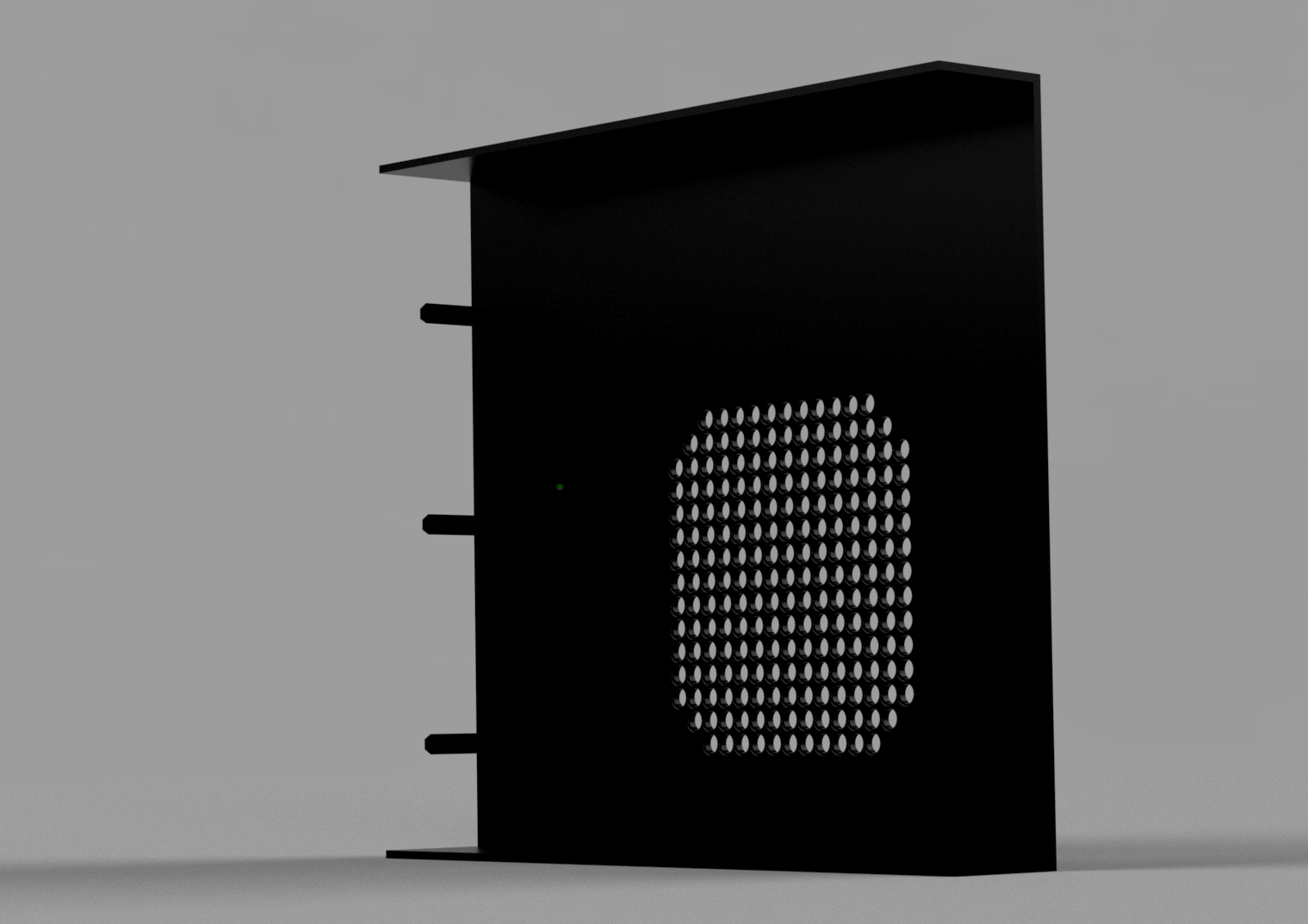

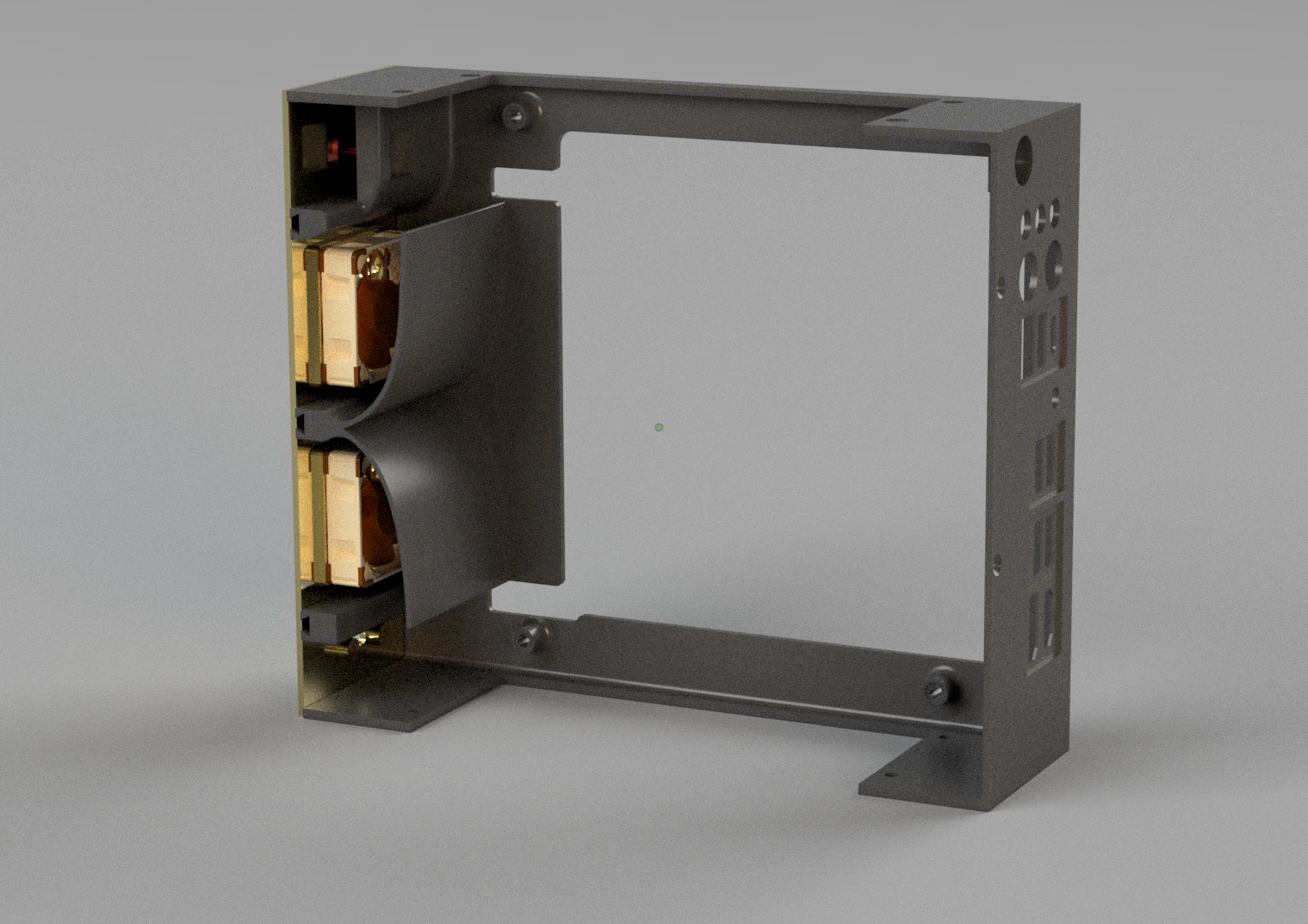

This ultra-compact case was completely self-designed and optimized for performance in the smallest possible footprint. With space for two 40 mm fans at the front, and a design proven in real builds, it’s the perfect project for SFF enthusiasts who want to print and assemble their own Micro PC.

The case is best printed in ABS or PETG for durability and heat resistance.
For more details about the build and its story, please visit the Project 009 – Micro page.

What you need:

Power button (Ppower button with LED (1.65 m) (modificasion needed)

M3 screws

Brass inserts M3 × 4 mm

Fans (supports up to 2 × 40 mm fans, like Noctua NF-A4x10 PWM (40 mm, front intake))

PC components (CPU, motherboard, RAM, SSD, etc.)

picoATX power supply (Inter-Tech pico ATX PSU 160 W 20-pin ATX)


This is the confik i used:

CPU: AMD Ryzen 7 8700G (8C/16T, integrated Radeon graphics, Ryzen AI, up to 5.1 GHz)

CPU Cooling: Noctua NH-L9a-AM5 Low-profile Cooler

Motherboard: GIGABYTE B650I AX (Mini-ITX, WiFi 6E, PCIe 4.0, DDR5 support)

RAM: Kingston Fury Beast 64 GB (2×32 GB, DDR5-6000 MHz)

Storage: Crucial T500 1TB PCIe Gen4 NVMe M.2 SSD (with heatsink, up to 7300 MB/s)

PSU / Power Supply:

External 200W PSU

Inter-Tech pico ATX PSU 160 W 20-pin ATX

Fans:

2× Noctua NF-A4x10 PWM (40 mm, front intake)

Accessories & Cables:

Ppower button with LED (1.65 m) (modificasion needed)

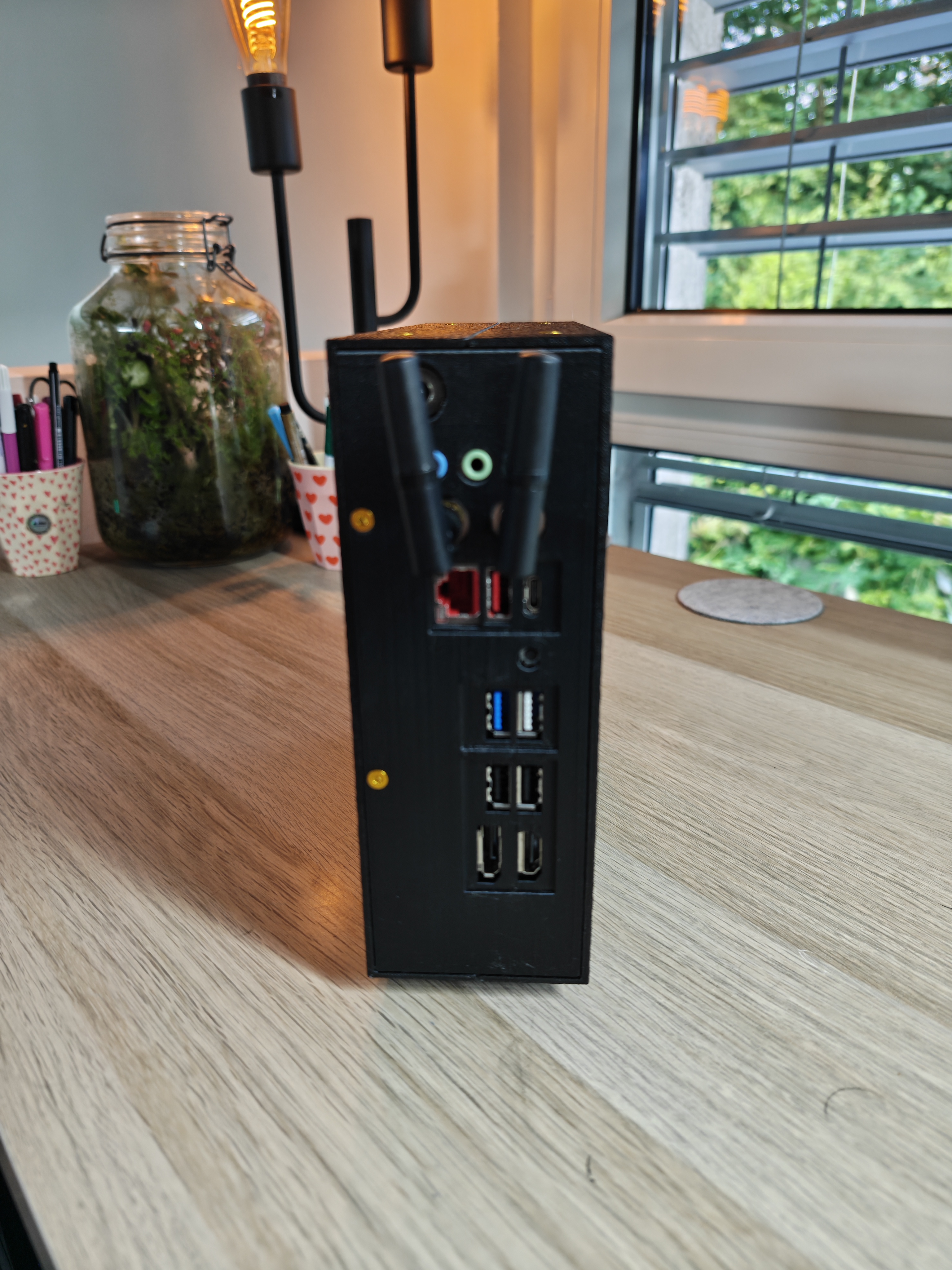

Nelawya WLAN antenna

Miscellaneous accessories & small parts

Software: Windows 11 Pro
