Material
- Print 4× ribs (or add more thin ribs), connector, tail and nose
- 13cm paper or foil
- 3 skewer ∅ 3mm
- 4 × rubber bands
- tape

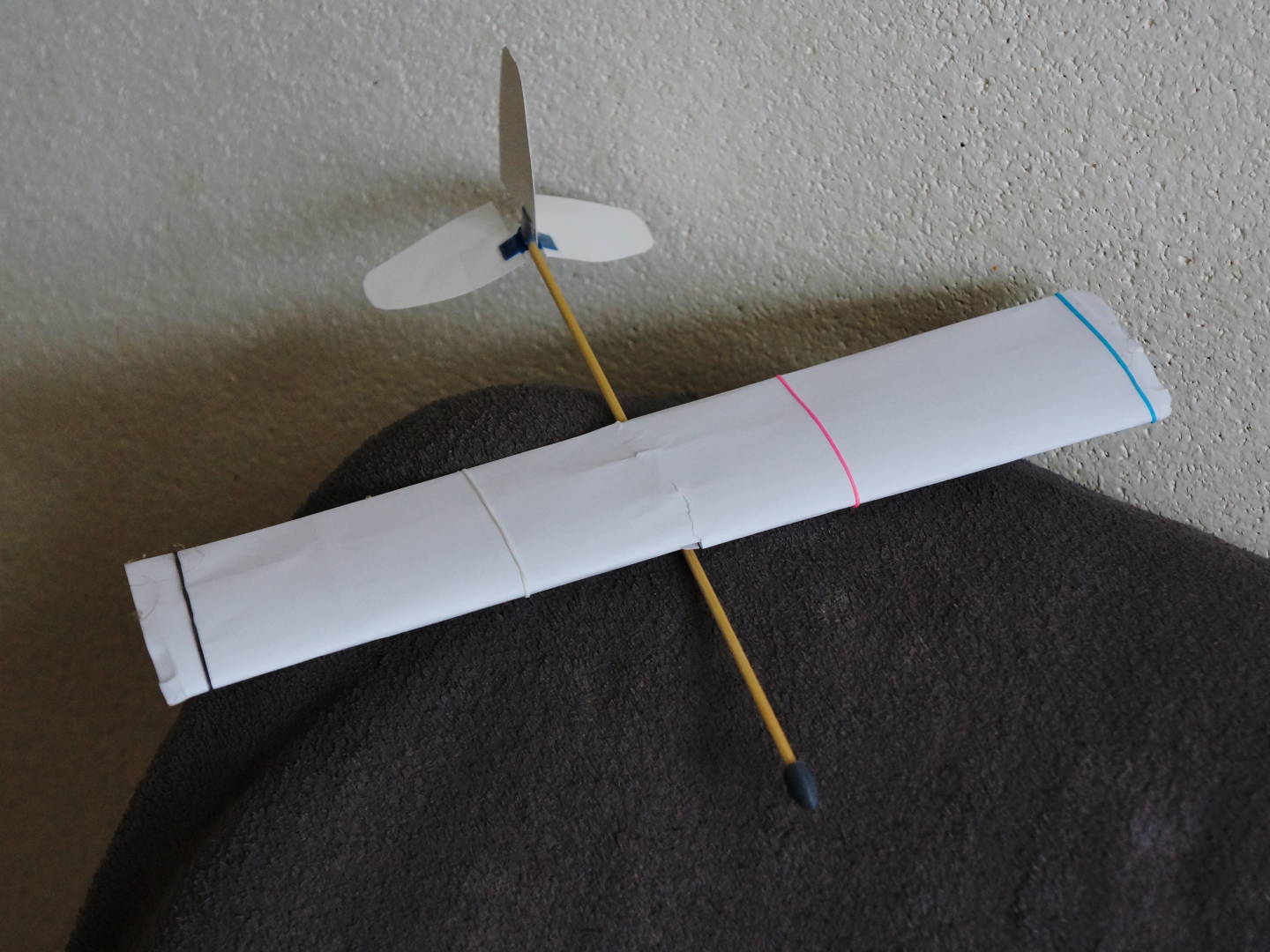

Assembly

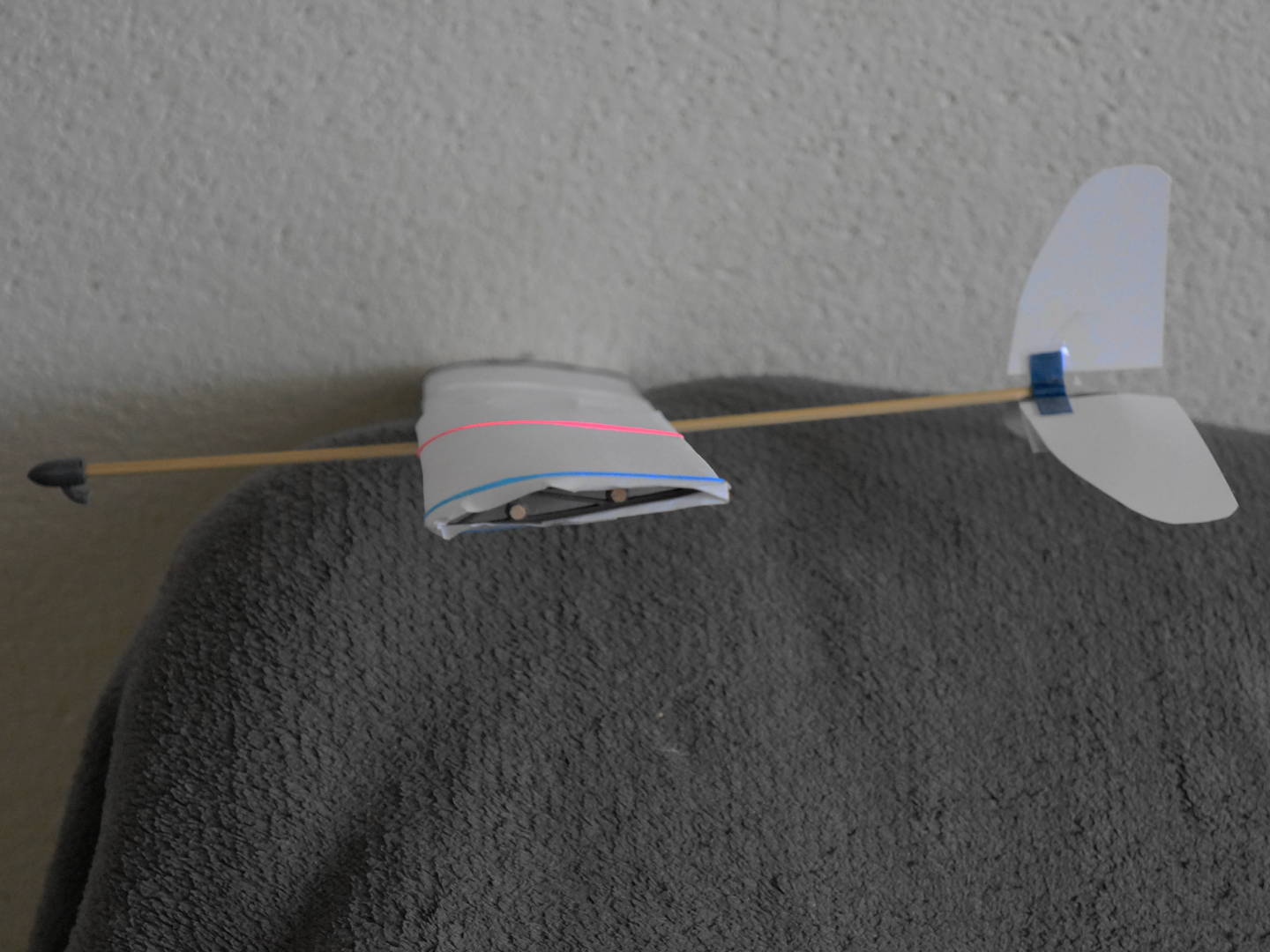

- Put 2 skewer through the 4 ribs and space them equally. Ribs are asymmetrical NACA 2412 profiles - make sure they all align.
- Use loom rings or any rubber band that stretches around a rib (12 cm) to fix some foil or just thin paper
- Use a 13-14cm stripe and overlap so the top layer is with the flow ⇒ —____
- Use some tape if needed.
- Make an incision so the connector fit in and clip another skewer with the nose attached onto.
- Add the tail and put folded paper into the slits
- test ⇒ Fly .. ⇒ adjust ⇒ Fly ⇒ repeat
