Replicator 2 Corner Wide Angle Pi Camera Mount

Remixed from https://www.thingiverse.com/thing:2258287

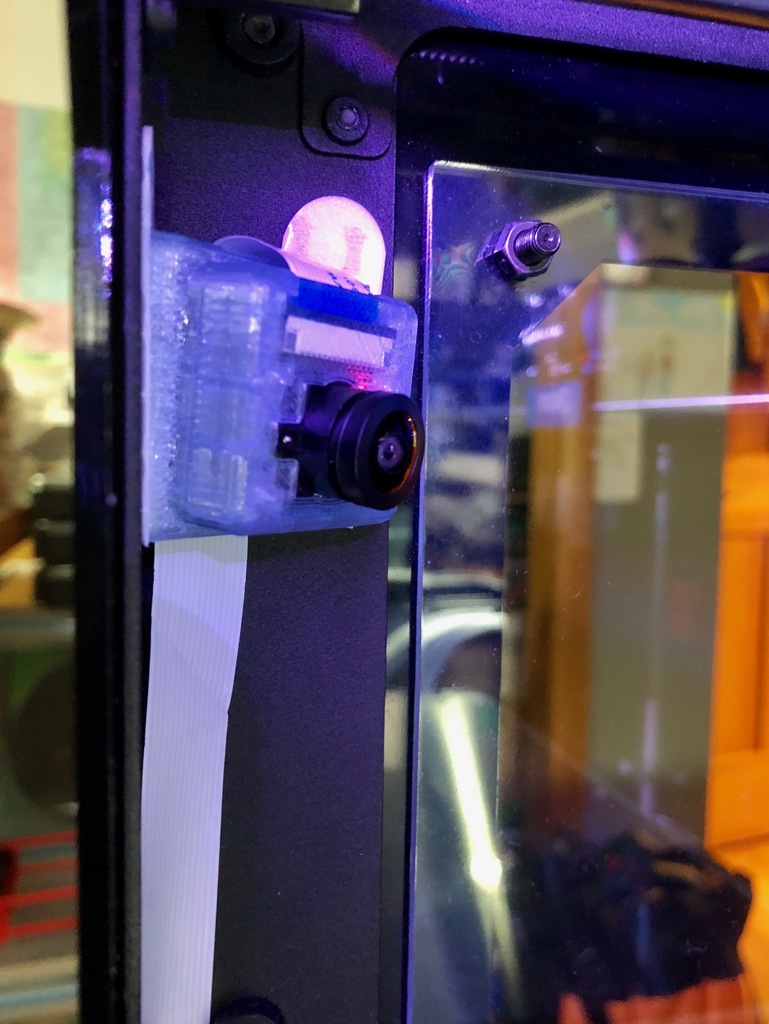

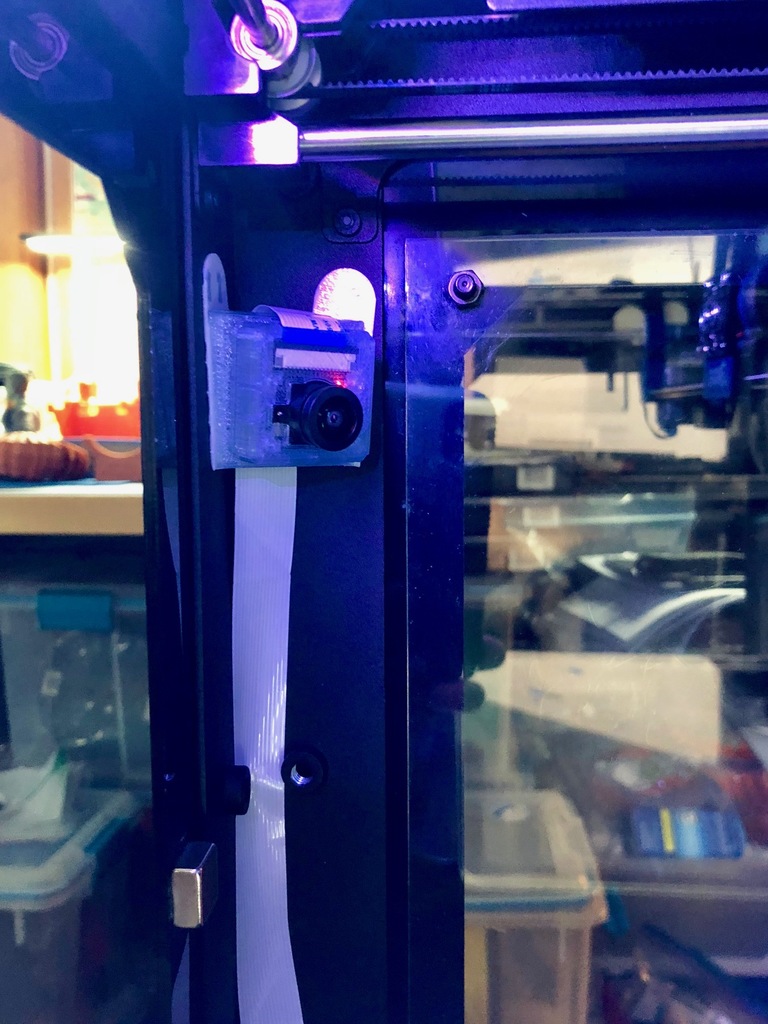

I wanted a mount for my Replicator 2, and wanted to build the angles into the mount itself. The original mount has been given a 5 degree down angle and a slight 5 degree turn towards the front of the machine (if mounted on the front left side, mirror if you want it on the right) in order to center the bed a little better.

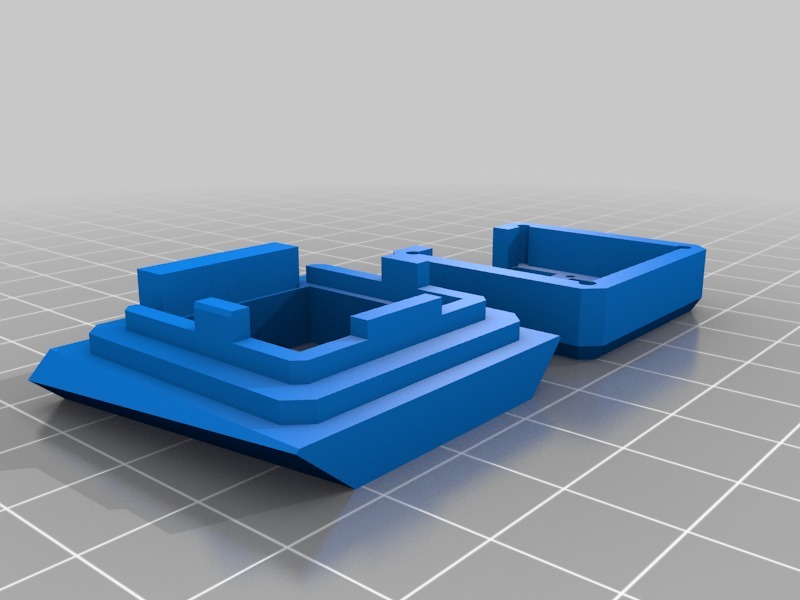

I also thinned out the front of the case front to give a bit more clearance. I also punched a square hole in the back of the mount to allow a little airflow, reduce material.

Take care when mounting to be sure the gantry doesn't hit the lens.

Print Settings

Printer Brand:

MakerBot

Printer:

Rafts:

Supports:

Resolution:

Infill:

Category: 3D Printer Accessories
